Down The Hole Drilling

Your Professional Down The Hole Drilling Supplier

D Miningwell is a manufacturer and exporter of drilling and mining equipment with over 20 years of production experience. Founded in 2001, we operate our own workshops and R&D team, providing rock drills, DTH drills, top hammer drills, rotary drilling rigs, water well drills, and related tools. Our products are widely used in mining, quarrying, construction, and water well drilling.

Manufacturing & R&D Capability

We own production workshops for drilling rigs, DTH hammers, and drill pipes, supported by an experienced engineering and R&D team focused on practical product improvement.

Quality Control System

All raw materials and processes are strictly inspected, with traceable records to ensure stable quality and compliance with specifications.

Professional Service & Support

Our technical team provides installation guidance, training, and on-site maintenance support, helping customers reduce downtime and operating costs.

OEM Support

We accept all OEM orders, just contact us and send me your design. We will offer you reasonable price and make samples for you as soon as possible.

Parameter

Technical Parameters	HT400	HT500	HT600
Hole Range (mm)	90-155	90-203	90-254
Hammer Size (Inch)	3 / 4 / 5	3 / 4 / 5 / 6	3 / 4 / 5 / 6 / 8
Drill Rod Diameter (mm)	76 / 89	76 / 89	76 / 89
Drill Rod Length (m)	2 / 3	2 / 3	3050
Economic Drilling Depth (m)	30	30	21
Rotation torque (nm)	2800	1800-3600	2200-4400
Rotation Speed (rpm)	0-110	0-110	0-110
Engine Model	Yuchai YC4DK100	Yuchai YC4DK100	Yuchai YC4DK100
Power (kw)	73.5	73.5	73.5
Pressure Required (bar)	7~25	7~25	7~25
Air Comsuption (m3/min)	8-20	8-20	8-20
Advance length (mm)	3185	3185	4125
Max. Propulsion (kn)	20.5	20.5	45.0
Max.Walking Speed (km/h)	3.0	3.0	3.0
Gradeability (o)	25°	25°	25°
Ground clearance of chassis (mm)	480	310	400
Weight (kg)	5500	5800	6200
*Lengthwidthheight (m)*	6.42.22.4	6.42.22.4	6.42.22.4
Leveling angle (o)	/	Front 13 / Back 13	Front 13 / Back 13
Dust Collector	Dry type	Dry type	Dry type

Types of Down The Hole Drilling

The down the hole drilling produced by our company mainly include the following types:

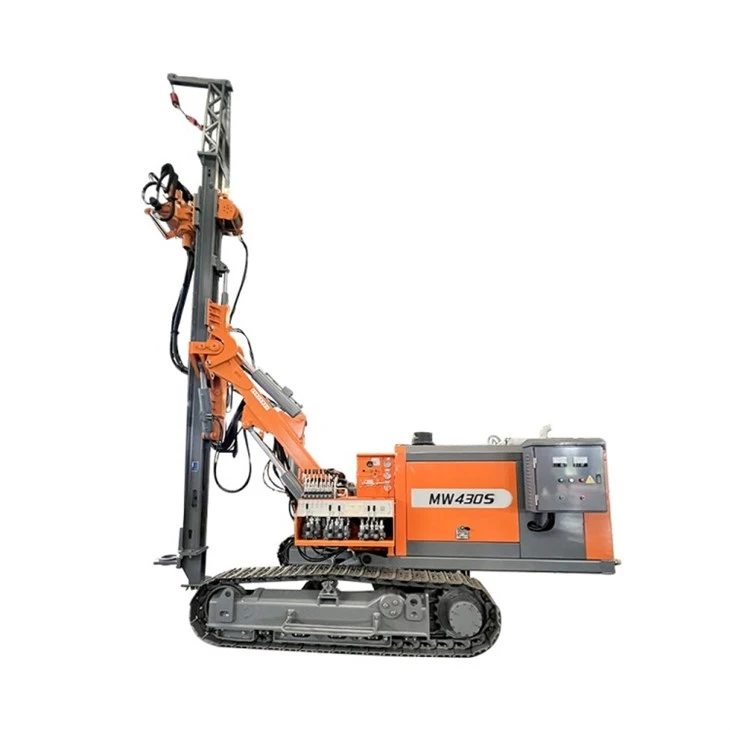

Anchor Drilling Rig
The power standard of this type of split anchor drilling rig is a dual-power design, equipped with a 74KW diesel engine and an IP54 55KW electric motor.

Top Hammer Surface Drill Ri
Top Hammer Surface Drill Rig is a drilling rig that fixes the rock drill on the top of the propulsion beam, transmits impact energy through the drill rod, and cooperates with the rotation and propulsion system to complete the surface drilling operation.

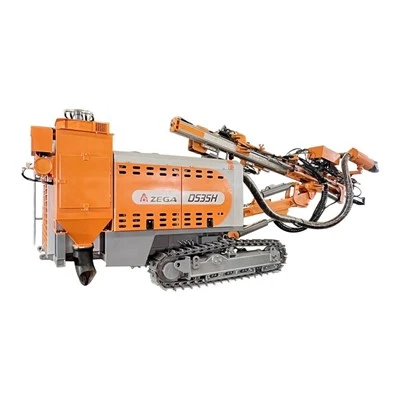

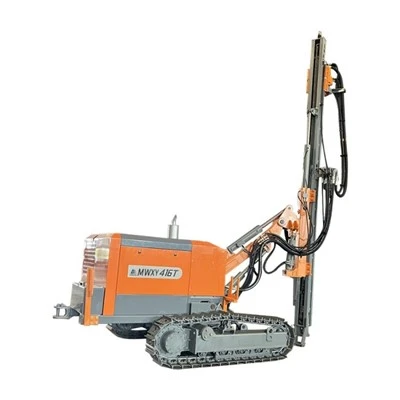

DTH Drilling Machine
The split DTH drilling rig mining is made of a piece of metal plate, which is cut directly from the steel block, which is more stable.

Advantages of Down The Hole Drilling

High Penetration Rates

The direct impact of the hammer on the bit ensures efficient energy transfer, allowing for rapid drilling progress through even the toughest rock. This speed translates to quicker project turnaround and reduced operational hours.

Excellent Hole Straightness

Due to the hammer being located directly behind the bit, DTH drilling provides superior accuracy and minimizes hole deviation compared to other methods. This is crucial for applications requiring precise borehole alignment.

Effective Cuttings Removal

The continuous flow of compressed air efficiently flushes rock cuttings out of the borehole, preventing their accumulation and ensuring the drill bit remains clean for optimal cutting action and drilling speed.

Versatility in Hard Rock

DTH drilling excels in hard and abrasive rock formations where other drilling techniques may struggle or experience higher wear and tear. This makes it ideal for mining, quarrying, and construction in challenging geological conditions.

Applications of Down The Hole Drilling

Piling for deep foundations: Used to drill holes for piling in foundation work, ensuring stability and support for structures.

Blast hole drilling: Commonly used for drilling blast holes in mining and quarrying operations, as well as in road and tunnel construction.

Anchoring: Applied for creating anchor holes in slope stabilization projects and retaining structures.
Rock socketing: Used in dam and bridge construction to drill into rock for securing foundation supports.

Geotechnical exploration

Employed in soil investigation and sampling for large-scale infrastructure projects.

Water well drilling

Suitable for drilling deep wells in areas with hard rock formations.

Tunneling

Utilized in tunnel construction to drill precise holes for blasting or installations.

Safety Precautions for Down The Hole Drilling Operations

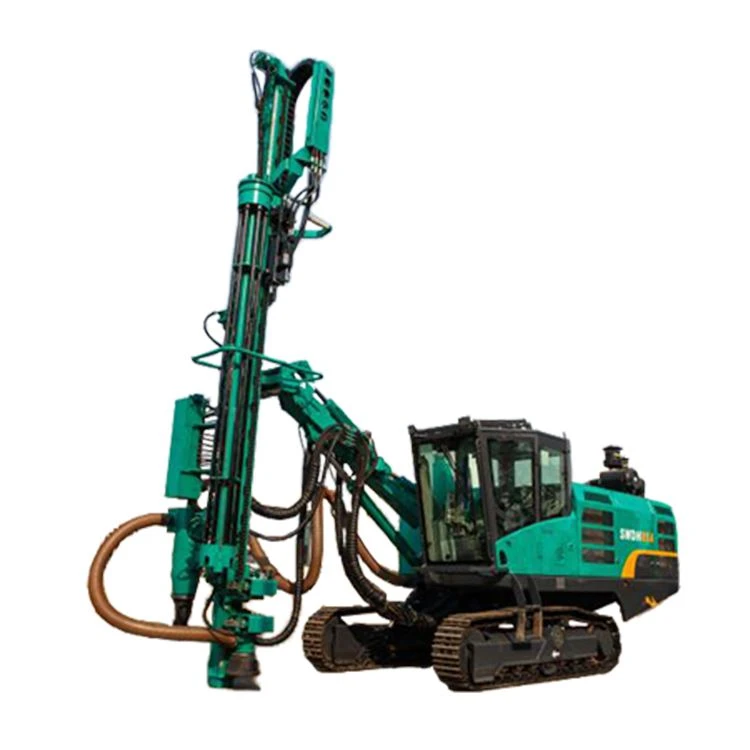

Hydraulic Open-pit Top Hammer Rock Drilling Machine

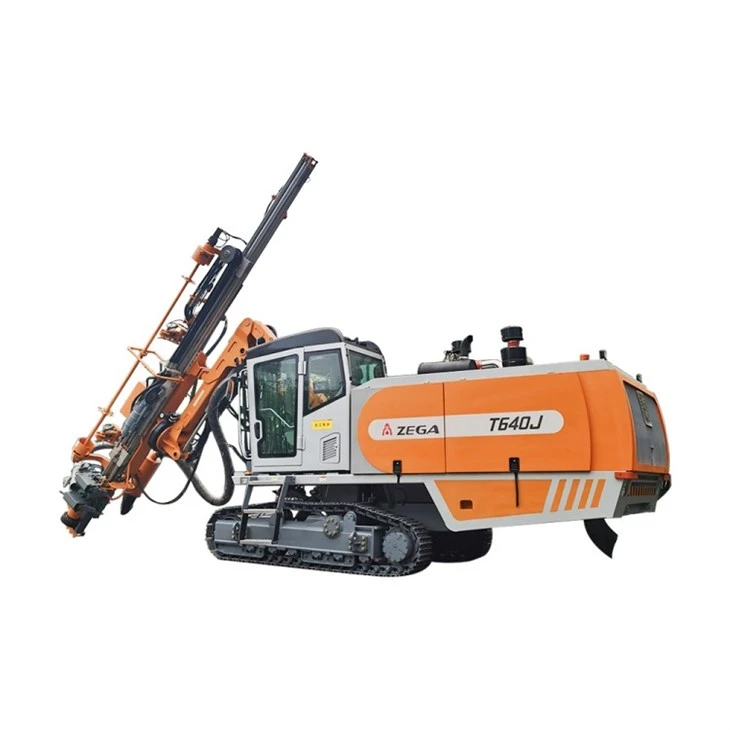

Fully Hydraulic Integrated Tracked Surface Top Hammer Drilling Rigs

Training and Qualifications
Ensure that all personnel involved in DTH drilling operations are properly trained and qualified. This includes operators, supervisors, and maintenance personnel. Training should cover equipment operation, emergency procedures, hazard recognition, and safe work practices.

Personal Protective Equipment (PPE)
Provide and enforce the use of appropriate PPE, including hard hats, safety glasses, hearing protection, gloves, and steel-toed boots. Additional PPE such as respiratory protection may be necessary depending on the drilling environment.

Equipment Inspection and Maintenance
Regularly inspect DTH drilling equipment to identify any signs of wear, damage, or malfunction. Perform routine maintenance and address any issues promptly to prevent accidents or equipment failures.

Site Assessment
Conduct a thorough assessment of the drilling site to identify potential hazards such as uneven terrain, overhead obstacles, utilities, and unstable ground conditions. Implement appropriate controls to mitigate these hazards.

Emergency Preparedness
Develop and communicate emergency procedures for various scenarios such as equipment malfunction, struck-by incidents, fires, and medical emergencies. Ensure that all personnel are trained in these procedures and that emergency contact information is readily available.

Communication
Establish clear communication protocols among all personnel involved in the drilling operation, including signal systems for equipment movement and emergency communication methods.

Environmental Considerations
Be mindful of environmental factors such as weather conditions, wildlife habitats, and water sources. Take appropriate measures to minimize the impact of drilling activities on the surrounding environment.

Safe Work Practices
Encourage and enforce safe work practices such as proper lifting techniques, secure footing, and maintaining a safe distance from moving equipment. Avoid shortcuts or risky behaviors that could lead to accidents.

Hazardous Materials Handling
If drilling operations involve the use of hazardous materials such as drilling fluids or explosives, ensure that proper handling, storage, and disposal procedures are followed to minimize risks to personnel and the environment.

Maintenance of Down The Hole Drilling

Schedule Regular Inspections

Proactively check for wear and tear on drill components like belts, chucks, and bits. This allows you to replace parts before they fail and cause downtime.

Replace Worn Parts

Don't wait for parts to break completely. By replacing worn bits, brushes, and other components at the first sign of wear, you can prevent damage to the drill itself.

Lubricate Regularly

Friction is the enemy of any machine. Regularly lubricating moving parts according to the manufacturer's instructions reduces wear and tear, extending the life of your drill.

Inspect Crucial Systems

Don't overlook the drill's hydraulic systems, electrical connections, and overall structural integrity. Schedule regular inspections to identify potential problems before they lead to malfunctions.

Ordering Process

Project requirement analysis → Configuration proposal and confirmation → Engineering design and validation → Manufacturing and assembly → Testing and delivery

Packaging and Shipping

Packaging	Steel frames, plywood cases, or wooden crates
Shipping	We usually go by sea transportation, because it is more convenient and cheaper.

Our Factory

In July 2001, D Miningwell's predecessor, Quxian Technology Filter Factory, was established. In 2017, established Zhejiang Minsheng Supply Chain Management Co., Ltd. and started the foreign trade journey.

Our Certificates


FAQ

Q: What is DTH drilling, and how does it work?

A: DTH (Down-the-Hole) drilling is a method that uses a pneumatic hammer positioned directly above the drill bit to deliver high-frequency impact energy, facilitating efficient penetration of hard rock formations.

Q: How does DTH drilling compare to rotary and top hammer drilling?

A: DTH drilling provides higher penetration rates than rotary and top hammer drilling, particularly in hard rock, due to its efficient energy transfer mechanism, resulting in lower operational costs and less equipment wear.

Q: In what industries is DTH drilling most effective?

A: DTH drilling is widely used in mining, quarrying, water wells, and urban construction projects due to its precision, adaptability, and efficiency in penetrating hard rock formations.

Q: What are the maintenance requirements for DTH equipment?

A: DTH systems have low maintenance requirements due to their robust design, resulting in reduced operational costs and enhanced uptime.

Q: Are there environmental advantages to using DTH drilling?

A: Yes, DTH drilling offers significant environmental advantages, including reduced vibration, improved dust control, and minimal ground disturbance, making it suitable for eco-sensitive areas.

Q: What is the difference between down the hole drilling and top hammer drilling?

A: In down the hole drilling, the hammer is at the bottom near the bit. In top hammer drilling, impact energy travels through drill rods, causing energy loss.

We're professional down the hole drilling manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to wholesale down the hole drilling made in China here from our factory. For price consultation, contact us.
