DTH Hammer

what is a dth hammer?


DTH hammers, also known as down the hole hammers, are widely used as rock drilling DTH hammers in water well drilling, mining, quarry blasting, and hard rock drilling applications because of their high penetration rate, stable drilling performance, and excellent efficiency in hard rock formations.



As one of the core components in DTH drilling systems, a DTH hammer converts compressed air into high-frequency impact energy to drive the drill bit directly at the bottom of the hole. Compared with traditional rotary drilling methods, DTH drilling delivers faster drilling speed, straighter holes, and better performance in granite, basalt, limestone, and other hard rock formations.



However, drilling performance does not depend on the DTH hammer alone. Choosing the correct high pressure DTH hammer, drill bit, air compressor, and drilling rig based on hole diameter, drilling depth, rock hardness, and working pressure is critical for achieving maximum drilling efficiency and lower operating costs.



Incorrect DTH hammer selection can lead to:

  • Low penetration rate
  • Excessive air consumption
  • Frequent drill bit wear
  • Poor hole quality
  • Increased fuel consumption and downtime

As a professional drilling equipment supply chain partner, we provide complete DTH drilling solutions including DTH hammers, DTH drill bits, portable screw air compressors, and drilling rigs for water well drilling, mining exploration, blast hole drilling, and quarry projects.



From low pressure DTH hammers for shallow drilling to high pressure DTH hammers for deep hard rock drilling, we help customers select the most suitable drilling solution for their project requirements.



Tell us your drilling depth, hole diameter, and rock condition — we will recommend the most suitable DTH hammer solution for your project.



Get Free Recommendation





  • high air pressure dth hammer
    high air pressure dth hammer

    The DTH Open Pit Drill Rig, incorporating the DHD series high-pressure hammer, serves as a revolutionary tool for executing effective and potent drilling in open-pit mining, energy discovery, and
    Add to Inquiry
  • Low Pressure DTH Hammer
    Low Pressure DTH Hammer

    Brand name: miningwellMinimum order quantity: 1 setPacking Detail: plastic/wooden caseDelivery Time:7-10 daysPayment terms:L/C, T/T, Western UnionUsage: quarry, mining, water well drilling,
    Add to Inquiry
  • medium air pressure dth hammer
    medium air pressure dth hammer

    Medium pressure down-the-hole hammers, crafted from premium steel and bonded carbide, are subjected to a unique thermal processing method to prolong their operational lifespan. Drilling endeavors
    Add to Inquiry
  • High Pressure DTH Hammer
    High Pressure DTH Hammer

    Our company, renowned as one of the world's most sophisticated down hole hammers, has engineered and created this high pressure DTH hammer for bottomless valves. The DTH Hammer, a crucial element in
    Add to Inquiry

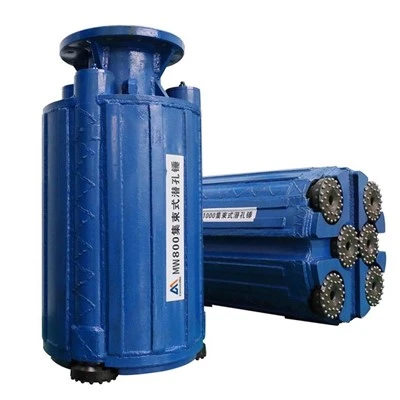

  • Cluster DTH Drilling Hammer
    Cluster DTH Drilling Hammer

    The Cluster down the hole hammer piling is suitable for drilling blast holes, mine fence holes, quarries, highways, mountain fence reinforcement, anchoring, geothermal air-conditioning holes,
    Add to Inquiry
Categories
Latest Products
Contact Us


How Does a DTH Hammer Work?



A DTH hammer works by converting compressed air into repeated impact energy to drive the drill bit during drilling operations.



Basic Working Principle:

  1. High-pressure compressed air enters the DTH hammer
  2. Internal piston moves rapidly inside the hammer
  3. The piston strikes the drill bit continuously
  4. The drill bit crushes and breaks the rock
  5. Compressed air removes rock cuttings from the hole



Because the impact force is generated directly above the drill bit, DTH drilling hammers achieve higher energy transfer efficiency compared with conventional rotary drilling systems.



High pressure DTH hammers combined with portable screw air compressors can significantly improve drilling speed in granite, basalt, quartz, and other hard rock formations.



👉 Air pressure and airflow directly affect DTH hammer performance, penetration rate, and drilling efficiency.



What Is the Difference Between DTH Hammer and Top Hammer?



DTH hammer systems and top hammer systems are two of the most widely used rock drilling methods in mining, quarry, tunneling, and water well drilling applications. Although both use percussive impact force to break rock, their drilling mechanisms and suitable applications are different.

DTH Hammer System

bottom of the hole.

Key Features:

Direct impact energy transfer

Lower energy loss

Better hole straightness

Excellent performance in hard rock drilling

Ideal for deep hole drilling and water well drilling

👉 Result:
Higher drilling efficiency and better performance in deep hard rock formations.

Top Hammer System

In a top hammer system, the impact energy is generated at the drilling rig and transferred through drill rods to the drill bit.

Key Features:

Faster drilling in shallow holes

Suitable for tunneling and surface drilling

Easier mobility

Higher energy loss in deep holes

👉 Result:
More suitable for shallow and medium-depth drilling applications.





Conclusion

For deep hole drilling, quarry drilling, and hard rock drilling applications, DTH hammer systems generally provide better penetration rate, lower energy loss, and improved hole straightness compared with top hammer systems.





What Are the Advantages of DTH Hammers?



Modern DTH hammers offer significant advantages in mining, quarry, and water well drilling projects.

01/

High Penetration Rate

DTH drilling hammers deliver strong impact force directly to the rock, significantly improving drilling speed in hard formations.

👉 Result:
Faster drilling and higher project productivity

02/

Excellent Performance in Hard Rock

Hard rock DTH hammers are specifically designed for granite, basalt, quartz, and limestone drilling applications.

👉 Result:
Stable drilling performance in difficult geological conditions

03/

Straighter Holes

Because impact force is generated at the bottom of the hole, DTH drilling systems produce straighter holes compared with conventional rotary drilling.

👉 Result:
Better drilling accuracy and reduced hole deviation

04/

Lower Energy Loss

Compared with top hammer drilling, DTH hammers reduce energy loss through drill rods.

👉 Result:
Higher drilling efficiency and lower air consumption

05/

Lower Operating Cost

High efficiency DTH hammers can reduce fuel consumption, drilling time, and drill bit wear.

👉 Result:
Lower total drilling cost per meter

06/

Suitable for Deep Hole Drilling

High pressure DTH hammers are widely used for:

  • Water well drilling
  • Blast hole drilling
  • Mining exploration drilling
  • Quarry drilling

👉 Result:
Reliable drilling performance in deep hole applications

07/

Long Service Life
Wear resistant long life dth hammer are designed for continuous drilling operations in harsh environments.
👉 Result:
Reduced maintenance frequency and lower downtime

08/

Compatible with Different Drill Bits
Modern DTH drilling hammers can match multiple drill bit types and hole sizes.
👉 Result:
Flexible drilling solutions for different projects



👉 Not sure which DTH hammer is suitable for your drilling project? Contact us for a customized recommendation.



Get My Custom Solution



What Are the Disadvantages of DTH Hammers?



While DTH hammers offer excellent drilling performance, they also have some limitations that should be considered before selecting a drilling system.

High Air Consumption

DTH drilling requires large volumes of compressed air, especially high pressure DTH hammers for deep drilling.
👉 Our Solution:
We help customers match suitable portable screw air compressors for maximum efficiency.

01

Higher Initial Investment

Complete DTH drilling systems require:

● DTH hammer

● Drill bit

● Air compressor

● Drilling rig

👉 However:
The higher drilling efficiency usually results in lower long-term drilling cost.

02

Drill Bit Wear in Abrasive Formations

Hard abrasive rock formations can accelerate drill bit wear.
👉 Our Solution:
We provide high quality wear resistant DTH drill bits for hard rock drilling applications.

03

Incorrect Matching Can Reduce Efficiency

Improper matching between DTH hammer, air compressor, and drilling rig may reduce drilling performance.
👉 Our Solution:
We provide complete drilling solution matching services based on project conditions.

04



What Are the Different Types of DTH Hammers?



DTH hammers can be classified based on working pressure, drilling application, and internal structure. Choosing the correct type is essential for achieving maximum drilling efficiency and lower operating cost.



DTH Hammers by Working Pressure

🔹 Low Pressure DTH Hammer

  • Working pressure: 5–10 bar
  • Suitable for shallow drilling
  • Lower air consumption
  • Commonly used in small water well drilling projects and soft rock formations

👉 Best for:
Small drilling rigs and light-duty drilling applications



🔹 Medium Pressure DTH Hammer

  • Working pressure: 10–15 bar
  • Suitable for medium-depth drilling
  • Balanced drilling speed and air consumption
  • Commonly used in medium water well drilling projects

👉 Best for:
Medium-depth water well drilling and general rock drilling applications

🔹 High Pressure DTH Hammer

  • Working pressure: 18–25 bar
  • Suitable for hard rock drilling and deep hole drilling
  • Higher penetration rate
  • Widely used in mining, quarry drilling, and deep water well drilling

👉 Best for:
Hard rock drilling, mining drilling, and blast hole drilling




Recommended DTH Hammer for Different Hole Sizes

3 Inch DTH Hammer

Hole size: 85–105mm

Application: Shallow water well drilling and small quarry drilling

4 Inch DTH Hammer

Hole size: 110–135mm

Application: 4 inch dth hammer for water well drilling and geothermal drilling

👉 One of the most popular DTH hammer sizes for water well drilling projects

5 Inch DTH Hammer

Hole size: 135–155mm

Application: Medium-depth drilling and mining drilling

6 Inch DTH Hammer

Hole size: 155–203mm

Application: 6 inch dth hammer for mining and blast hole drilling

👉 Widely used as a mining DTH hammer for hard rock drilling projects

8 Inch DTH Hammer

Hole size: 203–305mm

Application: Large diameter blast hole drilling and quarry drilling

12 Inch DTH Hammer

Hole size: 305mm+

Application: Large infrastructure and mining drilling projects



👉 Choosing the correct DTH hammer size based on hole diameter and compressor pressure is essential for achieving maximum drilling efficiency.



Get Free Recommendation



How High Pressure DTH Hammers Are Assembled for Hard Rock Drilling





What is a DTH hammers Used For?



Our DTH hammers are widely used in:

We provide complete DTH drilling solutions for both surface and underground drilling projects.



DTH Hammer Price & Cost Factors



DTH hammer price depends on:

Main Cost Factors:

👉 In long-term drilling projects, selecting a high efficiency DTH hammer can significantly reduce total drilling cost.



Why Choose us



1.We provide complete drilling solutions including:

DTH hammers

DTH drill bits

Portable screw air compressors

Water well drilling rigs

Mining drilling rigs

Drill pipes and accessories

👉 One supplier = Better compatibility + Higher drilling efficiency + Lower project risk



2.We provideInstallation & Technical Support,Correct hammer selection and drilling parameter setup are critical for achieving stable drilling performance.

✅ Our Support Includes:

We help customers improve drilling efficiency and reduce operating costs from the beginning of the project.



3.Advantages of DTH Impactors

We support water well drilling, mining drilling, and quarry drilling projects in multiple countries worldwide.



Our Factory



In July 2001, D Miningwell's predecessor, Quxian Technology Filter Factory, was established. In 2017, established Zhejiang Minsheng Supply Chain Management Co., Ltd. and started the foreign trade journey. MININGWELL has its own production workshop for drilling rigs, down hole hammers and drill pipes. From underground rock drilling to open pit submerged rock drilling to deep well drilling.



FAQ – DTH Hammer



Q1: What air compressor is needed for a DTH hammer?

DTH hammers require sufficient air pressure and airflow to operate efficiently.
For most water well drilling and mining applications:
• Low pressure DTH hammers usually require 7–10 bar
• High pressure DTH hammers typically require 18–25 bar
Portable screw air compressors are commonly used because they provide stable continuous airflow for DTH drilling operations.

Q2: What is the best DTH hammer for hard rock drilling?

High pressure DTH hammers are generally considered the best option for hard rock drilling in granite, basalt, and quartz formations.
For deep hole and mining applications, commonly used models include:
• 4 inch DTH hammer
• 5 inch DTH hammer
• 6 inch DTH hammer
The correct hammer depends on:
• Rock hardness
• Hole diameter
• Drilling depth
• Compressor pressure

Q3: What is the difference between low pressure and high pressure DTH hammers?

Low pressure DTH hammers:
• Lower air consumption
• Suitable for shallow drilling
• Common in agricultural water well projects
High pressure DTH hammers:
• Faster drilling speed
• Better hard rock performance
• Suitable for mining and deep hole drilling
High pressure systems are widely used in modern water well drilling and quarry drilling projects.

Q4: How to choose a DTH hammer size?

DTH hammer size mainly depends on:
• Hole diameter
• Compressor capacity
• Drilling depth
• Geological conditions
Typical recommendations:
• 3 inch DTH hammer → shallow drilling
• 4 inch DTH hammer → water well drilling
• 6 inch DTH hammer → mining drilling
• 8 inch DTH hammer → blast hole drilling

Q5: Which is better for drilling: DTH hammer or rotary drilling?

DTH drilling is generally better for:
• Hard rock drilling
• Deep hole drilling
• Quarry drilling
• Water well drilling
Rotary drilling is more suitable for:
• Soft soil formations
• Clay
• Sand layers
DTH drilling provides higher penetration rate and straighter holes in hard rock formations.

Q6: How long does a DTH hammer last in hard rock drilling?

The lifespan of a DTH hammer depends on:
• Rock condition
• Air quality
• Lubrication
• Drilling pressure
• Maintenance
High quality wear resistant DTH hammers can achieve long service life even in demanding mining drilling applications.

Q7: Can DTH hammers be used for water well drilling?

Yes. DTH hammers are widely used in water well drilling because they provide:
• Faster drilling speed
• Better hole straightness
• Excellent hard rock performance
• Higher drilling efficiency
High pressure DTH hammers are especially suitable for deep water well drilling projects.

Q8: What causes low drilling efficiency in DTH drilling?

Common reasons include:
• Insufficient compressor pressure
• Incorrect DTH hammer size
• Worn drill bits
• Poor hammer matching
• Low airflow volume
Correct matching between the DTH hammer, drill bit, air compressor, and drilling rig is essential for achieving maximum drilling efficiency.

Q9: What is the most commonly used DTH hammer size?

The most popular DTH hammer sizes are:
• 4 inch DTH hammer
• 5 inch DTH hammer
• 6 inch DTH hammer
These sizes are widely used for:
• Water well drilling
• Mining exploration
• Quarry drilling
• Blast hole drilling

Q10: How much does a DTH hammer cost?

DTH hammer price depends on:
• Hammer size
• Working pressure
• Brand
• Material quality
• Application type
High pressure mining DTH hammers usually cost more than low pressure water well drilling hammers due to higher wear resistance and performance requirements.



Call to Action



Get Your Custom DTH Hammer Solution

Tell us your project requirements:

👉 We will recommend the most suitable DTH hammer, drill bit, and air compressor combination for your project.



Get My Custom Solution



We're professional dth hammer manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to wholesale dth hammer made in China here from our factory. For price consultation, contact us.

drill bit importers, round shank drill bits, drill bit ordering

(0/10)

clearall
