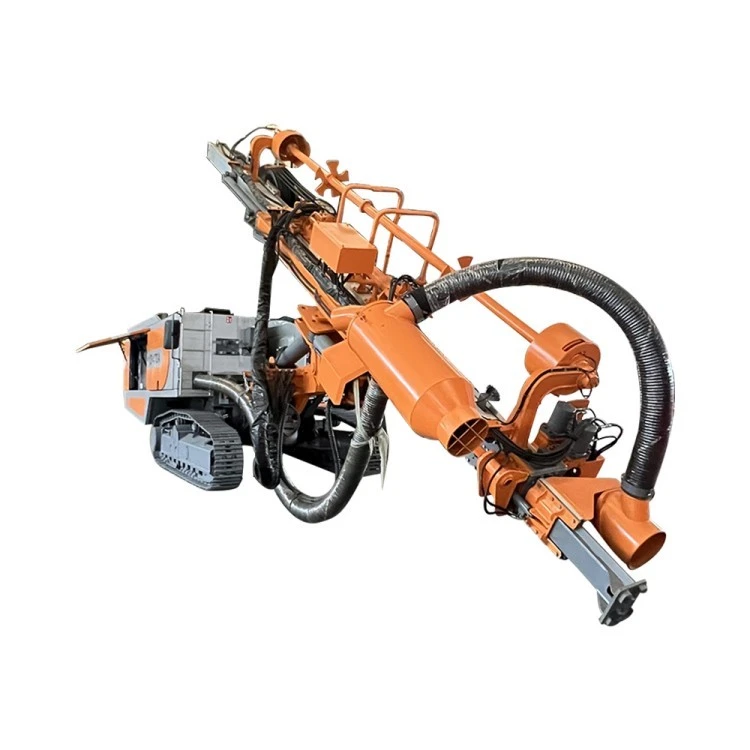

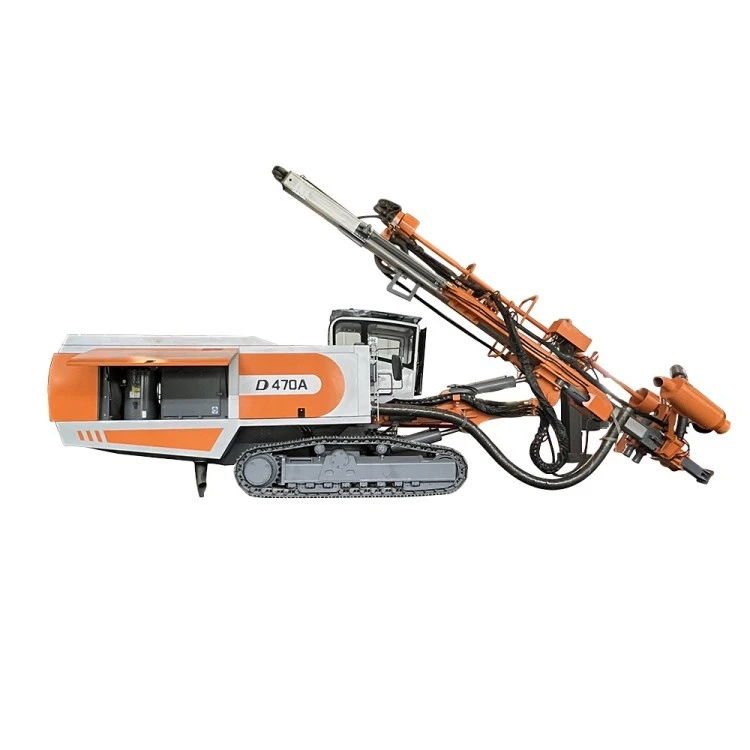

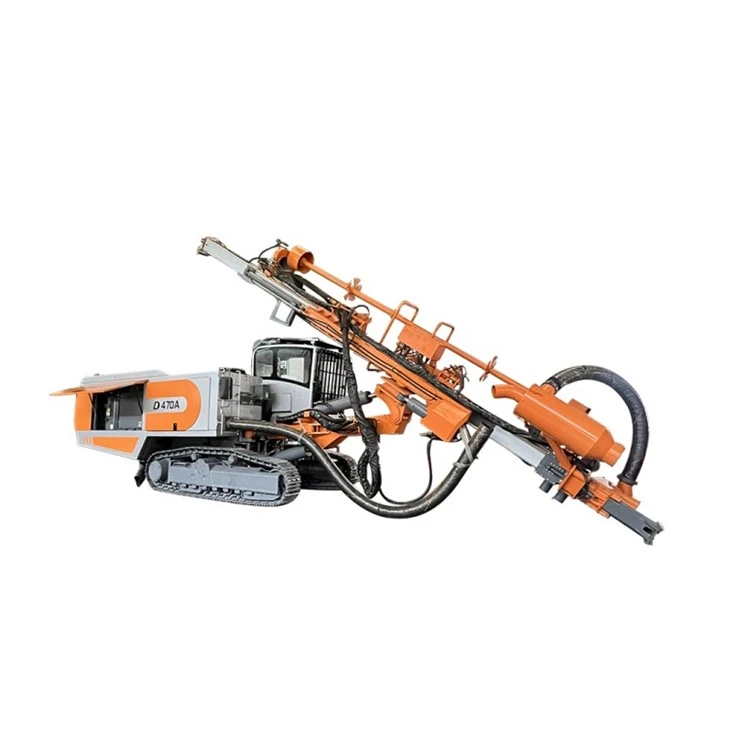

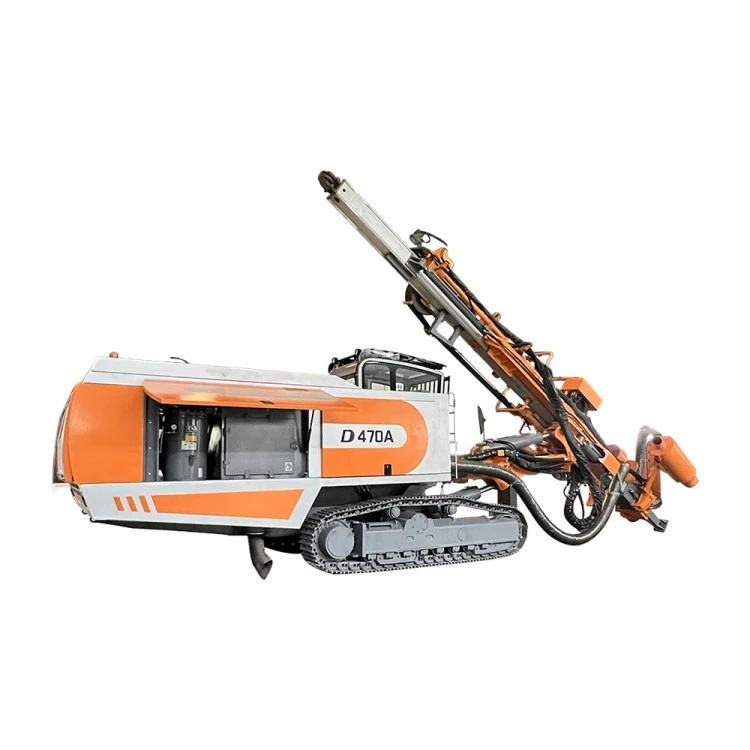

The D470A DTH Open Pit Drill Rig offers an advanced, agile drilling method for effective rock excavation, particularly in challenging open pit mining, quarrying, and construction endeavors. Its adaptability renders it a prime selection for contractors engaged in pre-split as well as mass-produced blasthole drilling.

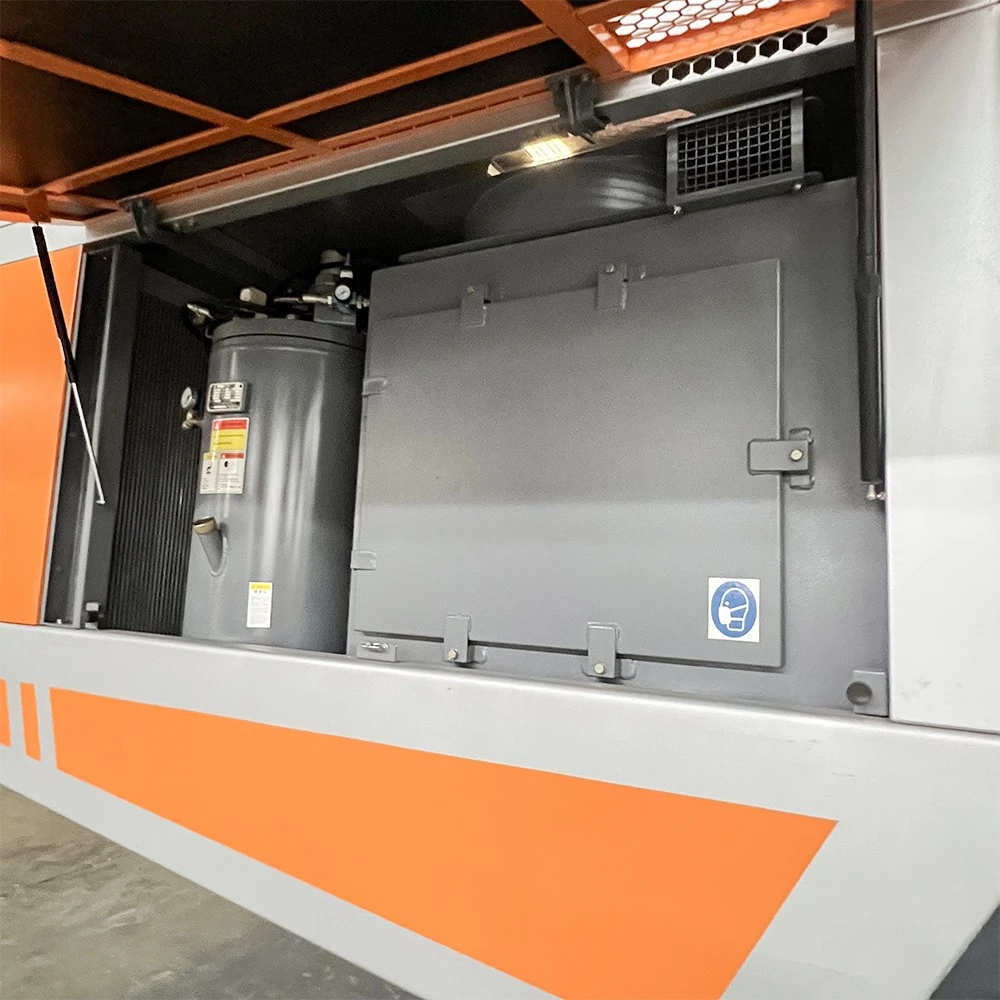

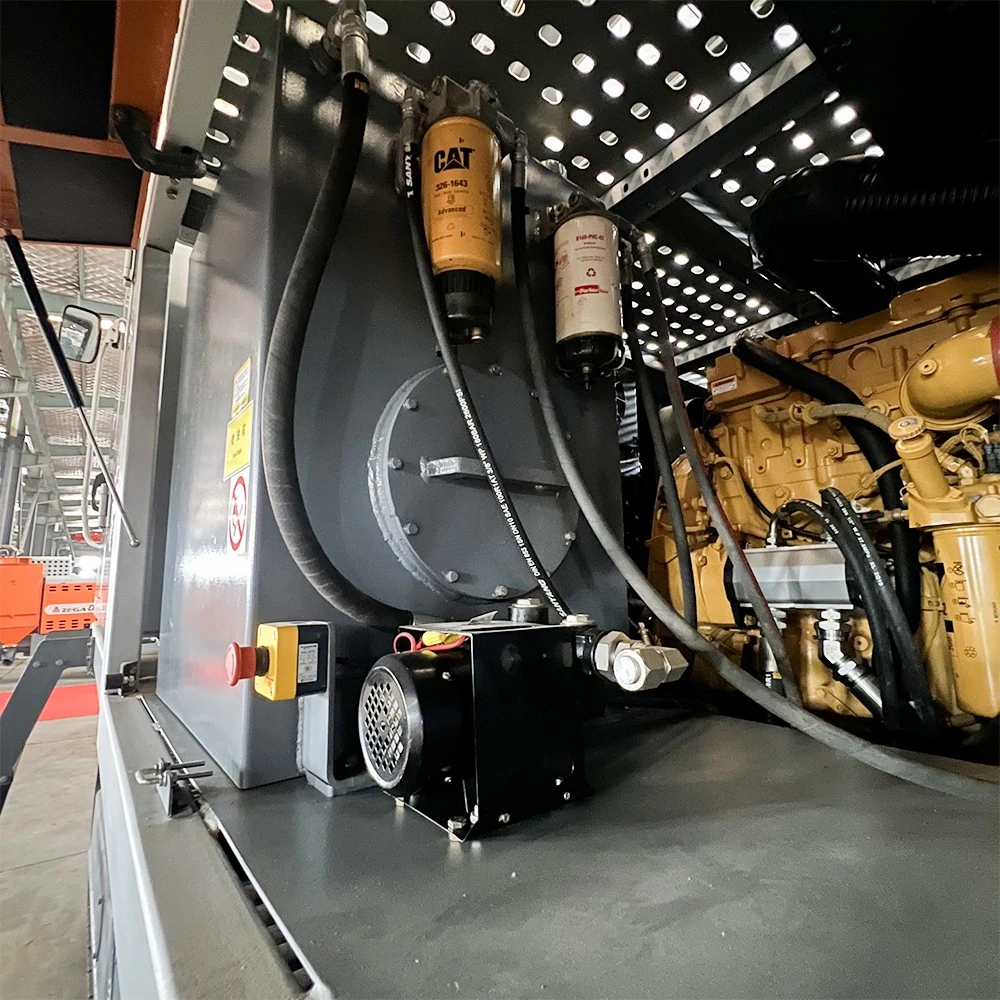

The DTH open pit drill rig driven by a Caterpillar C11 diesel engine that provides 287 kW (385 hp), is crafted for peak efficiency and reduced fuel consumption. This down the hole drilling machine, equipped with a 21m³ compressor delivering 24-bar (348 psi) pressure, aligns flawlessly with the 5-inch DTH hammer, demonstrating similar efficiency to a 6-inch hammer and facilitating various drilling tasks. Its design guarantees efficient use of all accessible energy, leading to cost reduction, low energy loss, and outstanding efficiency in diverse demanding drilling settings.
The design of the integrated DTH drilling rig machine D470A is characterized by its high performance and user-friendliness. The system includes an advanced control mechanism that is precise and user-friendly, facilitating operators' complete mastery over machine operations. The apparatus comes with an all-in-one screen, merging essential details like machine diagnostics and an integrated angle measure for rapid and accurate drilling positioning. The combined technology facilitates quick and efficient configuration, reducing idle time.
The integrated DTH open pit drilling rig machine D470A also features an advanced dust control system, which significantly increases the rig's suction capacity and includes a pre-cleaner to help reduce drilling dust escape. This system helps maintain cleaner air around the drill rig, improving both safety and environmental compliance. For more challenging conditions, an optional dust suppression system can be added for enhanced dust management.
Additionally, the high-output compressor significantly boosts flushing air capacity, which accelerates drilling rates, reduces bit wear, and ensures more efficient material removal. The rotary pipe changer makes drill pipe changes easy, reducing time and effort during rig operation.

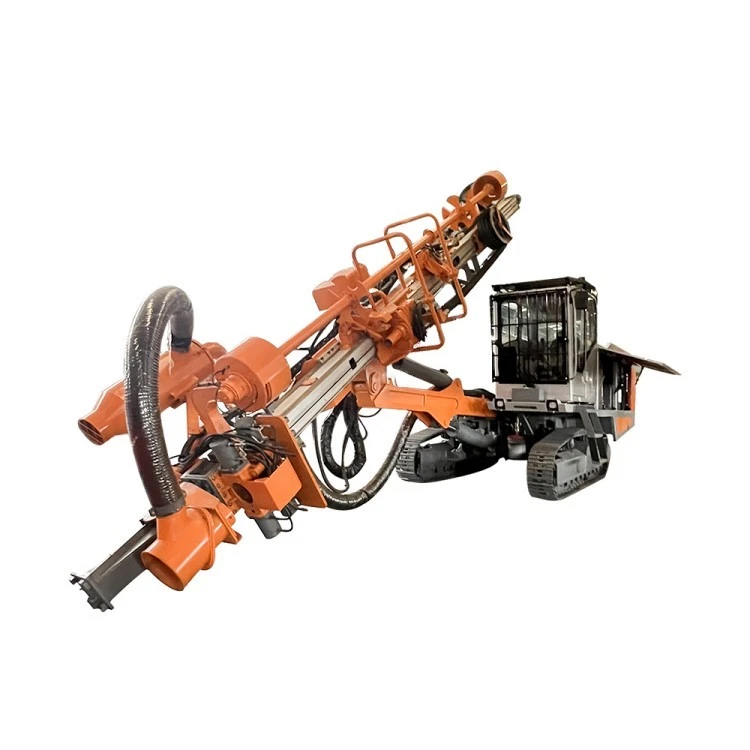

Overall, the D470A DTH integrated open pit drilling is an efficient, reliable, and cost-effective solution for high-capacity rock drilling, combining powerful performance with innovative technology and user-friendly design.
Specifications
|
Recommended Hole Diameter |
Ф138-165mm |
|
Drill Rod/ Tube Diameter |
Φ114 m m ( Φ102 m m optional) |
|
DTH Hammer |
5"/ 6" |
|
Engine Type |
Caterpillar C11 (Tier 3) |
|
Engine Output Power |
287kW(385hp) |
|
Flushing Air Capacity |
21 m3/m in ( 741CFM ), at 24bar(348psi) |
|
Operator Cabin |
High visibility |
|
Certificate |
ROPS and FOPS |
|
Transport Length |
11,560mm |
|
Transport Width |
2,700mm |
|
Transport Height |
3,560mm |
|
Weight Approx |
23,560kg |
