Down The Hole Drill Rig

Name: China Down The Hole Drill Rig Manufacturers Suppliers Factory - Wholesale Service - Miningwell Supply Chain
Brand: Miningwell
SKU: 249406872

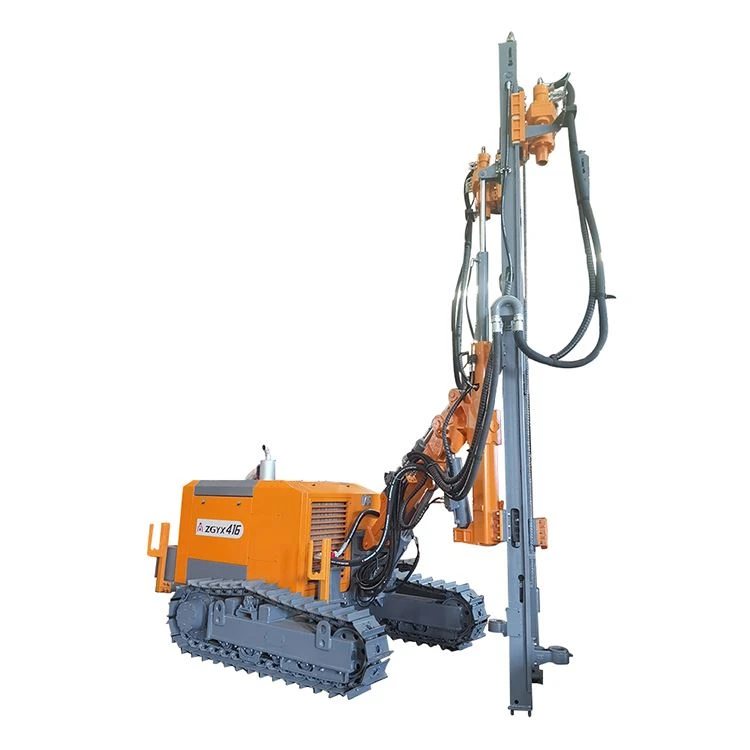

MWYX-416 separate down the hole drilling rig is equipped with double motor slewing head and multi-way valve with adjustable slewing speed, the slewing torque can be up to 1950N.m, which can satisfy the demand of φ76 drilling rods and 130 hole diameter.

Send Inquiry

Download

Description

Specifications

General Specification
Hole Range	Φ 90-127 mm
Drill Pipe Sizes	Φ 60x3000 mm
Rotation Torque(Max.)	1950 N.m
Rotation Speed	0- 150 rpm
Feed Force	15 kN
Pull Up Force	25 kN
Feed Type	Chain / cylinder
Tramming Speed(Max.)	2.5 km/h
Gradient	25°
Weight	3830 kg/4270kg
Dimension	570021302200mm
Power Pack-( ZAYX-416)	YuChai YC4DK80 58KW
Power Pack - (ZAYX-416-1)	YuChai YC4DK80 58KW
Power Pack - (ZAYX-416-1)	(Dust collection system as standard equipment)
Matching Air Compressor
Working Pressure	0.7~1.5 Mpa
F.A.D	7~13 m3/min
Diesel Screw Compressor Model	141SCY-15/158SCY-17
Electric Screw Compressor Model	90SDY-14.5/132SDY-13

Product detail

Brand name: miningwell
Minimum order quantity: 1 set
Package Details: 40HQ-20GP
Delivery Time:15-20 days
Payment terms:L/C,T/T,Western Union

The rotary speed of MWYX-416 separate drilling rig can reach 150 rpm, which meets the demand of some customers for high speed drilling in soft rock strata. Meanwhile, the 416 series of down hole drilling rigs are equipped with engineering tracks and plunger motors as standard, which have stronger climbing ability and more stable and reliable quality. This down hole drilling rig is the highest configuration among similar models.

Shipping&Payment

Every piece of Miningwell equipment and drilling rig undergoes a rigorous load security check to ensure the safety of the cargo in the container.

Our payment methods: credit card, L/C, T/T, Western Union, and we support shipping by air and by sea.

FAQ

Q: Are you looking for agents?

A: Yes, we are looking for resellers around the world, please contact us to discuss further.

Q: Are you a trading company or a manufacturer?

A: We are a professional manufacturer specializing in drilling equipment and drilling tools. We trade our products directly with our customers.

Q: When can I get a price?

A: Usually we will quote within 8 hours of receiving your inquiry.

Q: What is your minimum order quantity?

A: There is no minimum order if we have the product in stock. If we need to manufacture, we can discuss minimum order quantities on a customer-specific basis.

Q: What is your payment term?

A: 30% deposit before production and 70% balance before shipment. We will show you photos of the product and packaging before you pay the balance.

Q: What payment methods do you accept?

A: T/T, L/C, Western Union, PayPal, etc. We also accept other convenient and fast payment methods. We also accept other convenient and fast payment methods.

Q: What kind of shipping methods do you offer?

A: We can provide sea freight, air freight and express delivery.

Q: What is your after-sales service?

A: Our quality warranty is one year. Any quality problems will be solved to satisfy our customers.
