Product detail
01 Exceptional Efficiency and Cost Savings

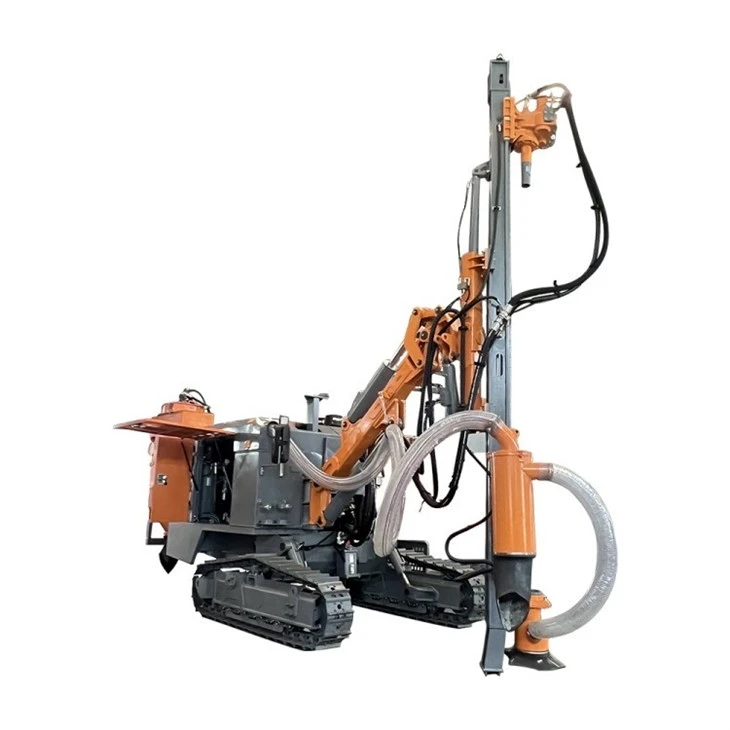

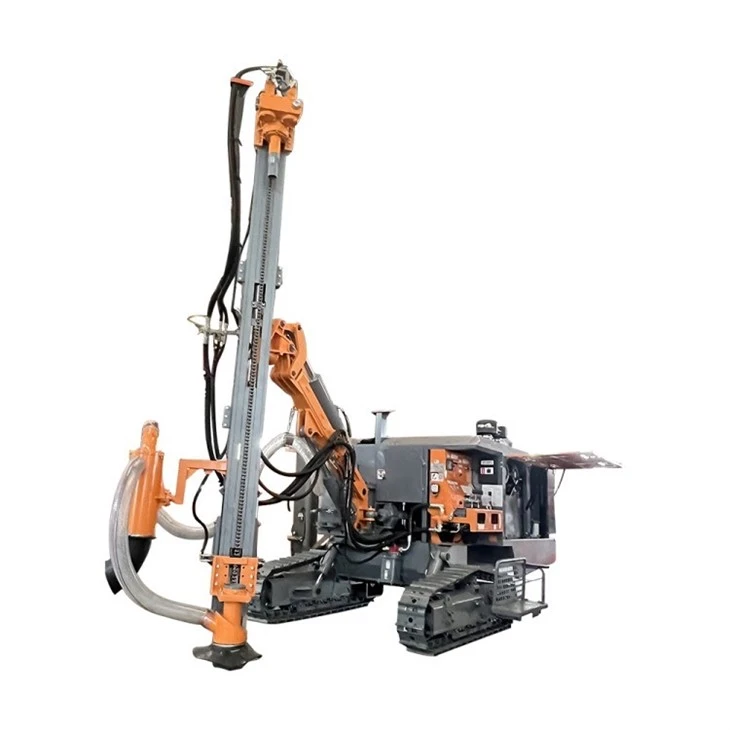

The ZGYX-452T mining down the hole drilling rig integrates a single power pack to drive both the hydraulic system and the screw air compressor, delivering a streamlined solution that significantly reduces operational costs. Compared to conventional separated drilling rigs, this design reduces fuel consumption by 35% and maintenance expenses by up to 50%, providing excellent cost-performance benefits without compromising quality or performance.
02 Powerful Drilling Capabilities
Equipped with a Yuchai YCA07260-T301 power pack and a screw air compressor capable of 18 bar and 17m³/min airflow, the down the hole drilling rig ZGYX-452T is designed for drilling holes ranging from 90mm to 130mm in diameter. Its robust torque rotation unit easily penetrates complex rock formations, ensuring efficient and reliable performance in challenging environments. The powerful dual-speed hydraulic tramming system provides excellent off-road capability, enabling smooth operation across diverse terrains.
03 Enhanced Environmental Features
The down the hole drilling rig's two-stage dry dust collection system enhances environmental friendliness while boosting production efficiency. By minimizing dust emissions during operation, this system ensures compliance with environmental standards while maintaining a clean and safe working environment.
04 Simplified Operation and Maintenance
The 452T down the hole hammer drill rig features an integrated control platform with a thoughtful layout, allowing operators to manage all functions effortlessly. High-quality hydraulic components, sourced from globally renowned European brands, ensure system reliability and reduce maintenance requirements. Additionally, integrating the air compressor and drilling rig on the same platform minimizes energy loss through connecting pipes and increases overall mobility for streamlined fleet management.
Specifications
|
Model |
ZGYX 452T |
ZGYX 452H |
|
Weight |
8,860 kg |
10,000 kg |
|
Engine (standard) |
Yuchai |
Yuchai |
|
Dimensions (LxWxH) |
9,000×2,360×3,000 mm |
|
|
Rotation torque (MAX) |
2,200 N.m |
|
|
Drilling hole diameter |
Φ90-138 mm |
|
|
DTH hammer(Standard) |
4" |
|
|
Drilling rod |
Φ76×3,000 mm |
|
|
Diesel tank volume |
300 L |
|
Application
Designed for a wide range of drilling tasks, the ZGYX-452T is perfect for projects such as surface mining, quarrying, urban construction, road slope stabilization, foundation pits, and large-scale open-pit mining. Its versatility also extends to drilling rock bolt holes, anchor cable holes, blast holes, and injection holes.
Shipping&Payment
Every piece of Miningwell equipment and drilling rig undergoes a rigorous load security check to ensure the safety of the cargo in the container.
Our payment methods: credit card, L/C, T/T, Western Union, and we support shipping by air and by sea.
