Drilling Rod

Your Professional Drilling Rod Supplier

D Miningwell is a manufacturer and exporter of drilling and mining equipment with over 20 years of production experience. Founded in 2001, we operate our own workshops and R&D team, providing rock drills, DTH drills, top hammer drills, rotary drilling rigs, water well drills, and related tools. Our products are widely used in mining, quarrying, construction, and water well drilling.

Manufacturing & R&D Capability

We own production workshops for drilling rigs, DTH hammers, and drill pipes, supported by an experienced engineering and R&D team focused on practical product improvement.

Quality Control System

All raw materials and processes are strictly inspected, with traceable records to ensure stable quality and compliance with specifications.

Professional Service & Support

Our technical team provides installation guidance, training, and on-site maintenance support, helping customers reduce downtime and operating costs.

OEM Support

We accept all OEM orders, just contact us and send me your design. We will offer you reasonable price and make samples for you as soon as possible.

Parameter

Product Name	Rod size	Specification	Length	Rod type
R25 Rod	Round25	R25-R25-R25	2430	M/M	Extension rod
R25 Rod	Round28	R25-R28-R25	1350	M/M	Extension rod
R32 Rod	Hex25	R32-H25-R25	2900	M/M	Extension rod
	Hex28	R32-H28-R28	2435	M/M	Extension rod
	Hex28	R32-H28-R28	2435	M/F	Speed rod
	Hex32	R32-H32-R25	2742	M/M	Extension rod
	Hex32	R32-H32-R25	2742	M/F	Speed rod
	R32	R32-R32-R32	1525	M/M	Extension rod
R38 Rod	Hex32	R38-H32-R32	3100	M/M	Extension rod
	Hex35	R38-H35-R32	1350	F/F	Extension rod
		R38-H35-R32	2435	M/M	Extension rod
		R38-H35-R32	2435	M/F	Speed rod
		R38-H35-R32	4270	M/M	Extension rod
		R38-H35-R32	4270	M/F	Speed rod
		R38-H35-R32	4880	M/M	Extension rod
		R38-H35-R32	4880	M/F	Speed rod

Types of Drilling Rod

The drilling rods produced by our company mainly include the following types:

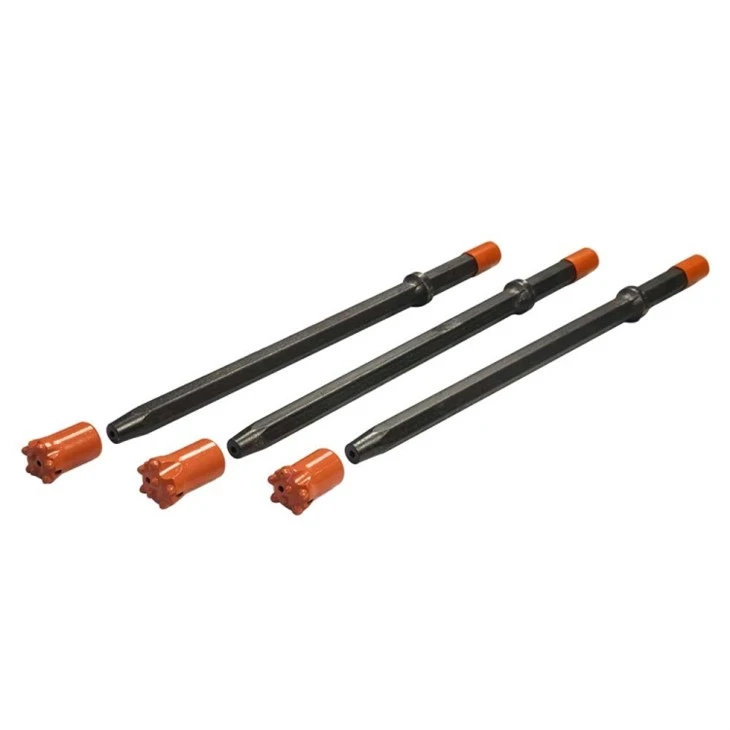

Tapered Drill Rods
Tapered drill rods are a type of connected drilling tool commonly used in rock drilling operations, typically used with a rock drill and a tapered drill bit.

Top Hammer Drill Rods
The MF rod, or speed drill rod, is designed for efficient and secure drilling operations. It features a male thread at one end and a female thread at the other, allowing for direct connection to the shank adapter without requiring a coupling sleeve.

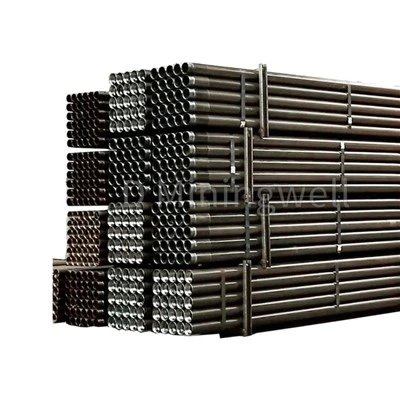

Threaded Drill Rod
Threaded connections can be repeatedly disassembled and assembled, and have the characteristics of firm connection, reliable force transmission, and good sealing.

Functions of Drilling Rod

Power transmission
The drill rod transmits power (such as torque and thrust) from the drilling rig to the drill bit, driving the bit to perform the drilling operation.

Circulation of drilling fluid
The interior of the drill rod has a pipeline that can transport the drilling fluid (mud) from the pump equipment to the drill bit, serving the purpose of flushing, cooling, and carrying the rock cuttings.

Guidance and support

As a column-like structure, the drill rod can provide guidance and support to the drill bit, ensuring that the bit drills in the predetermined direction.

Measurement signal transmission

Some drill rods are equipped with internal lines that can transmit various measurement signals (such as geological information, borehole inclination, etc.) from the drill bit to the surface, providing data for well logging.

Borehole stabilization

When encountering soft or collapsible formations, the drill rod can help maintain the stability of the borehole wall and prevent it from caving in.

Applications of Drilling Rod

Mining and Quarrying
In mining, drill rods are used for both surface and underground operations to create blast holes for ore extraction. These rods, often in the form of extension rods, enable drilling to great depths in hard rock formations.

Tunneling and Underground Excavation
For tunneling projects, drill rods are used to create the necessary boreholes for rock excavation and reinforcement. The drill rods facilitate the drilling of blast holes for the initial tunnel excavation.

Foundation and Pile Drilling
Drill rods are a key component in civil engineering and construction for foundation work. They are used to drill deep holes to create foundations for large structures like bridges, high-rise buildings, and dams.

Bench Drilling and Surface Blasting
Drill rods are fundamental to the process of bench drilling in surface mining and construction. This technique is used to create a series of uniformly spaced holes in a rock face, or “bench,” for controlled blasting.

Geotechnical and Exploration Drilling
In geotechnical and exploration drilling, drill rods are used to obtain core samples from deep underground for geological analysis. The rods connect the drill bit to the surface, allowing for the extraction of intact rock cores.

Horizontal Directional Drilling
In trenchless construction, drill rods are the conduits for Horizontal Directional Drilling (HDD). They are used to create a pilot bore from a surface entry point to an exit point, often passing beneath rivers, roads, or existing infrastructure.

Drilling Rod Installation Steps

Step 1: Prepare the Drill Rods
Before installation, a thorough inspection of both the male and female threaded ends is essential. Check for any signs of wear, deformation, or cracks that could compromise the connection’s strength and integrity, ensuring the rods are in good condition.

Step 2: Align the Drill Rods
The first action is to hold the drill rod steady while bringing the next rod into position. This is the moment to ensure the two components are perfectly parallel. Proper support prevents the weight of the rods from causing misalignment during the initial engagement.

Step 3: Hand-Tighten the Connection
Once the threads have started to engage, continue to turn the rod by hand. The goal is to fully engage as many threads as possible without the use of tools. A properly aligned connection will turn smoothly and easily.

Step 4: Use a Breakout Wrench
With the rods hand-tight, select a breakout wrench or pipe wrench of the appropriate size for the drill rod diameter. Position the wrench on the wrench flats of each rod to get a good, secure grip that won’t slip.

Step 5: Verify the Connection
After using the wrench, perform a final visual inspection of the joint. Look for a flush, consistent connection with no visible gaps between the shoulders of the male and female ends. Any gap indicates the connection isn’t fully seated.

Customizable Options

Rod outer diameter: 42–140 mm

Rod length: 1.0–6.0 m

Wall thickness: 4.0–12.0 mm

Surface finish: Black, Phosphated, Painted

Packaging and Shipping

Packaging	Steel frames, plywood cases, or wooden crates
Shipping	We usually go by sea transportation, because it is more convenient and cheaper.

Our Factory

In July 2001, D Miningwell's predecessor, Quxian Technology Filter Factory, was established. In 2017, established Zhejiang Minsheng Supply Chain Management Co., Ltd. and started the foreign trade journey.

Our Certificates


FAQ

Q: Can you send the products to my country?

A: Of course, we can. If you don't have your own freight forwarder, we can help you.

Q: Don't know if you accept small orders?

A: Don't worry. Please feel free to contact us. In order to get more orders and give our customers more conveners, we accept small orders.

Q: Can you do OEM for me?

A: We accept all OEM orders, just contact us and give me your design. We will give you a reasonable price and provide you with samples as soon as possible.

Q: What are your payment terms?

A: T/T, L/C at sight, 30% deposit in advance, balance 70% before shipment.

Q: What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.

Q: Do you offer discounts if I have a large order?

A: Yes, we can offer different discounts according to your order quantity.
