Crawler dth Drilling Rig

Name: China Crawler dth Drilling Rig Manufacturers Suppliers Factory - Miningwell Supply Chain
Brand: Miningwell
SKU: 253511123

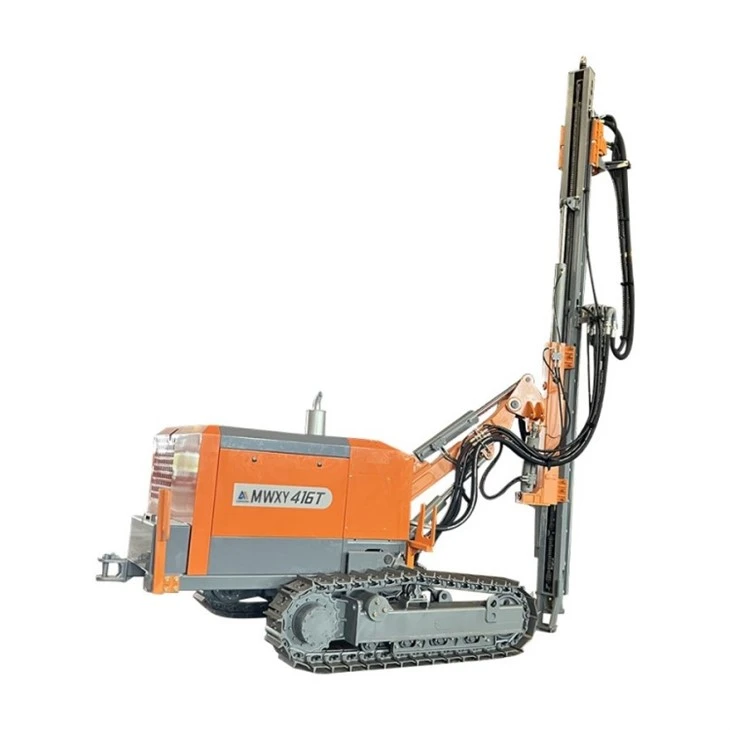

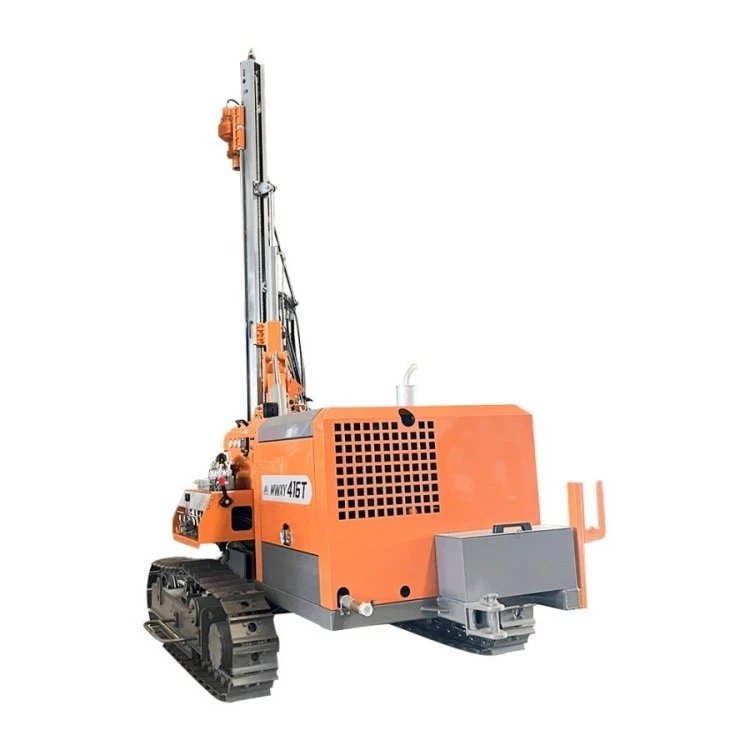

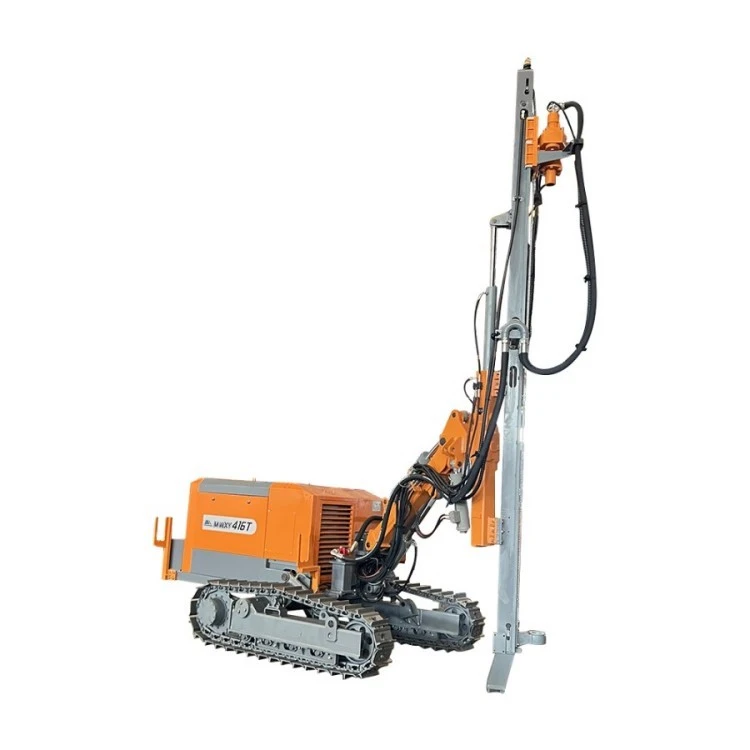

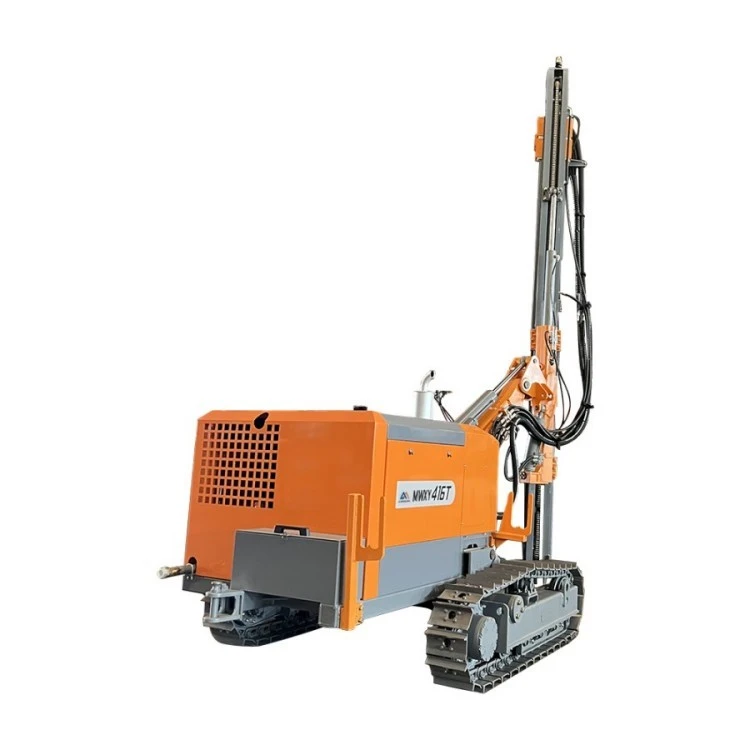

The Mining Blast Crawler Separated Drill Rig is a high-performance drilling solution designed for demanding open-pit mining operations.
Crawler dth Drilling Rig equipped with a double motor rotary head, the rig delivers impressive rotary torque of up to 2200 N·m, and features an adjustable rotary speed that can reach 150 RPM. This makes the 416T ideal for high-speed drilling in soft rock formations, ensuring efficient and effective performance in challenging conditions.

Send Inquiry

415 420B 420B-1 421B-1 425-1 430 430-1 D345A datas

Description

Product detail

01.

Brand name: miningwell

Minimum order quantity: 1 set

Package Details: 40HQ-20GP

Delivery Time:15-20 days

Payment terms:L/C,T/T,Western Union

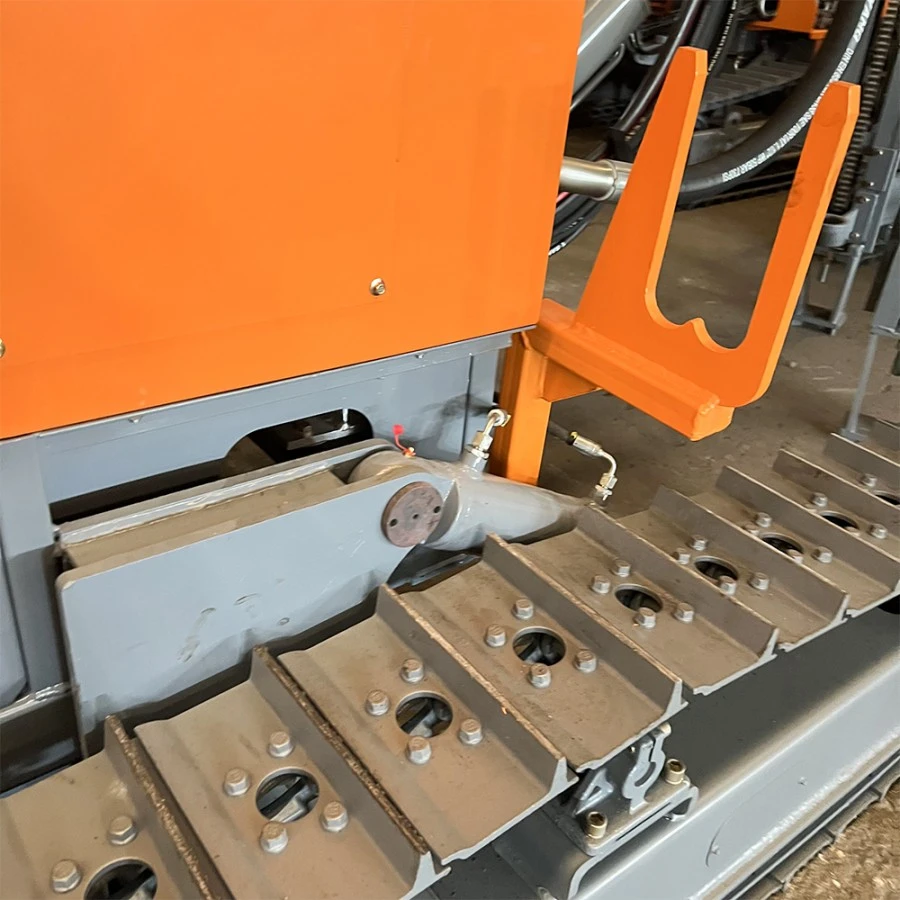

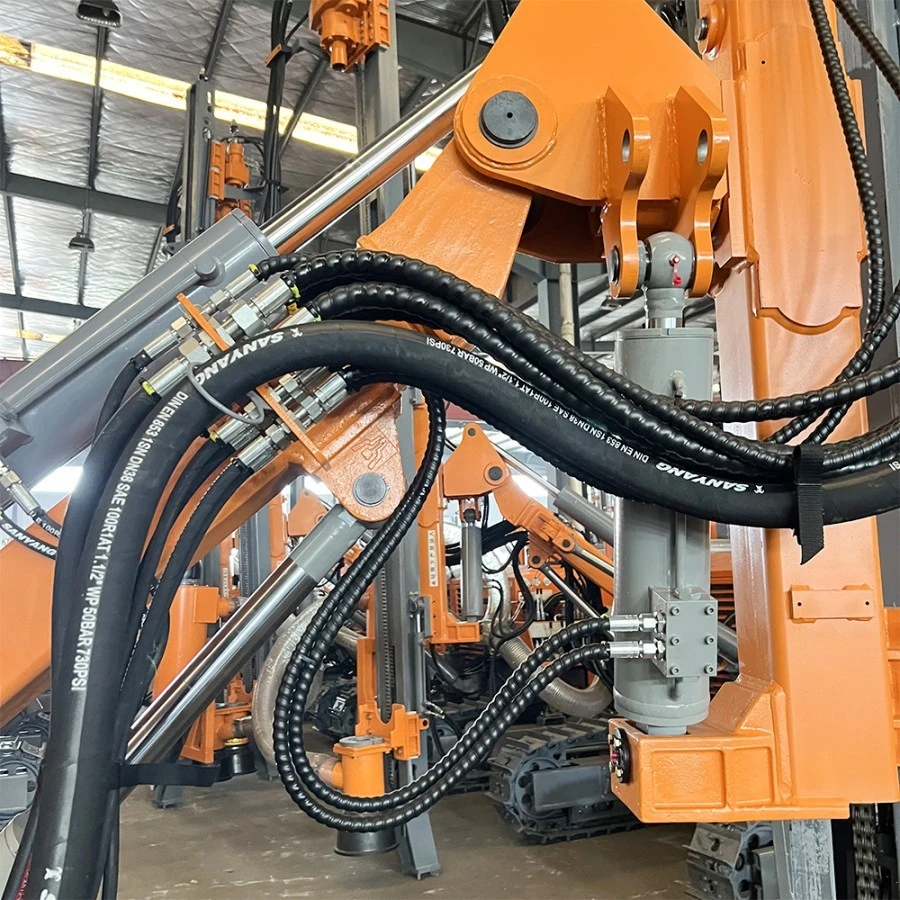

The Split Track Leveling Mining Drill Blast Drilling Rig 416T's advanced engineering tracks and plunger motors provide enhanced climbing ability, increased traction, and greater stability on complex terrain. The inclusion of construction crawlers and piston hydraulic motors further contributes to its robust performance, making it a reliable choice for navigating difficult geological environments commonly found in open-pit mines.

02.

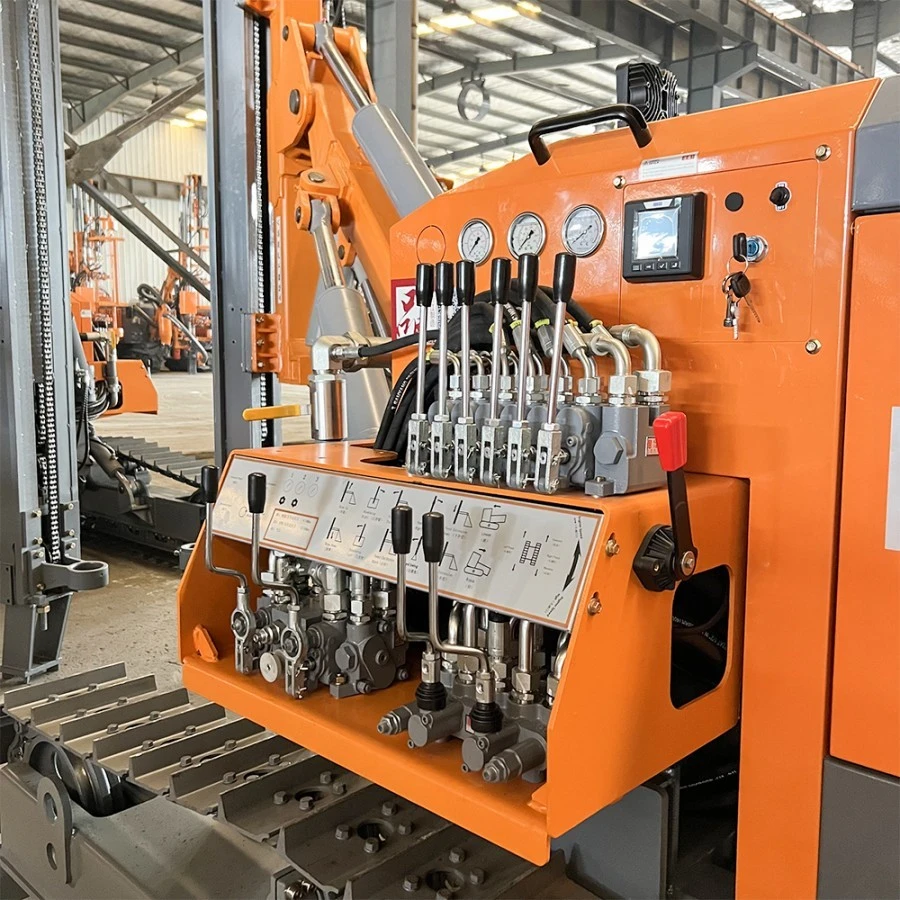

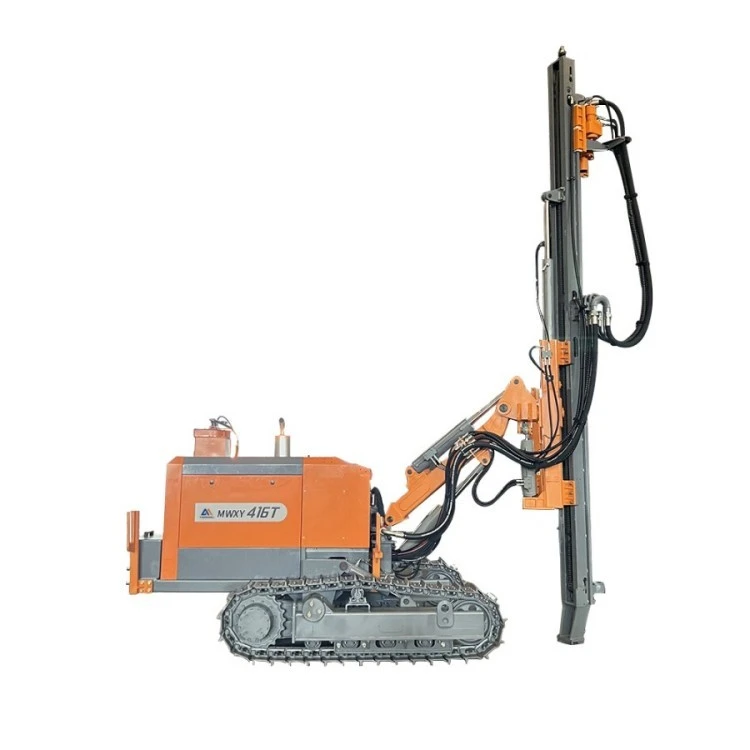

User-friendly operation is made possible by a centralized ergonomic control console, which improves both drilling efficiency and operational safety. The Separated Drill Rig For Blasting 416T's design prioritizes comfort, allowing operators to work longer shifts with ease while maximizing productivity. The double cycloidal hydraulic motors provide high torque and fast rotation speeds, ensuring that this model is one of the highest configuration products in its class. With its combination of power, stability, and ease of operation, the split type down the hole drilling machine stands out as a top choice for large-scale mining operations.

Specifications

416T General Specification
Hole Range	Φ 90-127 mm
Drill Pipe Sizes	Φ 60x3000 mm
Rotation Torque(Max.)	1950 N.m
Rotation Speed	0- 150 rpm
Feed Force	15 kN
Pull Up Force	25 kN
Feed Type	Chain / cylinder
Tramming Speed(Max.)	2.5 km/h
Gradient	25°
Weight	3830 kg/4270kg
Dimension	570021302200mm
Power Pack-( ZAYX-416)	YuChai YC4DK80 58KW
Power Pack - (ZAYX-416-1)	YuChai YC4DK80 58KW
	(Dust collection system as standard equipment)
Matching Air Compressor
Working Pressure	0.7~1.5 Mpa
F.A.D	7~13 m3/min
Diesel Screw Compressor Model	141SCY-15/158SCY-17
Electric Screw Compressor Model	90SDY-14.5/132SDY-13
