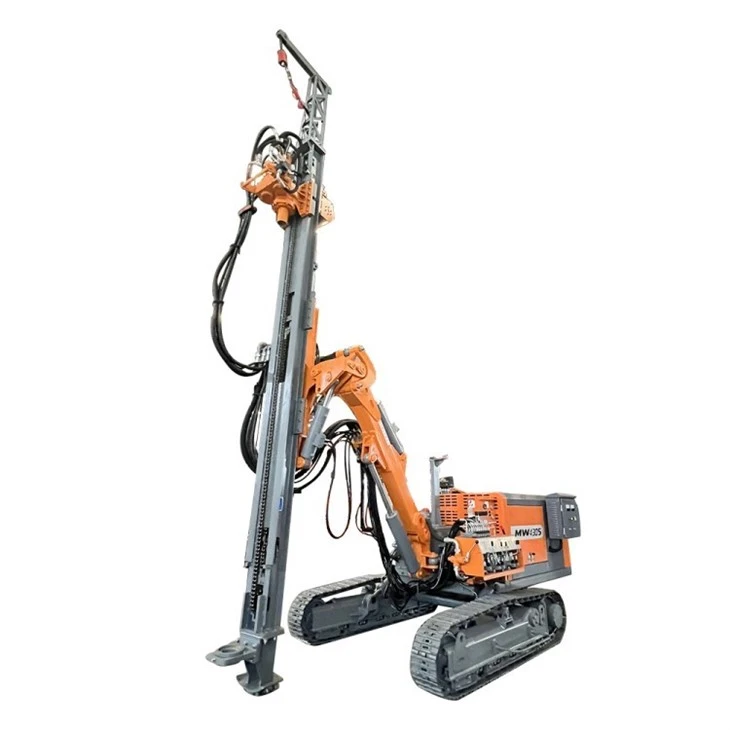

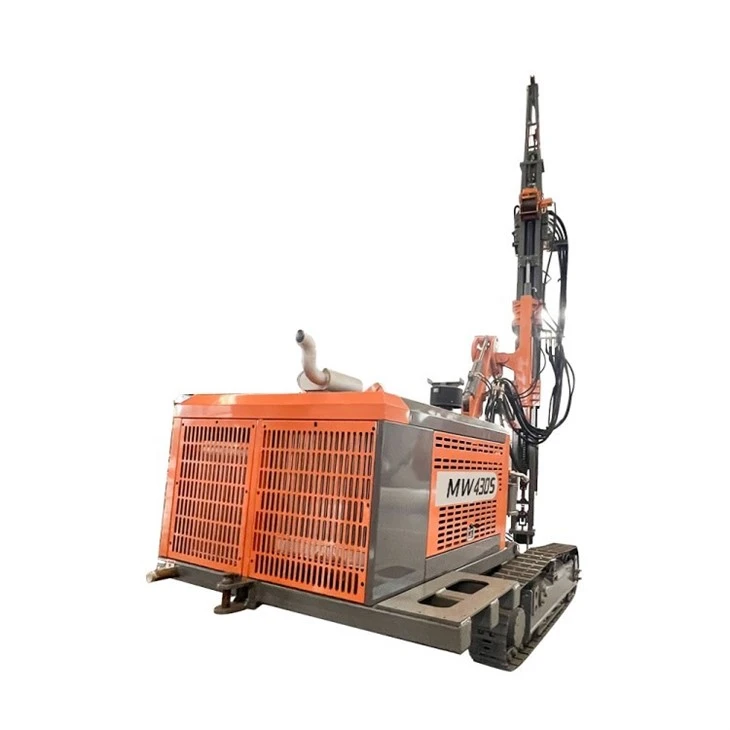

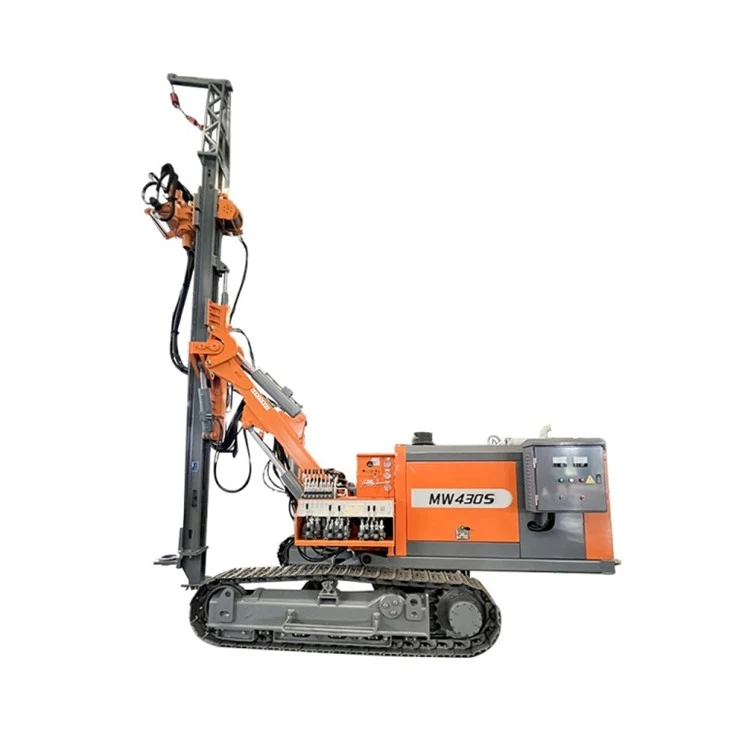

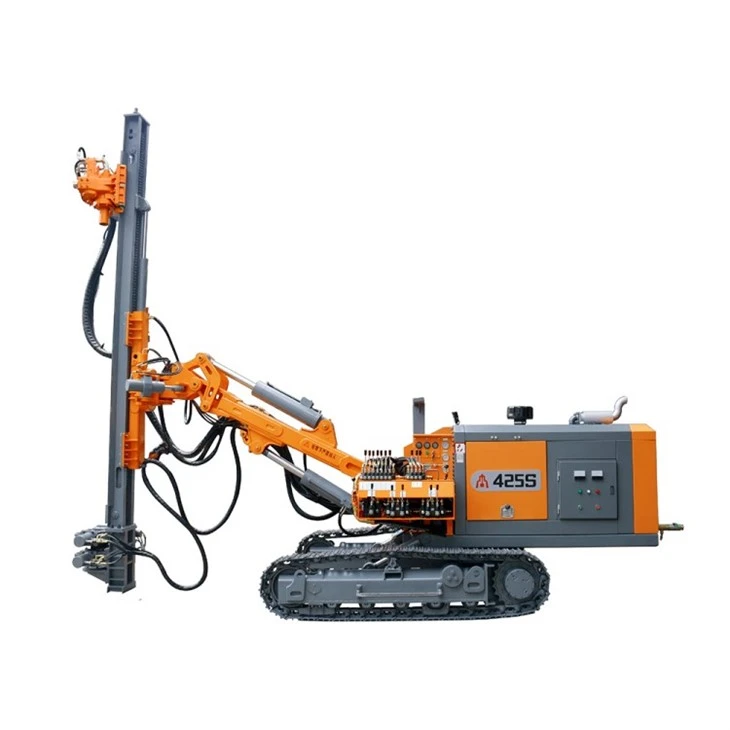

Anchor Drilling Rig

1.The power standard of this type of split anchor drilling rig is a dual-power design, equipped with a 74KW diesel engine and an IP54 55KW electric motor. The power can be switched at any time, which is flexible and convenient;

2. The large-torque double-cycloid motor is used to drive the rotary head, which increases the torque of the drilling rig, and the torque can reach 8000N.m;

3. This separated diesel-electric dual-power anchor drilling rig makes its rock drilling aperture range larger, meeting the needs of φ350 large-diameter drilling, and can be widely used in foundation pit anchor rod and pipe, large-diameter twist drill rod operations;

4. The rotary dual-speed switching valve is easy to operate, which can meet the needs of operations with different torques and speeds, and is equipped with a rod unloading device as standard;

5. The international engineering machinery walking crawler has more powerful climbing and more reliable quality.

6. Equipped with an independent boom lifting mechanism to meet the site's lifting needs for items such as steel cages, increase the working range of the drill arm, and meet the requirements of multiple working conditions such as vertical holes, front high and low horizontal holes, and side high and low horizontal holes;

7. The propulsion beam has sufficient rod replacement space, and the propulsion system uses roller chain cylinders for propulsion, which has a reliable structure and increased propulsion lifting force;
