Specifications
|
Main parameters |

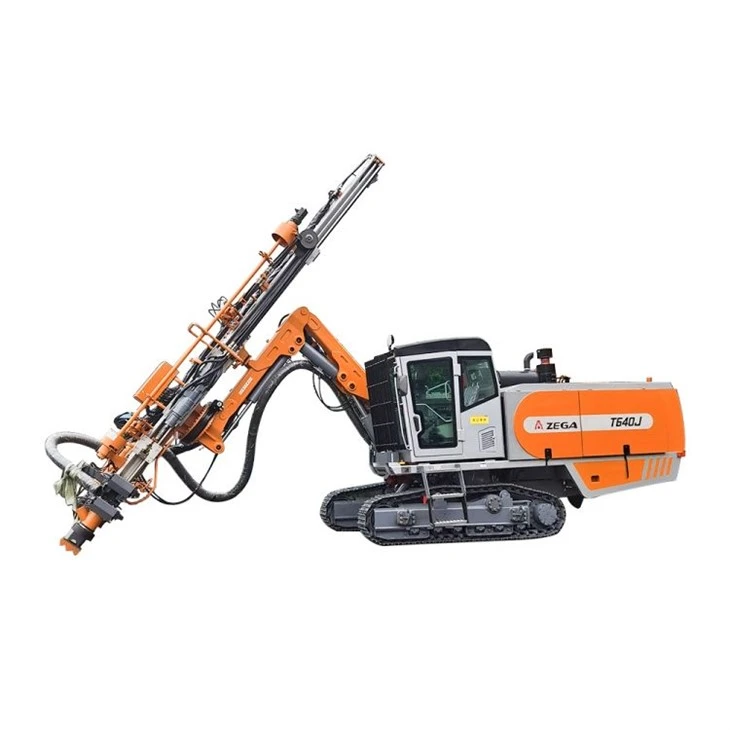

T640J |
|
Working parameters |
|
|
Weight (kg) |
14000 |
|
Core Components |
Gear, Motor |
|
Drilling Diameter(mm) |
76-102mm |
|
Drilling Depth(m) |
Max.20m |
|
Type |
Top hammer drill rig |
|
Power Type |
Diesel |
|
Mobility |
Movable |
|
Max. pressure |
8 bar |
|
Rotation torque |
Max. 1180 N.m |
|
Engine power |
152KW |
|
Single package size |
11300X2550X3100 cm |
|
Single gross weight |
14000.000 kg |
Product detail
The combination of the high-efficiency ZY-104H hydraulic rock drill and the anti-jamming system makes drilling smoother.
A propulsion system composed of aluminum alloy propulsion beam, propulsion cylinder, steel wire rope and pipe follower is used to achieve fast and slow propulsion. The hose automatically follows up and advances more smoothly.
The high-strength folding boom design and enlarged oil cylinder enable the drilling rig to have greater effective coverage.
The two-stage dry dust collection device is environmentally friendly and helps improve production efficiency.
The rod storage cabin with automatic induction, manipulator, drill pipe lubricator, and clamping and drilling table form a simple and efficient 5+1 automatic rod changing system.
The combination of heavy-duty chassis and leveling cylinder makes it super off-road, and the track frame swing angle is ±10 degrees.
The various control handles in the cab equipped with heating and cooling air conditioning are light and flexible. The display and various instruments can reflect all data of the crawler drill machine and automatically alarm and store it. The electronic drilling arm angle display makes the drilling rig easy to operate by a single person and the positioning is accurate.
Equipped with Cummins 152kW diesel engine and 7m³/min, 8bar air compressor, providing a basic guarantee for efficient work.
