Products Description

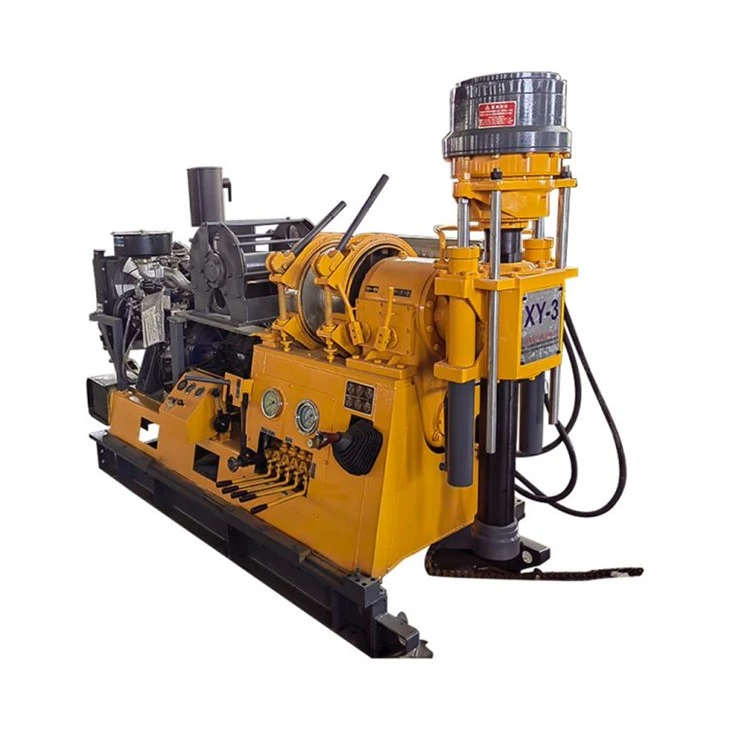

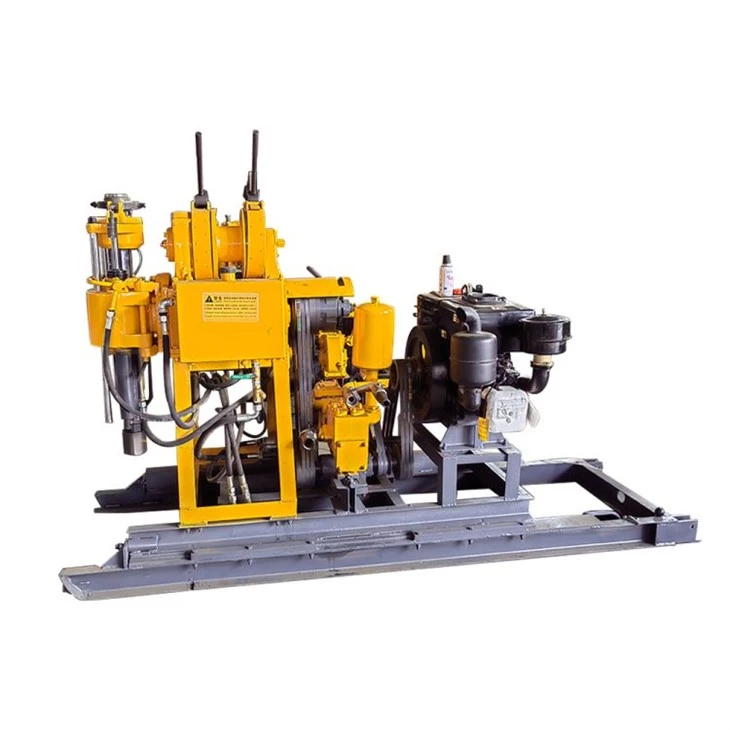

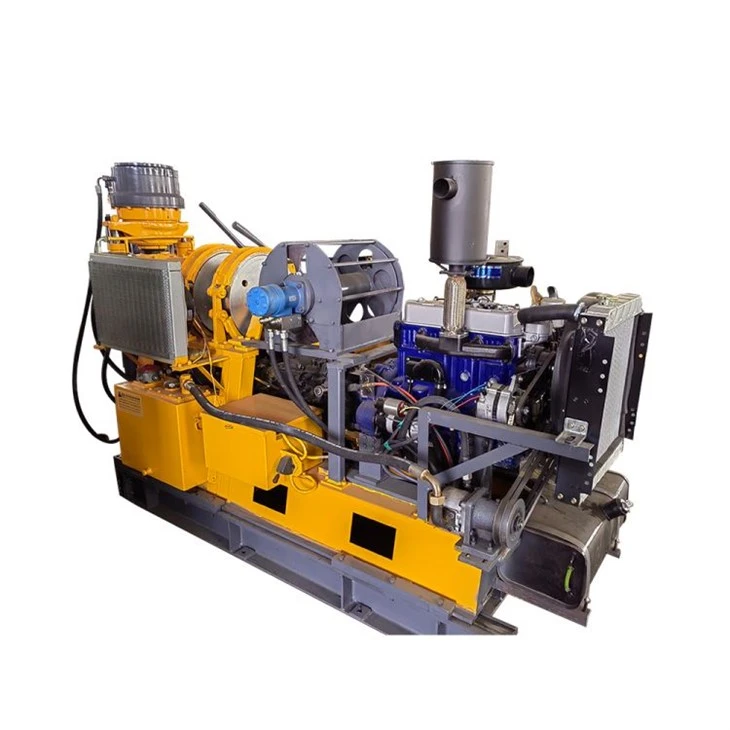

The XYX-3 Geological Hydraulic Core Drilling Rig is a powerful and versatile drilling machine designed for professional geological exploration, mineral prospecting, and geotechnical investigation. With advanced hydraulic transmission, compact structure, and high drilling efficiency, this rig is widely used in mining, water well, and soil sampling projects.
1. High-Performance Hydraulic System
The Geological Hydraulic Core Drilling Rig XYX-3 adopts a full hydraulic drive system that ensures smooth power transmission and stable performance even in complex terrains. The hydraulic system reduces mechanical wear, improves drilling precision, and enables efficient control over drilling pressure and torque, making it ideal for deep hole coring and hard rock drilling.
2. Durable and Compact Structure

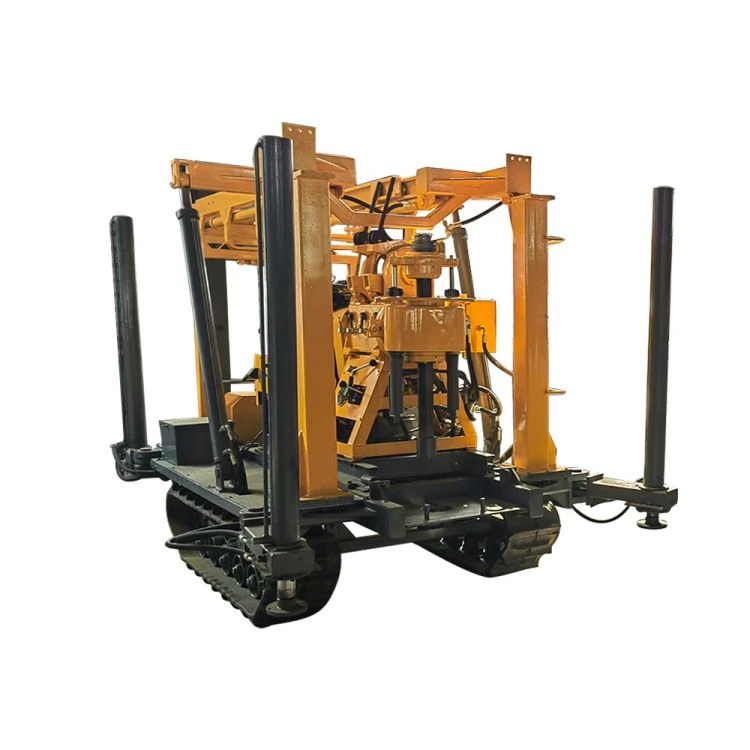

Built with a strong alloy steel frame and ergonomic design, the XYX-3 Geological Hydraulic Core Drilling Rig features a lightweight yet durable structure. It can be easily mounted on a trailer or crawler chassis, allowing flexible transportation between sites. The compact size also makes it suitable for both mountain and plain terrain operations.
3. Excellent Drilling Capacity
The XYX-3 Core Drilling Rig is capable of drilling up to 600 meters depth, depending on the geological conditions and drill rod type. It supports both diamond and carbide drilling tools, ensuring optimal adaptability for soft and hard rock formations. The rig's high rotation speed and large lifting force make it efficient for obtaining accurate geological core samples.
4. User-Friendly Operation
Designed with operator convenience in mind, the Geological Hydraulic Core Drilling Rig integrates an intuitive control panel and hydraulic levers that simplify operation. Maintenance is easy, with accessible service points and a low failure rate, helping users reduce downtime and improve productivity on site.
5. Wide Application in Geological Fields
The XYX-3 Geological Hydraulic Core Drilling Rig is widely used in:
Geological survey and exploration projects
Mineral resource evaluation
Hydrogeological and geotechnical drilling
Soil testing and environmental engineering
Whether for mineral prospecting or water resource detection, the XYX-3 offers reliability, precision, and performance that professionals can trust.
Product advantages
Why Choose XYX-3 Geological Hydraulic Core Drilling Rig?
✅ Strong adaptability to various formations
✅ High penetration rate and core recovery
✅ Low fuel consumption and easy maintenance
✅ Compact design for field mobility
✅ Proven reliability in global drilling projects
Product Specifications
|
Technical Parameters |
|
|
Drilling depth |
100/ 250 / 300/ 600 m |
|
Maximum opening diameter |
300 / 200 /150 / 75mm |
|
Max open hole caliber |
300mm |
|
Final hole diameter |
75mm |
|
Drill pipe |
60mm |
|
Borehole inclination |
90°-65° |
|
A vertical scroll of painting |
|
|
Vertical rotation speed of vertical axis 30-1050r/min |
|
|
Vertical reversal speed |
29-137r/min |
|
Vertical axis stroke |
560mm |
|
Diameter of shaft inner hole |
96mm |
|
Vertical axis lifting capacity |
60kn |
|
Main hoist (hydraulic drive) |
|
|
Single rope lifting speed |
0-45m/min |
|
Wire rope diameter |
14mm |
|
Band width |
90mm |
|
Drum diameter |
300mm |
|
Reel capacity |
30m |
|
Maximum lifting capacity of single rope |
40kn |
|
Auxiliary hoist (hydraulic drive) |
|
|
Drum diameter |
140mm |
|
Diameter of steel wire |
6mm |
|
Reel capacity |
450m |
|
Mud pump |
|
|
Mud pump |
BW-250 Horizontal three cylinder |
|
Flow |
250 l/min |
|
Working pressure |
7mpa |
|
Inlet diameter |
75mm |
|
Outlet diameter |
50mm |
|
Gear oil pump |
|
|
Double oil pump |
CBF-F63/25 |
|
Front-end flow pressure |
63 l/min 20mpa |
|
Backend flow pressure |
25 l/min 20mpa |
|
Rig power |
|
|
Diesel engine |
FAW Xichai 4 cylinder |
|
Electric machinery |
Y180L-4 22KW |
|
Wheeled chassis |
|
|
Bearing capacity of wheel chassis |
3.5t |
|
Wheel chassis length |
2.6m |
|
Wheel chassis width |
2m |
|
Wheel chassis height |
0.6m |
About customization
OEM & Customization Service
We provide full OEM and customization services for the XYX-3 Geological Hydraulic Core Drilling Rig and related drilling equipment.
Customers can customize the rig's color, logo, power system, drilling depth, chassis type (trailer or crawler), and other specifications according to their project needs.
Our experienced engineering team ensures that every customized rig meets strict quality standards and performs reliably under various geological conditions.
We design, manufacture, and deliver customized drilling solutions to help our partners expand their brand and local market presence.
Factory show
Accessories & Parts Support
We provide complete accessory and spare parts support for the XYX-3 Geological Hydraulic Core Drilling Rig, ensuring long-term and reliable operation for all customers.
Our parts system covers every essential component, including:
Drill rods, core barrels, and reaming shells
Diamond and carbide core bits
Hydraulic hoses, pumps, and control valves
Winch assemblies, rotary heads, and clamps
Diesel engine or motor spare parts
Lubrication and sealing components
All spare parts are manufactured to original specifications to guarantee perfect compatibility and performance.
We maintain a sufficient inventory for fast delivery and offer global logistics support to minimize your downtime.
Original parts, professional service, guaranteed reliability.
After-sales service
We are committed to providing comprehensive after-sales support for every XYX-3 Geological Hydraulic Core Drilling Rig we deliver.
Our service team ensures your drilling operation runs smoothly through:
One-year warranty for the main machine and core components.
Free technical support via video, phone, and email during the warranty period.
On-site training and operation guidance (available upon request).
Sufficient spare parts in stock to guarantee fast delivery and replacement.
Lifetime maintenance support and technical consultation.
Your satisfaction and drilling performance are our long-term commitment.
Shipping&Payment
Every piece of Miningwell equipment and drilling rig undergoes a rigorous load security check to ensure the safety of the cargo in the container.
Our payment methods: credit card, L/C, T/T, Western Union, and we support shipping by air and by sea.
