Specifications
|
Technical Parameters |
||
|
|
G5 |
G7 |
|
Hole range |
45 - 90 mm |
76 - 115 mm |
|
Rod size |
T38/T45 |
T51 |
|
Max. depth |
25m |
25 m |
|
Drilling coverage area |
17 m2 |
17 m2 |
|
Engine |
Cummins |
Cummins |
|
Engine power |
134 kW/2200 r/min |
194 kW/2200 r/min |
|
Drafter |
Atlas Copco RD14S / 14 kW |
Atlas Copco RD18S / 18 kW |
|
Impact pressure |
14.5 bar |
20.0 bar |
|
Advance itinerary |
3500mm |
3500mm |
|
Propelling beam length |
6030mm |
6030mm |
|
Advance compensation |
1400 mm |
1400 mm |
|
Max. advancing speed |
0.9 m/s |
0.9 m/s |
|
Max. thrust |
20 kN |
20 kN |
|
Walking speed |
1.5/3.1 km/h |
1.5/3.1 km/h |
|
Gradeability |
20° |
20° |
|
Dimensions (L x W x H) |
10800x2350x3000 mm |
11610x2450x3200 mm |
|
Weight |
13500kg |
14500kg |
Product detail
- Brand name: miningwell
- Minimum order quantity: 1 set
- Package Details: 40HQ-20GP
- Delivery Time: 15-20 days
- Payment terms: L/C, T/T, Western Union

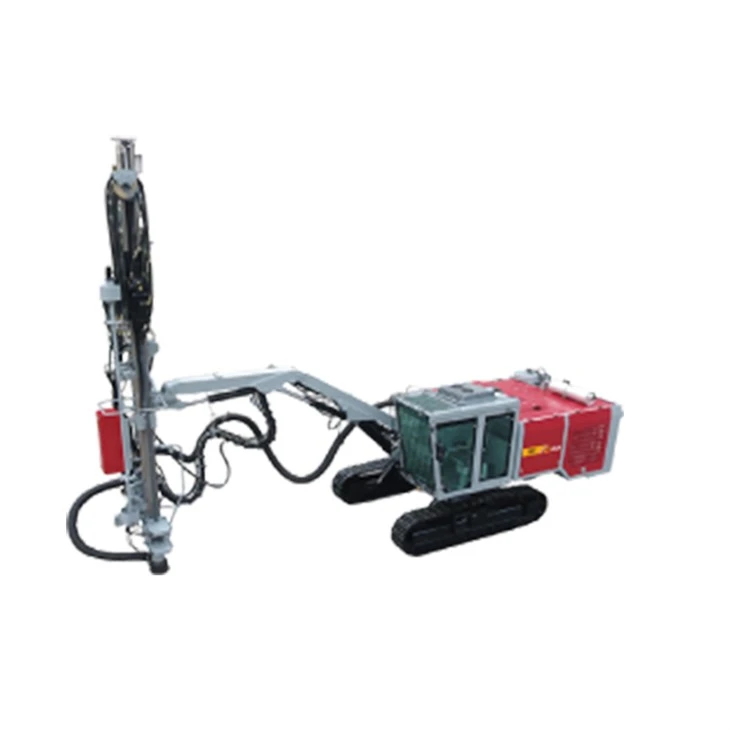

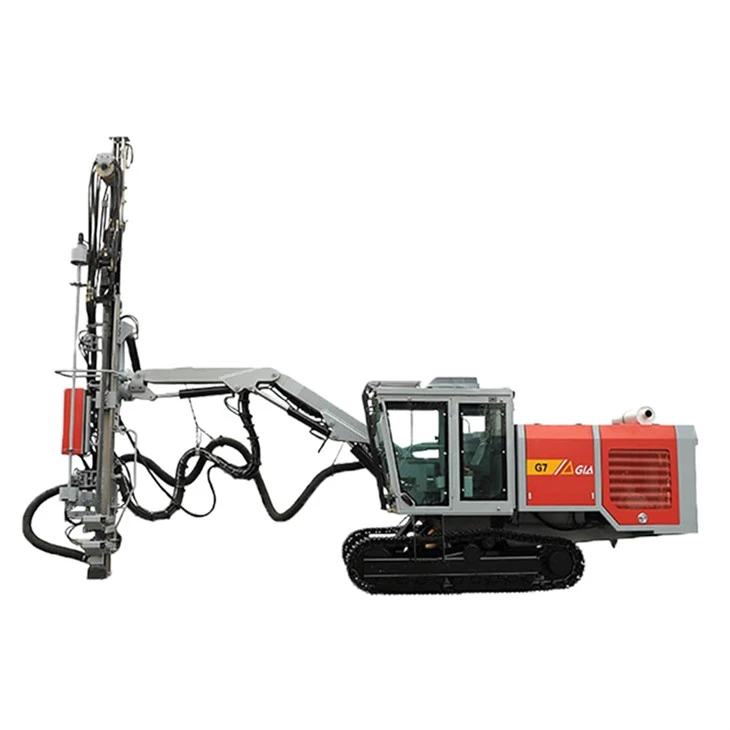

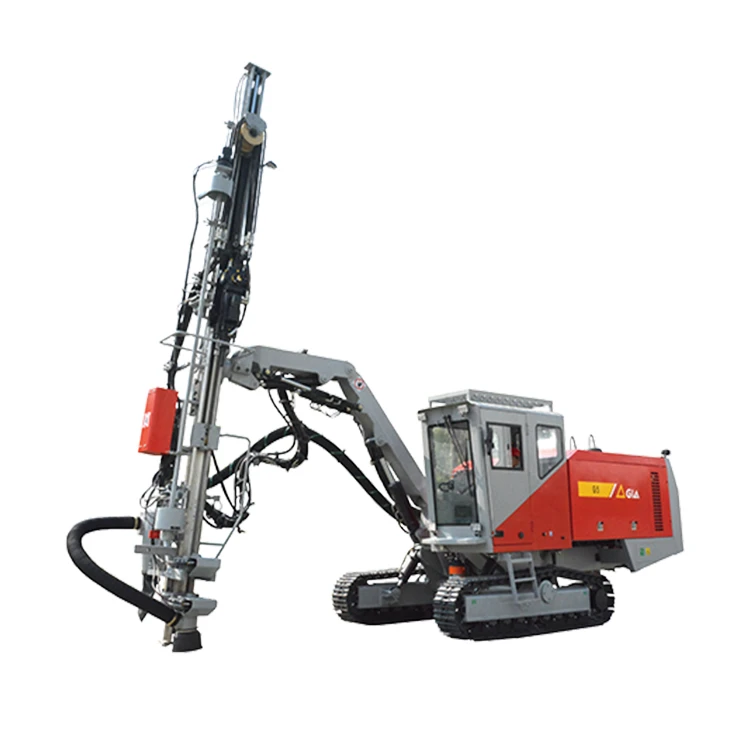

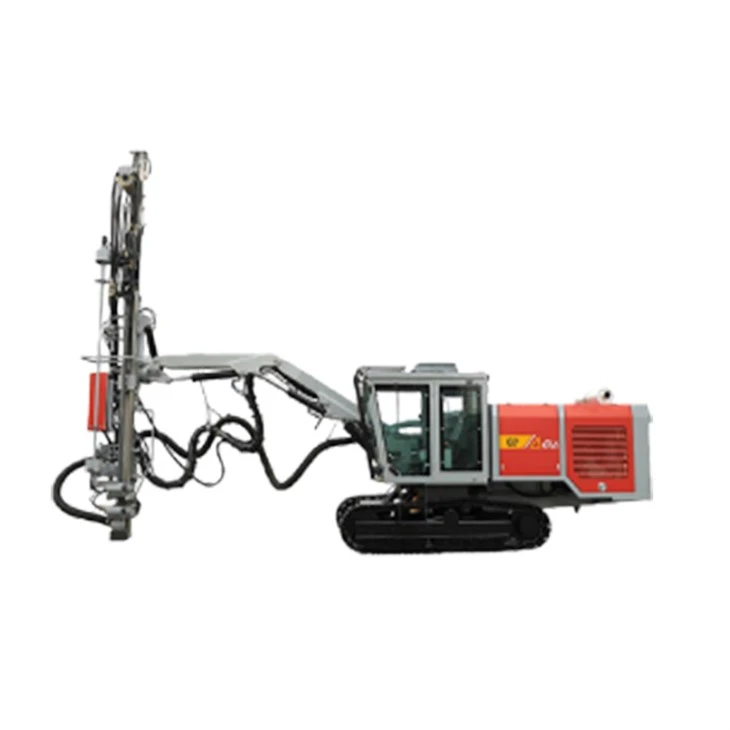

1) Adopting folding drilling rig, wide drilling coverage area, adapting to multi-angle drilling, fast and efficient hole positioning.
2) The core components are all international famous brands, good reliability.
3) Precise matching of rock driller-air compressor-engine, dual working conditions of economic mode/strong working mode, wide adaptability to rock formation and low running cost.
4) The whole hydraulic top hammer drill rig is compact, small and flexible, with fast traveling speed and strong cross-country ability.
Customer Questions
1) 24-hour online service
Please feel free to contact us. Our sales team will provide you with 24-hour better pre-sales service.
2) Competitive price
All our products are supplied directly from the factory, so the price is very competitive.
3) Warranty
The warranty period of our machine host and wearing parts is 1 year, depending on its working time. We provide machine installation and operation videos.
4) Product application and scope
Our rock drills, down-the-hole drills, top hammer drills, rotary drilling rigs and water well drills are widely used in bridge infrastructure, tunnel excavation, mining, water well construction and urban transportation construction.
5) Dealers
The company is now recruiting dealers and agents all over the world. Timely delivery and professional after-sales service are our top priorities, which makes us your trusted partner.
Application
From underground rock drilling to open pit submerged rock drilling to deep well drilling, Ming Wei supply chain covers all the excellent rock drilling products in China.
