Core Drilling Rig

Core Drilling Rig (Diamond Core Drilling Rig) for Mining Exploration

Core drilling rigs, also known as diamond core drilling rigs, are widely used as core drilling rigs for mining exploration projects in hard rock formations due to their ability to recover continuous rock core samples from underground formations. Unlike conventional drilling methods focused only on penetration, core drilling provides accurate geological data that is essential for resource evaluation, mine planning, and subsurface analysis.

In mining and exploration projects, the quality of the core sample directly affects geological interpretation and drilling efficiency. Factors such as drilling depth, rock hardness, core recovery rate, and hole stability all depend on selecting the right core drilling rig, drilling method, and drilling tools. An incorrect configuration can lead to poor core recovery, excessive bit wear, hole deviation, and increased operational costs.Our hydraulic core drilling rigs and wireline core drilling rigs are widely used as core drilling rigs for mining exploration, geological investigation, and deep mineral exploration projects.

From portable core drilling rigs for geological survey work to deep hole core drilling rigs for 1000m+ drilling applications, we provide complete drilling solutions for different project requirements and geological conditions.

Modern hydraulic core drilling rigs and wireline core drilling systems are designed to improve drilling efficiency while maintaining high core recovery rates, especially in hard rock formations and deep exploration environments. Compared with traditional drilling methods, they offer better drilling accuracy, deeper drilling capability, and more reliable geological sampling performance.

As a professional drilling equipment supply chain partner, We provide not only exploration drilling rigs for geological, mining, and deep hole exploration projects. We help customers select the most suitable core drilling rig solution based on drilling depth, formation conditions, project objectives, and budget requirements. From portable core drilling rigs for shallow geological surveys to deep hole wireline core drilling rigs for mining exploration, we provide complete matching solutions to maximize drilling efficiency and project reliability.

👉 Tell us your drilling depth, rock conditions, and exploration requirements — we will recommend the most suitable core drilling rig solution for your project.

Get Free Recommendation

🔹 Core Drilling

Focuses on obtaining intact rock core samples
Uses diamond core bits and core barrels
Higher drilling accuracy and sample recovery
Commonly used in mineral exploration and geological investigation
Slower drilling speed but better geological data

🔹 DTH Drilling

Focuses on fast penetration and production drilling
Uses DTH hammers and compressed air
Faster drilling speed in hard rock
Commonly used in water well drilling, blasting, and mining production
Does not recover continuous core samples

👉 Result:
Core drilling is ideal for geological analysis and resource evaluation, while DTH drilling is more suitable for production drilling and blasting applications.

What Are the Advantages of Core Drilling Rigs?

Modern hydraulic core drilling rigs provide significant advantages in exploration and mining projects.

01/

✔ High Core Recovery Rate

Wireline core drilling systems can achieve core recovery rates of 90–98% in stable formations, allowing more accurate geological analysis.

👉 Result: Better mineral evaluation and reduced exploration risk

02/

✔ Excellent Performance in Hard Rock

Diamond core drilling rigs are designed for hard formations such as granite, quartz, and basalt.Diamond core drilling rigs are considered the preferred core drilling rigs for hard rock exploration because they provide stable drilling performance and high core recovery rates in granite, basalt, quartz, and other abrasive formations.

👉 Result: Stable drilling performance in difficult geological conditions

03/

✔ Deep Hole Drilling Capability

Hydraulic core drilling rigs can drill from shallow depths to over 1500m depending on rig configuration.

👉 Result: Suitable for deep mineral exploration projects

04/

✔ Accurate Geological Sampling

Core drilling provides continuous rock samples instead of rock chips, allowing engineers to analyze formation structure, mineralization, and fault zones more accurately.

05/

✔ Lower Hole Deviation

Compared with conventional rotary drilling, core drilling rigs provide better directional control.

👉 Result: Improved drilling accuracy in deep exploration holes

06/

✔ Flexible Drilling Applications

Portable core drilling rigs can be used in mountainous areas, remote exploration sites, and difficult terrain conditions.

👉 Result: Easier transportation and reduced site preparation cost

👉 Not sure which core drilling rig is suitable for your project? Contact us for a customized recommendation.

Get My Custom Solution

What Are the Disadvantages of Core Drilling?

Although core drilling offers high-quality geological information, it also has some limitations that should be considered before selecting a drilling method.

01/

❌ Slower Drilling Speed

Core drilling is generally slower than DTH drilling because the focus is on sample quality rather than penetration speed.

👉 However:
The improved geological accuracy often reduces overall exploration risk and long-term project cost.

02/

❌ Higher Drilling Tool Cost

Diamond core bits, core barrels, and wireline systems have higher initial costs compared with conventional drilling tools.

👉 Our Solution:
We help customers select cost-effective drilling tool configurations based on formation conditions.

03/

❌ Requires Skilled Operators

Core drilling requires experienced operators to maintain hole stability and achieve high core recovery rates.

👉 Our Support:
We provide drilling guidance and technical support for efficient project operation.

04/

❌ Increased Complexity in Deep Drilling

Deep hole core drilling requires proper drilling fluid management and drilling parameter control.

👉 Our Solution:
We recommend suitable hydraulic core drilling rigs and matching drilling systems for deep exploration projects.

How Does a Core Drilling Rig Work?

A core drilling rig works by rotating a diamond core bit attached to drill rods while applying controlled pressure to cut cylindrical rock samples from underground formations.

Basic Workflow:

The drilling rig rotates the diamond core bit
The bit cuts through rock formations
Core samples enter the core barrel
Wireline or conventional systems retrieve the samples
Drilling fluid cools the bit and removes cuttings

Modern wireline core drilling systems allow operators to retrieve core samples without removing the entire drill string, significantly improving drilling efficiency in deep exploration projects.

👉 Core drilling performance depends heavily on drilling parameters such as rotation speed, feed pressure, drilling fluid circulation, and bit selection.

What Are the Different Types of Core Drilling Rigs?

We provide multiple types of exploration drilling rigs for different drilling environments, including portable core drilling rigs, hydraulic core drilling rigs for deep drilling, and wireline core drilling rigs for mining exploration projects.

Underground Core Drilling Rig

● Compact structure for underground mining tunnels

● Designed for confined underground environments

Portable Core Drilling Rig

Lightweight and easy to transport
Suitable for shallow geological surveys
Ideal for mountainous or remote areas

Portable core drilling rigs for geological survey projects are widely used in mountainous areas, remote mineral exploration sites, and preliminary geological investigation work due to their compact structure and easy transportation.

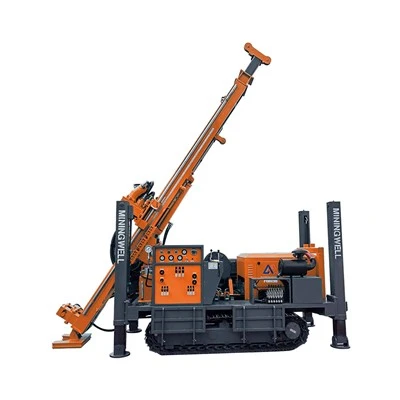

Hydraulic Core Drilling Rig

Stable drilling performance
Higher drilling torque and feed force
Suitable for medium to deep exploration drilling

Hydraulic core drilling rigs for deep drilling are ideal for medium to deep exploration projects where stable drilling pressure, high torque, and continuous drilling performance are required.

Wireline Core Drilling Rig

Fast core retrieval system
High drilling efficiency for deep holes
Widely used in mining exploration drilling

Wireline core drilling rigs for mining are widely used in gold, copper, coal, and lithium exploration projects because they significantly improve core retrieval efficiency and reduce downtime during deep hole drilling.

Deep Hole Core Drilling Rig

Designed for 1000m+ exploration projects
Suitable for mineral exploration and geological investigation

Deep hole core drilling rigs are commonly used as core drilling rigs for 1000m drilling and deep mineral exploration projects where high drilling capacity and reliable hydraulic systems are essential.

Recommended Core Drilling Rig for Different Depths

Core Drilling Rig for 100–300m Drilling

Rig Type: Portable hydraulic core drilling rig
Application: Geological survey and shallow exploration
Suitable Formation: Soil and soft to medium rock

Core Drilling Rig for 300–800m Drilling

Rig Type: Hydraulic wireline core drilling rig
Application: Mineral exploration and geological drilling
Suitable Formation: Medium to hard rock

Mining Core Drilling Rig for 800–1500m Drilling

Rig Type: Deep hole wireline core drilling rig
Application: Mining exploration drilling
Suitable Formation: Hard rock and deep mineral deposits

Core Drilling Rig for 1500m+ Exploration

Rig Type: Heavy-duty hydraulic core drilling rig
Application: Deep geological investigation and mining projects
Suitable Formation: Complex hard rock formations

👉 Choosing the correct drilling rig based on drilling depth and geological conditions is critical for achieving stable drilling performance and high core recovery rates.

Get Free Recommendation

Common Problems in Core Drilling & Our Solutions

The company conducted a competitive advantage analysis to identify its strengths and weaknesses compared to its rivals.

❌ Problem 1: Low Core Recovery Rate

Poor drilling parameters or incorrect bit selection can damage core samples.

✅ Our Solution:
We recommend suitable diamond core bits and drilling parameters based on formation conditions.

❌ Problem 2: Excessive Diamond Bit Wear

Hard abrasive formations can significantly reduce drill bit lifespan.

✅ Our Solution:
We provide high-quality diamond core bits designed for hard rock drilling applications.

❌ Problem 3: Hole Deviation

Improper drilling setup may cause directional deviation in deep holes.

✅ Our Solution:
We help optimize drilling configuration and drilling techniques to improve hole accuracy.

❌ Problem 4: Poor Drilling Efficiency

Incorrect rig selection may reduce penetration rate and increase downtime.

✅ Our Solution:
We match the appropriate hydraulic core drilling rig and drilling system for your project depth and rock conditions.

❌ Problem 5: Not Sure Which Drilling Method to Choose

Many customers are unsure whether core drilling or DTH drilling is more suitable.

✅ Our Solution:
We provide one-to-one drilling solution recommendations based on your exploration objectives and budget.

Core Drilling Rig Price and Cost Factors

Core drilling rig price depends on drilling depth, rig type, hydraulic system, and drilling capability.

Main Cost Factors:

Drilling depth capacity
Hydraulic system configuration
Wireline drilling capability
Power system type
Drilling tools and accessories

Typical Price Difference:

Portable core drilling rigs → Lower investment
Hydraulic wireline core drilling rigs → Medium to high investment
Deep hole exploration drilling rigs → Higher investment

👉 In exploration projects, selecting the correct drilling rig configuration is more important than simply choosing the lowest price.

Improper equipment selection can increase operational cost, downtime, and drilling risk.

Why Choose Us？

Professional drilling equipment supply chain
Multiple drilling rig configurations available
Experience in mining exploration projects
Fast delivery for global markets
Technical support and drilling guidance
Customized drilling solutions based on geology and depth

We have supported exploration drilling projects in multiple countries and understand different geological and operational requirements.

Correct installation and drilling parameter setup are essential for achieving stable drilling performance and high core recovery rates.

✅ Our Support Includes:

Remote or on-site installation guidance
Drilling parameter optimization
Wireline drilling operation guidance
Troubleshooting support
Drilling tool matching recommendations

We help customers reduce operational risk and improve drilling efficiency from the beginning of the project.

We provide complete exploration drilling solutions, including:

Diamond core drilling rigs
Hydraulic wireline drilling systems
Diamond core bits and drilling tools
Drill rods and core barrels
Mud pumps and drilling accessories
Technical support and drilling guidance

👉 One supplier = Better compatibility + Higher drilling efficiency + Lower project risk

Our Factory

In July 2001, D Miningwell's predecessor, Quxian Technology Filter Factory, was established. In 2017, established Zhejiang Minsheng Supply Chain Management Co., Ltd. and started the foreign trade journey. MININGWELL has its own production workshop for drilling rigs, down hole hammers and drill pipes. From underground rock drilling to open pit submerged rock drilling to deep well drilling

Our Certifications

FAQ – Core Drilling Rig

Q1: What is a core drilling rig used for?

A: Core drilling rigs are used for geological exploration, mineral investigation, and obtaining underground rock core samples.

Q2: How deep can a core drilling rig drill?

A: Depending on the rig type, core drilling rigs can drill from 100m to over 2000m.

Q3: What is wireline core drilling?

A: Wireline core drilling is a drilling method that retrieves core samples without removing the entire drill string, improving efficiency in deep drilling.

Q4: Can core drilling rigs drill hard rock?

A: Yes. Diamond core drilling rigs are specifically designed for hard rock formations such as granite, quartz, and basalt.

Q5: What is the difference between core drilling and rotary drilling?

A: Core drilling focuses on obtaining continuous rock samples, while rotary drilling mainly focuses on penetration and hole creation.

Q6: How much does a core drilling rig cost?

A: Core drilling rig price varies depending on drilling depth, rig type, hydraulic system, and drilling capability.

Q7: What is the best core drilling rig for mining exploration?

A: Hydraulic wireline core drilling rigs are commonly considered the best option for deep mining exploration projects.

Call to Action

Get Your Custom Core Drilling Rig Solution

Tell us your project requirements:

Drilling depth
Rock formation
Exploration objective
Core size requirement
Budget

👉 We will recommend the most suitable hydraulic or wireline core drilling rig solution for your project.

Get My Custom Solution

We're professional core drilling rig manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to wholesale core drilling rig made in China here from our factory. For price consultation, contact us.
