Air Compressor

what is Air Compressor

A drilling air compressor supplies compressed air to the drilling air control system. It is also used as a power source to drive the engine's starter motor, Kelly rotator and power clamp. MININGWELL's screw style air compressor provide the compressed air needed to power the drilling rigs and other equipment used in foundation drilling. The compressed air is used to power pneumatic hammers.
First, it is a faster and more efficient method than using traditional drilling techniques. The air compressor creates a high-powered force that can quickly drill through hard materials, such as rock or concrete. This method is also more precise, allowing for greater accuracy when drilling holes. Secondly, compressor drills are more environmentally friendly. Traditional drilling methods usually require the use of chemicals and water, which can harm the environment. On the other hand, compressed air drilling is a cleaner method that does not produce any harmful waste or by-products. Finally, drilling with a air compressor is a safer method. It eliminates the need for manual labor and reduces the risk of injuries, such as back strains or cuts.

Your Professional Air Compressor Supplier

D Miningwell is a manufacturer of rock drilling equipment and related drilling tools with more than 20 years of experience. We have own production workshop and professional team, providing economical drilling solutions and installation services. Our rock drills, down-the-hole drills, top hammer drills, rotary drilling rigs and water well drills are exported to overseas markets.

Quality Control

Quality control throughout the manufacturing process, general inspection of fixation before packaging. All our hardware is ISO 9001 certified.

OEM Support

We accept all OEM orders, just contact us and send me your design. We will offer you reasonable price and make samples for you as soon as possible. Many other designs are available for you to choose from, and we can accept minimum orders.

Super Supply Chain Integration Capabilities

We are also a mature engineering solution provider. In close cooperation with strategic partners, we provide flexible and efficient solutions for projects according to customer requirements, covering: bridge infrastructure, tunnel excavation, mining and other construction industries.

Attentive Service---24/7 Online After-sales Service

We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority. We provide 24/7 online after-sales service and look forwardto getting more cooperation.

First 12 3 Last 1/3

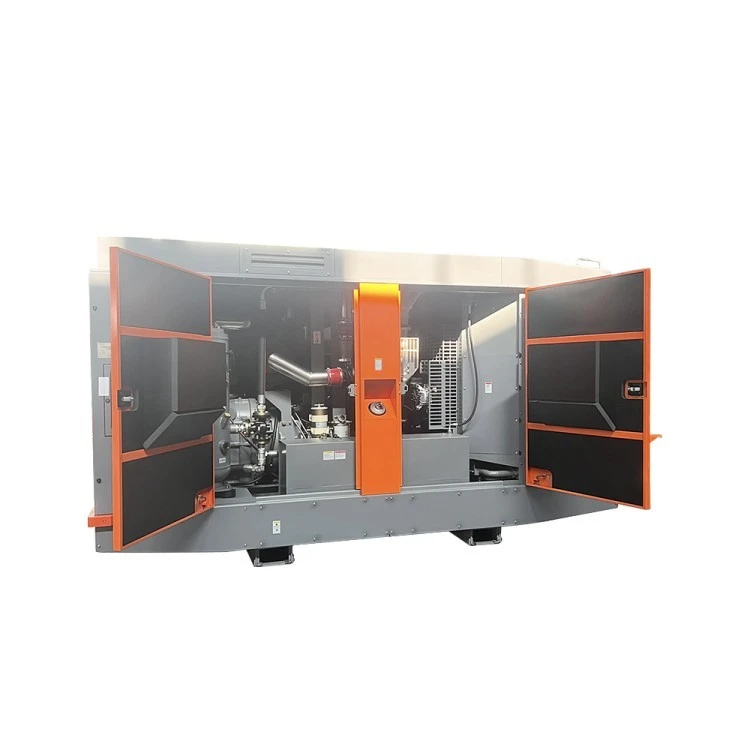

Parameter

Model	226SCYT	310SCYT-18-25	95SCY-10
Power Source	Diesel Engine	Diesel Engine	Diesel Engine
Rated Pressure	18~22bar	18~25bar	10bar
Engine	228kw	309kw	88kw
Rated Fad	24~20m3/Min	27~33m3/Min	10.5m3/Min
Weight	4700kg	5300 kg	1900kg
Specification *(LWH)*	118020802510mm	418020802510 mm	270016001700mm

Types of Air Compressor

Rotary Screw Compressors

A common type of displacement compressor, rotary screws are some of the easiest types of air compressors to take care of, as they are equipped with an internal cooling system that doesn’t require much maintenance. They are typically large industrial-sized machines that can be either lubricated with oil or run oil-free.
Best For: Large-scale jobs and industrial settings that require continuous airflow

Reciprocating Compressors

Reciprocating compressors are another popular type of displacement compressor. They are typically found at smaller work sites such as garages and home construction projects. Unlike the rotary screw compressor, the reciprocating compressor is not designed for continuous use. A reciprocating air compressor also has more moving parts, which are lubricated with oil for smoother movement.
Best For: Home and small-scale construction projects

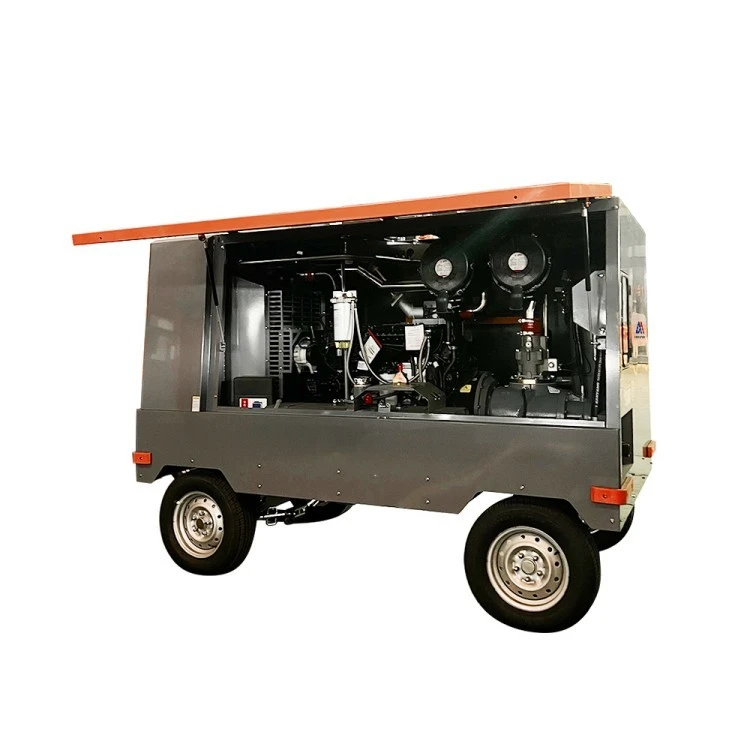

Portable Diesel-driven Twin-screw Rotary Screw Air Compressor

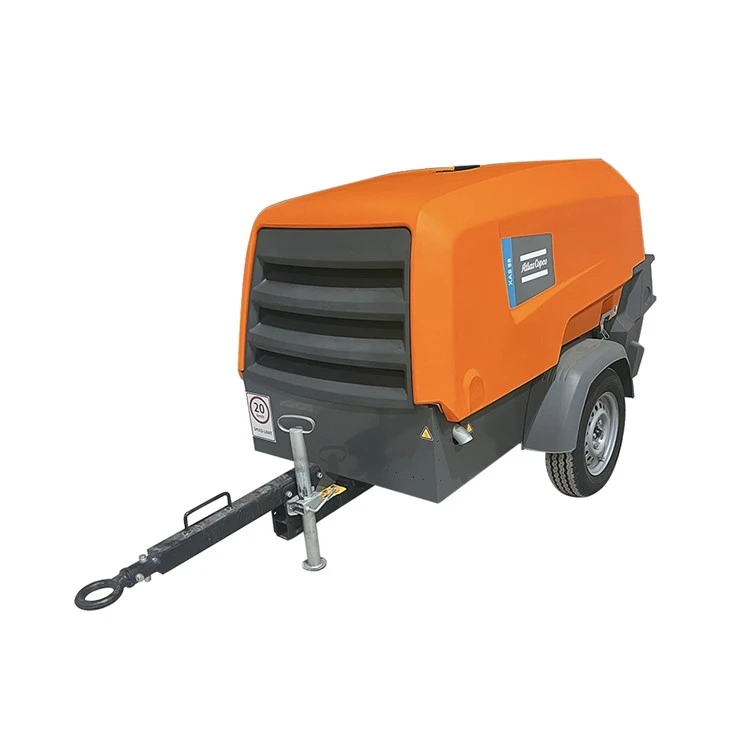

Atlas Copco Small Portable Diesel Air Compressor XAS88

Axial Compressors

Axial air compressors are not typically used in construction projects. Instead, they are commonly found in high-speed engines on ships and planes. Axial compressors have a high efficiency rate but are much more expensive than other types of air compressors, making them best suited for aerospace applications requiring high horsepower.
Best For: Aerospace applications and high-speed engines for ships

Centrifugal Compressors

Centrifugal air compressors slow and cool incoming air through a diffuser in order to build up potential energy. Because of their multi-phase compression process, centrifugal compressors are able to produce a high amount of energy in a relatively small machine.
Best For: Large-scale steel and chemical manufacturing plants

Grades of Air Compressors

Two-stage reciprocating and rotary screw air compressors are commonly used in construction. These air compressors are designed to manage enormous air pressure demands in construction environments.

Construction-grade air compressors

These air compressors are found in industrial environments like manufacturing warehouses for plant operations. They can run for long periods and aren’t affected by fluctuating use. Commercial-grade air compressors are built with high-quality parts to ensure maximum durability, performance, and energy efficiency.

Commercial-grade air compressors

Inflating car tires and inflatable products and completing DIY projects around the house are just a few things you can do with a consumer-grade air compressor. These compressors are small and portable.

Consumer-grade air compressors

Top 6 Air Compressor Installation Considerations

Location
When possible, we recommend installing compressed air systems indoors, enclosed in their own clean, dry room near your end use. Keeping the compressor separate helps to control air quality, avoid overheating issues, minimize the chance of injury and reduce productivity losses from noise. Indoor systems are also not subject to the moisture and weather issues that outdoor systems face.

Ventilation
Indoor compressors need to be in a well-ventilated space. Air must be vented out of the building away from dangers like gasoline or propane fumes and paint spray filter outlets. The ventilation system should be able to turn over the CFM of the entire unit, including the compressor and dryer. This information can be found in the compressor and dryer engineering data sheets.

Clearance Around Equipment
All air compressor equipment should have a minimum of three feet of clearance on each side. This is important for free air cooling and heat exchange on a daily basis as well as maintenance in the future. Every air compressor is different, so ask your service professional how much access space will be needed above and around your particular model.

Electrical Access
Whether indoors or outdoors, your compressor will need access to electricity. Before plugging it in for the first time, ensure that your compressor voltage is compliant with the socket to avoid blown fuses or fires.

Compressed Air System Configuration
Every company’s needs are unique, but when installing a compressor system, we generally recommend that systems include a wet receiver between the compressor and air dryer and a dry receiver after the dryer. The compressor should have a moisture separator. The dryer should have a pre-filter and an after filter. And the receivers should be sized based on the CFM of the compressors. Below is a typical example of an air compressor setup diagram.

Air Compressor Maintenance Plan
The most effective way to avoid breakdowns in the future is to have a preventive maintenance plan in place when the machine is installed. To learn more about the maintenance that needs to be performed and how often, view our basic maintenance checklist.

Air Compressor Safety Checklist

Power Down Fully Before Repairs
Before performing any troubleshooting or maintenance to your compressor, shut down the machine, disconnect it from the power source and ensure the air pressure has been relieved. Automatically controlled compressors can start at any time.

Allow Time for the Compressor to Cool Down
Hot compressor parts, coolants and lubricants may cause burns if touched during or shortly after usage. Additionally, adding or changing oil or fuel while the unit is still hot could cause the unit to smoke or even catch fire.

Drain the Compressor Tank Often
Draining the tank helps to prevent it from rusting and exploding. A rusty tank puts all employees working in the area in danger.

Keep Hands, Fingers, Hair and Clothing Away
An air compressor is a piece of rotating equipment that can quickly grab loose clothing or cause serious injury to extremities. Cooling fans, drive couplings and belts are all areas where extreme caution should be used.

Check the Electrical Outlet
Air compressors must be plugged into a grounded electrical outlet or they run the risk of electrical damage or fire.

Choose the Right Compressor Location
Compressed air fumes can be hazardous if not in a well-ventilated space. The area should also have clean, dry inlet air to avoid rust and electrical issues.

Do Not Use PVC Pipe
The use of PVC piping in compressed air applications is not safe or approved by OSHA. It can crack, burst and send pieces of shrapnel flying through your plant.

Secure Tools and Hoses Before Starting the Compressor
Before operation, check pneumatic tools to make sure the trigger is not engaged and ensure hoses are secured. Loose hoses can fly off or whip uncontrollably, causing injury.

Wear Protective Gear
Always wear ear and eye protection. Exposure to loud machinery like compressors can cause permanent hearing loss and flying debris can cause significant vision issues.

Take Compressed Air Seriously
Compressed air hoses or tools should never be pointed at yourself or anyone else for any reason. Even low pressures can cause bodily injury, including ruptured organs. Industrial compressed air is also not intended for breathing air. Breathing air requires approved filtration, treatment and monitoring equipment that meets strict health and safety standards.

Applications of Air Compressor

To Power and Inflate Construction Equipment

Commercial air compressors can be used to inflate tires on construction equipment like forklifts, scissor lifts, and loaders. They can also be used to power pneumatic tools like jackhammers and nail guns.

To Power Water Pumps for Farms

Air compressors are used in the agriculture industry to power water pumps. Because water is an essential resource for crops and livestock, it’s important that the mechanism used to deliver water is effective and consistent. Air compressors can support water delivery systems and offer a backup method of pumping water in case of an emergency.

To Power Gas Turbines

Air compressors are often used in gas turbines to produce compressed air flow. The compressor brings air into the machine, pressurizes it, and then transports it into the combustor where it combines with fuel, generating power.

Sandblasting

Sand blasters clean abrasive materials that can be difficult to remove, like rust on metal. Compressed air is part of the mechanism these tools use to clean, providing some of the necessary force.

Food Packaging

In the food and beverage industry, air compressors are used in the packaging process. They can vacuum-seal products, sealing in freshness and preventing leakage and contamination.

Automobile Production

Air compressors have a variety of uses in automobile shops. In addition to being a component of many vehicles, they’re also used to inflate vehicle tires, in paint sprayers to airbrush vehicle bodies, and to operate equipment.

Case Videos

Shipping&Payment

Every piece of Miningwell equipment and drilling rig undergoes a rigorous load security check to ensure the safety of the cargo in the container.
Our payment methods: Credit card, L/C, T/T, Western Union, and we support shipping by air and by sea.

productcate-1-1

Our Factory

In July 2001, D Miningwell's predecessor, Quxian Technology Filter Factory, was established. In 2017, established Zhejiang Minsheng Supply Chain Management Co., Ltd. and started the foreign trade journey. MININGWELL has its own production workshop for drilling rigs, down hole hammers and drill pipes. From underground rock drilling to open pit submerged rock drilling to deep well drilling

Our Certifications

FAQ

Q: What are the basics of air compressor?

A: The compressor uses a piston to compress the air in one stroke (a full rotation of the crankshaft that drives the piston a full motion). In some single-stage models, multiple pistons are used to divide up the work and can operate at lower RPMs and decibels.

Q: Can you use an air compressor while it's running?

A: Yes, you can use an air compressor while it's running; in fact, that's how it's designed to be used - as long as you don't exceed its duty cycle, meaning you shouldn't continuously use air tools at a rate that makes the compressor run constantly without a break; check the manufacturer's specifications for the proper usage guidelines.

Q: What is the law of the air compressor?

A: If the temperature is constant (isotherm), then the product of the pressure and volume are constant. At constant pressure (isobar), the volume of a gas changes in direct proportion to the change in temperature.

Q: What should you not do with an air compressor?

A: You should never use an air compressor to directly blow air onto people or animals, aim it at your body, use it to clean clothing, or attempt to breathe compressed air from it as this can cause serious injuries due to the high pressure; always follow safety guidelines and consult your compressor's manual for proper usage.

Q: What is better a vertical or horizontal air compressor?

A: Horizontal air compressor tanks have a wide, low-profile design that makes them stable and less prone to tipping than vertical tanks. They also have a larger capacity, making them an ideal choice for applications that require a continuous supply of compressed air.

Q: How do I choose the right type of air compressor?

A: Compressor Capacity and Size.
Duty cycle & utilization.
Quality of Air.
Maintenance requirements.
Energy Efficiency.
Health and Safety.
Additional expansion.
