Fully Hydraulic Drilling Rigs

- For Environmental Safeguarding: The rig, fitted with a dry dust collector, guarantees that drilling activities are executed with the least environmental disturbance. The system is adept at capturing and diminishing dust airborne, enhancing the cleanliness and safety of the workplace.

- Safety: Ensuring the operator's safety is a key focus in the drill's design. The design includes a cab resistant to rolling and rockfalls, safeguarding against unforeseen accidents or rockfalls. This system's advanced automation enables solo functioning, thereby diminishing mistakes in human tasks and enhancing safety.

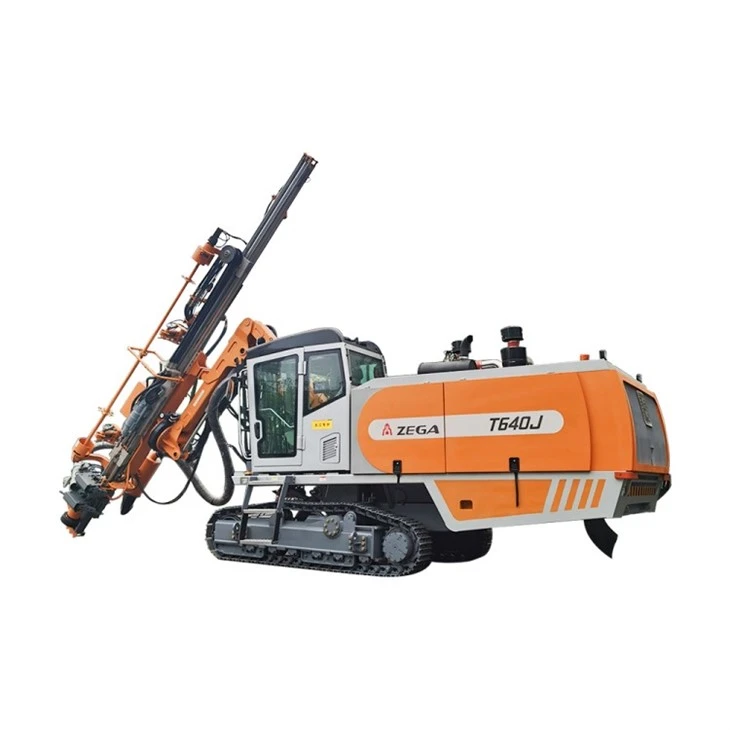

- Efficiency: Equipped with multiple functionalities enhancing operational effectiveness, the T640J boasts an automated rod-altering mechanism, a lubricating mechanism for drill rod threads, and an electronic angle detector. The advancements made greatly improve the rapidity, precision, and general efficacy of drilling processes.

One of the standout features of the T640J is its adaptability to different terrain and complex conditions. The multi-directional large-angle drill arm allows the rig to reach predetermined hole positions from virtually any angle, even on uneven or sloped ground. The advanced crawler automatic tensioning system and automatic leveling system ensure that the rig remains stable and level on a variety of surfaces, improving its reliability in off-road and climbing conditions.

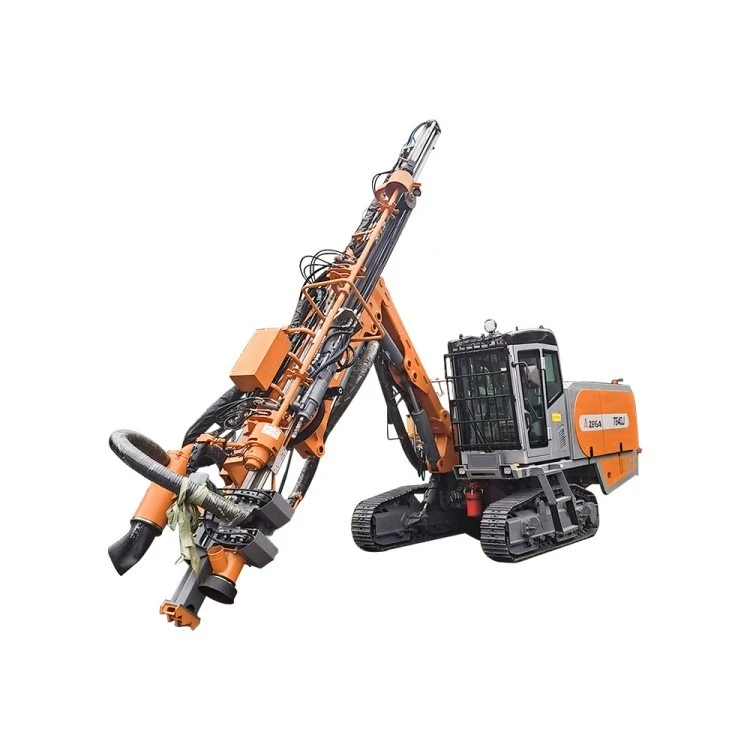

The integrated tracked surface top hammer drilling is compatible with T38, T45, and T51 detachable drill rods, and can achieve a drilling depth of up to 20 meters with a rod length of 3.66 meters, allowing for significant drilling reach and flexibility. Depending on the type of drill bit used, the rig can achieve different hole diameters, making it suitable for a wide range of drilling applications.
