Specifications

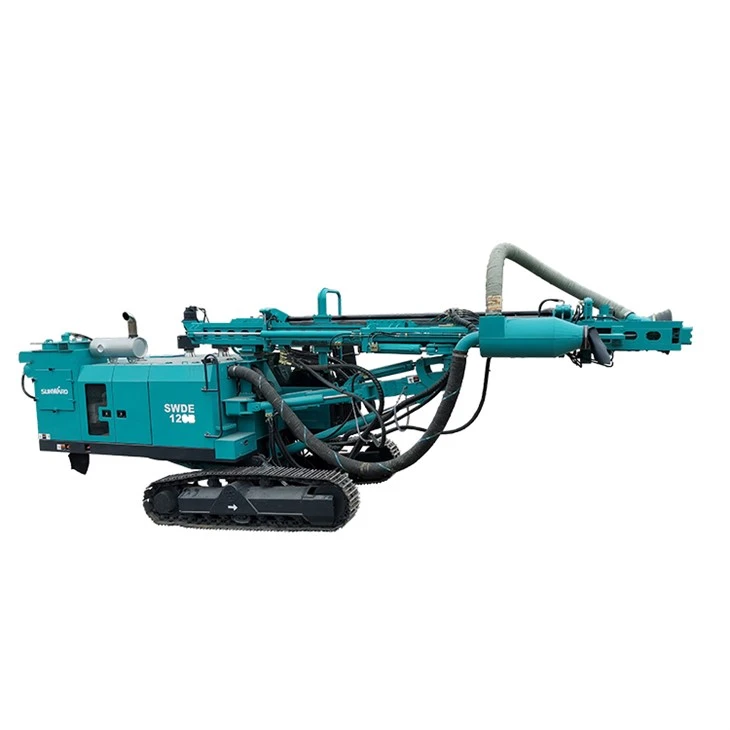

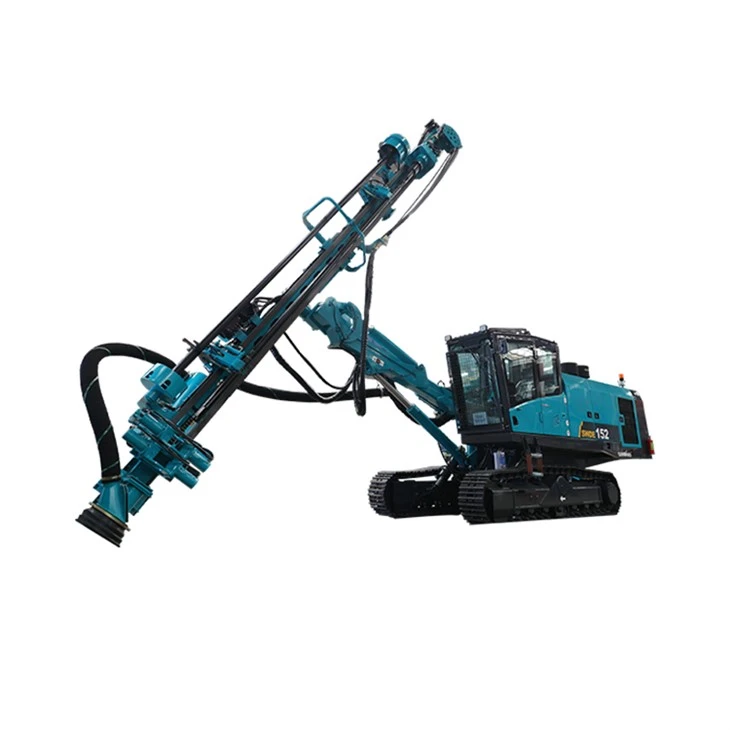

SWDE series are SUNWARD high-end integrated crawler drilling machines which our company represents. They represent the highest-end down hole drilling rigs in China, and their brand and quality are well known all over the world.
|
Technical Parameters |
|
|
Model |

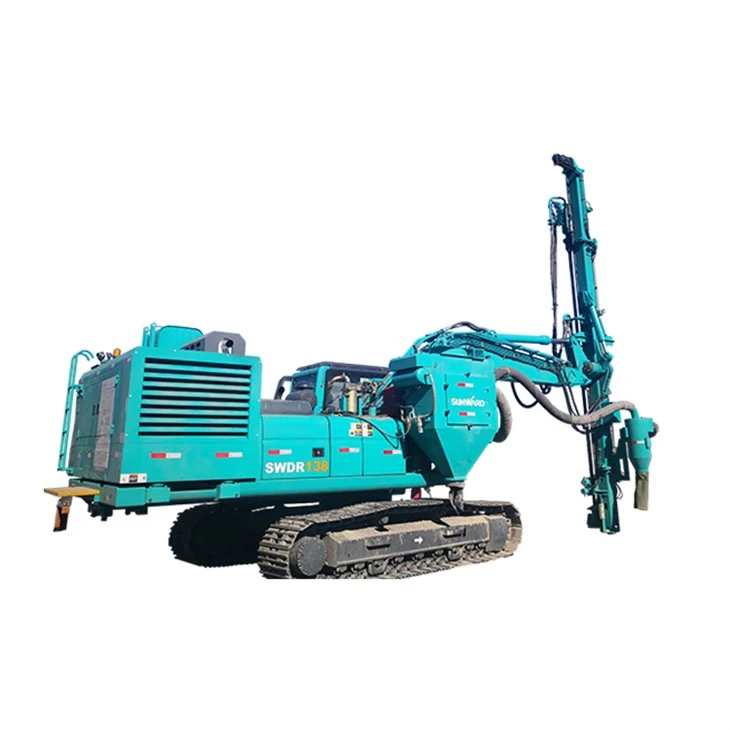

SWDR138 |
|
Operation parameter |
|
|
Drilling range (mm) |
105-152 |
|
Drill rod diameter (mm) |
83/89 |
|
Drill rod length (m) |
5 |
|
Hole depth , max (m) |
30 |
|
Upper carriage rotation (º) |
360 |
|
Air compressor |
|
|
model |
DLQ550RH |
|
Working pressure (MPa) |
1.7 |
|
Displacement (m³/min) |
15.5 |
|
Power (kW/rpm) |
179/1800 |
|
Engine |
|
|
model |
QSB7-C187 |
|
Power (kW/rpm) |
140/2050 |
|
Fuel tank capacity (L) |
500 |
|
Feed |
|
|
Feed beam length (mm) |
8200 |
|
Feed Stroke (mm) |
4500 |
|
Feed rate , max (m/s) |
0.8 |
|
Feed force , max (kN) |
40 |
|
Lifting force . max (kN) |
50 |
|
Boom deflection (º) |
/ |
|
Travel capability |
|
|
Travelspeed (km/h) |
3.45/5.6 |
|
Traction force(kN) |
160 |
|
Gradeability(º) |
25 |
|
Ground clearance (mm) |
480 |
|
Ground pressure (bar) |
0.5 |
|
Track tilt angle (º) |
/ |
|
Rotary head |
|
|
Model |
DLT40R |
|
Rotary speed (rpm) |
200 |
|
Rotary torque (Nm) |
4000 |
|
Diamension |
|
|
Gross Weight (T) |
24 |
|
LxWxH Working (m) |
11*3.4*9.0 |
|
LxWxH Transportation (m) |
14.8*3.4*3.5 |
Product detail
- Brand Name: D miningwell
- Minimum Order Quantity: 1 set
- Packaging Details: 40HQ-20GP
- Delivery Time:15-20 days
- Payment Terms:L/C, T/T, Western Union
The core components of SWDE drilling rigs are selected from international famous brands, and the system design is well-matched, which greatly reduces the failure rate and improves the service life. The drilling rig also adopts double-speed propulsion, which reduces the auxiliary time and improves the overall efficiency. It is worth mentioning that SWDE series crawler DTH drill rigs are equipped with low-temperature starting system and intelligent temperature control system, so that the drilling rigs can still work normally in extreme environments.
Application
SWDE series are straight arm integrated down hole drilling rigs with excellent performance and wide range of applications, suitable for blasting holes in open pit mines, quarries and all kinds of bench excavations with drilling range of 90-203mm.
Shipping&Payment
Every piece of Miningwell equipment and drilling rig undergoes a rigorous load security check to ensure the safety of the cargo in the container.
Our payment methods: credit card, L/C, T/T, Western Union, and we support shipping by air and by sea.
