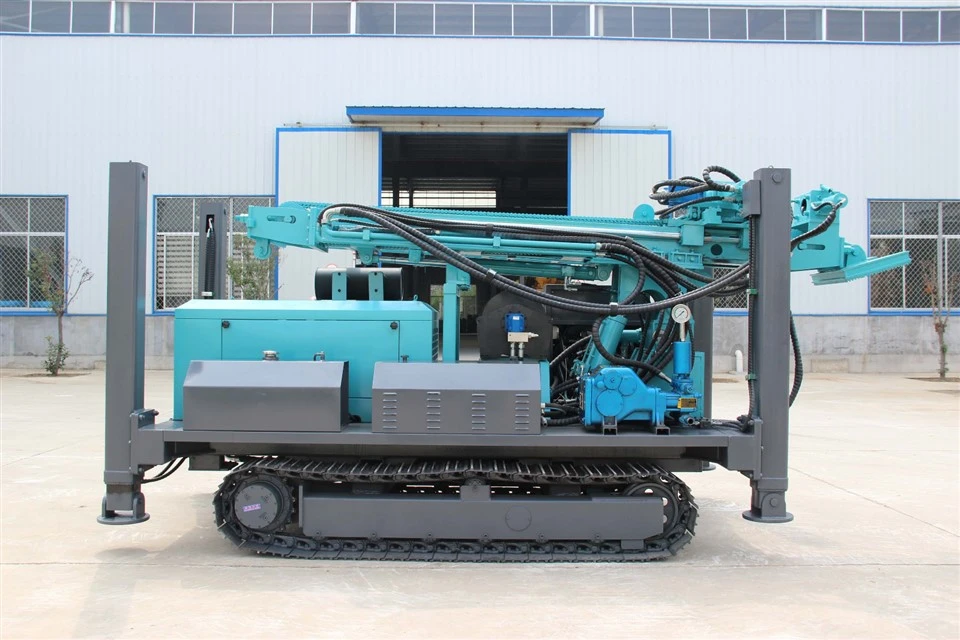

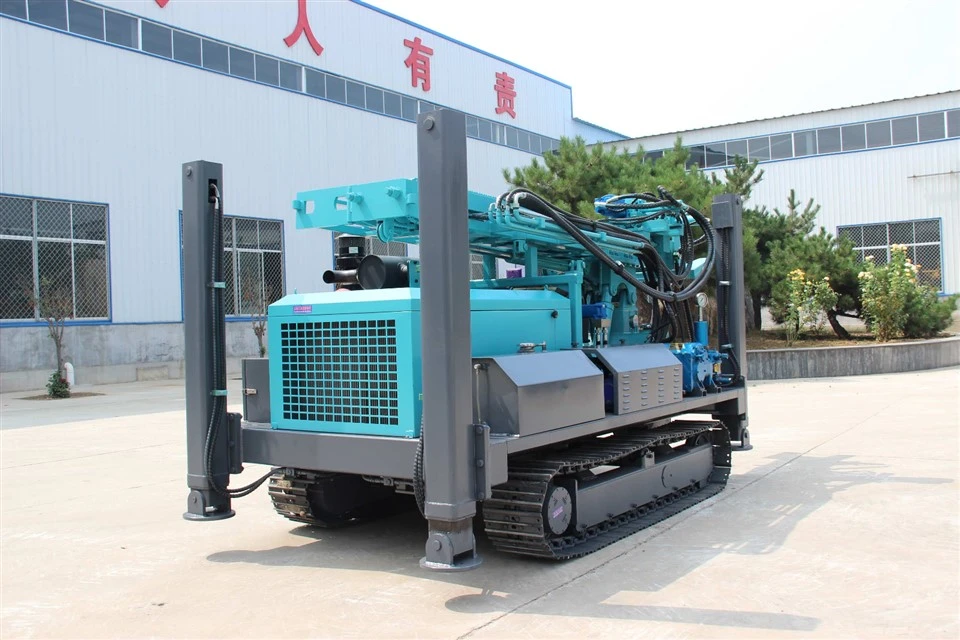

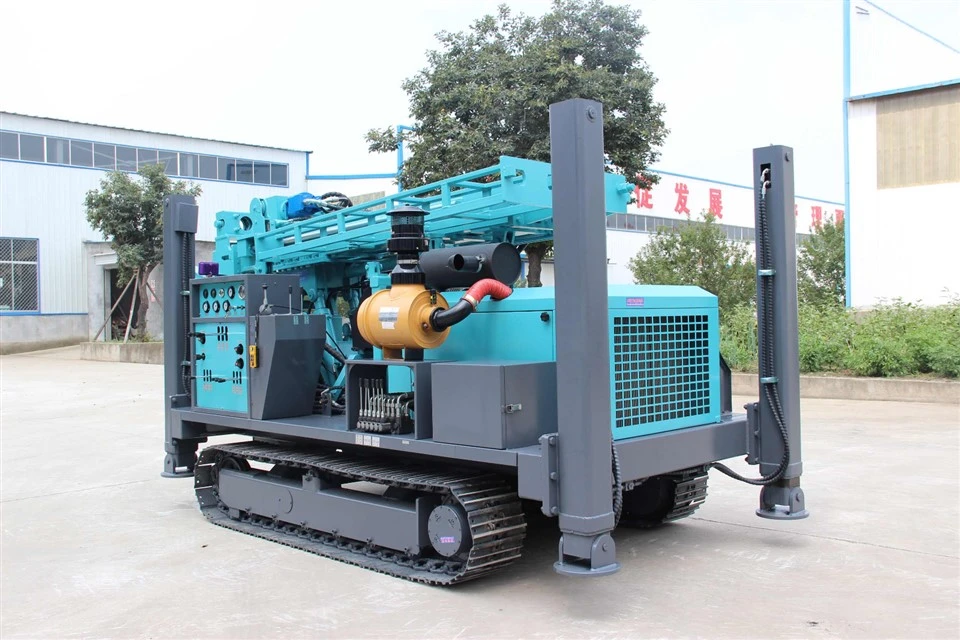

FD-400 Full Hydraulic Core Exploration Drilling Rig
our products
The FD series fully hydraulic core exploration drilling rig is an advanced drilling equipment widely used in the field of geological exploration, characterized by high efficiency, flexibility, and strong adaptability."FD series" is divided into 400, 500, 600, 800 and 1000, which is the most comprehensive and efficient model in the industry.
The Full Hydraulic Core Exploration Drilling Rig stands as a cornerstone piece of advanced equipment in the global geological exploration industry, and the professional FD series fully hydraulic core exploration drilling rig delivers exceptional performance, reliability, and versatility for diverse drilling projects. Engineered for heavy-duty and precision-driven exploration work, this rig is widely trusted by geological teams, mining enterprises, engineering construction firms, and energy exploration providers worldwide, thanks to its standout traits of high drilling efficiency, flexible operation, strong terrain adaptability, and long-term stable performance.
The FD series full hydraulic core exploration drilling rig covers a complete range of models to meet varying project depth and construction requirements, including FD-400, FD-500, FD-600, FD-800, and FD-1000 models. As one of the most comprehensive and high-performance drilling rig lineups in the exploration equipment industry, this series is designed to tackle both standard and complex geological drilling tasks, eliminating the need for multiple equipment replacements and significantly improving overall project efficiency and cost-effectiveness for users.
main features
1
Fully Hydraulic Drive System
Every FD series rig adopts a dedicated fully hydraulic drive system, which ensures smooth and stable power transmission throughout the drilling process. Unlike traditional mechanical drilling rigs, the hydraulic design simplifies operation logic, reduces manual labor intensity for operators, and cuts down long-term maintenance costs significantly. The hydraulic components are sourced from high-quality suppliers, guaranteeing consistent power output and minimal downtime due to mechanical failures.
2
Multifunctional Drilling Compatibility
This full hydraulic core exploration drilling rig supports a wide range of professional drilling techniques, making it a truly multifunctional solution for varied exploration needs. Compatible technologies include air reverse circulation continuous sampling, impact rotation drilling, directional drilling, rope coring drilling, and conventional core drilling methods. This multifunctionality allows the rig to adapt to different geological formations and exploration objectives without extensive equipment modifications, maximizing its application value across multiple industries.
3
High-Efficiency Drilling Performance
Equipped with a powerful, fuel-efficient engine and a precision-matched efficient hydraulic system, the FD series rig achieves industry-leading drilling speed and penetration rate. It is specially optimized to handle complex geological formations such as hard rock, fractured strata, and loose soil layers, maintaining stable drilling efficiency even in harsh working conditions. The high-efficiency design reduces project cycle times and helps users complete exploration and construction tasks faster, ultimately lowering overall project investment.
4
Flexible Mobility & Terrain Adaptability
Select FD series models are fitted with a heavy-duty tracked chassis, which greatly enhances the rig's mobility and off-road capability. The tracked design enables easy movement and transfer across rugged terrains, mountainous areas, muddy construction sites, and uneven ground, eliminating the need for complex lifting and transportation equipment. This flexibility makes the rig ideal for field exploration projects in remote areas with limited access, ensuring smooth construction start-up and rapid relocation between drilling holes.
5
High-Precision Drilling Positioning
To ensure the quality and accuracy of core sampling and borehole construction, the FD series full hydraulic core exploration drilling rig is equipped with professional wellhead positioning devices and precision control systems. These components effectively guarantee the verticality of the borehole and accurate positioning of the drilling position, reducing deviation rates and ensuring the authenticity and integrity of geological core samples. High-precision positioning is critical for reliable geological data collection and subsequent engineering or mining project design.
6
more...
Application scenarios
Mineral exploration
As a key equipment for solid mineral exploration, the FD-400 rig is extensively used for the exploration and core sampling of precious and base metals, including gold, copper, iron, zinc, lead, and other non-ferrous and ferrous metal mineral resources. It provides accurate geological data and core samples to support mineral reserve evaluation, mine development planning, and resource exploitation projects.
Engineering construction
In the engineering construction field, this full hydraulic drilling rig supports foundation engineering survey, foundation treatment, pile foundation construction, slope stabilization, and geotechnical investigation for buildings, bridges, roads, and other infrastructure projects. Its strong adaptability ensures stable performance in urban construction sites and complex engineering geological conditions.
Hydrogeology
The rig is highly suitable for hydrogeological work, including hydrological well drilling, groundwater resource exploration, groundwater level monitoring, and water quality sampling. It helps hydrogeological teams accurately locate groundwater resources, assess water volume and quality, and support water resource development and environmental protection projects.
Geothermal exploration
With the growing demand for clean energy, the FD series full hydraulic core exploration drilling rig plays a vital role in geothermal resource exploration and development. It is used for geothermal well drilling, geothermal reservoir investigation, and thermal energy resource evaluation, providing reliable technical support for the development and utilization of geothermal clean energy.
Full Hydraulic Core Exploration Drilling Rig advantage
High Reliability & Long Service Life: Built with premium hydraulic components, high-performance power engines, and robust structural steel, the rig is designed for continuous heavy-duty operation. Strict quality control and durable materials ensure stable performance even in long-term field work, reducing failure rates and extending equipment lifespan.
Strong Comprehensive Adaptability: The rig can adapt to a full range of complex terrains, from flat plains to steep mountains, and diverse geological conditions from soft soil to hard rock. It meets the technical requirements of multiple drilling processes, making it a universal solution for cross-industry drilling projects.
User-Friendly Operation & Maintenance: The rational hydraulic system design simplifies operation procedures, reducing the requirement for highly skilled operators. Routine maintenance is straightforward and time-saving, with easy access to key components for inspection and replacement, further lowering daily operation and maintenance costs.
The FD series full hydraulic core exploration drilling rig can be customized according to user needs to adapt to different working environments and drilling requirements
If you have further needs or questions about the FD series fully hydraulic core exploration drilling rig, you can consult us. We have a professional team to answer your questions
Factory
|
FD400 Full Hydraulic Core Exploration Drilling Rig Specification
|
||||
|
The weight (T)
|
5.3
|
Slewing speed (rpm)
|
0-1200
|
|
|
The hole diameter (mm)
|
60-110
|
Drill pipe length (m)
|
1.5
|
|
|
Drilling depth (m)
|
400
|
Rig lifting force (T)
|
10
|
|
|
Walking speed (km/h)
|
2.5
|
Dimension (mm)
|
4500*1950*2150
|
|
|
Climbing ability (Max.)
|
30°
|
Mud pump model
|
BW90-3
|
|
|
Host power(kw)
|
75
|
Drilling angle
|
45°-90°
|
|
