As global demand for mineral exploration, geological investigation, and large infrastructure development continues to rise, companies are searching for drilling equipment that offers deep capability, reliability, low operating cost, and adaptability to complex formations. In recent years, Feida's 1000m Full Hydraulic Core Drilling Rig has become a top choice among large-scale purchasers thanks to its outstanding structural design, stable deep-hole performance, and excellent cost-effectiveness.
This article provides an in-depth, engineering-oriented analysis of the Feida 1000m Full Hydraulic Core Drilling Rig, including its technical parameters, advantages, application scenarios, and why it stands out in the global drilling equipment market.
1. Product Positioning: Designed for Deep Geological and Mineral Exploration
The Feida 1000m full hydraulic core drilling rig is engineered specifically for medium-to-deep geological drilling and mineral resource exploration. Its design focuses on:
Balanced drilling depth and torque output
Full hydraulic control for precision and safety
Flexible configuration (crawler-mounted or truck-mounted)
High durability for remote mining and geological environments
Ease of transportation and rapid deployment in cross-border projects
Typical application fields include:
Mineral exploration (gold, copper, lithium, iron, etc.)
Hydrogeological investigations
Geological core sampling
Geotechnical drilling for dams, tunnels, and infrastructure
Shallow geothermal well drilling
2. Key Specifications of the 1000m Model
| Model | FDX-400 | FDG-400 | FDX-600 | FDG-600 | FD800 | FD1000 | FD1200 |
|---|---|---|---|---|---|---|---|
| Drilling Depth (m) | |||||||
| BTW (m) | 480 | 480 | 650 | 650 | 800 | 1200 | 1400 |
| NTW (m) | 400 | 400 | 520 | 520 | 600 | 1000 | 1200 |
| HTW (m) | 200 | 200 | 200 | 200 | 300 | 400 | 600 |
| Cooling System | Water Cooling | Air Cooling | Water Cooling | Air Cooling | Water Cooling | Water Cooling | Water Cooling |
| Engine | Yanmar 75 kW | Yanmar 75 kW | Yuchai 91 kW | Yuchai 91 kW | Yuchai 92 kW | Yanmar 129/130 kW | Cummins 132 kW |
| Performance | |||||||
| Max Rotation Speed (rpm) | 75 | 75 | 91 | 91 | 92 | 129/130 | 132 |
| Max Rotation Speed (rpm) | 2200 | 2200 | 2200 | 2200 | 2200 | 2300 | 2300 |
| Max Torque (N·m) | 1200 | 1200 | 2600 | 2600 | 2600 | 2600 | 3000 |
| Power Head Stroke (mm) | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 |
| Clamping Diameter (mm) | 2 gears (adjustable) | 2 gears (adjustable) | 2 gears (adjustable) | 2 gears (adjustable) | 2 gears (adjustable) | 2 gears (adjustable) | 3–6 (adjustable) |
| Feed Force (kN) | 8 | 8 | 10 | 10 | 12 | 16 | 24 |
| Lifting Force (kN) | 50 | 50 | 80 | 80 | 80 | 90 | 100 |
| Max Lifting Speed (m/min) | 110 | 110 | 110 | 110 | 110 | 110 | 110 |
| Max Feed Speed (m/min) | 110 | 110 | 110 | 110 | 110 | 110 | 110 |
| Mast Height (m) | 7 | 7 | 7 | 7 | 7 | 7 | 8.5 |
| Drilling Angle (°) | 45–90 | 45–90 | 45–90 | 45–90 | 45–90 | 45–90 | 45–90 |
| Drill Rod Handling Diameter (mm) | 900 | 900 | 900 | 900 | 900 | 900 | 1200 |
| Rod Size Supported | BQ/NQ/HQ/PQ | BQ/NQ/HQ/PQ | BQ/NQ/HQ/PQ | BQ/NQ/HQ/PQ | Wooden box max rod length 114mm (customizable) | Wooden box max rod length 114mm (customizable) | Wooden box max rod length 114mm (customizable) |
| Traveling Parameters | |||||||
| Max Gradeability (°) | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Traveling Mode | Steel Crawler | Rubber Crawler | Steel Crawler | Steel Crawler | Steel Crawler | Steel Crawler | Steel Crawler |
| Traveling Speed (km/h) | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
| Mud Pump Model | BW90 | BW90 | BW90 | BW90 | BW90 | BW160 | BW160 |
| Dimensions & Weight | |||||||
| Working Dimension (mm) | 3850×1800×7000 | 3850×1800×7000 | 4100×1900×7000 | 4100×1900×7000 | 4100×2400×7000 | 4700×2400×7600 | 4700×3100×8600 |
| Transport Dimension (mm) | 5700×1800×2170 | 5700×1800×2170 | 4500×1900×2400 | 4500×1900×2400 | 4500×1900×2400 | 5700×2400×2500 | 5700×2400×2500 |
| Weight (t) | 5.3 | 5.8 | 5.7 | 6.2 | 7.5 | 8.4 | 8.6 |
3. Why Choose the 1000m Full Hydraulic Core Drilling Rig?
(1) True Full Hydraulic System for Precision and Safety
Compared with mechanical or semi-hydraulic rigs, a full hydraulic system offers:
Stable down-pressure control
Lower core-loss rate
Reduced failure rate in deep formation drilling
Consistent torque output in hard rock conditions
The Feida 1000m Full Hydraulic Core Drilling Rig uses:
High-response proportional valves
High-flow pumps
Precision multi-way hydraulic valve control
Dynamic torque compensation
These features ensure stable deep drilling with core recovery rates of 95%+.
(2) Stable Efficiency at 800–1000m Depth
The challenge of deep drilling is not just reaching depth, but maintaining:
High torque under load
Stable hoisting capacity
Low-temperature hydraulic operation
Consistent core extraction
Feida solves these challenges with:
Reinforced mast structure
Oversized hydraulic cylinders
Advanced cooling system
High-torque spindle drive
Heavy-duty support frames
This ensures true 1000m capability, not just a theoretical rating.
(3) Modular Design for Fast Cross-Border Deployment
Compared with overseas brands that may require 15–20 days for field assembly, Feida rigs offer:
Modular, container-optimized design
Fast loading/unloading
Easy transport via truck or container
Assembly by 1–2 technicians on-site
This dramatically reduces project preparation time in remote regions such as Africa, Latin America, and Southeast Asia.
(4) Significantly Lower Maintenance and Lifecycle Cost
For large purchasers, overall lifecycle cost is more important than the initial purchase price.
The rig uses:
Standard hydraulic components (Parker/optional high-end brands)
Universally available engine and transmission parts
Easy-to-replace filters and seals
Simple operator training requirements
Overall maintenance and operating cost is 35–55% lower than comparable imported rigs.
(5) Adaptable to Multiple Terrains and Harsh Environments
With optional configurations, the rig is suitable for both stable and extreme geological environments:
Crawler version for mining zones and uneven terrain
Truck-mounted version for fast mobility and long-distance relocation
Low-temperature or high-temperature hydraulic systems
Sealed dust-resistant design for desert and mining operations
Suitable applications include:
Deep mineral exploration drilling
Geothermal well projects
Large infrastructure geological surveys
Hydrogeology and scientific research drilling
4.A New Industry Trend: Why Large Purchasers Are Switching from Imported Brands to Feida
In the past decade, international brands dominated deep core drilling equipment. But recent industry shifts (2023–2025) show a rapid change:
Trend 1: Lower "Cost per Meter Drilled" Outperforms High-Priced Imports
Feida 1000m rigs typically achieve a 20–40% reduction in drilling cost per meter, a major advantage for procurement teams.
Trend 2: Global Projects Prioritize Local Maintainability
Since Feida uses common hydraulic components and engines, buyers avoid long overseas component lead times.
Trend 3: Customization Flexibility
Large purchasing teams increasingly demand equipment tailored to:
Formation hardness
Local climate
Transportation requirements
Safety and environmental standards
Feida supports comprehensive customization, which many foreign brands cannot offer quickly.
Trend 4: Rapid Growth of Mining Projects in Developing Regions
Countries in Africa, Latin America, and Southeast Asia have surged in mineral exploration activities, creating high demand for mid-to-deep full hydraulic rigs like the 1000m Full Hydraulic Core Drilling Rig.
Conclusion
With its balance of technical strength, reliable deep-hole capacity, low operating cost, and strong adaptability, the Feida 1000m Full Hydraulic Core Drilling Rig is becoming one of the most widely adopted solutions in international drilling projects.
It represents:
High reliability
Deep drilling capability
Full hydraulic precision
Low maintenance and operating cost
Strong adaptability
Fast deployment and easier logistics
For mining exploration companies, geological institutes, EPC contractors, and drilling service providers, the 1000m Full Hydraulic Core Drilling Rig stands out as one of the most cost-effective and high-performance solutions available today.
If you'd like to know more about our drilling rigs, air compressors, or drilling tools, I'd be happy to assist-just get in touch!
Products show

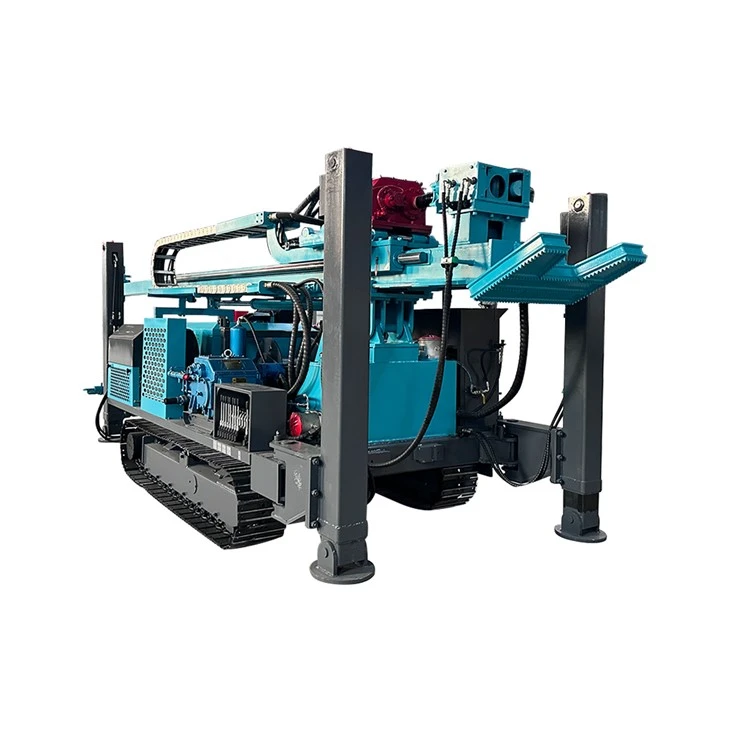

1000m Full Hydraulic Core Drilling Rig
