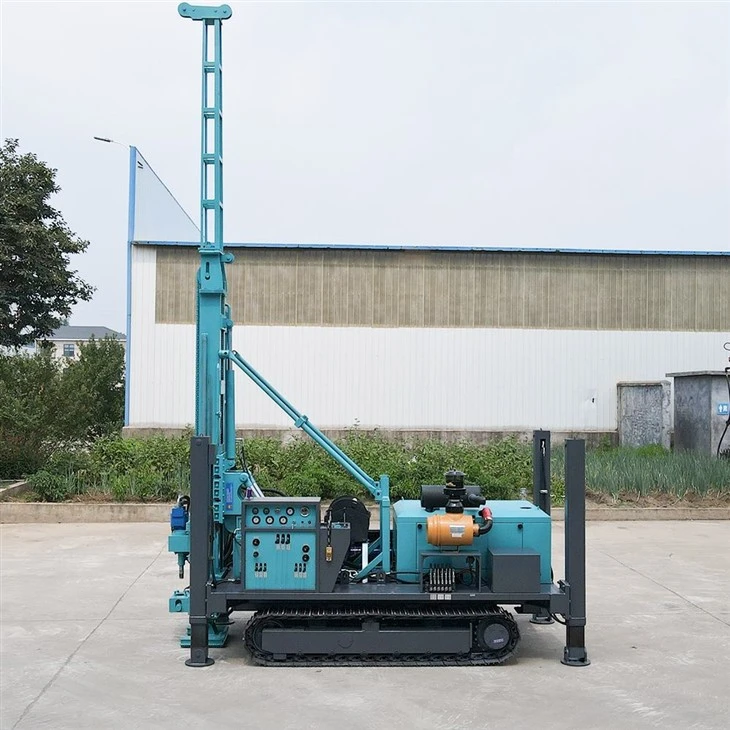

What Is the FD600 Wireline Core Drilling Rig?
The Dminingwell FD600 Wireline Core Drilling Rig is a high-performance Diamond Core Drilling Rig designed for deep-hole mineral exploration. Equipped with advanced Wireline Core Drilling System, it allows the operator to retrieve core samples quickly without pulling out the entire drill rod string-dramatically improving drilling efficiency and reducing operating costs.
The FD600 is suitable for:
Hard rock diamond core drilling
Mineral exploration (gold, copper, iron, rare metals)
Geological investigation
Tunnel & hydropower core sampling
Deep-hole NQ/HQ/PQ drilling
As a Geological Exploration Drilling Rig, the FD600 is engineered to meet the demands of long-duration, high-accuracy field operations.
Key Features of the FD600 Wireline Core Drilling Rig
✔ 1. High-Power Drilling System
The FD600 delivers excellent torque and stable rotation, ensuring reliable performance in hard rock formations.
Its power configuration supports NQ, HQ, and PQ wireline drilling, meeting different depth and core diameter requirements.
✔ 2. Efficient Wireline Core Retrieval
Using a professional wireline core barrel and overshot system, the rig significantly reduces tripping time.
This method improves overall productivity by 30–50% compared with conventional drilling systems.
✔ 3. Excellent Core Recovery Rate
Diamond bits + stable feed pressure + precision control =
High-quality core samples, even in fractured formations.
✔ 4. Strong Adaptability to Harsh Environments
The FD600 is widely used in mountains, deserts, tropical environments, and cold regions.
Its rugged structure ensures continuous drilling reliability and reduced downtime.
✔ 5. Durable Wireline Drilling Tools
Compatible with standard NQ / HQ / PQ core barrels, drill rods, and diamond bits.
This makes it easy for users to purchase replacement parts globally.
How the Wireline Core Drilling Method Works
The wireline drilling method is the core technology behind the FD600.
It follows several steps:
Drill with a diamond bit attached to the core barrel.
When the inner barrel is full of core, stop drilling.
Insert the overshot into the drill rod string.
Retrieve only the inner tube using the wireline cable-not the entire rods.
Empty core → reinsert → continue drilling.
Advantages of the Wireline Method
Much faster core retrieval
Dramatic reduction in drilling downtime
Lower labor intensity
Higher operational safety
Better for deep-hole exploration
Because of these advantages, wireline drilling has become the standard for global mineral exploration.
Why Mining Companies Choose the FD600
1️⃣ Higher Efficiency
Wireline method reduces downtime → more drilling meters per day.
2️⃣ Lower Cost per Meter
Less fuel, fewer workers, shorter tripping time.
3️⃣ Stable & Accurate Data
Ensures high core recovery required for resource estimation.
4️⃣ Easy Maintenance + Global Compatibility
All NQ/HQ/PQ components follow international standards.
5️⃣ Strong After-Sales & Parts Support
Users appreciate easy access to consumables like wireline rods, core barrels, and diamond bits.
If you're looking for a reliable and cost-efficient Wireline Core Drilling Rig, the FD600 is an excellent choice for deep mineral exploration and high-accuracy geological sampling.
📩 Contact us for FD600 specifications, price, and drilling solutions.
We provide full sets of wireline drilling tools, including diamond bits, drill rods, and core barrels.
other core drilling rig click here
Specifications
| Rig Model | FD-600 | FD-800 |
|---|---|---|
| Weight | 4500 kg | 6500 kg |
| Dimension (Transport) | 4500 × 1900 × 2650 mm | 4400 × 2200 × 2800 mm |
| Dimension (Working) | 4500 × 2500 × 6100 mm | 4000 × 2700 × 6500 mm |
| Drilling Angle | 45–90° | 45–90° |
| Drilling Depth (BTW) | 650 m | 1000 m |
| Drilling Depth (NTW) | 600 m | 800 m |
| Drilling Depth (HTW) | 400 m | 600 m |
| Drill Head Lift Force | 240 kN | 300 kN |
| Drill Head Feed Force | 120 kN | 150 kN |
| Rotary Speed RPM | 0–1100 rpm | 0–1100 rpm |
| Max. Torque | 1400 N·m | 1800 N·m |
| Drill Head Feed Stroke | 1800 mm | 1800 mm |
| Drill Mast Slide Stroke | 800 mm | 1200 mm |
| Hydraulic Pumps | Primary: 95 L/min, 32 MPa; Auxiliary: 80 L/min, 25 MPa | Primary: 95 L/min, 32 MPa; Auxiliary: 80 L/min, 25 MPa |
| Hydraulic Cooling System | Water cooling | Water cooling + air cooling |
| Power Unit | Yuchai 4-cylinder, 91 kW / 2200 rpm | Yuchai 6-cylinder, 129 kW / 2200 rpm |
| Hydraulic Winch Capacity | 600 m | 800 m |
| Mechanical Winch Capacity | 15 kN | 20 kN |
| Winch Lifting Speed | 110 m/min | 110 m/min |
| Mud Pump | BW100 / BW160 (optional) | BW100 / BW160 (optional) |
| Crawler Type | Rubber / 6-ton track, width 300 mm (optional 400 mm) | 6-ton track, width 400 mm (optional 600 mm) |
| Crawler Climbing Angle | 25° | 25° |
| Crawler Walking Speed | 2–3 km/h | 2–3 km/h |
