TF300G Reverse Circulation Drilling Rig - High-Efficiency Solution for Large-Scale Water Well & Geological Projects
In today's drilling industry, efficiency, precision, and reliability define the success of any large-scale project. The TF300G Reverse Circulation Drilling Rig is engineered exactly for that-delivering fast penetration rates, clean sample recovery, and stable performance even in complex geological formations. Designed with a professional-grade RC system and heavy-duty power structure, this model has become a preferred choice for contractors handling deep water well drilling, geological investigation, and mining exploration.
This article introduces the TF300G model in detail, explaining its key configurations, working advantages, recommended application scenarios, and why it stands out as one of the most competitive Reverse Circulation Drilling Rig options for large procurement buyers.
Products Description

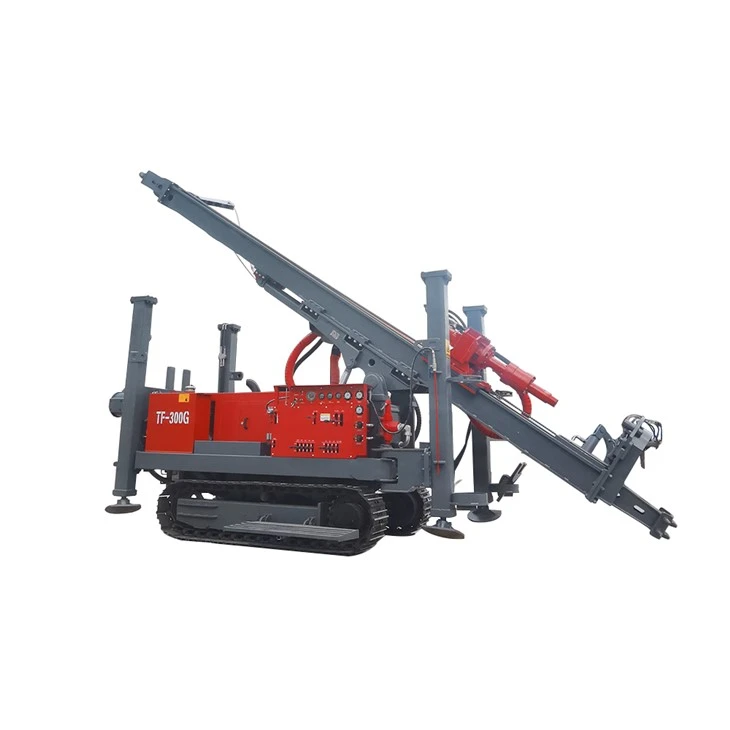

Overview of TF300G Reverse Circulation Drilling Rig
The TF300G Reverse Circulation Drilling Rig is a fully integrated RC drilling solution built for high-efficiency cuttings removal and accurate geological sampling. Its system adopts dual-wall drill pipes combined with powerful reverse-airflow suction, enabling operators to achieve deeper drilling with cleaner and faster sample extraction.
Core Specifications (Typical Configuration):
Drilling Method: Reverse Circulation (RC)
Max Drilling Depth: 300 m
Borehole Diameter: 200–450 mm
Power System: High-output diesel engine / hydraulic power head
Air System: Compatible with medium/high pressure air compressors
Mobility: Crawler-type chassis for all-terrain operation
Sampling Efficiency: High-purity, uncontaminated samples
Suitable Terrain: Loose soil, sand, gravel layers, mixed formations
These features make the TF300G Reverse Circulation Drilling Rig ideal for sites requiring reliable penetration speed and accurate geological data collection.
Key Advantages of TF300G Reverse Circulation Drilling Rig
1) High Purity Geological Samples
The TF300G's dual-wall RC system transports cuttings directly from the drill bit through the inner pipe, ensuring minimal contamination-crucial for geological survey companies and mining exploration contractors.
2) Excellent Drilling Speed & Reduced Fuel Consumption
The large-volume reverse airflow removes cuttings efficiently, reducing bit wear and shortening drilling cycles. This directly lowers operating costs for large procurement buyers seeking long-term economic performance.
3) Outstanding Adaptability in Complex Formations
From loose sandy layers to gravel zones and bedrock interfaces, the TF300G maintains stable penetration without excessive hole collapse risk-a common pain point in conventional circulation drilling.
4) Strong Power & Reliable Hydraulics
The power unit and hydraulic system are optimized for harsh conditions, ensuring continuous drilling even in remote or high-temperature environments.
5) Easy Maintenance & Global Parts Support
With standardized RC components and widely available spare parts, maintenance is straightforward, reducing downtime for multi-project operators.
The combination of power, stability, and high sample quality makes the TF300G one of the most competitive options in the market for Reverse Circulation Drilling Rigs.
Application Scenarios
✔ Water Well Drilling Projects
Fast sediment removal and large pore diameter make the TF300G ideal for clean, deep water well drilling.
✔ Geological Exploration & Sampling
Accurate RC samples support mining prospecting, resource evaluation, and environmental investigation.
✔ Construction & Foundation Engineering
Suitable for drilling large-diameter holes for piling, pipe installation, and infrastructure construction.
✔ Mining & Quarry Operations
Ideal for field exploration, ore body analysis, and sample verification.
Large procurement customers benefit from the rig's multi-function versatility, enabling use across several construction and exploration business lines.
Why Large Procurement Buyers Prefer the TF300G
Large customers typically focus on operational stability, multi-role capability, and long-term cost effectiveness. The TF300G meets these expectations because:
It delivers premium, uncontaminated samples that improve decision accuracy and reduce exploration risks.
It reduces labor and time costs, thanks to high penetration rates.
It works with mainstream compressors and RC tools, lowering accessory costs.
It offers strong ROI-one rig can replace multiple conventional drilling machines in certain environments.
For companies managing multiple drilling projects or planning fleet upgrades, the TF300G is a dependable long-term investment.
TF-300G Reverse Circulation Drilling Rig – Technical Specifications (English Version)
| Model | TF-300G |
|---|---|
| Drilling Depth (m) | 300 |
| Drilling Diameter (mm) | 89–150 |
| Working Air Pressure (MPa) | 1.7–3.0 |
| Air Consumption (m³/min) | 18–35 |
| Drill Pipe Diameter (m) | 3 |
| Main Hoist Lifting Capacity (t) | 20 |
| Max. Rod Lifting Force (N) | 9000–4500 |
| Drilling Efficiency (m/h) | 20–35 |
| Travel Speed (km/h) | 3 |
| Gradeability (%) | 21 |
| Total Weight (t) | 8.2 |
| Engine Power (kW) | 92 |
| Overall Dimensions (L×W×H mm) | 7000 × 1950 × 2500 |
