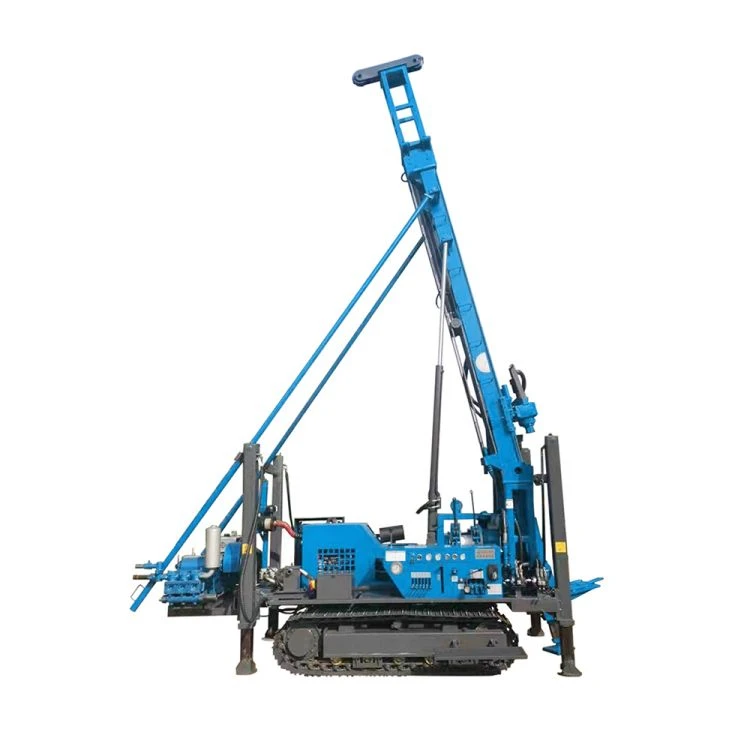

Geological Exploration machine

Name: China Geological Exploration machine Manufacturers Suppliers Factory - Miningwell Supply Chain
Brand: Miningwell
SKU: 249644866

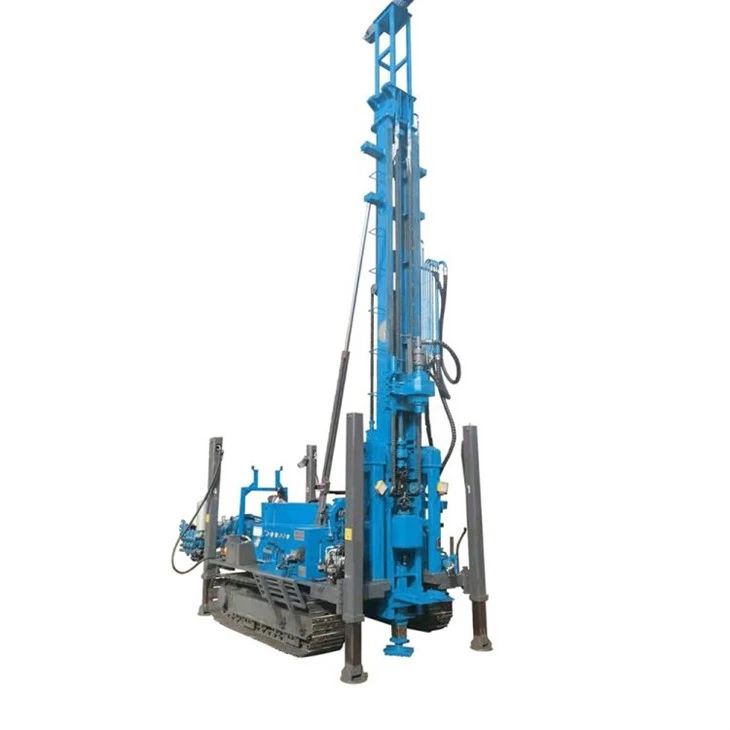

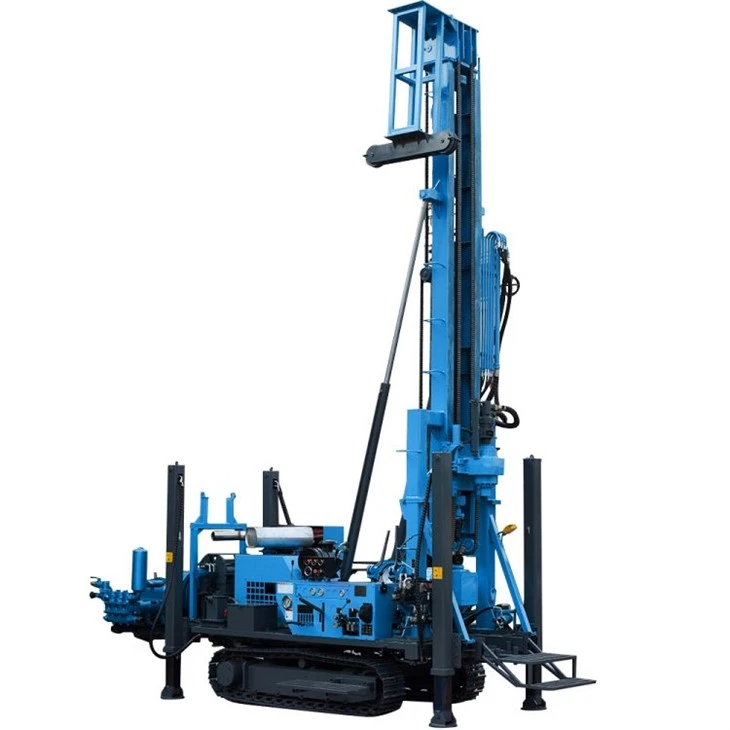

“MWDL series is the latest fully hydraulic mechanical top drive core drilling rig developed by D Mingwell. “The MWDL Series is available in 300, 400, 500, and 600 models and is the most complete and efficient in the industry. The “MWGL Series” integrates D Mingwell's latest technology and can be customized to meet a wide range of needs to suit a variety of work environments. The hydraulic clamping system allows drilling tasks with drilling angles of 45°-90° to be accomplished with ease.

Send Inquiry

Description

Specifications

Technical Parameters	MWDL350	MWDL450	MWDL600	MWDL750
Drill pipe specification/Drilling depth	NTW/350	NTW/450	NTW/600	NTW/750
Drill pipe specification/Drilling depth	HTW/200	HTW/300	HTW/400	HTW/500
Drilling Diameter (mm)	60-110	60-110	60-110	60-110
Mud pump No.	BW 90-3	BW 90-3	BW 90-3	BW 90-3
Walking speed (Kw)	2.5	2.5	2.5	2.5
Lifting force (T)	10	10	10	12
Drilling angle(°)	45-90	45-90	45-90	45-90
Weight(T)	6.5	6.8	7	7.5
Power(Kw)	Yuchai 75	Yuchai 85	Yuchai 96	Yuchai 118
Gradient (°)	30	30	30	30
Drill Pipe (m)	1.5	1.5	1.5	1.5
Rotation speed (rpm)	0-1200	0-1200	0-1200	0-1200
Dimension	480017002280	480017002280	530020002300	530020002300

Product detail

Brand name: miningwell
Minimum order quantity: 1 set
Packaging details: standard export packaging
Delivery Time: 15-20 days
Payment terms: L/C, T/T, Western Union

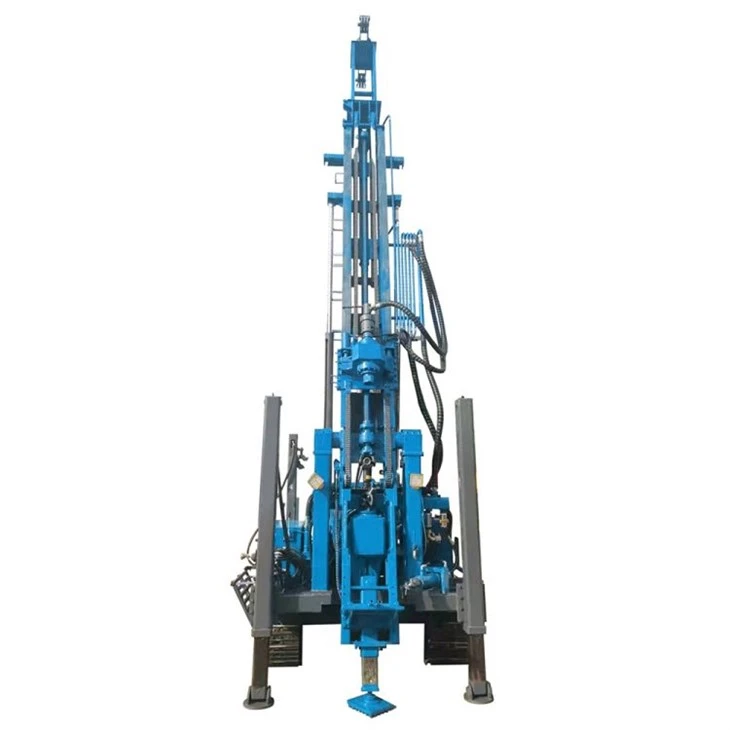

The machine is equipped with a mud staining pump to make the job easier and save the user cost. The wireline core drilling rig is equipped with high performance hydraulic oil pump, which makes the whole machine neater, more flexible and more stable "MWDL Series" The whole machine is made of steel structure and thickened steel plate, which increases the stability of the whole machine and makes it more sturdy and durable. The operating system has been debugged by D Mingwell engineers for many generations, which is easy to learn and convenient to operate.

Features

1) The power head of the drilling rig adopts the advanced manufacturing process in the industry, which is suitable for high torque and high speed drilling operation, and it is powerful while ensuring the compact structure.

2) Industry-unique equalized pressure drilling system can effectively balance the weight of the drilling column and accurately control the drilling pressure, so that the drilling rig can be better adapted to the complex stratigraphic environment and the requirements of deep hole drilling technology.

3) The industry's unique electro-hydraulic centralized control system, the manual console centralized realization of all power operations and drilling operations, and at the same time, comprehensive monitoring of the status of the entire machine, easy to operate and troubleshooting. The drill pipe gripper has automatic pressure holding and clamping functions, which can be synchronized with the chuck-type power head for quick response, safety and reliability.

4) D Mingwell proprietary drilling rig mud treatment system, using customized high-pressure mud pumps, light weight, small pulse, can handle high solid-phase mud and circulating mud.
