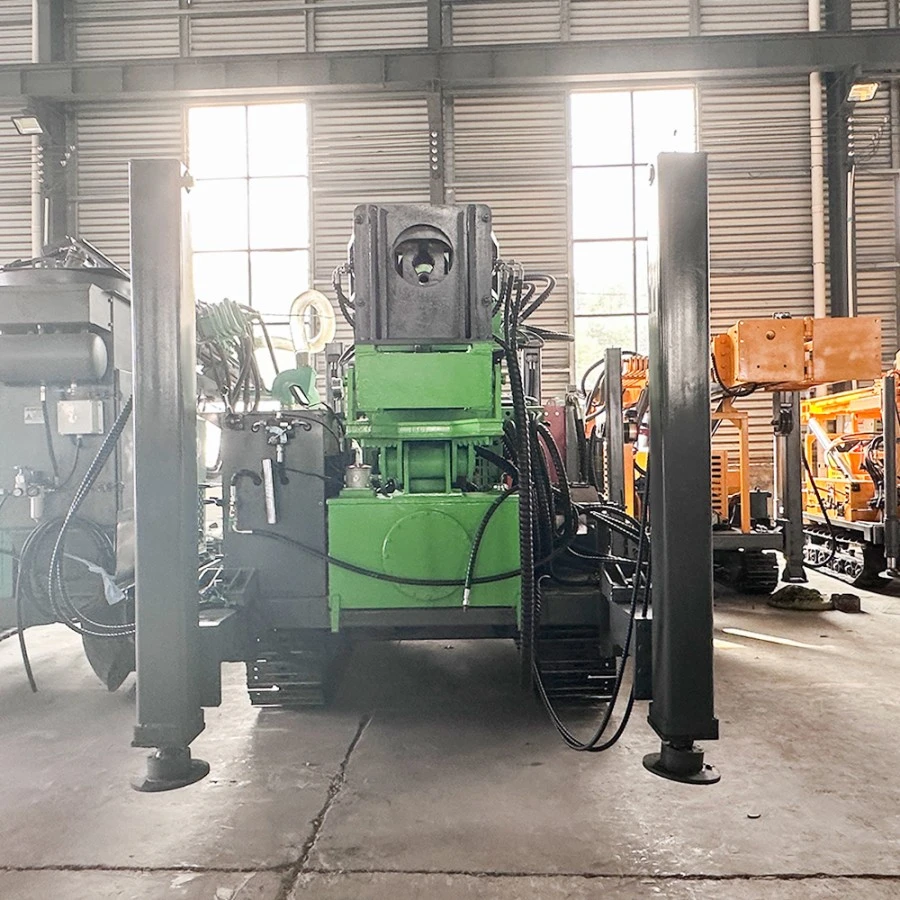

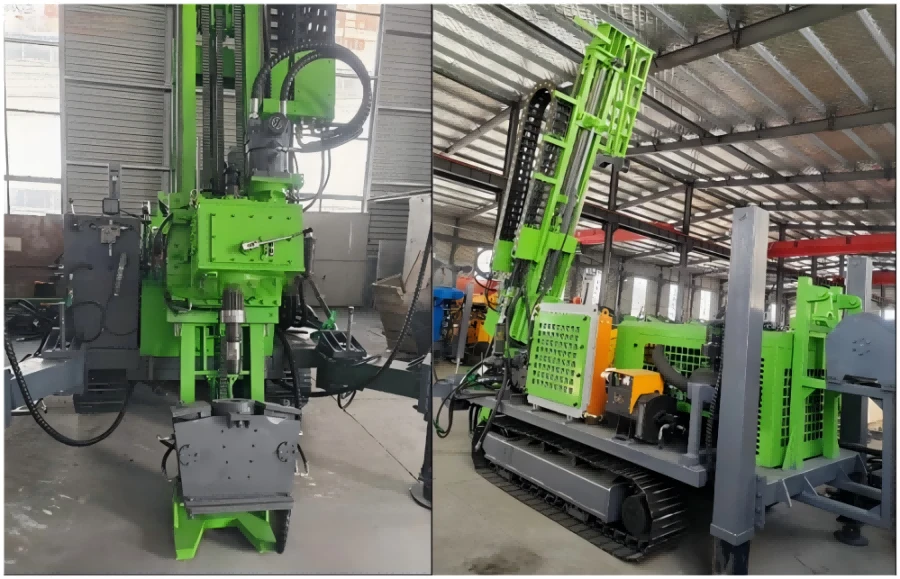

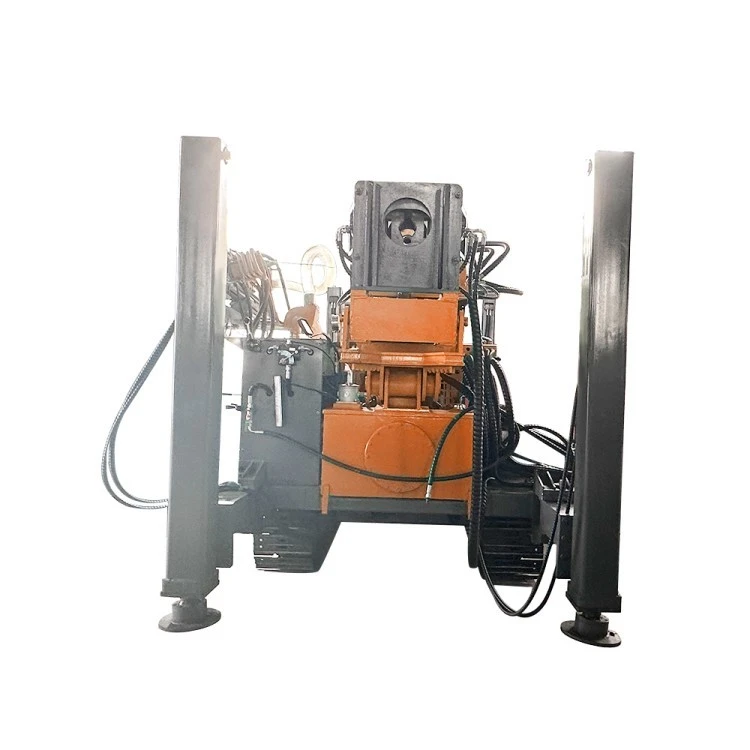

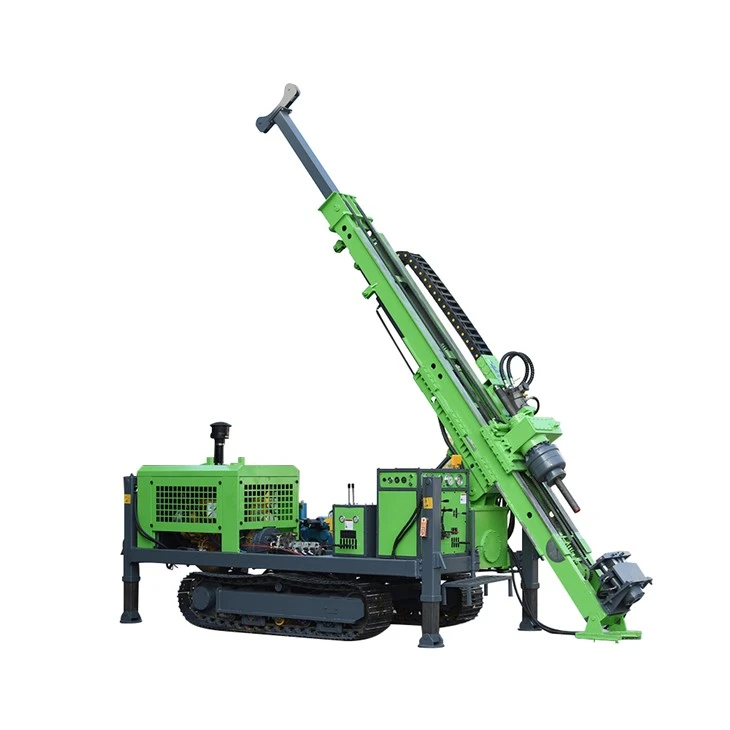

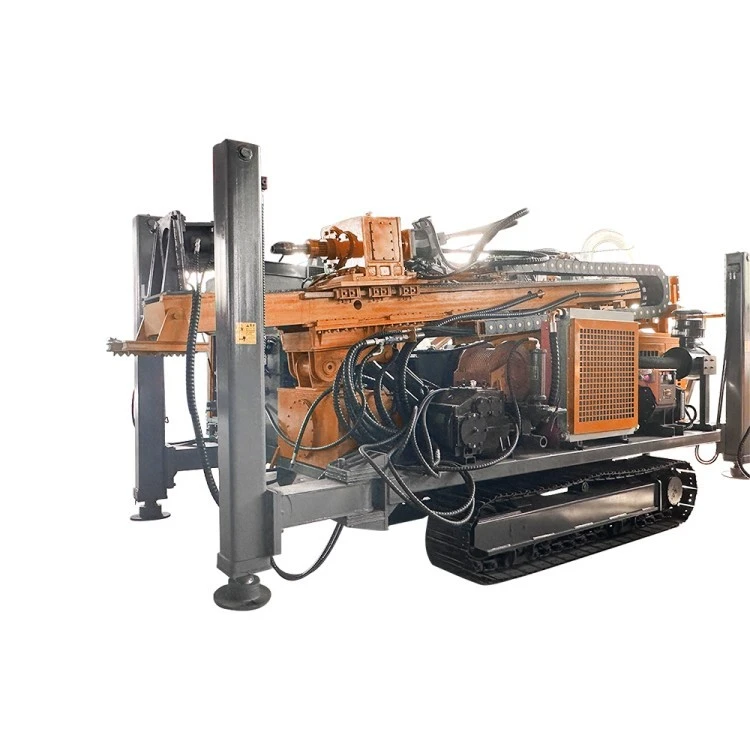

D Miningwell 1600m open pit fully hydraulic core drilling rig is a new type of core mining drill successfully developed on the basis of absorbing the advanced technology of similar underground core drilling rigs both at home and abroad. Its main feature is that it adopts a floating spindle, which is mainly used for drilling solid ore deposits.
The mining core drill JY1600 can be equipped with customized modules, such as hydraulic high outriggers, hydraulic chucks, hydraulic main winch, etc, which is convenient for the rapid positioning of the rig, and it is equipped with a wireless remote-control crawler, which is suitable for a wide range. This mining core drill is equipped with wireless remote control track, which is suitable for a variety of terrains, and controls the drilling rig to crawl within a safe distance to prevent sudden danger.
product Features
01.

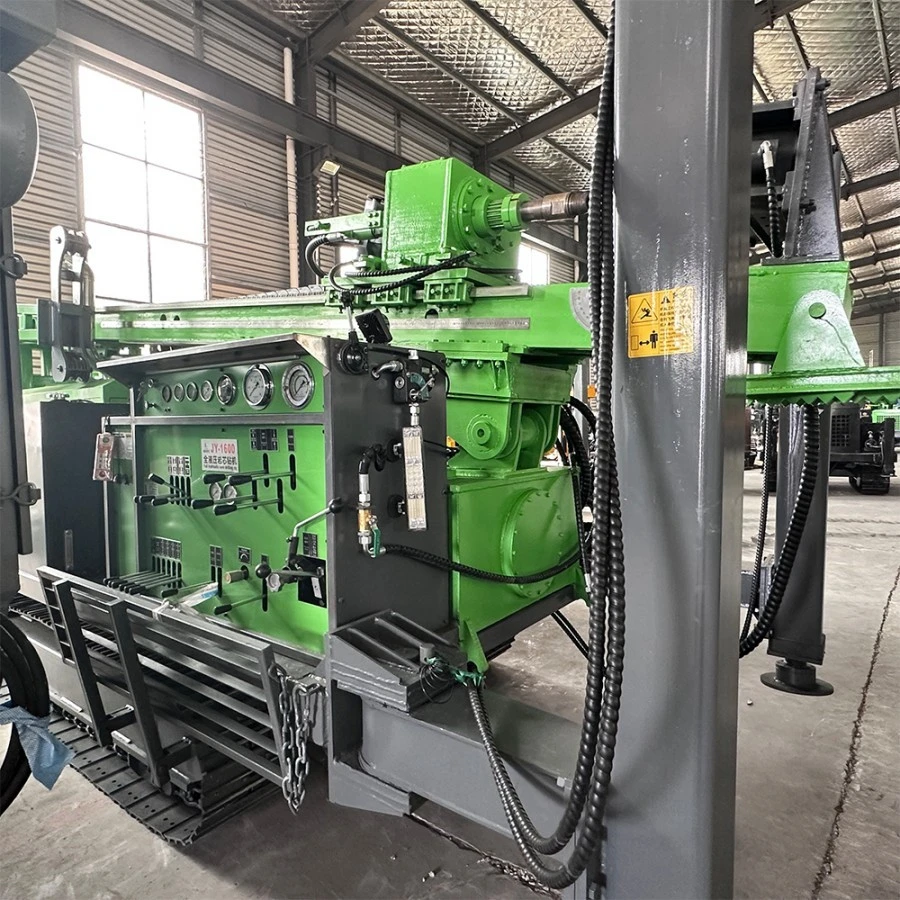

The power head of the surface drilling equipment adopts mechanical two-stage stepless speed regulation system, the low-speed torque is doubled, the maximum torque is 3500N.m, the drilling effect is smooth and reliable. The power head is equipped with lateral translation mechanism, the mast is lifted and lowered by oil cylinder, and can be slid as a whole, which can drill holes within 45-90°, and it is convenient for lifting and releasing the drilling tools.
02.
The power part adopts Weichai turbocharged engine, axial piston pump + three gear pumps full hydraulic drive, hydraulic system hydraulic system adopts load-sensitive control, with 3-meter drilling rod, high working efficiency and high torque. The drilling rig is also equipped with inclined shaft piston motor drive, compact structure, small size, high power, impact resistance, long life, high torque, greatly improving drilling efficiency. The mast can be folded with sliding touchdown function.
Aapplication
The JY-1600, a completely hydraulic drilling machine used in mines, finds extensive application in geological and engineering geology areas such as shallows, oil, natural gas, among other drilling domains, but its utility extends to railroads, highways, bridges, water preservation and hydroelectric projects, tunneling, and various other drilling operations.
Shipping&Payment
Every piece of Miningwell equipment and drilling rig undergoes a rigorous load security check to ensure the safety of the cargo in the container.
Our payment methods: credit card, L/C, T/T, Western Union, and we support shipping by air and by sea.
How To Cooperate With Us?
The company was established in 2001, It is a manufacturer mainly engaged in Low pressure hammer,Medium pressure hammer ,High pressure DTH hammer, as well as down the hole drilling rig accessories and drill rods.
Adhering to the concept of "win-win cooperation", we have formed strategic partnerships with numerous domestic peers, committed to becoming a one-stop service center, promoting global drilling and production needs, and becoming a technology-based, sharing and mutual assistance company. Thus, D-MININGWELL Supply Chain Co., Ltd. was born. MININGWELL's supply chain covers all excellent rock drilling products in China, from underground drilling to open-pit and deep well drilling, providing one-stop services for global rock drilling companies.
Our products are exported to all parts of the country and highly praised by domestic and foreign users.
Facebook：drilling rig plan+(https://www.facebook.com/profile.php?id=61551253829157)
Ins ：d_miningwelldrillingrigsturkey
WhatsApp ：+8615857099988
Tiktok：d_miningwell_comp
Youtube:dminingwell@gmail.com
Our address
No. 18 Gaotang Road, Qujiang District, Quzhou City, Zhejiang Province
Phone Number
+8615857099988
seo@dminingwell.com
| Parameter | Details |
|---|---|
| Drilling Rig Model | JY-1600 |
| Drilling Capability | |
| - BTW (m) | 2000 |
| - NTW (m) | 1600 |
| - HTW (m) | 1200 |
| Hydraulic System | |
| - Rated Pressure (MPa) | 32 + 16 |
| - Variable Piston Hydraulic Pump | 145 |
| - Triple Gear Motor | 32/32/16 |
| - Variable Piston Motor | 160 |
| - Variable Piston Pump | 145 |
| - Cooling Method | Water-cooled + Independent Air-cooled |
| Engine Parameters | |
| - Model | Weichai Deutz Six-cylinder (High-altitude Special) |
| - Rated Power (kW) | 147 kW |
| - Rated Speed (rpm) | 2300 |
| Power Head Parameters | |
| - Maximum Torque (N·m) | 3000 |
| - Maximum Speed (rpm) | 1600 |
| - Feed Stroke (m) | 3500 |
| - Lifting Force (kN) | 400 |
| - Pushing Force (kN) | 200 |
| Wireline Core Hoist Parameters | |
| - Rope Capacity (m) | 1800 |
| - Lifting Force (kN) | 24 |
| - Lifting Speed (m/min) | 110 |
| - Wire Diameter (mm) | 8 |
| Mast Parameters | |
| - Total Height (m) | 7.9 |
| - Drilling Angle (°) | 0-90 |
| - Sliding Stroke (mm) | 1200 |
| Chucking Device Parameters | |
| - Through Hole Diameter (mm) | 130 |
| Hydraulic Mud Pump | BW250 |
| Hydraulic Generator | 15 kW |
| Track Parameters | |
| - Maximum Gradient (°) | 20 |
| - Maximum Travel Speed (km/h) | 2 |
| Transport Dimensions | |
| - Length × Width × Height (mm) | 5600 × 2000 × 2400 |
| Total Machine Weight (t) | 10 |
