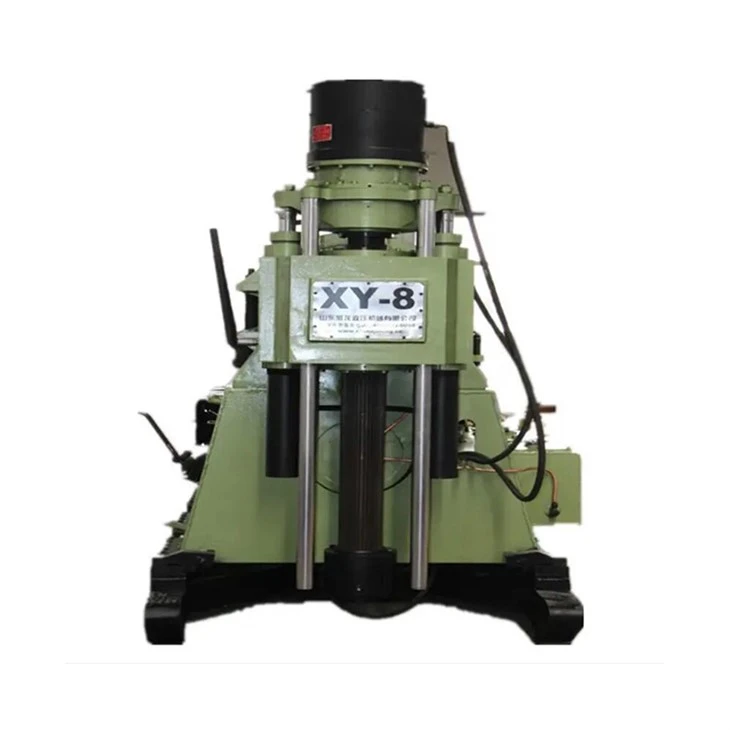

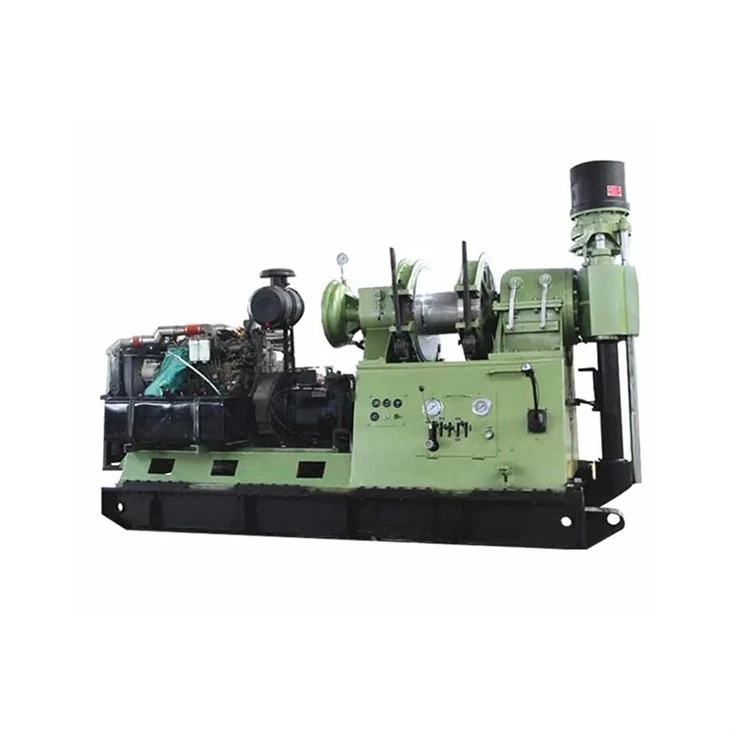

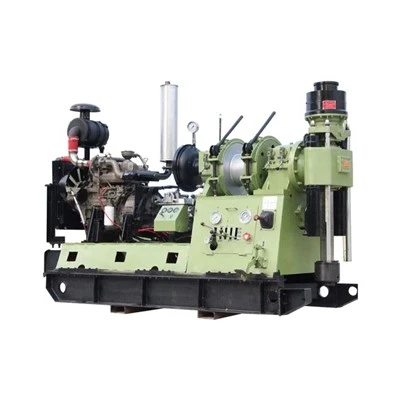

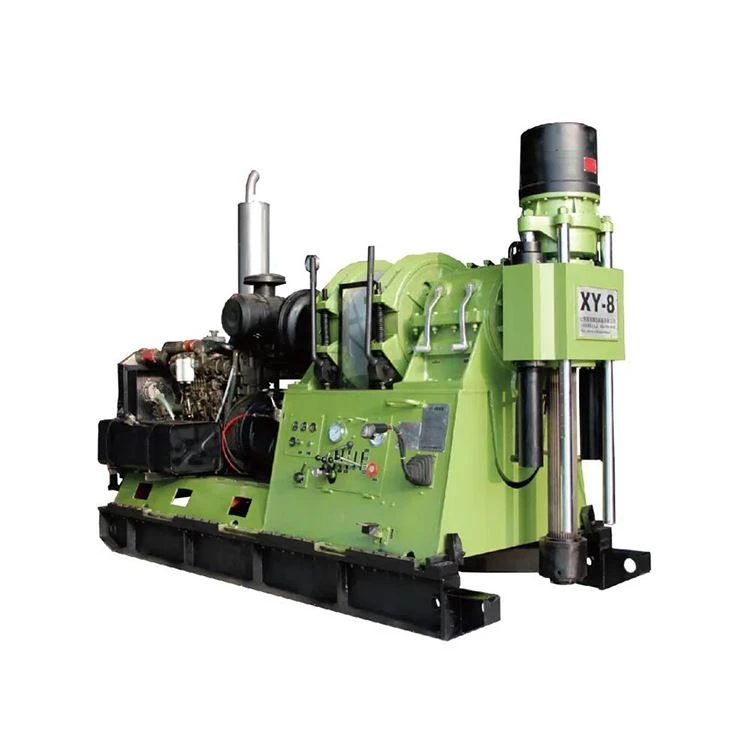

XY-8 Rock Core Drilling Rig – Portable & High-Performance Core Drilling Machine
The XY-8 Rock Core Drilling Rig is a portable, high-performance, and reliable core drilling machine designed for professional geotechnical investigations, mineral exploration, and engineering projects. Specifically engineered to drill rock cores efficiently and precisely, the XY-8 is ideal for a wide range of field conditions, including remote mining sites, construction projects, and geological survey locations.
Built with durable materials and a hydraulic drive system, this rock core drilling rig ensures stability, high penetration efficiency, and long-term reliability for professionals requiring accurate rock and soil sampling.
active members
years experience
events & challenges
expert instructors
Key Features of XY-8 Rock Core Drilling Rig
Portable & Compact Design
Lightweight and easy to transport.
Rapid setup for field operations in mining, construction, or geological survey sites.
Hydraulic Drive System
Smooth, stable drilling performance.
High torque and precise control for rock core drilling.
High Penetration Efficiency
Capable of drilling hard and medium-hard rock formations up to significant depths.
Minimizes core loss and ensures sample integrity.
Durable Construction
Built with high-quality steel and wear-resistant components.
Designed to withstand harsh mining and field environments.
Versatile Applications
Suitable for mineral exploration, geotechnical investigation, water well drilling, and engineering site surveys.
Specifications
|
XY-8 Rock Core Drilling Rig Technical Parameters |
|||
|
Drill rod category |
Drill rod specification(mm) |
Drill depth(m) |
|
|
Domestic Drill pipe |
Thickenes within the drill pipe |
∅50X5.5 Drill pipe |
3000 |
|
∅60X6 Drill pipe |
2500 |
||
|
Cord coring drill pipe |
∅71X5 Drill pipe |
2200 |
|
|
∅89X5 Drill pipe |
2000 |
||
|
DCDMA Drill pipe |
Thickened within the drill pipe |
BW Drill pipe |
3000 |
|
NW Drill pipe |
2500 |
||
|
HW Drill pipe |
1800 |
||
|
Cord corning drill pipe |
BQ Drill pipe (∅58) |
3000 |
|
|
NQ Drill pipe (∅73) |
2500 |
||
|
HQ Drill pipe (∅93) |
1800 |
||
|
Drill angel |
0-360° |
||
|
Power unit |
|||
|
Electric unit |
Y280S-4 |
75KW |
1480r/min |
|
Diesel |
YC6A240-33 |
177Kw |
2300r/min |
|
Rotator |
|||
|
Type |
Feed with double cylinders oil hydraulic |
||
|
Spindle L.D |
93mm |
||
|
Speed |
|||
|
Power speed |
1480r/min |
2300r/min |
|
|
Forward speed |
74/106/150/208/300/431/609/845r/min |
110/157/222/309/445/640/905/1256r/min |
|
|
Reverse speed |
74r/min |
110r/min |
|
|
Max.torque of spindle |
12500N.m |
||
|
Spindle stroke |
1000mm |
||
|
Max.lifting force |
180KN |
||
|
Max.thrust of spindle |
110KN |
||
|
Winch |
|||
|
Wire rope caliber |
21.5mm |
||
|
Roll capcacity |
120m |
||
|
Single rope maximum |
150KN |
||
|
Lifting speed of the wirerope |
|||
|
1480r/min Power unit rotary speed |
0.48/0.68/0.96/1.34/1.96/2.81/3.96/5.51m/s |
||
|
2300r/min Power unit rotary speed |
0.71/1.01/1.42/1.99/2.91/4.17/5.88/8.19m/s |
||
|
(CBF-F32/16)Oil pump |
|||
|
Work pressure |
20Mpa |
||
|
Max.pressure |
25Mpa |
||
|
Water brake |
|||
|
Work rotary speed |
700-1800r/min |
||
|
Single rope compensation speed |
3-8m/s |
||
|
Single rope compensation load |
45KN |
||
|
Skids type drillfram |
|||
|
Rig backward stroke |
530mm |
||
|
Dimension(L*W*H) |
3800*1500*2460mm |
||
|
Rig weight |
6500kg |
||
Applications
The XY-8 Rock Core Drilling Rig is designed for multiple professional applications:
Mineral Exploration
Efficiently obtain rock core samples for evaluating mineral deposits.
Geotechnical Investigation
Conduct precise soil and rock analysis for construction and engineering projects.
Water Well Drilling
Adaptable for small to medium-sized water well projects, depending on local conditions.
Mining & Geological Survey
Ideal for remote field operations where mobility, reliability, and high drilling efficiency are required.
Advantage
Advantages of XY-8 Rock Core Drilling Machine
Precision Drilling: Hydraulic drive system ensures accurate rock coring.
Ease of Transport & Setup: Compact design allows rapid deployment in field conditions.
Durable & Low Maintenance: High-quality components reduce downtime and maintenance costs.
Versatility: Supports multiple drill rods, bits, and accessories, suitable for diverse geological conditions.
Why Choose XY-8 Rock Core Drilling Rig?
The XY-8 Rock Core Drilling Rig is a professional, versatile, and efficient drilling solution for engineers, geologists, and mining professionals. Whether performing mineral exploration, geotechnical surveys, or engineering investigations, the XY-8 delivers high efficiency, durability, and precision while minimizing operational costs.
