►Overview

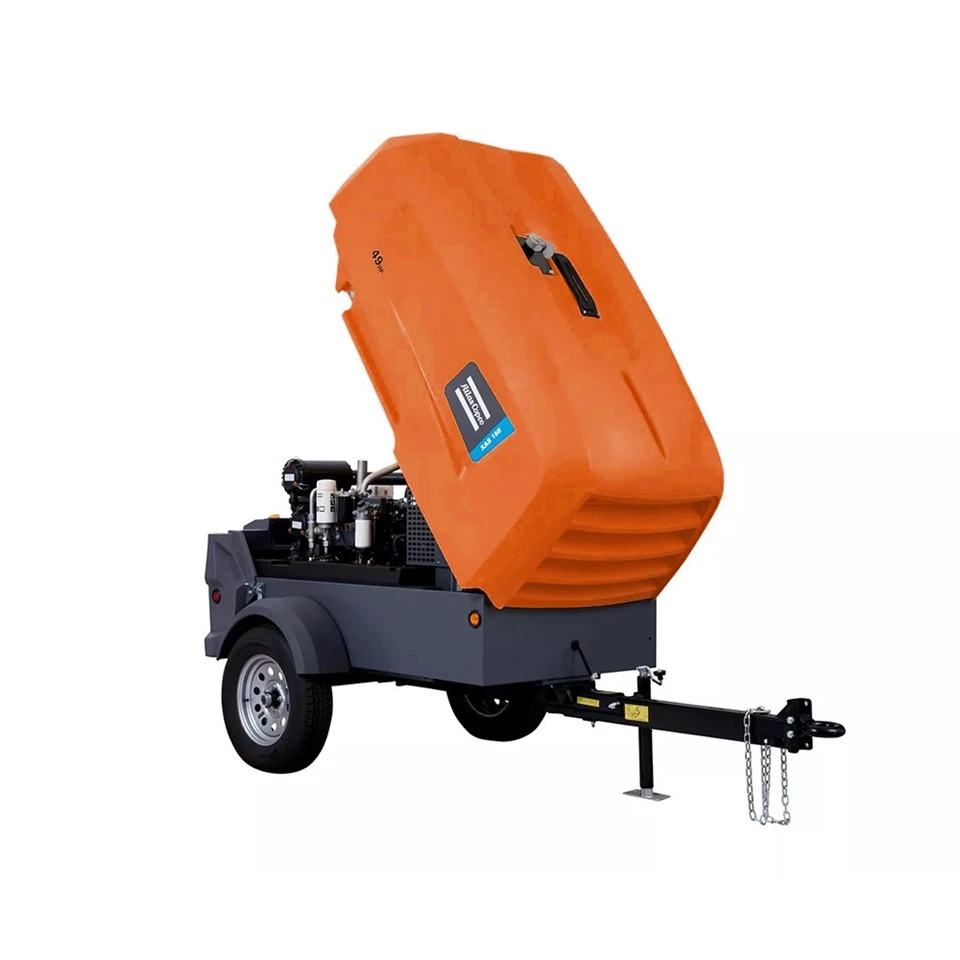

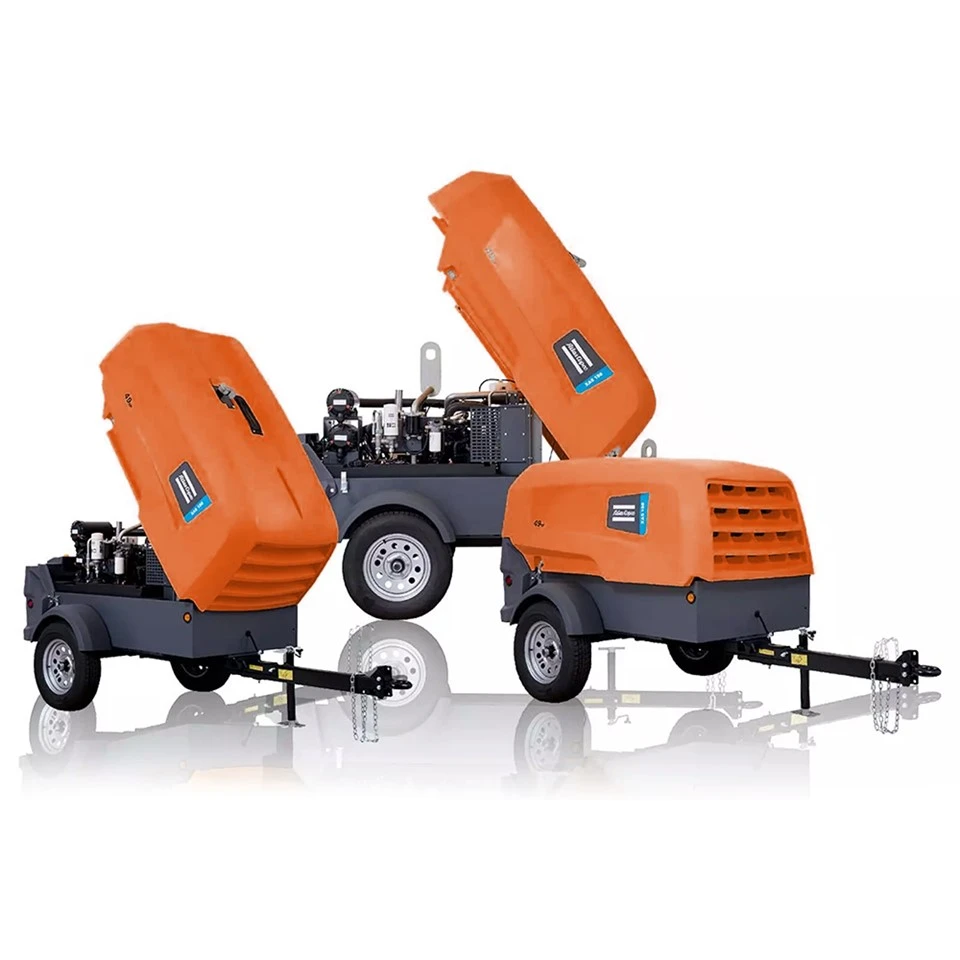

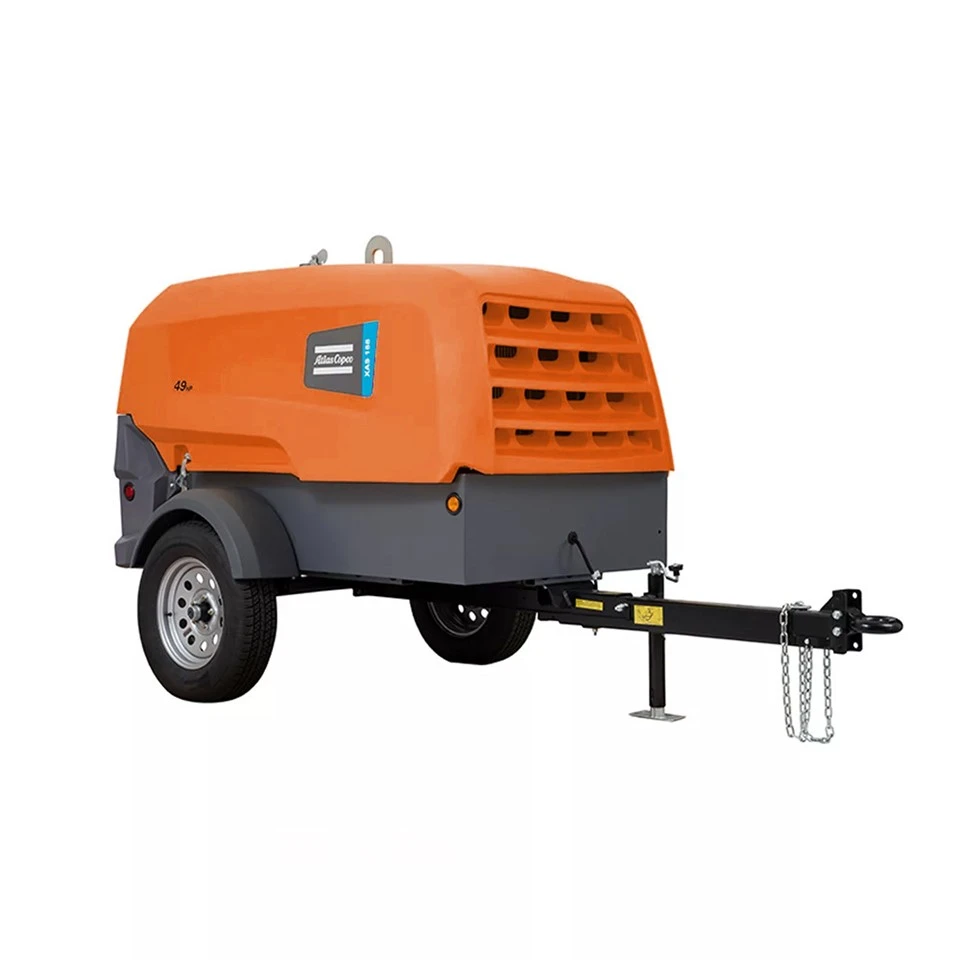

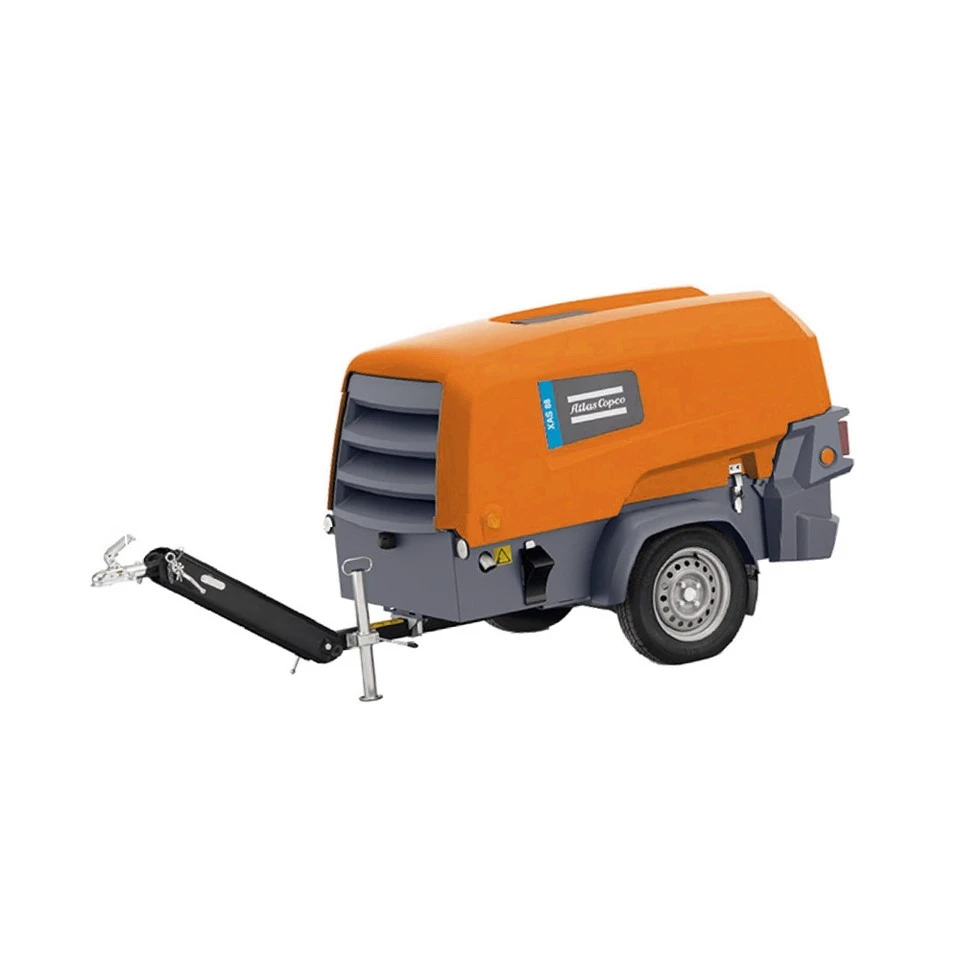

The towable air compressor is designed for mobile construction, mining, and drilling applications that require stable airflow and long-term durability. Equipped with a reliable diesel engine and high-efficiency screw air end, this mobile compressor provides consistent pressure and excellent fuel economy while remaining easy to transport on any jobsite.
Whether you operate drilling rigs, pneumatic tools, quarry equipment, or road construction machinery, this compressor delivers powerful and continuous compressed air wherever you need it.
Key Features
-
1. High-Efficiency Screw Air End
The advanced screw air end ensures superior air output, reduced power loss, and longer service life with minimal maintenance.
-
2. Diesel Power for Remote Sites
The towable air compressor uses a durable diesel engine suitable for remote or off-grid areas, ensuring stable performance even under harsh working conditions.
-
3. Towable & Mobile Design
Equipped with a heavy-duty trailer chassis, braking system, and strong wheels, it can be easily transported between job sites.
-
4. Low Noise & Fuel-Saving Performance
The fully enclosed structure and optimized airflow system reduce noise and fuel consumption, making it ideal for long working hours.
Technical Specifications
| Performance | XATS 68KD | XAS 78KD | XAS 88KD | XAS 98KD |
XAS 98KDG |
|
|
work pressure |
bar | 10.3 | 7.0 | 7.0 | 7.0 | 7.0 |
| Displacement | m3/min | 3.5 | 4.5 | 5.0 | 5.3 | 5.3 |
| Compression level | 1 | 1 | 1 | 1 | 1 | |
| Air compressor oil volume | L | 9 | 9 | 9 | 9 | 9 |
| Exhaust valve |
inch |
3*G3/4 | 3*G3/4 | 3*G3/4 | 3*G3/4 | 3*G3/4 |
| Diesel tank volume | L | 60 | 60 | 60 | 60 | 60 |
| Sound power level (Lw@2000/14/EC) | dB(A) | 101 | 101 | 101 | 101 | 101 |
| Emission standard | GIV | |||||
| Dynamo | ||||||
| Generator power | KVA | N/A | N/A | N/A | N/A | N/A |
| Generator output voltage | V | N/A | N/A | N/A | N/A | N/A |
| Engine | ||||||
| Brand | Kubota | Kubota | Kubota | Kubota | Kubota | |
| Model | V1505T | V1505T | V1505T | V1505T | V1505T | |
| Number of cylinders | 4 | 4 | 4 | 4 | 4 | |
| Rated power | kw | 33 | 33 | 33 | 33 | 33 |
| Full load speed | rpm | 3,000 | 3,000 | 3,000 | 3,000 | 3,000 |
| Unload speed | rpm | 1,850 | 1,850 | 1,850 | 1,850 | 1,850 |
| Oil volume | L | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Cooling system volume | L | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Dimensions | ||||||
| Box size (length * width *height) | mm | 1940*1200*1240 | ||||
| Box weight | kg | <750 | <750 | <750 | <750 | <750 |
| Trailersize (length*width *height) | mm | 2960*1350*1420 | ||||
| Trailer weight | kg | <750 | <750 | <750 | <750 | <750 |
Applications
The towable air compressor is widely used in:
Water well drilling
DTH drilling
Road and bridge construction
Mining and quarry operations
Sandblasting & shot blasting
Pneumatic tools
Emergency air supply
Industrial maintenance
Why Choose Us?
We provide high-quality towable compressors with:
✅ Fast delivery
✅ OEM customization
✅ Global shipping
✅ Full drilling solutions (compressor + rig + tools)
✅ After-sale technical support
FAQ
Q: What is a towable air compressor?
A: It is a mobile diesel-powered compressor mounted on a trailer, designed for easy towing and outdoor operation.
Q: Is it suitable for drilling rigs?
A: Yes. It is commonly used with DTH hammers, mud pumps, and various drilling systems.
Q: Do you offer OEM customization?
A: Yes, pressure, flow rate, engine brand, and colors can be customized.
