Technical Data

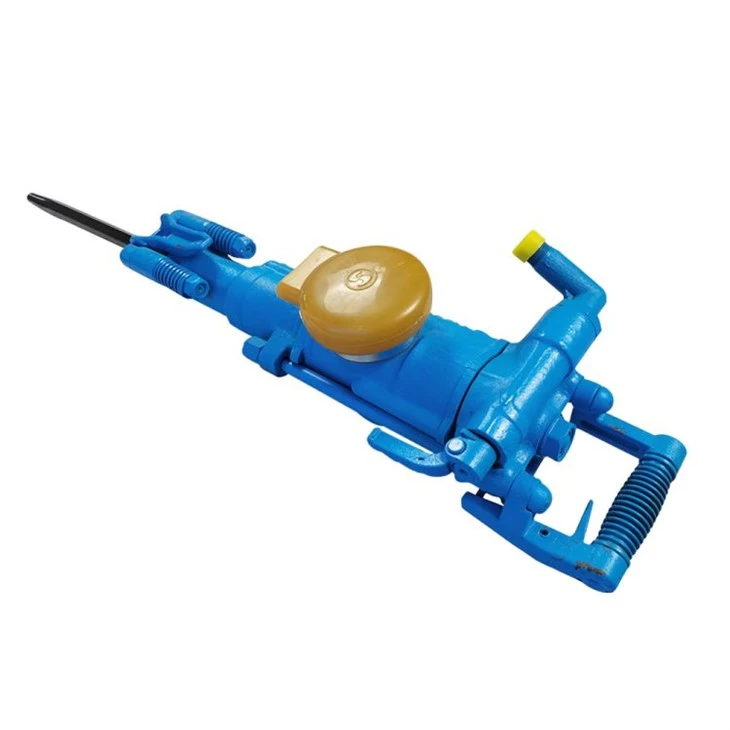

Y19A type of hand held rock drill is matched with FT100 type air leg, which can be used for dry and wet drilling on medium hard or hard rock. This hand held rock drill machine can be used together with a small air compressor of 1.5-2.5 cubic meters/min. Its performance is better than similar products.
|
Hand Hold Pneumatic Rock Drill |
||||||
|
Technical Parameters |
YO18 |
Y20 |
Y19A |
Y24 |
Y26 |
Y28 |
|
Weight(kg) |
18 |
18 |
19 |
24 |
26 |
26 |
|
Length(mm) |
550 |
605 |
600 |
604 |
650 |
661 |
|
Air Pressure(Mpa) |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
|
Impact Rate(Hz) |
32 |
34 |
35 |
30 |
27 |
≥28 |
|
Air consumption(L/s) |
≤20 |
≤25 |
≤43 |
≤50 |
≤47 |
|
|
Shank(mm) |
22*108 |
22*108 |
22*108 |
22*108 |
22*108 |
22*108 |
|
Bore Dia(mm) |
30-42 |
30-42 |
30-42 |
30-42 |
30-42 |
34-42 |
|
Drill Depth(m) |
5 |
5 |
5 |
5 |
5 |
5 |
|
Hose Connection(mm) |
16 or 19 |
16 or 19 |
19 |
19 |
19 |
19 |
Product Detail
The blasthole diameter of the handheld rock drill (air pick) is between 32 mm and 42 mm. Effective depths range from 1.5 meters to 4 meters.
It is recommended for use with the Py-1.2/0.39 air compressor, which is driven by the RS1100 diesel engine. Other suitable air compressors can also be used with this rock drill.

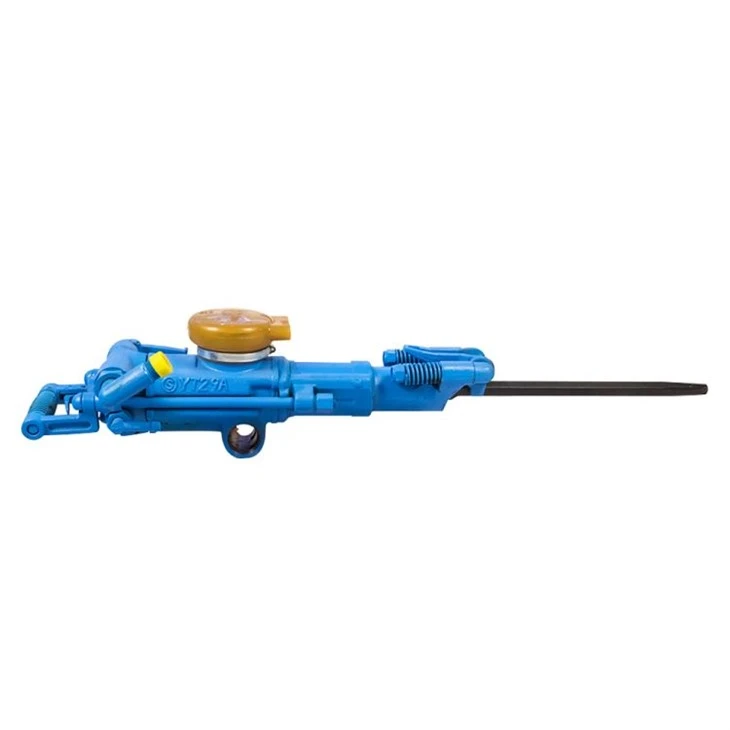

Y24 hand held rock drill is a variant of YT24 air-legged rock drill of our factory, with domestic advanced level, in 1987 it was rated as a high-quality product. It is suitable for the second blasting and downward drilling in foreign quarries. In addition to maintaining the excellent performance of YT24 hand held pneumatic rock drill, it also enhances the ability of blowing and washing the holes; therefore, it is more suitable for drilling downward holes.

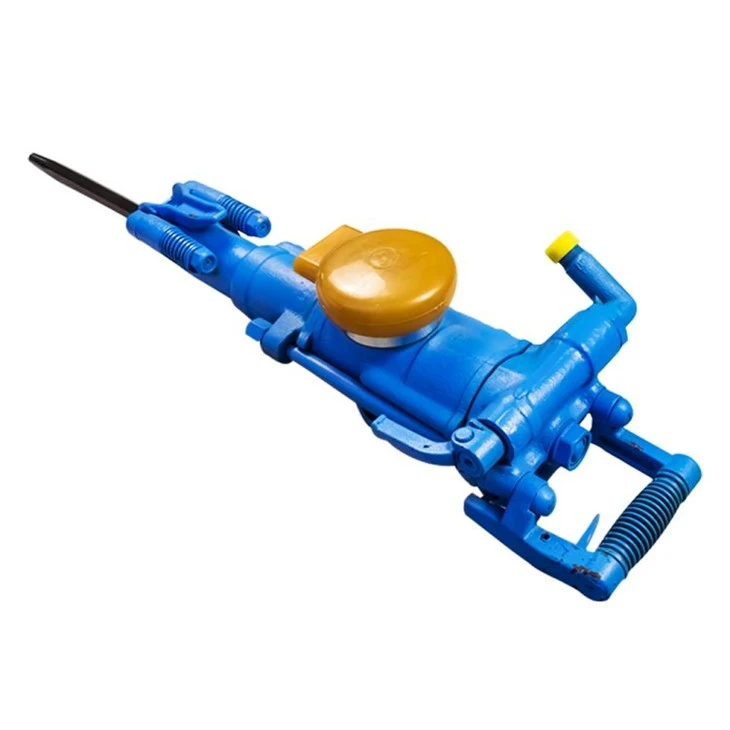

Y19A hand held rock drill machine is mainly used in the development of small quarries, mining operations in coal mines, limestone mines and other small mines, rock drilling and blasting in road construction in mountainous areas, and irrigation and water conservancy construction. The machine is also suitable for drilling in secondary blasting and other engineering construction of large mines.
