Product detail

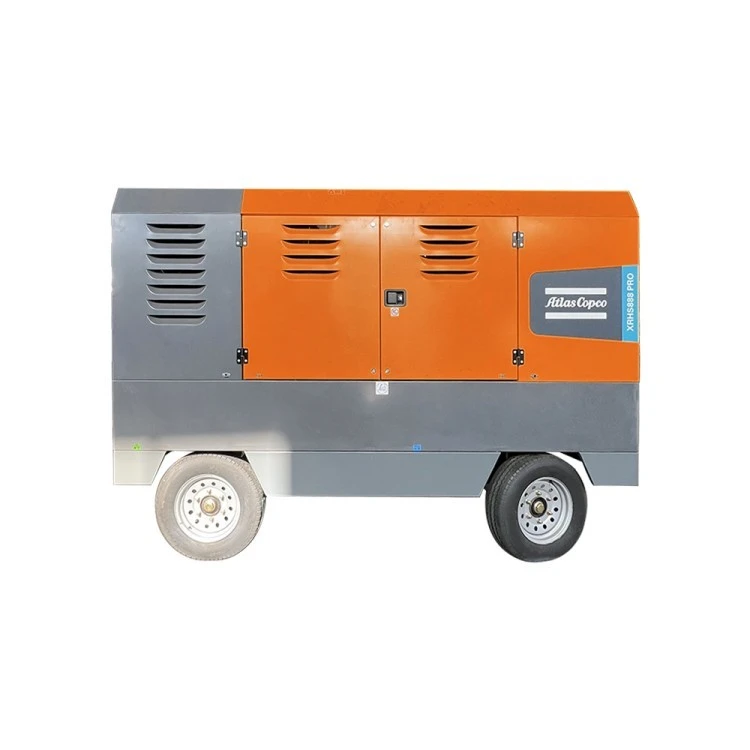

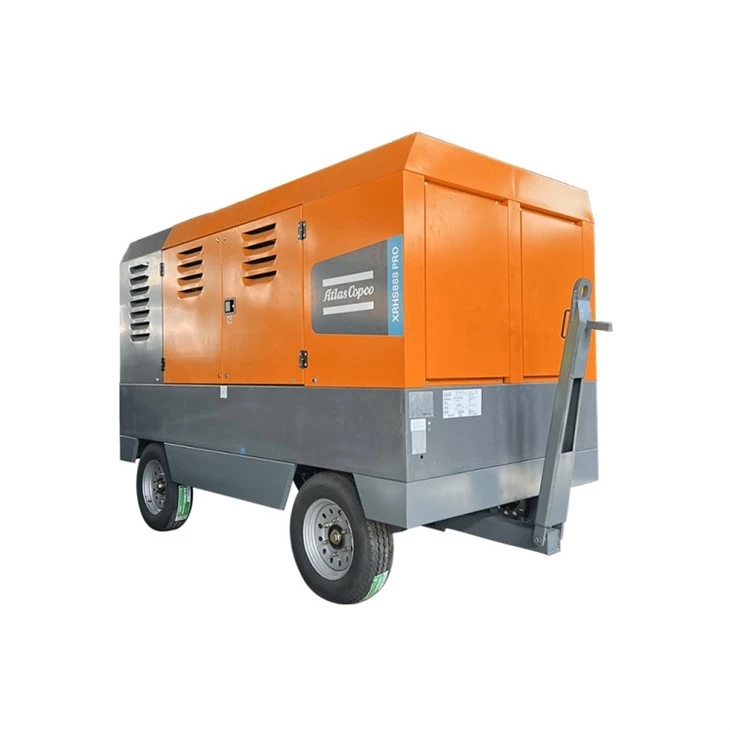

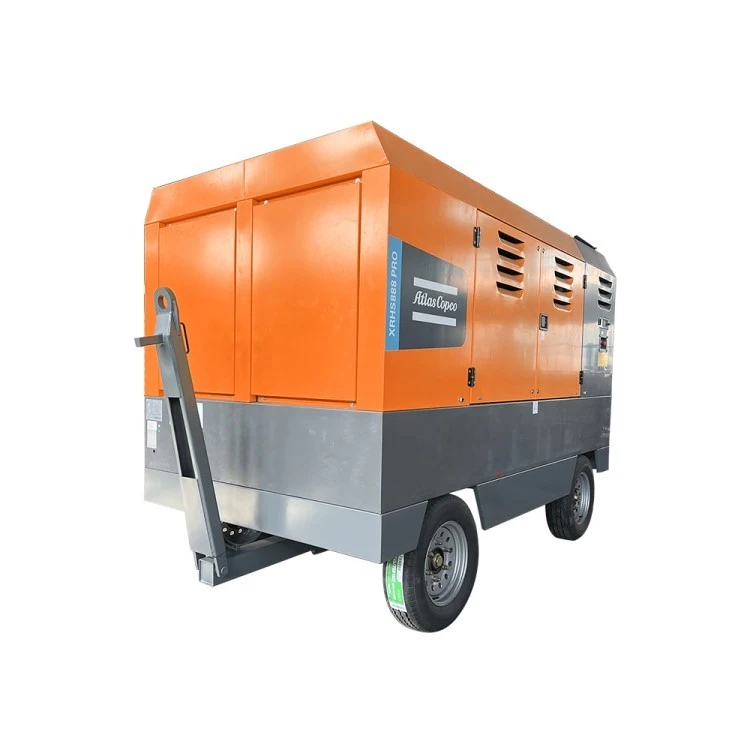

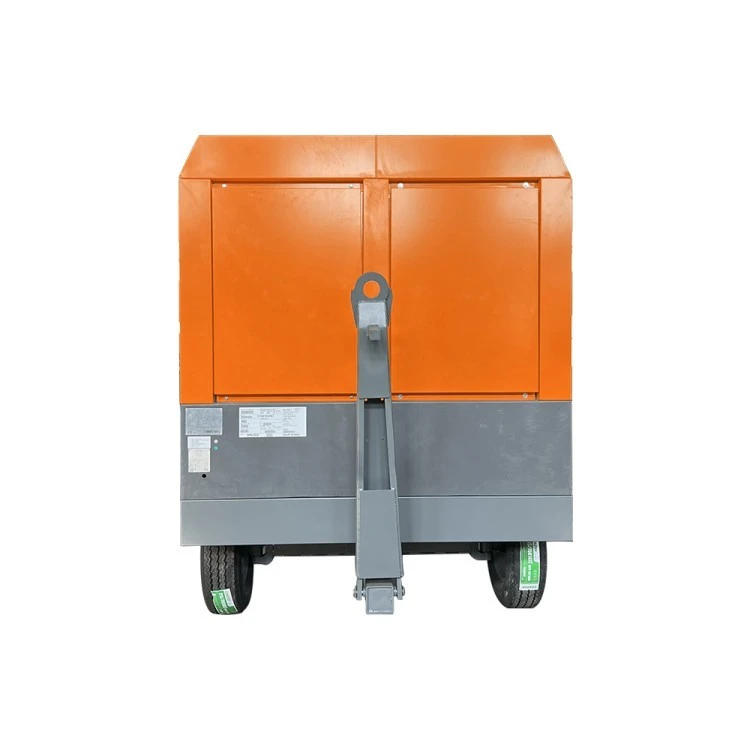

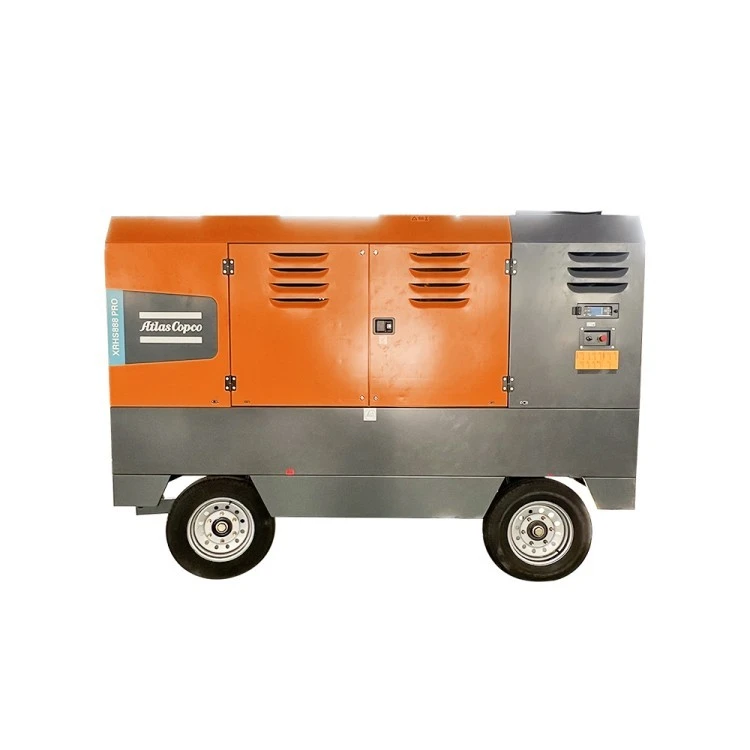

Atlas portable diesel compressor are characterized first and foremost by stability and high efficiency. The screw rotor of the compressor, developed with Atlas expertise, is designed and tested in Europe for quality assurance, durability and high efficiency.
Secondly, this portable diesel compressor is reliable and durable. The design of double air filters and multiple oil filters ensures the minimum loss of the machine under adverse conditions and prolongs the life of the machine.
There is also a cost-effective, a variety of innovative designs can effectively reduce the cost of use for customers, greatly improve efficiency and provide return on investment.
Advantages
Large cooling surface
Allowing optimal, intense use in hightemperature environments with working temperatures up to 50°C.
Latest screw element technology
The asymmetric rotors allow for increased efficiency. In addition, a low rotor speed and few moving parts minimize wear and tear for reliable performance and a long service life.
Fully automatic step-less speed regulator
The asymmetric rotors allow for increased efficiency. In addition, a low rotor speed and few moving parts minimize wear and tear for reliable performance and a long service life.
Reputable engine brands
Every atlas copco screw type air compressor has a carefully selected engine from awell-known and respected partner. All components are protected inside the corrosion treated weatherproof hood.
Clean Air Intake
A high performance two-stage air intake filter prevents dust and dirt particles from entering the engine and compressor. A service indicator on the filter tells you when it needs replacing.
High-efficiency fuel filter
High-efficiency multi-stage fuel filtration with water separator to isolate and capture contaminants.
Specifications
|
Compressor Data |
XRHS888(Box frame) |
|
Free Air Delivery @ Normal Working Pressure |
857cfm or 964cfm |
|
Normal Working Pressure |
23Bar or 18Bar |
|
Air Receiver Capacity |
89L |
|
Outlet Valve Configuration |
1 x 2" G, 1x 3/4" G |
|
Nominal working condition |
Inlet pressure 1bar,Humidity0%,Temp20 °C |
|
Sound Pressure Level (ISO2125) |
80dB(A) |
|
Maximum Ambient Temperature at sea level |
50 °C |
|
Diesel Engine Data |
Cummins QSL8.9-C360 |
|
Horsepower Developed @ Rated Speed |
264kW |
|
Cylinders |
6 |
|
Fuel Tank Capacity |
420L |
|
Engine Coolant Capacity |
58L |
|
Engine Oil Capacity |
21L |
|
Maximum Loaded Speed |
1900 / 1700RPM |
|
Dimensions |
Standard Towing Speed 20 km/h |
|
Length |
3666mm ( within towbar ) |
|
Width |
2140mm |
|
Height |
2225 mm |
|
Weight ( filled with oil & coolant , Initial fuel ) |
4585 kg |
Application
The Atlas Copco XRHS888 mobile diesel-driven air compressor is versatile and suitable for a wide range of applications, suitable for construction sites, mining and manufacturing. Commercial buyers will appreciate its ability to operate effectively in a variety of environments to maximize utility across multiple projects.
