Product Overview
What is Hydraulic Crawler Water Well Drilling Rig?

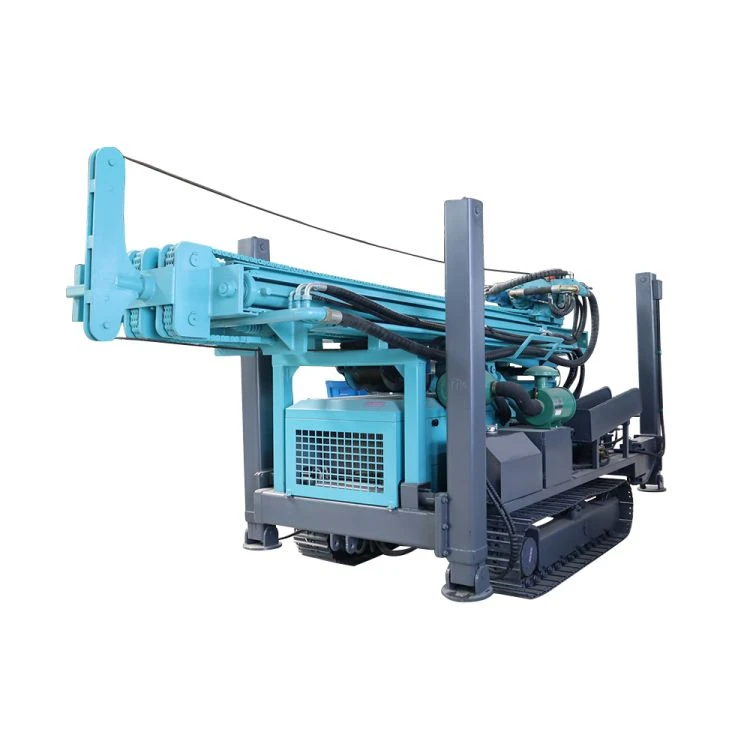

The Dminingwell WM350 Hydraulic Crawler Water Well Drilling Rig is a heavy-duty and multi-functional deep borehole drilling machine designed for groundwater extraction, irrigation wells, industrial water supply, and geothermal heating projects.
Driven by a powerful hydraulic system and mounted on a robust crawler chassis, the WM350 offers exceptional mobility, stability, and drilling performance in medium–hard and hard rock formations.
For users seeking smaller drilling equipment for light-duty environments, please refer to 【Small crawler water well rig 】.
If your project requires DTH drilling knowledge, see 【DTH Hammer Selection Guide 】.
When operating in loose formations, the optional 【ODEX/Eccentric Casing System 】 provides excellent borehole protection.
Powered by a reliable 92 kW Yuchai engine, the WM350 delivers a high hydraulic output and large rotary torque, making it ideal for demanding drilling operations.
To support the rig, Dminingwell supplies matched pneumatic equipment including 【Portable Screw Air Compressors 】, 【Mobile Screw Air Compressors 】, and high-pressure units suitable for DTH drilling .
With a 6.6m one-time feed stroke, long drill pipe options, and 15–35 m/h penetration efficiency, the WM350 is built for high productivity.
For even deeper drilling requirements, explore our 【Deep well drilling rig series】.
Key Features
01. True Hydraulic Crawler Water Well Drilling Rig
The WM350 uses a full hydraulic power system for feeding, lifting, rotation, and walking-delivering smoother control, greater safety, and more reliable drilling force.
02.Up to 350m Drilling Depth
A professional solution for deep wells, geothermal boreholes, and large-diameter community water wells.
03.High Torque & Strong Pullback Capacity
6200–8500 N·m rotary torque
22-ton lifting force
Ideal for fractured and hard-rock formations.
04.Efficient DTH Drilling Performance
Air pressure: 1.7–3.4 MPa
Air consumption: 17–36 m³/min
Compatible with medium & high-pressure DTH hammers
05.Rugged Hydraulic Crawler Chassis
With 30° climbing ability, the rig moves easily across mountains, slopes, deserts, and muddy drilling sites.
06.6.6m One-Time Feed Stroke
Technical Specifications
| Item | Specification |
|---|---|
| Model | Dminingwell WM350 |
| Rig Type | Hydraulic Crawler Water Well Drilling Rig |
| Weight | 8.6 T |
| Drilling Depth | 350 m |
| Hole Diameter | 140–325 mm |
| Drill Pipe Diameter | Φ89 / Φ102 |
| Drill Pipe Length | 1.5m / 2.0m / 3.0m / 6.0m |
| One-Time Feed | 6.6 m |
| Lifting Force | 22 T |
| Rise Speed | 18 m/min |
| Feed Speed | 33 m/min |
| Walking Speed | 2.5 km/h |
| Climbing Ability | 30° |
| Track Loading Width | 2.7 m |
| Engine Brand | Yuchai |
| Engine Power | 92 kW |
| Air Pressure | 1.7–3.4 MPa |
| Air Consumption | 17–36 m³/min |
| Rotary Torque | 6200–8500 N·m |
| Rotary Speed | 66–135 rpm |
| Hammer Type | Medium / High Pressure |
| Winch Lifting | 2 T |
| Penetration Rate | 15–35 m/h |
| Hydraulic Leg Stroke | 1.4 m |
| Dimension | 6000×2000×2550 mm |
Applications
The Dminingwell WM350 is ideal for:
Residential & commercial water wells
Agricultural irrigation wells
Municipal water supply projects
Geothermal well drilling
Groundwater exploration
Construction drilling (DTH + rotary)
Mountain and rocky formation drilling
For new users, you may check our 【Water Well Drilling Beginner Guide 】.
If your project may encounter stuck pipes, read 【Why Do Drill Pipes Get Stuck 】 for prevention tips.
FAQ
Q1: How deep can the WM350 drill?
Up to 350 meters.
Q2: What air compressor do I need?
Works with 17–36 m³/min, 1.7–3.4 MPa compressors.
See details: 【How to choose air compressor for drilling rig 】
Q3: Can the WM350 drill in loose soil?
Yes. When paired with ODEX casing systems, it performs well in unstable formations.
Q4: What is the delivery time?
Normally 15–25 working days, including customization.
Q5: Can the rig be customized?
Yes. Logo, color, engine brand, drill pipe size, and optional accessories can all be customized.
Looking for a high-performance, cost-effective, and durable 350m crawler water well drilling rig?
The Dminingwell WM350 is your best solution for deep well and hard rock drilling projects.
📩 Contact us now for price, catalog & drilling solutions!
