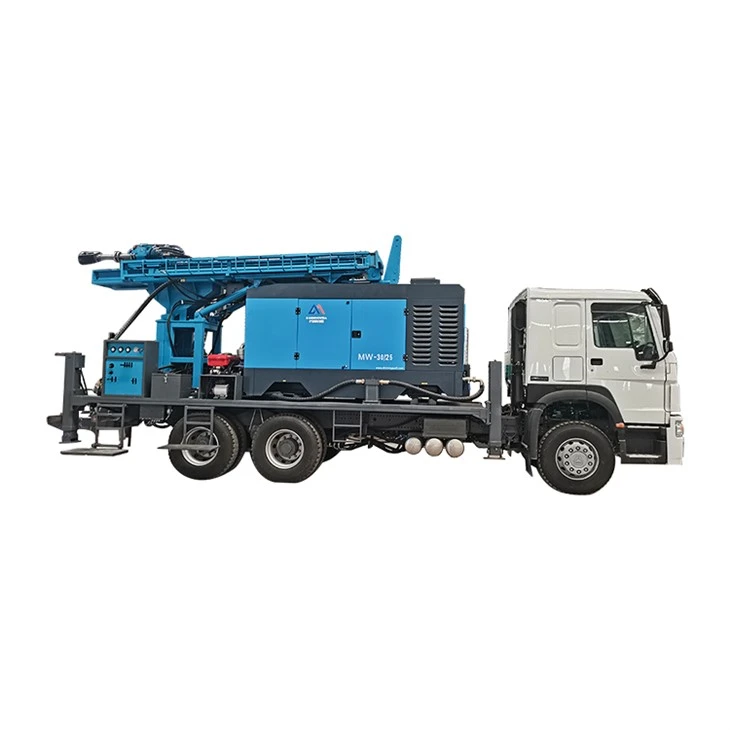

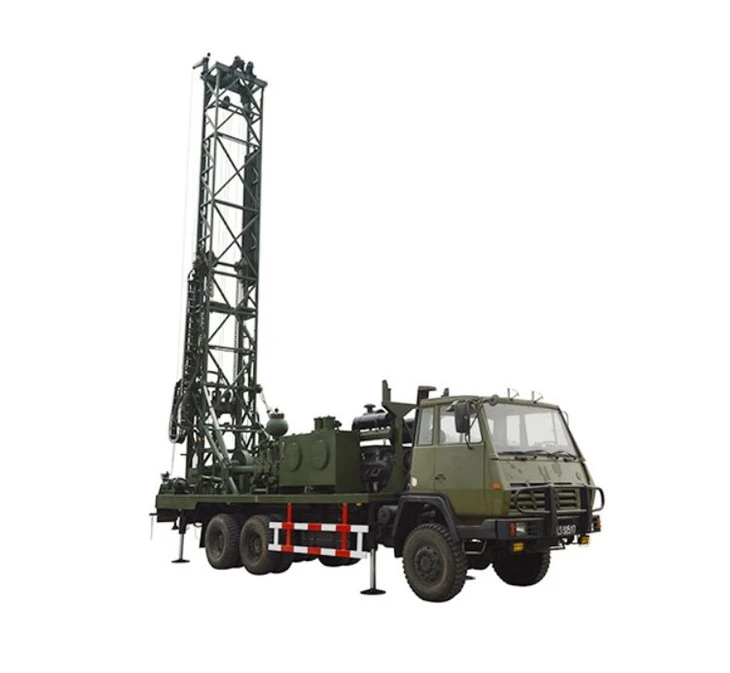

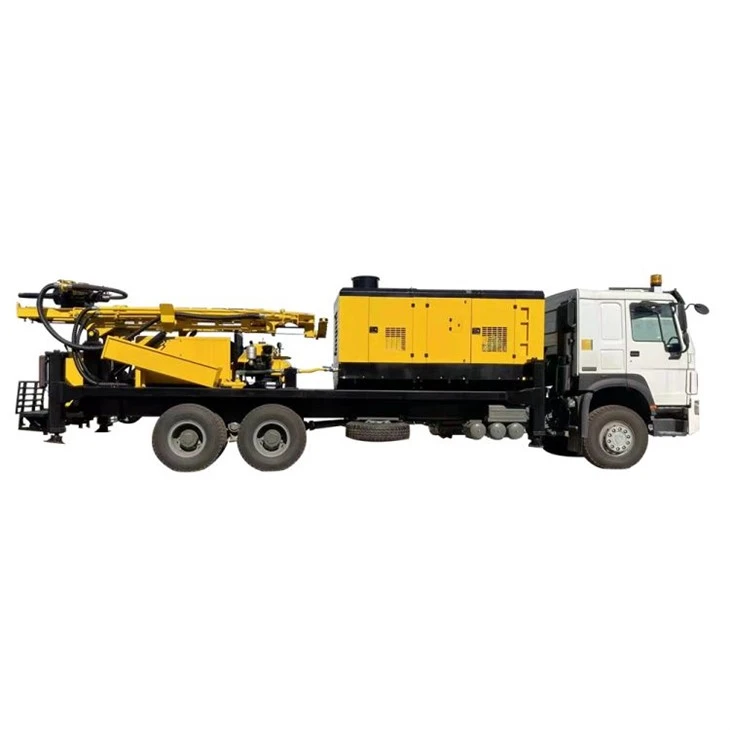

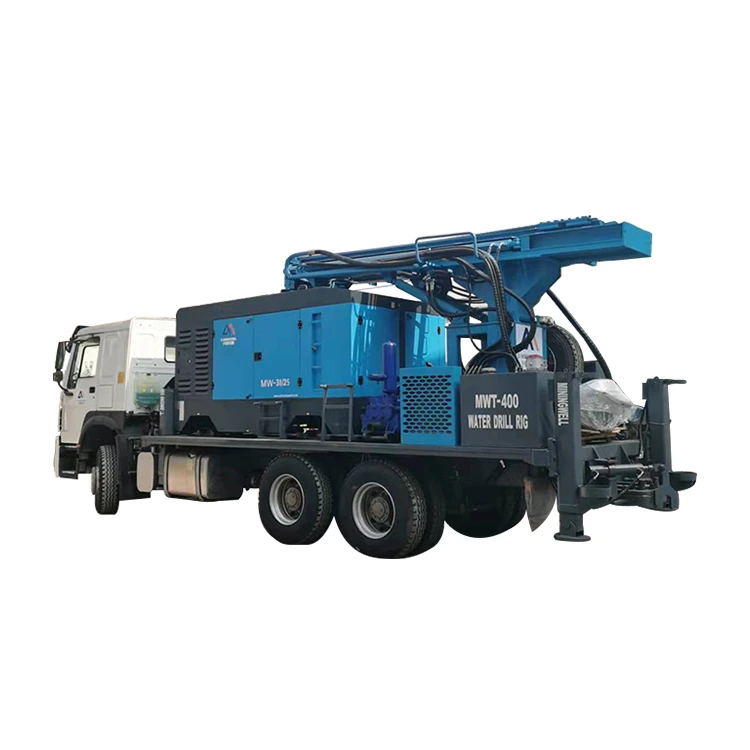

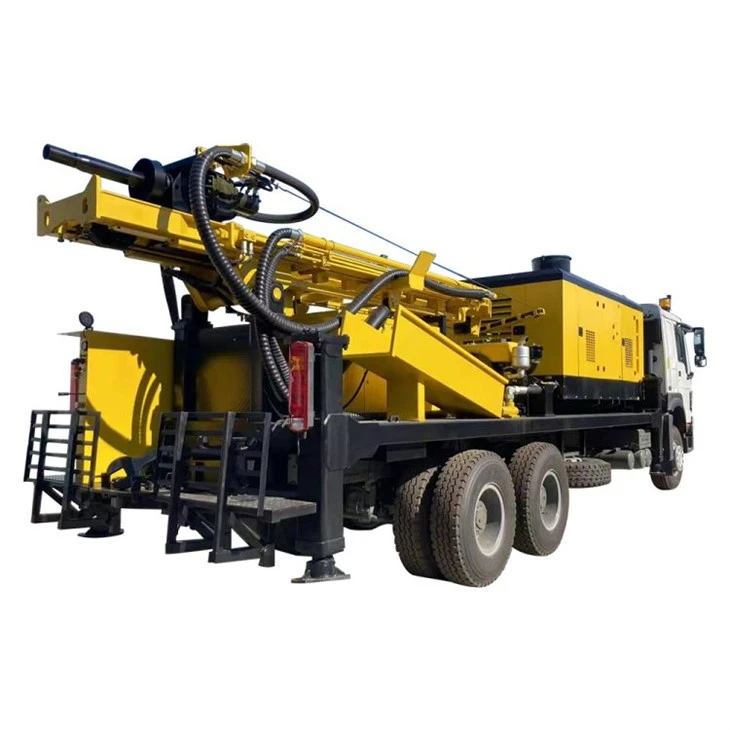

Dminingwell Truck Mounted Water Well Drilling Rig
High-Efficiency Deep Borehole Drilling Solution for Municipal, Agricultural, and Hard Rock Projects
The Dminingwell Truck Mounted Water Well Drilling Rig series is designed for professional deep well construction, groundwater exploration, and high-efficiency DTH drilling in complex geological formations.
With models ranging from MWT-180 to MWT-800, customers can choose different drilling capacities, rotary torque ranges, and engine configurations based on drilling depth, ground hardness, or project budget.
This series integrates mobility, power, and drilling efficiency-making it an ideal solution for municipal water supply projects, agricultural irrigation wells, industrial boreholes, and deep household wells.
Product Overview
Mobility + Power + Deep Drilling Capability
The Truck Mounted Water Well Drilling Rig combines the advantages of a truck chassis with a robust hydraulic drilling system. Compared with crawler rigs, truck-mounted rigs offer:
Faster relocation between drilling sites
Road-legal structure (ideal for long-distance jobs)
Lower operation cost for water well contractors
Large onboard compressor and tool-carrying capacity
The rig supports both DTH drilling and rotary drilling, ensuring excellent adaptability from soft soil layers to fractured hard rock formations.
Key Technical Advantages
① High-Torque Rotary Head for Hard Rock Drilling
The rotary head provides strong torque output across the series:
MWT-180 to MWT-260: 3200–4500 N·m
MWT-280 to MWT-350: up to 7500 N·m
MWT-400 to MWT-800: up to 14000 N·m
This allows the rig to handle granite, basalt, quartzite, and other hard formations with excellent stability.
② Long Feed Stroke & Deep Well Compatibility
Most models feature a 6.6 m feed stroke, enabling fewer drill pipe connections and higher efficiency during deep well drilling.
Maximum drilling depth options include:
180–280 m (MWT-180 / 260 / 280)
350–500 m (MWT-350 / 400 / 500)
680–800 m (MWT-680 / 800)
Customers can simply select the proper model based on depth and geological demand.
③ Powerful Diesel Engine Options
Equipped with engines from Yuchai, DEUTZ, and Cummins, the rig delivers consistent performance for both air drilling and rotary drilling.
Engine range:
65 kW (MWT-180)
92–118 kW (MWT-350 / 400 / 500)
Up to 194 kW (MWT-800 heavy-duty deep well model)
④ Compatible with Air Compressors for DTH Drilling
All models support pairing with high-pressure screw air compressors for efficient Down-The-Hole (DTH) hammer drilling.
This ensures excellent performance in deep aquifer zones and complex hard rock layers.
(后续你可以在这里加入空压机型号详情 → [[Internal-Link-Air-Compressor]])
⑤ Customizable Chassis & Drilling Configuration
Customers can request:
4×2 / 4×4 / 6×4 truck chassis
Hydraulic legs
Foam pump
Mud pump
Optional top-drive power head
Different drill pipe length (1.5 m / 2 m / 3 m / 6 m)
This flexibility allows the rig to adapt to a broad range of contractor, municipal, and agricultural drilling environments.
Technical Parameters of Dminingwell MWT Series
|
Technical Parameters |
MWT-180 |
MWT-260 |
MWT-280 |
MWT-350 |
MWT-400 |
MWT-500 |
MWT-680 |
MWT-800 |
|
Drill depth(m) |
180 |
250 |
280 |
350 |
400 |
500 |
680 |
800 |
|
Drill diameter(mm) |
140-254 |
140-254 |
140-305 |
140-325 |
140-350 |
140-350 |
140-400 |
140-400 |
|
Equipped Engine |
Yuchai 65kW or PTO |
Yuchai 70kW or PTO |
Yuchai 75kW or PTO |
Yuchai 92kW or PTO |
DEUTZ 103kW or PTO |
Yuchai 118kW or PTO |
Cummins 154kW or PTO |
Cummins 194kW or PTO |
|
Feed Stroke(m) |
3.3 |
3.3 |
6.6 |
6.6 |
6.6 |
6.6 |
6.6 |
6.6 |
|
Drill pipe length(m) |
1.5/2.0/3.0 |
1.5/2.0/3.0 |
1.5/2.0/3.0/6.0 |
1.5/2.0/3.0/6.0 |
1.5/2.0/3.0/6.0 |
1.5/2.0/3.0/6.0 |
1.5/2.0/3.0/6.0 |
1.5/2.0/3.0/6.0 |
|
Swing speed(rpm) |
45-70 |
45-70 |
40-70 |
40-70 |
50-135 |
40-130 |
45-140 |
45-140 |
|
Swing torque(N.m) |
3200-4600 |
3300-4500 |
4500-6000 |
5700-7500 |
7000-9500 |
7500-10000 |
8850-13150 |
9000-14000 |
|
Rig lifting force(T) |
12 |
14 |
17 |
18 |
25 |
26 |
30 |
36 |
Why Choose Dminingwell?
✔ Professional Manufacturer
Dminingwell specializes in designing and manufacturing drilling rigs for global markets, with strong engineering teams and strict quality control.
✔ Reliable Spare Parts Supply
From drill pipes , DTH hammers , bits , and air compressors , all accessories can be provided in one package.
DTH Hammer Maintenance Guide
✔ High Customization Capability
We understand different countries have different drilling conditions.
Thus, every MWT model can be configured to match customers' exact needs.
✔ Export Experience
Dminingwell rigs are successfully used in:
Southeast Asia
Africa
South America
Middle East
Eastern Europe
Applications
This series is widely used for:
- Deep water wells (300–800 m)
- Municipal and industrial water supply projects
- Large-scale agricultural irrigation wells
- Geothermal heat pump boreholes
- Mining and exploration drilling
- Residential & commercial water wells
- Hard rock drilling projects with DTH hammer systems
FAQ
Q1: What truck chassis can be equipped with the Dminingwell MWT series?
A variety of 4×2, 4×4, and 6×4 commercial chassis are available, depending on the model and drilling depth.
Q2: Can this rig drill hard rock formations?
Yes. With high-torque rotary head and DTH hammer compatibility, the rig is ideal for granite, basalt, and fractured rock layers.
Q3: What air compressor is required?
The air compressor depends on hole diameter and hammer size.
How-to-Choose-Air-Compressor
Q4: Is the rig suitable for geothermal drilling?
Yes. It can be used for geothermal loops, heat pump wells, and deep boreholes.
Q5: Can customers customize drill depth?
Absolutely. The MWT series provides 180 m–800 m range, and customers may choose based on project specifications.
Shipping&Payment
Every piece of Miningwell equipment and drilling rig undergoes a rigorous load security check to ensure the safety of the cargo in the container.
Our payment methods: credit card, L/C, T/T, Western Union, and we support shipping by air and by sea.
