Specifications
|
Technical parameters |
MW330SⅤ | MW400QSⅤ |

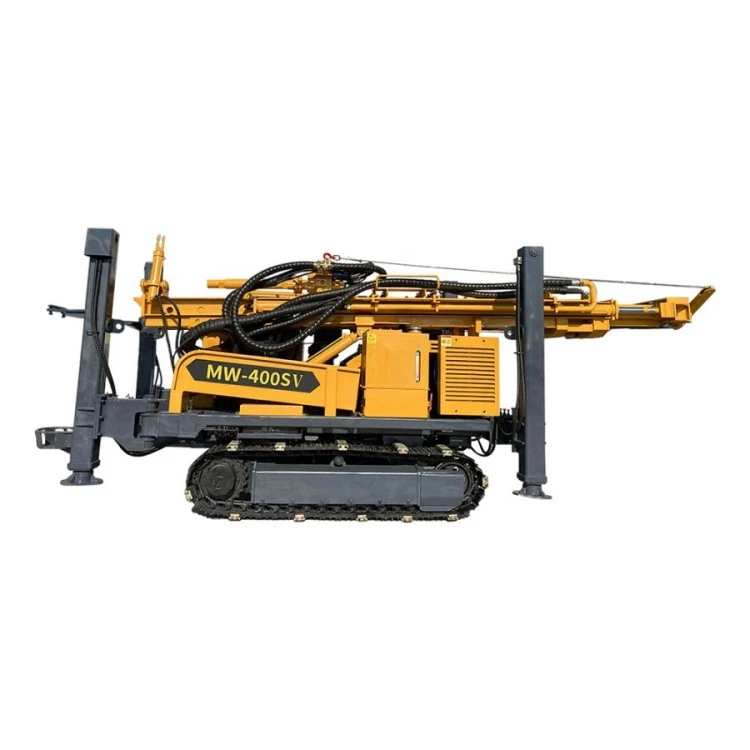

MW400SV |
MW500SV |
MW600SV |
MW650SV |

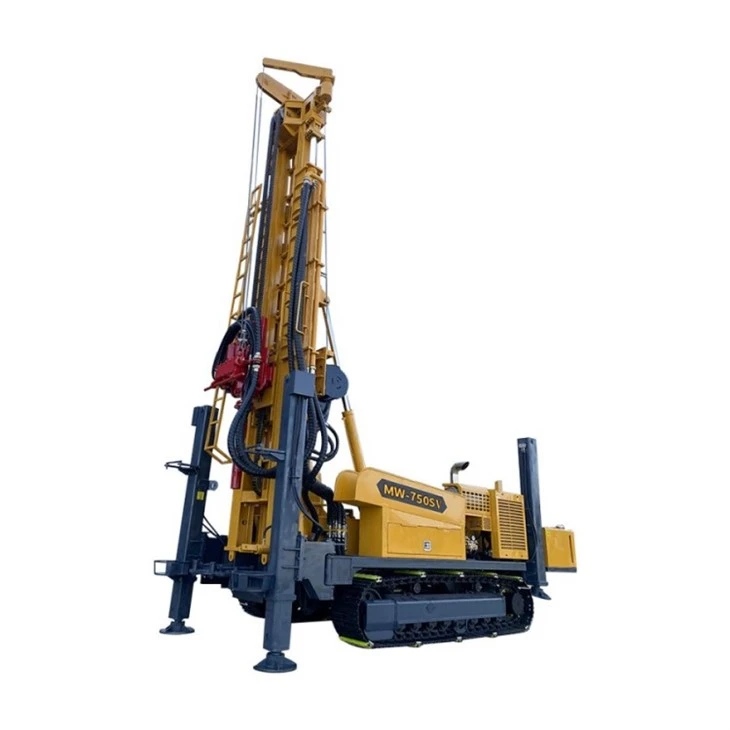

MW750SV |
|
Max drilling depth(M) |
330 |
400 |
400 |
500 |
600 |
650 |
750 |
|
Power(KW) |
91 |
103 |
92 |
110 |
132 |
132 |
176 |
|
Drilling diameter(mm) |
105-305 |
105-325 |
105-325 |
105-400 |
105-400 |
105-450 |
105-450 |
|
Air pressure(Mpa) |
1.2-3.5 |
1.2-3.5 |
1.2-3.5 |
1.2-3.5 |
1.2-3.5 |
1.6-6 |
1.6-6 |
|
Air consumption(m³/min) |
16-55 |
16-55 |
16-55 |
16-55 |
16-55 |
16-75 |
16-75 |
|
Drill pipe length(m) |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
|
Drill pipe diameter(mm) |
89 |
89/102 |
89/102 |
89/102 | 89/102 |
89/102 |
102 |
|
Axial pressure(T) |
3 |
4 |
4 |
6 |
6 |
6 |
6 |
|
Lifting force(T) |
18 |
22 |
22 |
30 |
35 |
38 |
40 |
|
Fast lifting speed(m/min) |
30 |
29 |
29 |
29 |
33 |
28 |
31 |
|
Fast feeding speed(m/min) |
60 |
56 |
56 |
48 |
55 |
60 |
65 |
|
Max rotary torque(Nm) |
8000/4000 |
8000/4000 |
8000/4000 |
11000/5500 |
12000/6000 |
13000/6500 |
13000/6500 |
|
Max rotary speed(r/min) |
60/120 |
75/150 |
75/150 |
75/150 |
90/180 |
95/190 |
95/190 |
|
Big secondary winch lifting force(T) |
- |
- |
- |
- |
- |
- |
- |
|
Small secondary winch lifting force(T) |
1.5 |
1.5 |
1.5 |
1.5 |
2.5 |
2.5 |
2.5 |
|
Jacks stroke(m) |
1.45 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
|
Drilling efficiency(m/h) |
10-35 |
10-35 |
10-35 |
10-35 |
10-35 |
10-35 |
10-35 |
|
Moving speed(km/h) |
2.5 |
3 |
2.5 |
3 |
3 |
3 |
3 |
|
Uphill angle(Slope) |
21° |
21° |
21° |
21° |
21° |
21° |
21° |
|
Weight of the rig(T) |
8.3 |
8.6 |
9.8 |
10.6 |
12.5 |
13 |
14 |
|
Dimension(M) |
6.32*1.7*2.39 |
6.25*1.7*2.39 |
6.26*1.85*2.43 |
6.52*1.85*2.51 |
6.73*2.1*2.63 |
6.73*2.1*2.75 |
6.64*2.25*2.59 |
|
Working condition |
Unconsolidated formation and stone head |
||||||
|
Drilling method |
Top drive hydraulic rotary and pushing, hammer or mud drilling |
||||||
|
Matched DTH hammer |
Medium and high air pressure series |
||||||
|
Optional accessories |
Mud pump,Centrifugal pump,Generator,foam pump,Truck |
||||||
Product detail

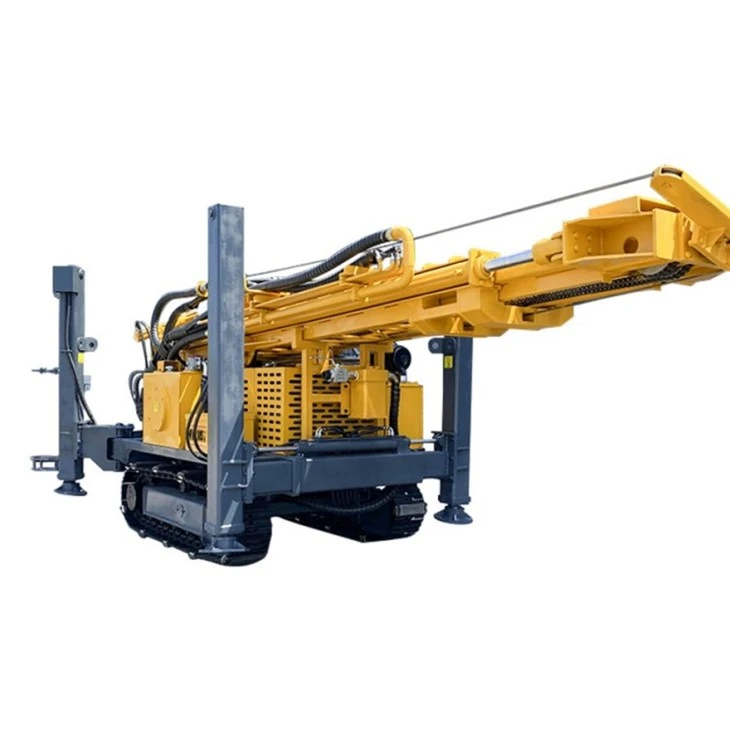

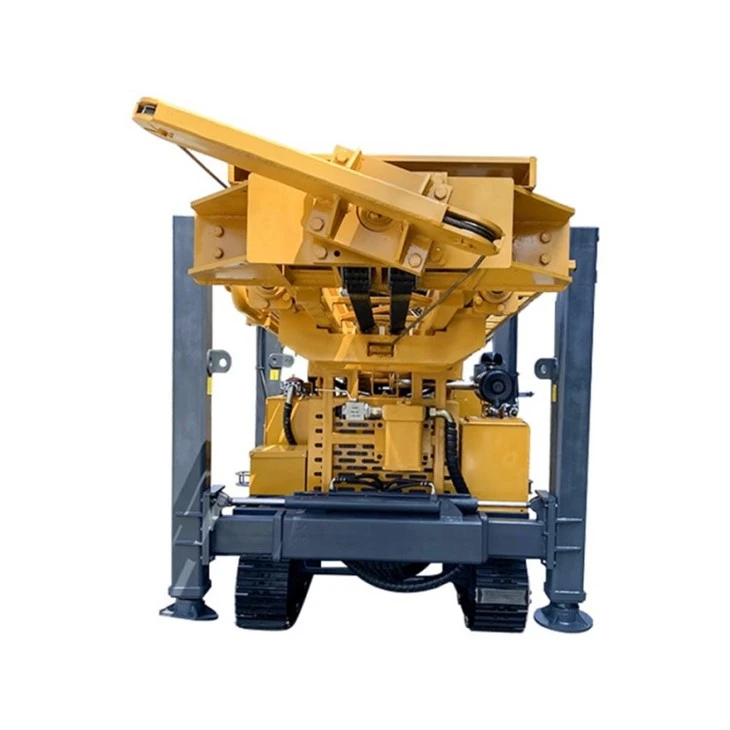

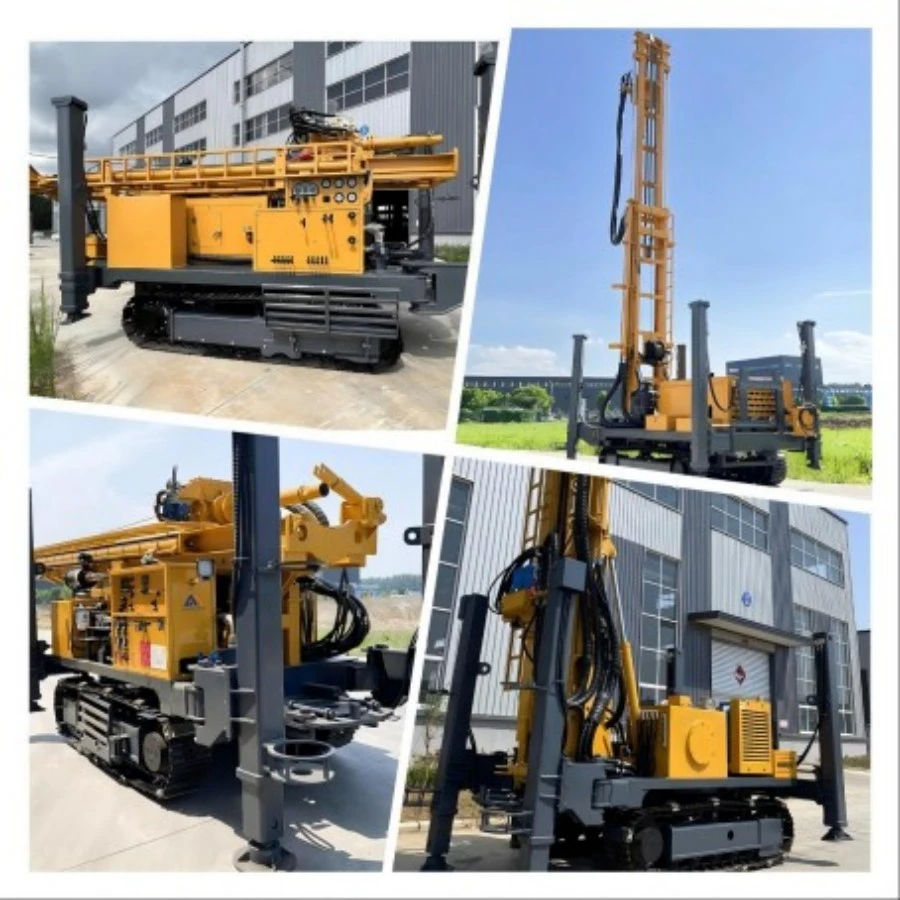

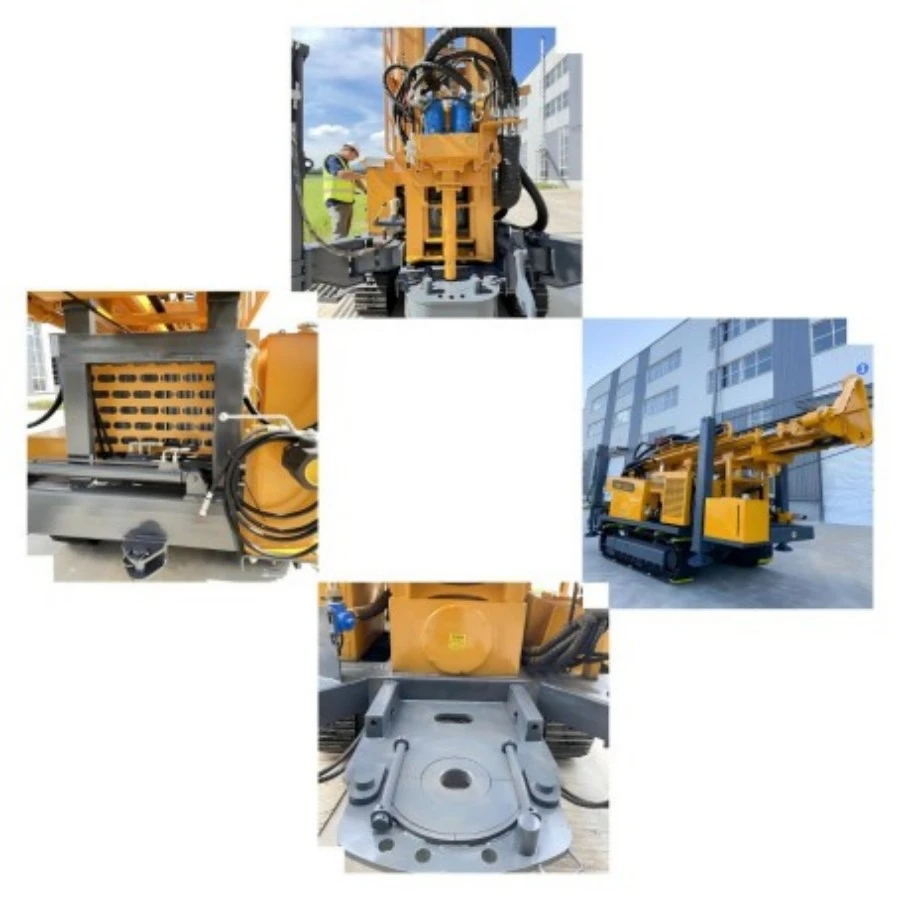

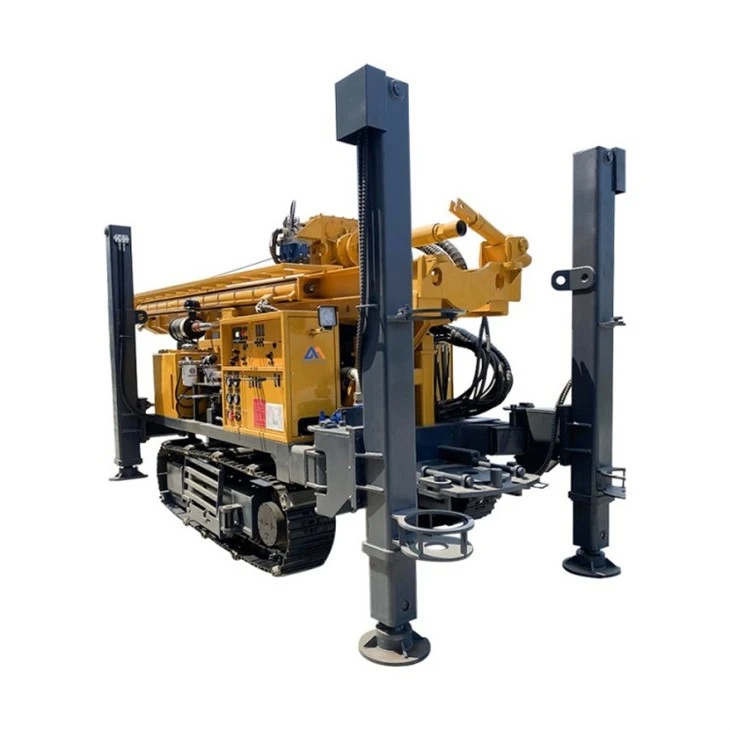

The lifting of the top drive water well drilling rig frame, drilling rod unloading, rotation and feeding, support legs, hoisting, walking and other actions of this series of drilling rigs are all implemented by hydraulic systems, greatly reducing labor intensity, improving construction efficiency and engineering quality. The telescopic tower type hydraulic well drilling rig reduces the length of the drilling frame by twice and can directly lower a 6-meter drill rod or casing, further shortening the drilling assistance time. The updated rotary control panel can be used for different working conditions.
Brand name: miningwell
Certification: CE, ISO
Minimum order quantity: 1 set
Package Details: 40HQ-20GP
Delivery Time:15-20 days
Payment terms:L/C, T/T, Western Union
Our Advantage
The Fully Hydraulic Water Well Drilling Rig can use air DTH Hammer drilling and mud drilling.
Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed system are set up on the chassis.
It's a hydraulicrotary drilling rig with directional circulation. It can equipped with mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
The power of portable hydraulic water well drilling rig comes from a Yuchai 9lkw engine drives the large displacement high pressure plunger pump and it is charaeterized by powerful dynamic and stable performance.
The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
Full Hydraulic Top Drive Water Well Drilling Rig can set up a generator which is convenient to welding or illuminate for work at night.
Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
