small water well drilling rig

Name: China small water well drilling rig Manufacturers Suppliers Factory - Miningwell Supply Chain
Brand: Miningwell
SKU: 249406738

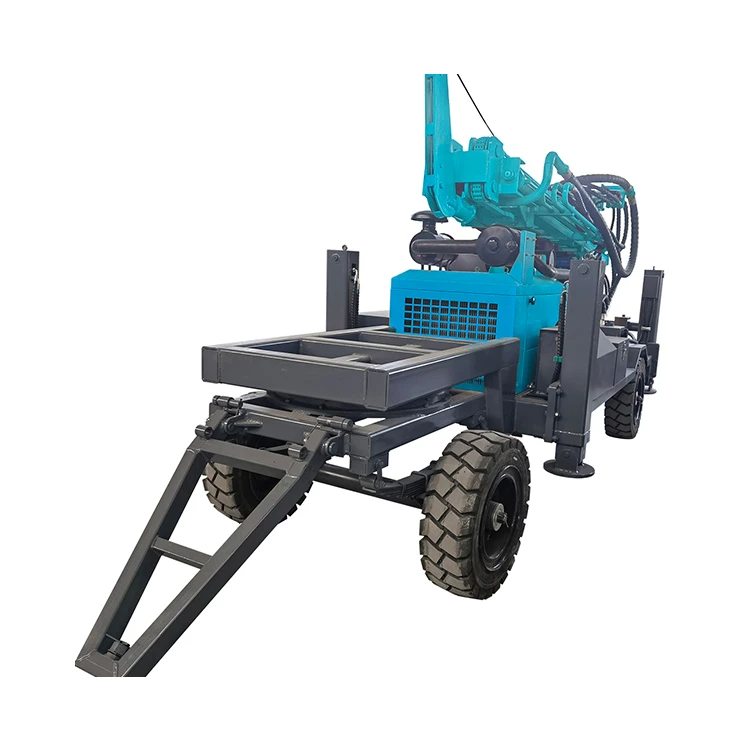

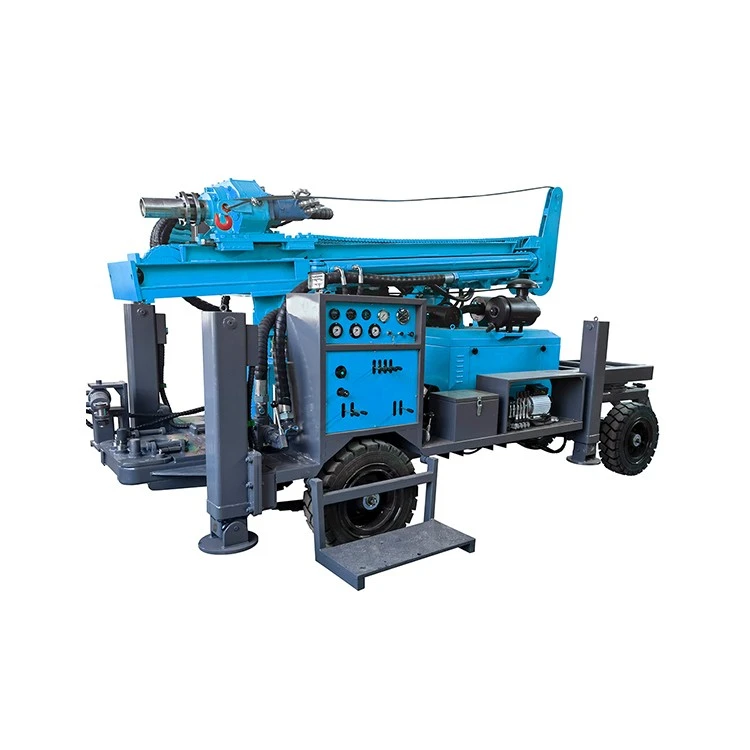

Trailer mounted water well drilling rig MWL 260 is a movable, efficient and multi-purpose rock drilling equipment. Depending on the geological conditions, it has rotary drilling mode and percussion drilling mode, using high pressure air, foam and mud.

Send Inquiry

Description

Specifications

Technical Parameters	MW260
Dimension	410019502600mm
The hole diameter	140-305mm
Drilling depth	260m
One-time advance length	3m
Walking speed	2.5km/h
Climbing angles	30°
Power	Yuchai73kW
Using air pressure	1.7-3.0MPA
Air consumption	17-31m³/min
Drill pipe length	1.5/2/3m
Drill pipe diameter	76mm,89mm
Rig lifting force	15T
Swing speed	45-70rpm
Swing torque	4000-5300N.m

Product detail

Brand name: miningwell
Certification: CE, ISO
Minimum order quantity: 1 set
Package Details: 40HQ-20GP
Delivery Time:15-20 days
Payment terms:L/C, T/T, Western Union

MWL260 trail water well drilling is a lightweight, efficient and multi-purpose drilling equipment that can rotate for percussion drilling using air, foam or mud depending on different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, test wells or other exploration boreholes, especially when drilling geothermal heating holes, and it can also meet the engineering foundation reinforcement, loose gravel drilling with a variety of engineering requirements for connecting rock formations.

Shipping&Payment

Every piece of Miningwell equipment and drilling rig undergoes a rigorous load security check to ensure the safety of the cargo in the container.

Our payment methods: credit card, L/C, T/T, Western Union, and we support shipping by air and by sea.

FAQ

Q: Where is your factory located?

A: Our factory address is : No.18, Gaotang Road, Shengjia Economic Developing Zone, Qujiang District, Quzhou, Zhejiang, China.

Q: Can l visit your factory?

A: By all means, we warmly welcome your arrival, Before you take off from your country, please let us know. We will show you the way and arrange time to pick you up if possible.

Q: Is your price competitive?

A: Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.

Q: Why choose us?

A: We insist on using good materials and making drilling tools with conscience, and adhering to the concept of "win-win cooperation", we have formed strategic cooperative relationships with many domestic counterparts.
D Miningwell's principle is to provide customers with the most efficient and economical drilling solutions. We are willing and ready to do our best to help you.

Q: How does your factory do regarding quality control?

A: CE certificates.One Year Quality Warranty And Life-time Technical Support.

Q: What payment terms do you accept?

A: T/T or L/C or West Union,others is welcome.
