Specifications
|

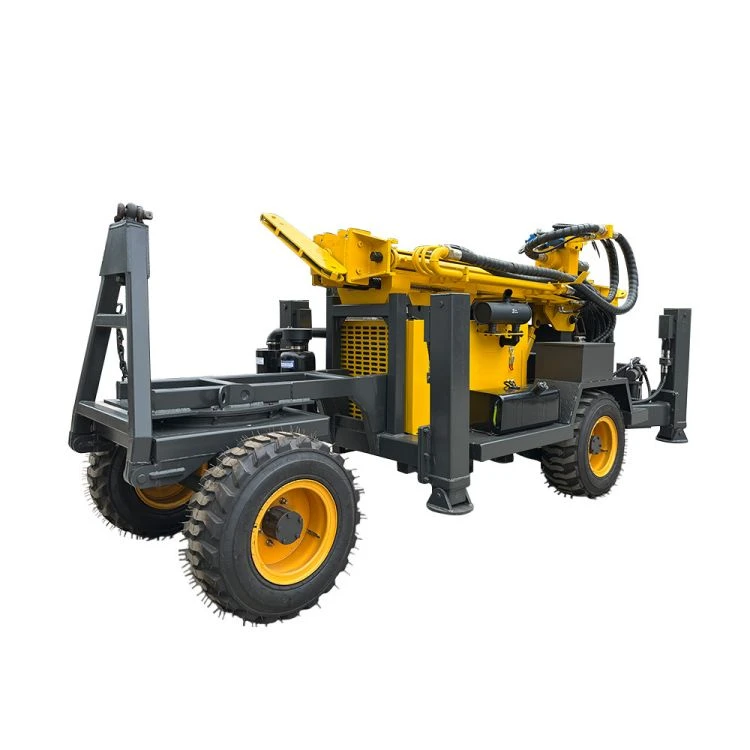

MWL200 water well drilling rig |
|||
|
The weight(T) |
4.7 |
Drill pipe diameter(mm) |
Φ76 Φ89 |
|
The hole diameter(mm) |
140-254 |
Drill pipe length(m) |
1.5m 2.0m 3.0m |
|
Drilling depth(m) |
200 |
Rig lifting force(T) |
13 |
|
One-time advance length(m) |
3.3 |
Rapid rise speed(m/min) |
20 |
|
Walking speed(km/h) |
20-40 |
Fast feeding speed(m/min) |
40 |
|
Climbing angles(Max.) |
30 |
Swing speed(rpm) |
45-65 |
|
Equipped capacitor(kw) |
65 |
Hoisting force of winch(T) |
--- |
|
Using air pressure(MPA) |
17-2.5 |
Swing torque(N.m) |
3400-4700 |
|
Air consumption(m³/min) |
17-31 |
Dimension(mm) |
4325*1600*2450 |
|
The penetration efficiency(m/h) |
10-35 |
High leg stroke(m) |
1.4 |
|
The engine brand |
Quanchai engine (Replaceable Cummins Engine) |
||
Product detail
- Brand name: miningwell
- Certification: CE, ISO
- Minimum order quantity: 1 set
- Package Details: 40HQ-20GP
- Delivery Time:15-20 days
- Payment terms:L/C, T/T, Western Union
Application Scenario
1) Civil engineering drilling
2) Geothermal drilling
3) Water well drilling
Features
1) Equipped with 65KW Yuchai brand turbocharged engine, strong power;
2) Patented design composite arm with double-cylinder lifting.
3) Each drilling rig is equipped with baffles on the main arm to protect the cylinders.
4) High flexibility, sturdy and durable, little damage to road surface, easy to move.
5) Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance, low cost.

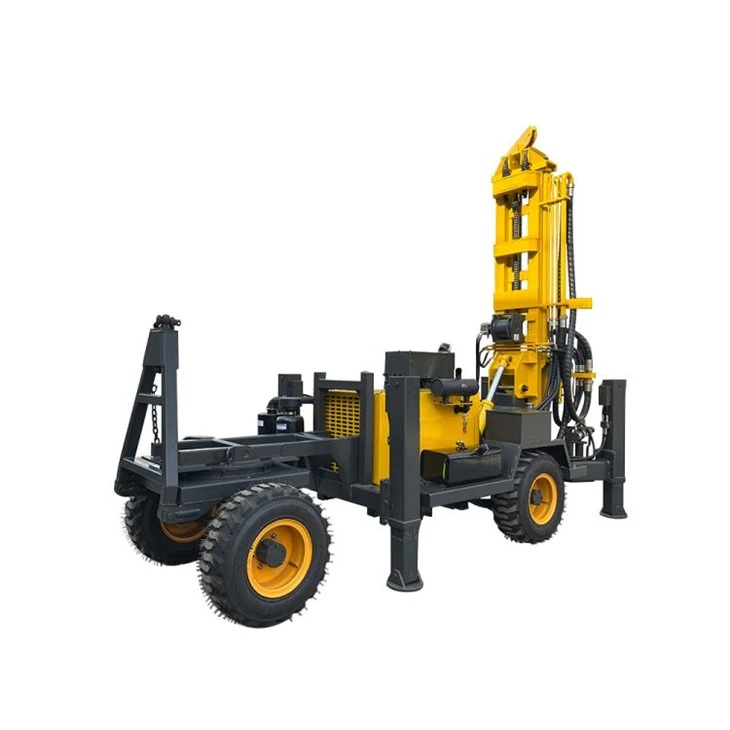

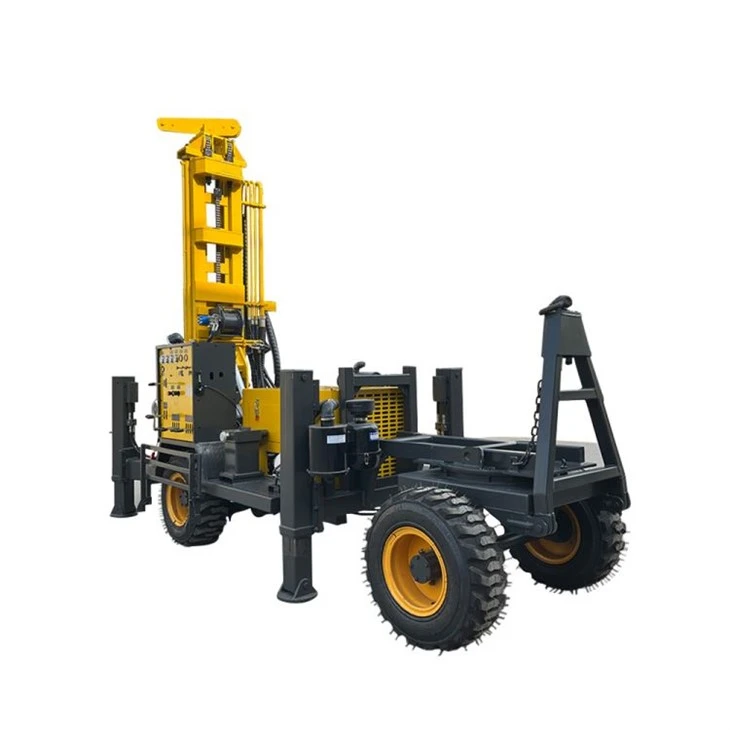

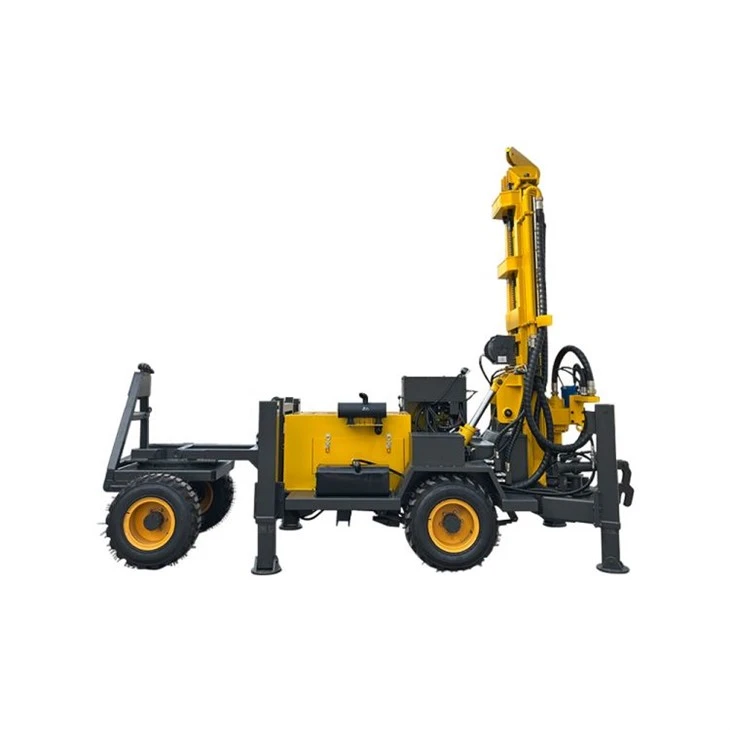

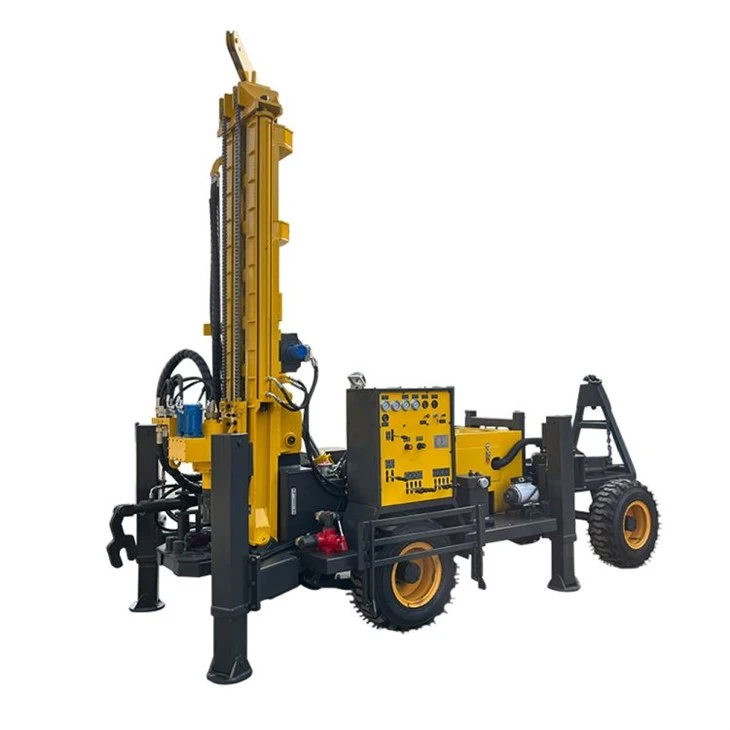

6) The whole tractor mounted borewell machine adopts three-wheeled tractor with large horsepower and small torque, which can cope with the more complicated road conditions and is easy to move.
7) Double systems can be added: air power system with air compressor/ mud pump system with mud pump.
Our Service
1) We provide free technical service about drilling rig and application issues.
2) Free on-site touring and introduction of our factory.
3) We provide process design and validation for free.
4) Close follow-up of all orders by special person and keep customers informed timely.
5) All after-sale request will be responded in 24 hours.
6) We can customize special hardware as customer demand.
7) Competitive Price (Factory direct price) with our good service.
8) Excellent quality testing equipment, 100% inspection on critical.
Shipping&Payment
Every piece of Miningwell equipment and drilling rig undergoes a rigorous load security check to ensure the safety of the cargo in the container.
Our payment methods: credit card, L/C, T/T, Western Union, and we support shipping by air and by sea.
