Progress in drilling methods is vital for the oil and gas industry to enhance efficiency, safety, and adaptability under challenging circumstances. The top drive drilling rig stands out as a key innovation, crucial for contemporary drilling activities. The systems in question, such as the Top Drive Multi-Purpose Hydraulic Drilling Rig HDL300, signify a major advancement over conventional rotary systems, providing unparalleled performance and operational advantages.
Defining a Top Drive Drilling Rig
Essentially, a top drive system drilling rig is a robust motor unit hanging from the rig's derrick or mast. In contrast to traditional rotary table systems that spin the whole drill string from its base, the top drive rotates the drill pipe from an overhead position. The design enhances the drilling process's control, efficiency, and safety.

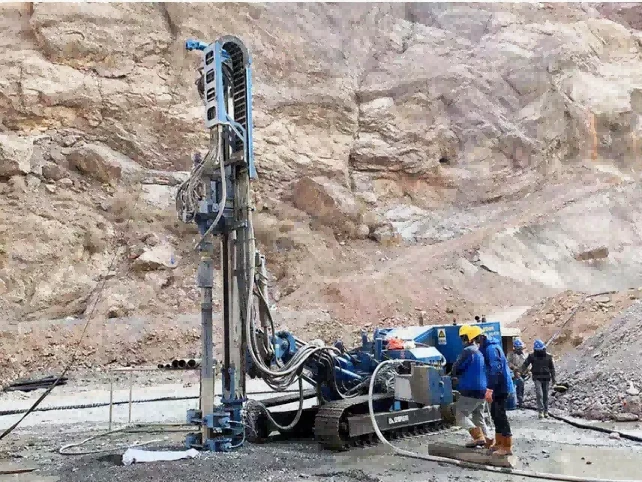

The HDL300, serving as a versatile hydraulic top drive rig, highlights the benefits of this technology. The HDL300, crafted for adaptability, is capable of enduring diverse drilling scenarios and ensuring exceptional performance. This rig, equipped with a robust motor and advanced hydraulic systems, is designed to satisfy contemporary drilling requirements.
Benefits of Top Drive Drilling Rigs
1.Improved Performance
A key advantage of top drive drilling rigs lies in their capacity to utilize extended drill pipe segments, greatly shortening the duration required for connections. This characteristic results in accelerated drilling velocities and enhanced operational effectiveness.
The HDL300, for instance, is equipped with a high-torque, high-speed motor that optimizes rotational force. This capability makes it ideal for penetrating challenging strata such as rocky soils, sand layers, and gravel formations. Its efficiency is particularly notable in scenarios where traditional methods struggle, such as in strata with high water content.
2. Improved Safety
Safety is paramount in drilling operations, and top drive systems excel in this area. The ability to remotely control the rig via wireless systems ensures that operators can maintain a safe distance from hazardous areas. Additionally, the HDL300 features a swivel-arm operation desk and a vertical turntable, enhancing flexibility and operator safety during construction.
3. Versatility Across Projects

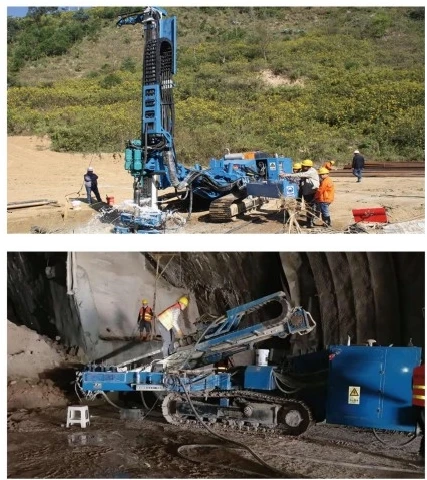

Top drive drilling rigs are highly adaptable, making them suitable for various applications. The HDL300, for example, is designed for tasks such as foundation pit support, slope stabilization, pilot holes, micro-piles, and tunnel pipe shed projects. Its multi-angle adjustment capability allows it to meet diverse project requirements with ease.
Unique Features of the HDL300
The HDL300 top drive rotary drilling rig sets itself apart with several key construction and operational features:
- Powerful Impact Drilling: Its high-power top impact motor eliminates the need for additional tools like downhole hammers or air compressors, enhancing efficiency and reducing costs.
- Multi-Angle Adjustment: The rig can adjust to various directional and angular needs, making it versatile for complex projects.
- Advanced Hydraulic System: Imported hydraulic configurations ensure system stability and reliability, even under demanding conditions.
- High-Torque Performance: With multiple configurations available for the power head, such as high-speed or high-torque versions, the rig can adapt to specific strata and project demands.
- Ease of Operation: Features like a mobile operating platform and wireless remote control streamline operations, improving convenience for the crew.
Applications in Challenging Strata
Drilling through difficult formations like sandy soils, pebble layers, and rocky terrains often poses significant challenges. The HDL300 hydraulic top drive drilling rig addresses these obstacles with its robust design and advanced features. For example, its ability to deliver high torque and speed ensures fast penetration and high-quality boreholes, even in strata prone to collapse.
This rig is particularly effective in conditions where traditional submerged impactors fail due to high water content. By leveraging the impact drilling capabilities of the HDL300, operators can achieve efficient and reliable results in such demanding environments.
Conclusion
Top drive drilling rigs, such as the HDL300, are revolutionizing the drilling industry with their blend of efficiency, safety, and adaptability. Their ability to handle diverse conditions and projects while maintaining high performance makes them indispensable for modern drilling operations. Whether it's for oil and gas exploration or construction projects requiring precision drilling, the top drive system represents a superior choice for professionals seeking reliability and excellence.
As industries continue to demand faster, safer, and more versatile drilling solutions, the adoption of top drive drilling rigs will undoubtedly grow, cementing their role as a cornerstone of advanced drilling technology.
