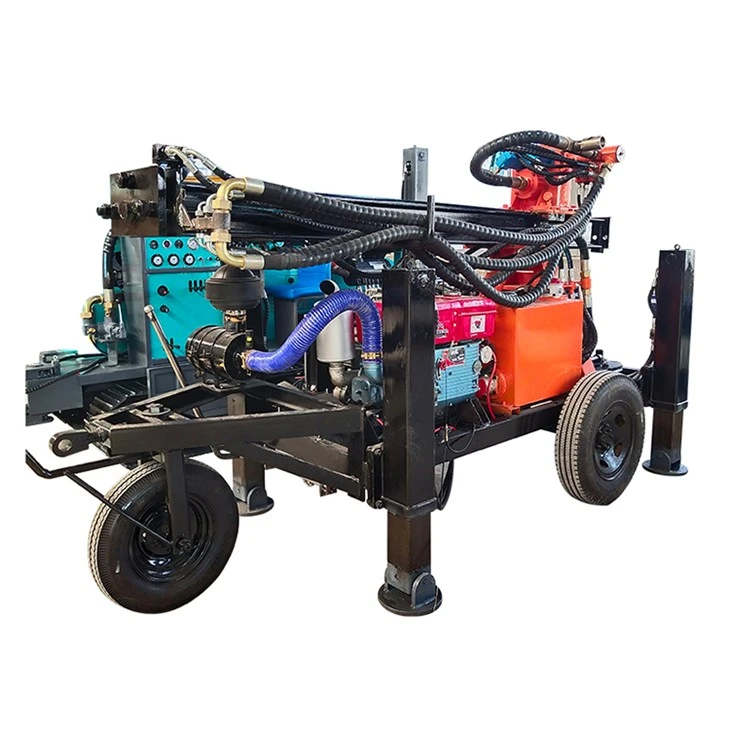

Wheeled hydraulic water well drilling rig refers to a drilling rig installed on a wheeled chassis (such as a light truck, heavy truck or trailer). Its main drilling power and working mechanism are driven by a hydraulic system. It can realize mud drilling, air down-the-hole hammer drilling and other methods, and is suitable for water well construction in different strata.
Specifications
The Wheel Hydraulic Water Well Drilling Rig is a versatile and efficient machine designed for deep water well drilling. With a maximum drilling depth of 130 meters and a hole diameter ranging from 100 to 219 mm, it is capable of handling a variety of drilling tasks. The rig features a fast feeding speed of 23 m/min and rapid rise speed of 15 m/min. It operates with an air pressure of 1.45-2.5 MPa and a swing torque of 2200-3000 N.m. Powered by a reliable Changchai engine, the rig boasts a lifting force of 6 tons and can climb up to 30° slopes, ensuring maximum operational flexibility.
|
Technical Parameters |
|||
|
The weight(T) |
3 |
Drill pipe diameter(mm) |
Φ76 Φ89 |
|
The hole diameter(mm) |
100-219 |
Drill pipe length(m) |
1.5m 2.0m |
|
Drilling depth(m) |
130 |
Rig lifting force(T) |
6 |
|
One-time advance length(m) |
2.3 |
Rapid rise speed(m/min) |
15 |
|
Walking speed(km/h) |
3 |
Fast feeding speed(m/min) |
23 |
|
Climbing angles(Max.) |
30 |
Swing speed(rpm) |
40-65 |
|
Equipped capacitor(kw) |
23 |
Hoisting force of winch(T) |
-- |
|
Using air pressure(MPA) |
1.45-2.5 |
Swing torque(N.m) |
2200-3000 |
|
Air consumption(m³/min) |
15-29 |
Dimension(mm) |
3850×1560×2050 |
|
The penetration efficiency(m/h) |
10-35 |
High leg stroke(m) |
0.6 |
|
The engine brand |
Changchai engine |
||
Product detail
- Brand name: miningwell
- Certification: CE, ISO
- Minimum order quantity: 1 set
- Package Details: 40HQ-20GP
- Delivery Time:15-20 days
- Payment terms:L/C, T/T, Western Union
Engine: we adopt famous brand engine, Guangxi Yuchai or Cummins turbocharged engine;

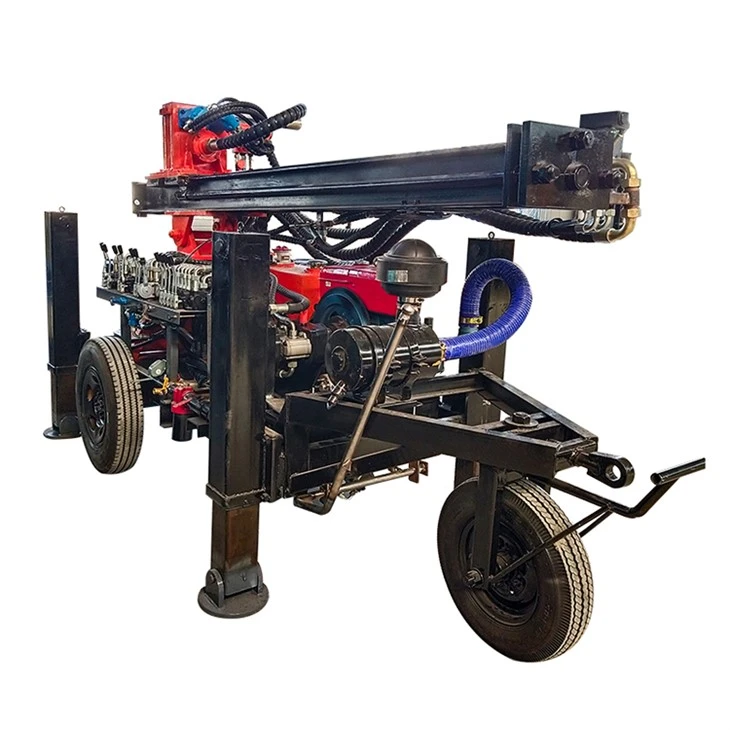

Traveling device: the hydraulic borehole drilling machine is equipped with a new type of traveling motor and reducer, it has a longer service life;
Hydraulic oil pump: the oil pump is imported from the United States, adopting parallel gear box design, the oil pump is separated, which provides sufficient and reasonable power distribution. Hydraulic system design is unique and advanced, simple maintenance and low cost; each hydraulic oil pipe is covered with a thickened protective sleeve, which prolongs the service life of the oil pipe;.
Power head unit: the gearbox body adopts a one-piece structure, and the dual motors provide more power, more torque, more durability, and lower maintenance costs;
Drilling rig chassis: the wheel hydraulic water well drilling rig is equipped with a professional excavator chassis, which is classic and durable, with high load capacity and wide chain plate width, so that there is little damage to the hard road surface;
Lifting force: the drilling rig adopts a composite arm design, with small arm size, long stroke and large lifting force of double cylinders, so the drilling rig has a large lifting tonnage; the lifting arm of the hydraulic down hole drilling rig body is equipped with a limiting device for the protection of the cylinders, which ensures the safety when working.
Product advantages
Highly maneuverable
Adopting a wheeled structure, no need for towing, autonomous driving, and adapting to various terrains.
Hydraulic drive, high efficiency
The hydraulic system operates precisely, reduces manual intervention, and improves drilling speed and efficiency.
Multi-functional integration
Integrated design, can carry air compressors, mud pumps, etc. at the same time, reducing auxiliary equipment.
Easy to operate
Hydraulic centralized control reduces the difficulty of operation, and one person can operate.
Compact structure, fast transition
The drilling tower is foldable and the body size is reasonable, suitable for operations in small spaces.
Wheeled hydraulic water well drilling rigs have become the mainstream equipment in the water well construction industry due to their strong mobility, high hydraulic control precision, and fast construction efficiency. It is not only suitable for conventional rural well drilling projects, but also for various scenarios such as urban water supply, geothermal development, and farmland irrigation. It is an ideal construction equipment in the current water resources development field.
If you need a detailed model comparison, configuration list, live video or quotation, I can continue to provide it for you. Is there a planned drilling depth or operating area? I can help you recommend a suitable model.
Our factory
The origin of DMININGWELL can be traced back to 2001, at first it was a supplier specializing in the production of spare parts for drilling rig factories. During 20 years of production and operation, DMININGWELL has its own production workshop for drilling rigs, submerged hammers, and drilling rods, and its drilling rigs brand HUNTER, and its drilling tools brands SHANTEROCK, and DMININGWELL are favored by many mines both at home and abroad.
