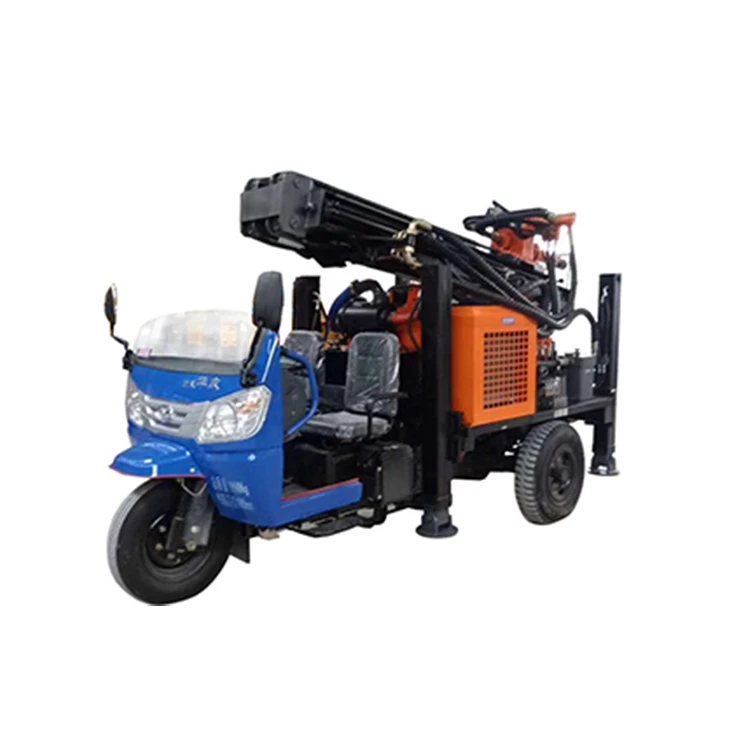

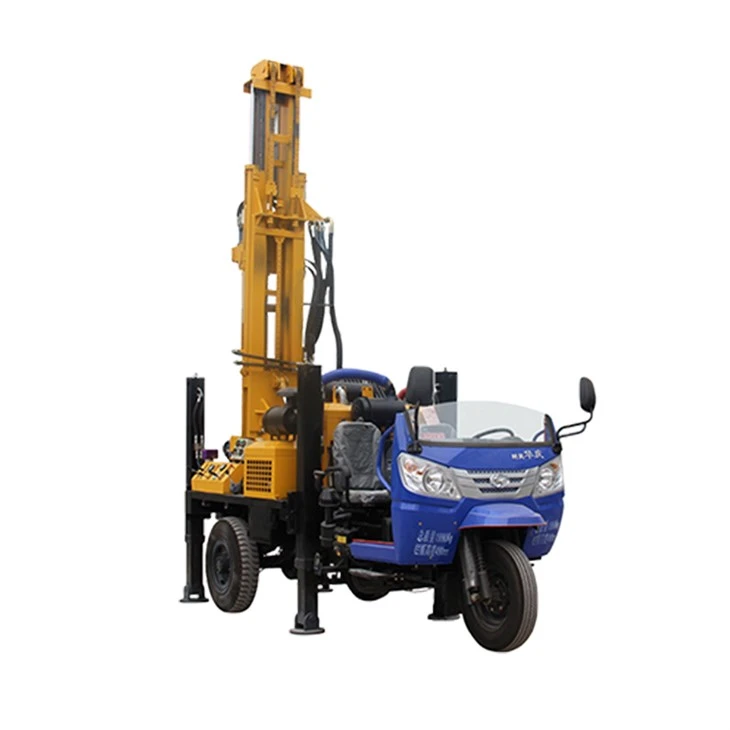

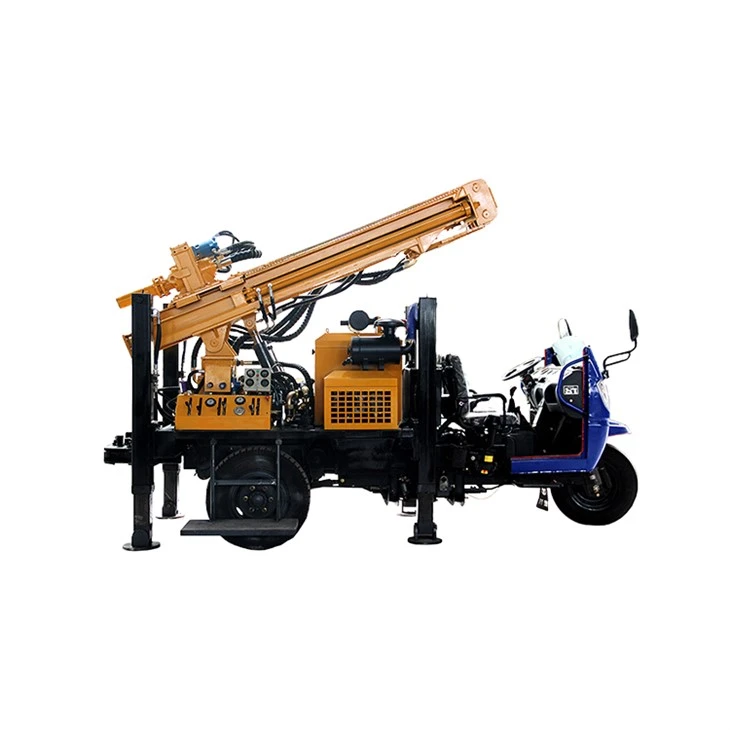

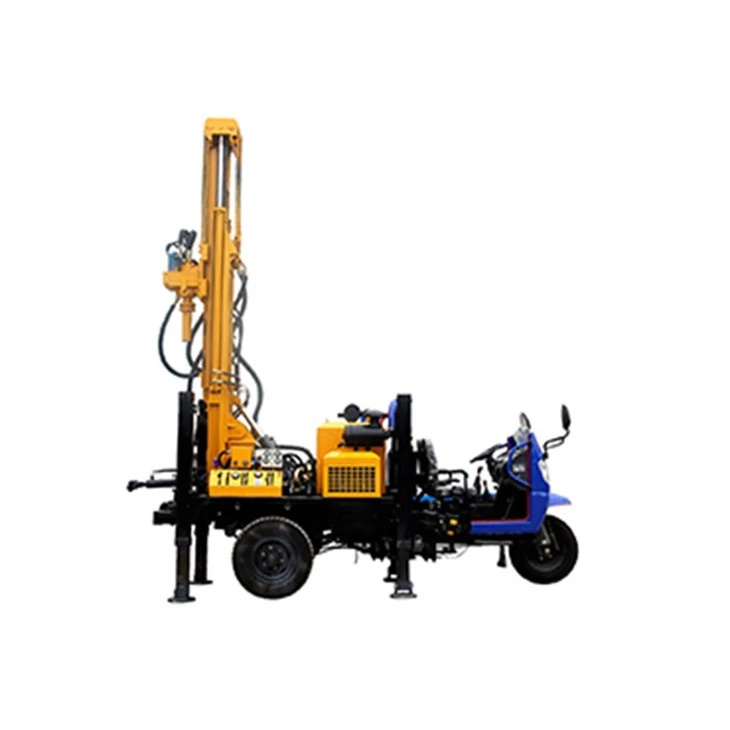

The FYL200 vehicle-mounted water well drilling rig (Feida brand) is a mobile and efficient drilling equipment designed for medium-depth water well projects. Mounted on a truck chassis, it integrates a diesel engine power system and hydraulic transmission, ensuring strong performance and convenient mobility.
With a maximum drilling depth of 200 meters and a borehole diameter range of 100–300 mm, the FYL200 is widely used in domestic water supply, agricultural irrigation, small municipal water projects, and rural drinking water wells.
Main Features
Vehicle-mounted mobility – Easy transportation and quick relocation between drilling sites.
Hydraulic drive – Stable torque, high drilling efficiency, suitable for multiple geological conditions.
Versatile application – Can drill through soil, sand, gravel, pebbles, and partially weathered rock.
Easy operation – Centralized hydraulic control, single-operator friendly.
Cost-effective – Fuel-efficient, low maintenance, long service life.
Specifications
|
FYL 200vehicle-mounted water well drilling rig |
|||
|
The weight(T) |
4.7 |
Drill pipe diameter(mm) |
Φ76 Φ89 |
|
The hole diameter(mm) |
140-254 |
Drill pipe length(m) |
1.5m 2.0m 3.0m |
|
Drilling depth(m) |
200 |
Rig lifting force(T) |
13 |
|
One-time advance length(m) |
3.3 |
Rapid rise speed(m/min) |
20 |
|
Walking speed(km/h) |
20-40 |
Fast feeding speed(m/min) |
40 |
|
Climbing angles(Max.) |
30 |
Swing speed(rpm) |
3400-4700 |
|
Equipped capacitor(kw) |
65 |
Hoisting force of winch(T) |
---- |
|
Using air pressure(MPA) |
1.7-2.5 |
Swing torque(N.m) |
3400-4700 |
|
Air consumption(m³/min) |
17-31 |
Dimension(mm) |
4350×1600×2450 |
|
The penetration efficiency(m/h) |
10-35 |
High leg stroke(m) |
1.4 |
|
The engine brand |
Quanchai engine |
||
Other similar water well drilling rig models
|
Technical Parameters |
FY-180 |
FY-200 |
FY-280 |
FY-300 |
|
Drill depth(m) |
180 |
200 |
280 |
300 |
|
Drill diameter(mm) |
140-254 |
140-305 |
140-305 |
140-325 |
|
Equipped Engine |
YC 65kW |
YC 70kW |
YC 75kW |
YC 85kW |
|
Drill pipe diameter(mm) |
φ76 φ89 |
φ76 φ89 |
φ76 φ89 |
φ76 φ89 φ102 |
|
Drill pipe length(m) |
1.5/2.0/3.0 |
1.5/2.0/3.0 |
1.5/2.0/3.0/6.0 |
1.5/2.0/3.0 |
|
Swing speed(rpm) |
45-70 |
45-70 |
40-70 |
40-70 |
|
Swing torque(N.m) |
3200-4600 |
4000-5300 |
4500-6000 |
5700-7500 |
|
Rig lifting force(T) |
12 |
15 |
17 |
18 |
|
Weight(T) |
5.2 |
6.5 |
7.6 |
7.2 |
|
Dimension(mm) |
4000*1630*2250 |
4000*1850*2300 |
5900*1850*2360 |
4100*2000*2500 |
|
|
||||
|
Model |
FY-400 |
FY-500 |
FY-680 |
FY-800 |
|
Drill depth(m) |
400 |
500 |
680 |
800 |
|
Drill diameter(mm) |
140-350 |
140-350 |
140-400 |
140-400 |
|
Equipped Engine |
DEUTZ 103kW |
YC 118kW |
Cummins 154kW |
Cummins 194kW |
|
Drill pipe diameter(mm) |
φ89 φ102 |
φ102 φ108 φ114 |
φ102 φ108 φ114 |
φ102 φ108 φ114 |
|
Drill pipe length(m) |
1.5/2.0/3.0/6.0 |
1.5/2.0/3.0/6.0 |
1.5/2.0/3.0/6.0 |
1.5/2.0/3.0/6.0 |
|
Swing speed(rpm) |
50-135 |
40-130 |
45-140 |
45-140 |
|
Swing torque(N.m) |
7000-9500 |
7500-10000 |
8850-13150 |
9000-14000 |
|
Rig lifting force(T) |
25 |
26 |
30 |
36 |
|
Weight(T) |
9.4 |
11.5 |
13 |
13.5 |
|
Dimension(mm) |
5950*2100*2600 |
6200*2200*2650 |
6300*2300*2650 |
6300*2300*2950 |
Comparison Table: FY180 vs FY200 vs FYL200 vs FY300
| Model | Drilling Depth | Borehole Diameter | Drill Rod | Power System | Chassis Options | Main Applications |
|---|---|---|---|---|---|---|
| FY180 | 180 m | 100–250 mm | 50/60 mm | Diesel engine + Hydraulic system | Tricycle / Crawler | Household wells, farmland irrigation |
| FY200 | 200 m | 100–300 mm | 60 mm | Diesel engine + Hydraulic system | Truck / Tricycle / Crawler | Domestic wells, irrigation wells, small municipal projects |
| FYL200 (Vehicle-mounted) | 200 m | 100–300 mm | 60 mm | Diesel engine + Hydraulic system | Truck-mounted | Rural drinking water, agricultural irrigation, mobile drilling |
| FY300 | 300 m | 120–325 mm | 76 mm | Diesel engine + Hydraulic system | Truck / Crawler | Deep water wells, large municipal supply, geological exploration |
Summary
FY180 → Entry-level model, best for shallow wells and farm irrigation.
FY200 → Standard model, versatile, widely used in rural and municipal projects.
FYL200 → Vehicle-mounted version, easy transport, high mobility, ideal for contractors.
FY300 → Heavy-duty model, greater depth and diameter, suitable for large-scale projects and exploration.
