The Atlas Copco air compressor 5–25 bar series is widely used in drilling, mining, construction, sandblasting, and industrial manufacturing.
This collection includes portable air compressors, diesel screw compressors, electric screw compressors, and high-pressure models designed for continuous and stable operation.
Whether you need an air compressor for water well drilling, geological exploration, down-the-hole drilling, or general industrial production, Atlas Copco provides reliable performance and excellent fuel efficiency.
Key Features of Atlas Copco Air Compressor 5–25 Bar
Wide pressure range: 5–25 bar suitable for drilling rigs, DTH hammers, and industrial tools.
High fuel efficiency with durable screw elements.
Stable airflow output for continuous heavy-duty operation.

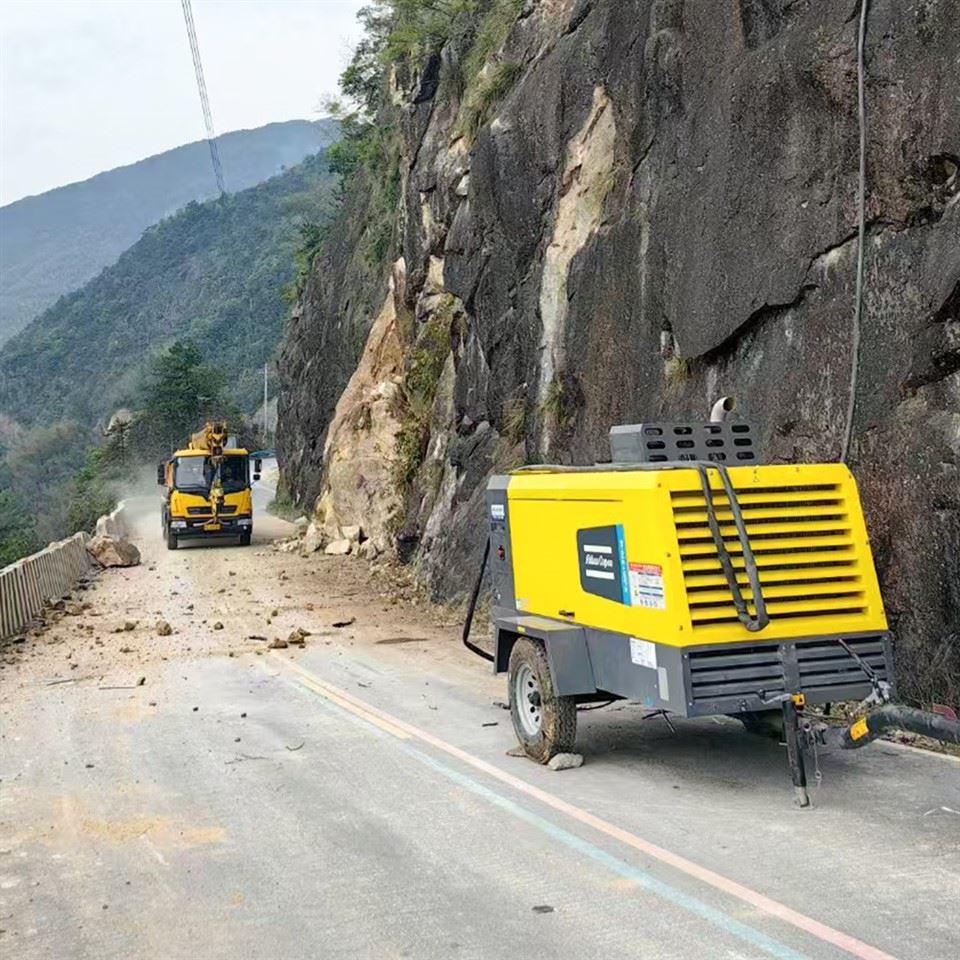

Portable and mobile options for field drilling operations.
Low maintenance design with long service intervals.
High-temperature resistance, suitable for tough outdoor environments.
Applications
The Atlas Copco 5–25 bar air compressor is suitable for:

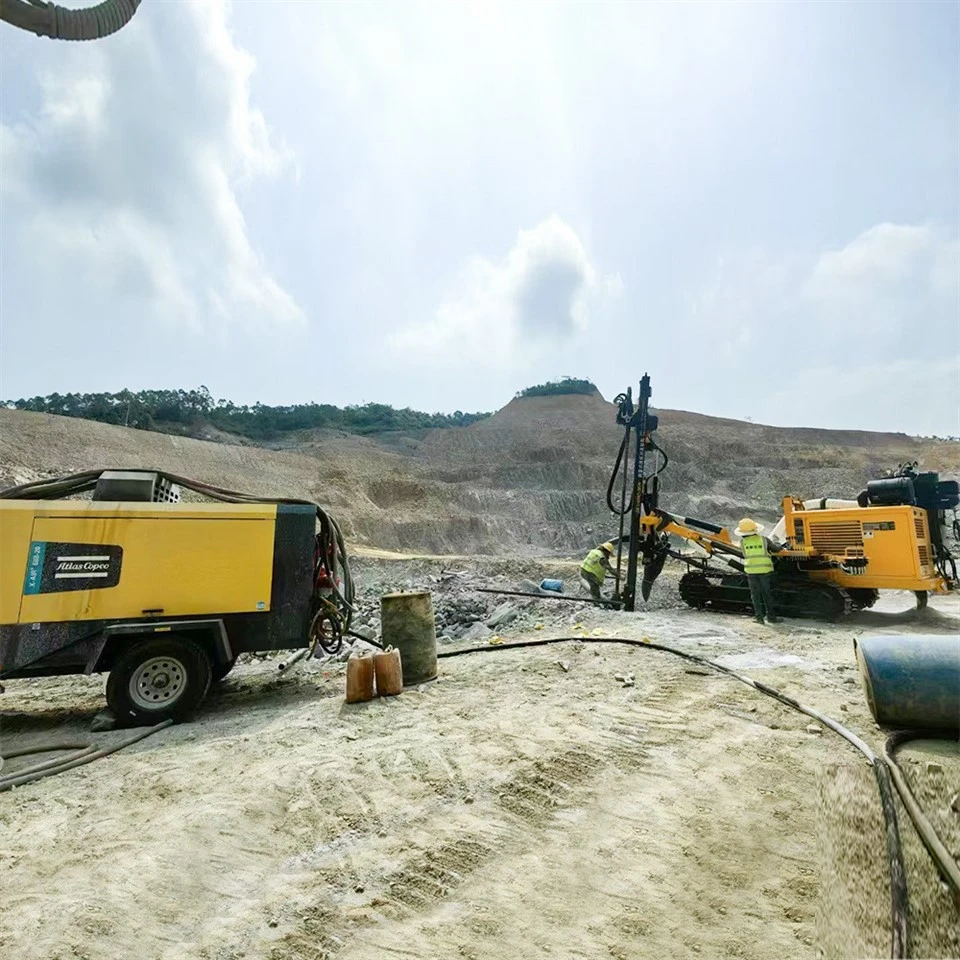

Water well drilling rigs
DTH drilling machines
Geological exploration drilling
Mining and quarry operations
Sandblasting and shot-blasting
Industrial production lines
Pipeline pressure testing
Drilling experts
An air compressor
Meet different homework requirements
Save 10% fuel
Assist in achieving the 'dual carbon' goal
The drilling expert series air compressor not only has
Excellent reliability and outstanding performance, investment
Fast return on investment, widely accepted by drilling personnel around the world
The favor.
The main applications of the drilling expert series air compressor
Basic engineering, pipeline services, water wells, and land
Hot drilling. In addition, due to the use of intelligence
Electronic equipment, drilling expert series air compressor
It is also widely used in various fields such as sandblasting and municipal services
Class application.
Each drilling operation has unique characteristics, which requires the air compressor to be adaptable
Strong. Thanks to the use of a performance management system and drilling experts, only one air compressor is needed for easy operation
Dealing with multiple applications.
Drilling experts can help fully control the flow and pressure of the air compressor. operator
Adjust the flow rate or pressure, and the air compressor will automatically adjust other parameters.
Better performance - dynamic traffic boost
The dynamic flow rate enhancement function can provide additional benefits during slag discharge and drilling rod addition operations
10% external flow rate, allowing for faster slag discharge and drilling rod connection speed to complete drilling operations
The time is shorter.
More precise flow control
Accurately control the precise air volume required for the impactor, and the system will adjust the flow according to the required flow
Automatically adjust the pressure setting value. To prevent exceeding the designed working pressure of the impactor
At the same time, it can also maintain a stable footage speed. Stable gas volume can achieve optimal performance
The slag discharge speed reduces the wear of the impactor and drill rod.
Latest generation engines
The latest generation of Caterpillar engines has a wide power range, so
the size of the compressor can be reduced while maintaining the same performance. In addition,
the new engines have double the maintenance interval, that is, only every 500 hours.
The latest technology engines have lower fuel consumption, saving an average of 10%.
Modular design for easy maintenanceThe modular design makes maintenance easier and effectively reduces the need for spare parts.
advantage
Proprietary high-efficiency screw rotor
The combination of the proprietary high-efficiency screw rotor and the latest high-tech electronically controlled engine improves fuel efficiency by more than 10%.
Drilling Expert Regulation System
The patented Drilling Expert performance management system optimizes gas output by controlling engine speed. Gas output matches the gas demand of the actual application, which can increase drilling speed. 10% extra gas during deslagging and adding drill pipe can help complete the job faster.
Xc4004 Intelligent Controller
The Xc4004 controller puts the operator in complete control.
The intuitive controller user interface is easy to operate, directly displays important parameters, and allows performance monitoring and preventive maintenance.
Three-stage fuel filtration
Three-stage fuel filtration is standard to protect the fuel system and effectively extend normal operation time.
New pressure vessel
The patented pressure vessel design increases the filter surface by 40%, while ensuring the gas volume and extending the service life of the oil separator. The pipeline adopts a fixed connection to avoid the risk of installation errors and shorten the replacement time of the oil separator to 30 minutes.
Dual-pressure switchover
The dual-pressure switchover allows switching between two rated pressures. Operators can easily switch between applications with the push of a button.
C3 Certified Paint
C3 Certified Paint protects the compressor from weather or scratch damage, thus extending its service life and increasing resale
High altitude operation
All high performance engines have been tested and certified
Anti-drip frame (optional)
Anti-drip frame has the function of preventing dripping at the work site.
Condensate drip prevention (optional)
The condensate generated by the aftercooler is evaporated through the exhaust system. The condensate drip prevention ensures that the air compressor area is always kept clean.
Electronic thermostatic valve (optional)
The electronic thermostatic valve regulates the screw oil temperature and reduces condensation. This technology helps to extend the service life of the screw oil and protect the screw rotor from wear.
High-efficiency engine
The latest generation of electronic fuel injection engines has a 10% increase in efficiency.
Forklift slot (optional)

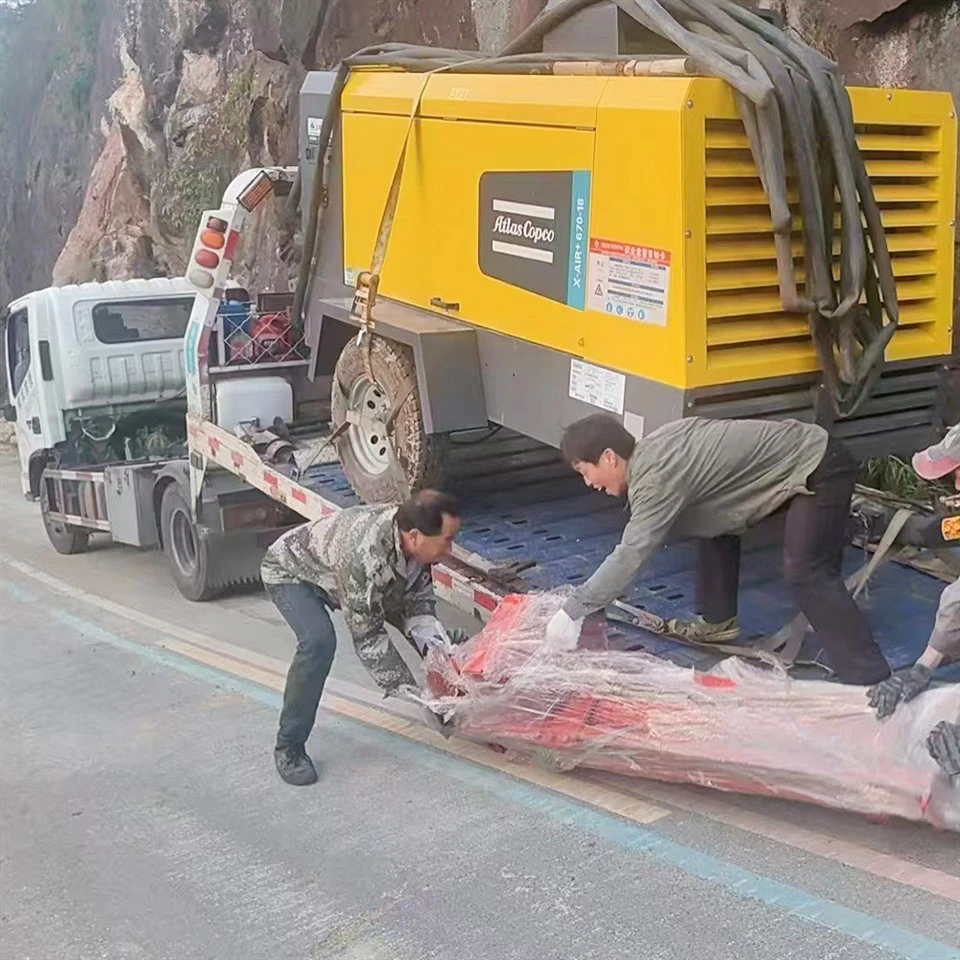

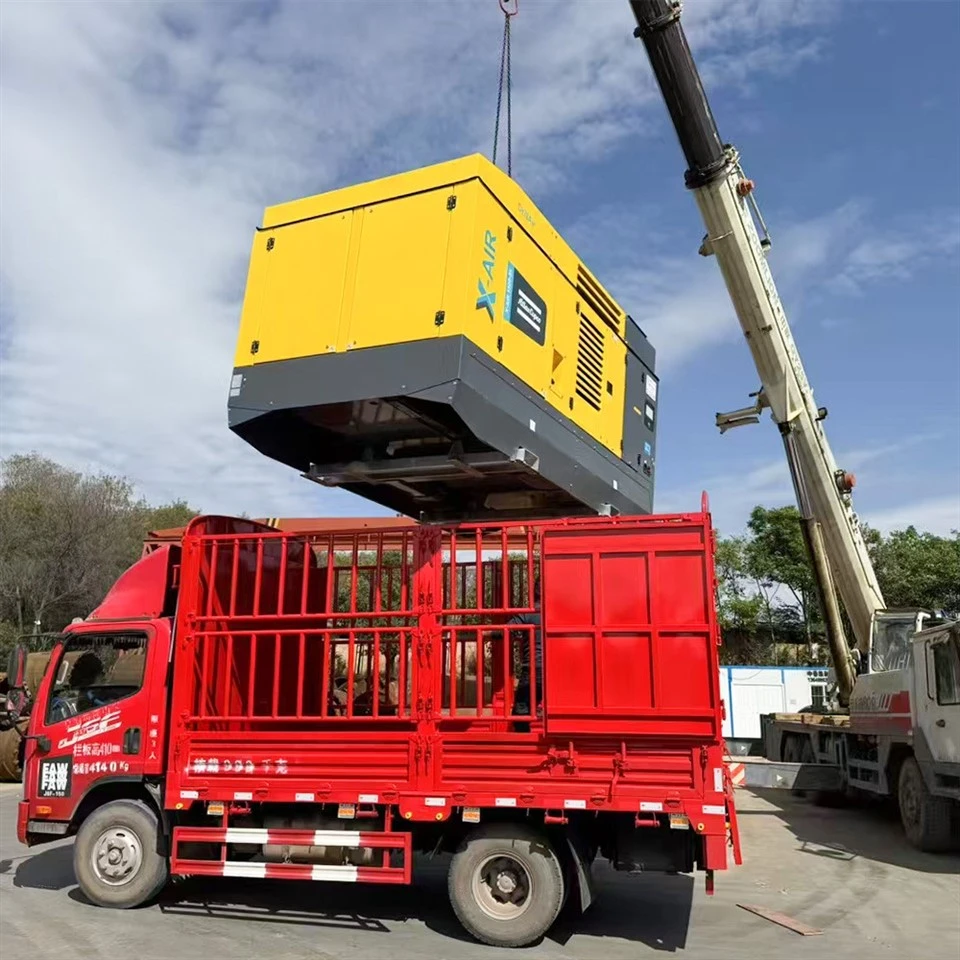

The air compressor can be used in mobile scenarios. For safe transportation purposes, a forklift slot can be optionally configured to facilitate safe loading of the air compressor.
Bumper protection
During transportation or working process, the bumper protection
helps to avoid the risk of damage to the outlet valve.
Contact us to get prices for any Atlas Copco air compressor 5–25 bar model.
We offer global shipping, professional drilling solutions, and full technical support.
FAQ
Q: What pressure do you need?
A: (5 bar / 7 bar / 10 bar / 12 bar / 14 bar / 20–25 bar)
Q: Required airflow (m³/min or CFM)?
A: Example: 7 m³/min, 12 m³/min, 17 m³/min, 28 m³/min, etc.
Q: Preferred type?
A: Portable diesel mobile compressor (for field drilling)
Electric screw compressor (factory use)
High-pressure 20–25 bar models (for DTH/RC drilling)
Q: Destination country for shipping?
A: Once I receive this information, I will send you the recommended Atlas Copco model, including: ✅ Technical specifications ✅ Best distributor price ✅ Delivery time ✅ Optional drilling rig + compressor package
|
Options
|
|

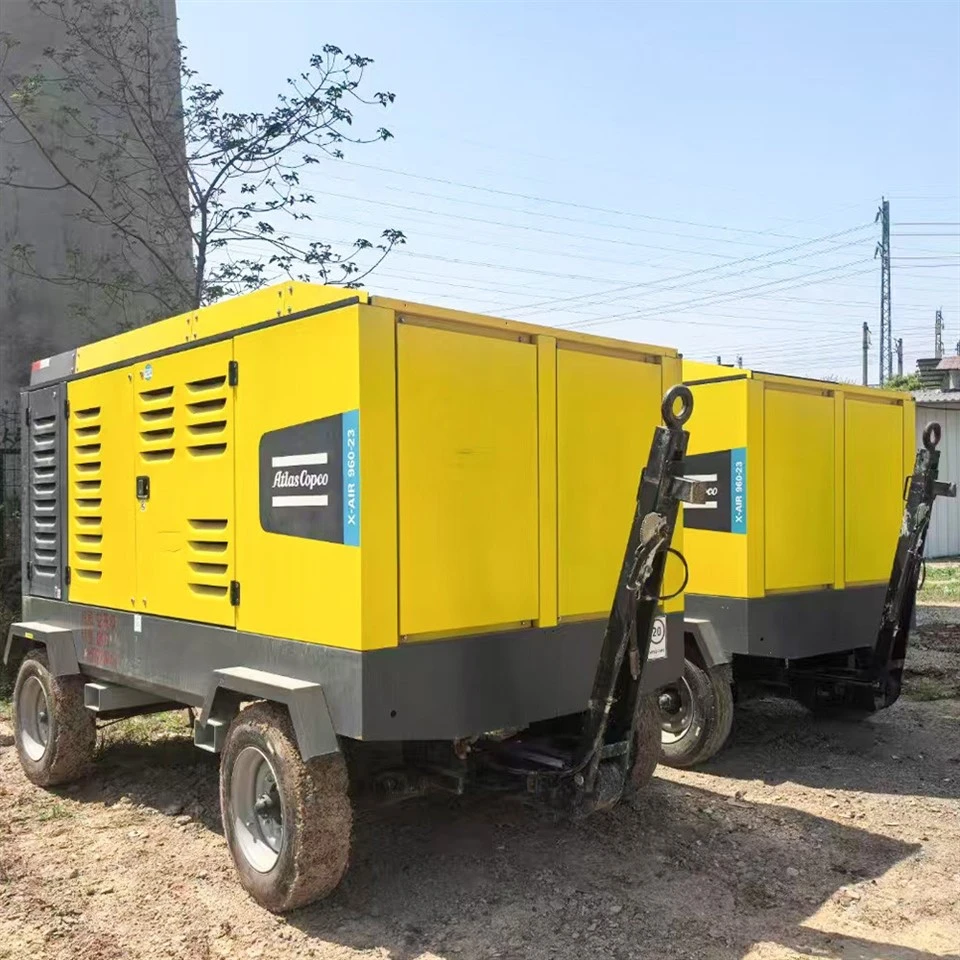

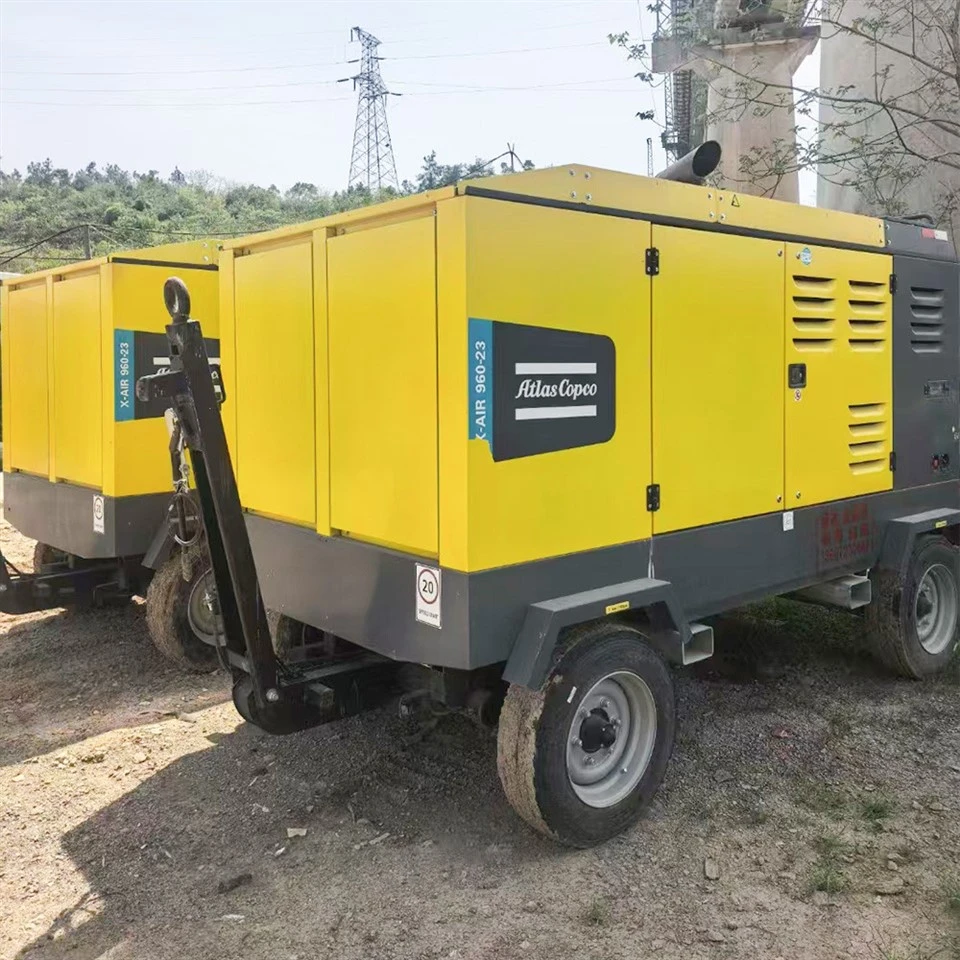

1.Trailer chassis
|
|
2.Box chassis
|
|
3.Cold start
|
|
4 Aftercooler |
|
5 Drip stop frame |
|
6 Thermostatic valve for high pressure models |
|
7 High ambient temperature |
|
8 Condensate drip stop |
|
9 Mirror control box |
|
10 Forklift slot |
|
|
|
X-Air+1250-10
|
X-Air⁺ 1050-14
|
Air+900-25
|
X-Air
+ 1100-25 |
|
Rated working pressure
|
bar (g)
|
5 - 10.3
|
5 - 14
|
16 - 25
|
16 - 25
|
|
psi (g)
|
72.5 - 150
|
72.5 - 203
|
232 - 362.5
|
232 - 362.5
|
|
|
Exhaust volume (without aftercooler)
|
cfm
|
1235 - 1136
|
1038 - 943
|
886 - 759
|
1095-1008
|
|
m3/min
|
35 - 32.2
|
29.4 - 26.7
|
25.1 - 21.5
|
31-28.6
|
|
|
L/sec
|
583 - 536
|
490 - 445
|
418 - 358
|
517-476
|
|
|
Noise (Lw @2000/14/EC)
|
dB(A)
|
106
|
106
|
107
|
107
|
|
Noise (Lp -7m @ ISO 2151)
|
dB(A)
|
76.3
|
76.3
|
77.3
|
77.3
|
|
Engine brand
|
|
Caterpillar
|
Caterpillar
|
Caterpillar
|
Caterpillar
|
|
Engine model
|
|
C9.3B
|
C9.3B
|
C9.3B
|
C9.3B
|
|
Emission standards
|
|
Stage IIIA
|
Stage IIIA
|
Stage IIIA
|
Stage IIIA
|
|
Engine speed (unloaded)
|
rpm
|
2200
|
2200
|
2200
|
2200
|
|
Power at full load speed
|
kW
|
250
|
250
|
250
|
280
|
|
Engine speed (unloaded)
|
rpm
|
1300
|
1300
|
1300
|
1300
|
|
Number of cylinders
|
|
6
|
6
|
6
|
6
|
|
Oil capacity
|
L
|
30
|
30
|
30
|
30
|
