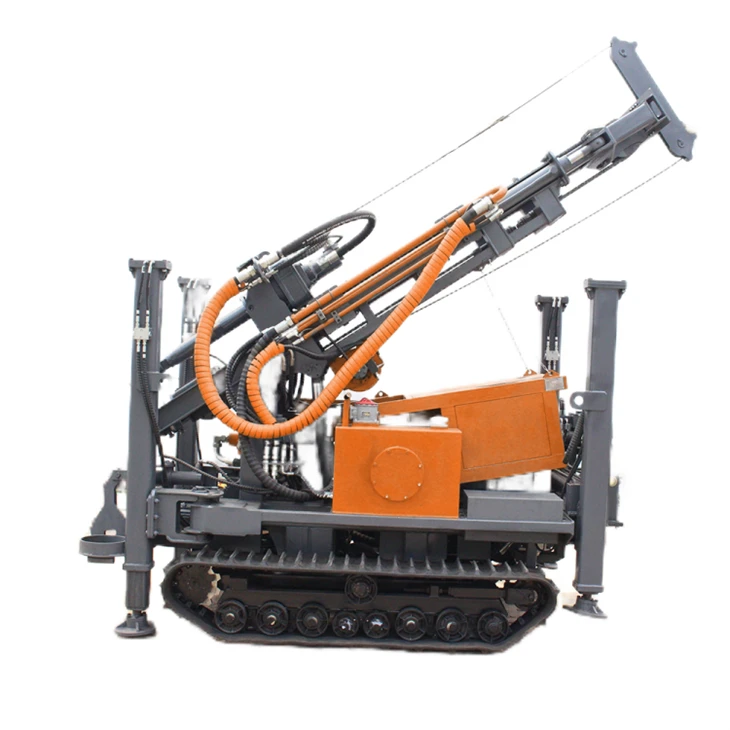

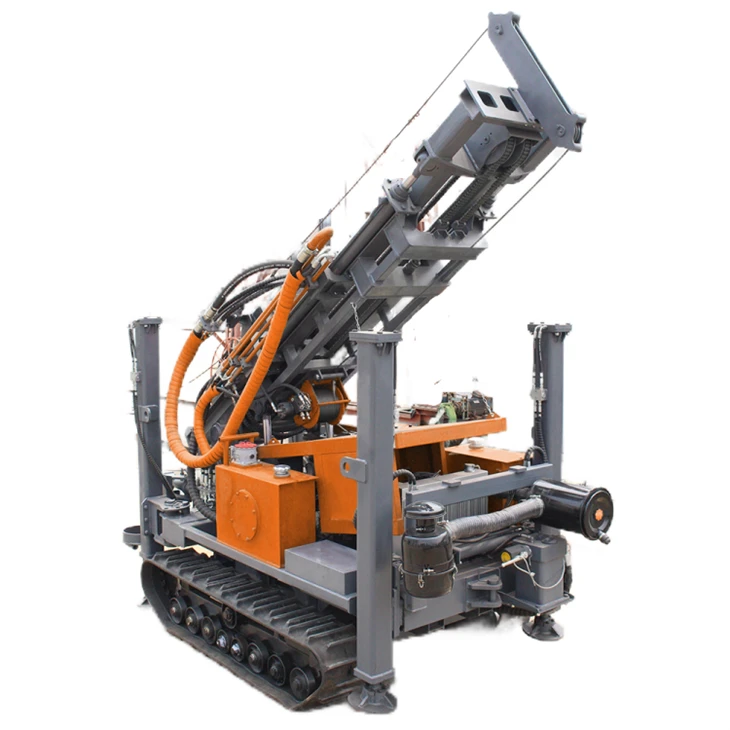

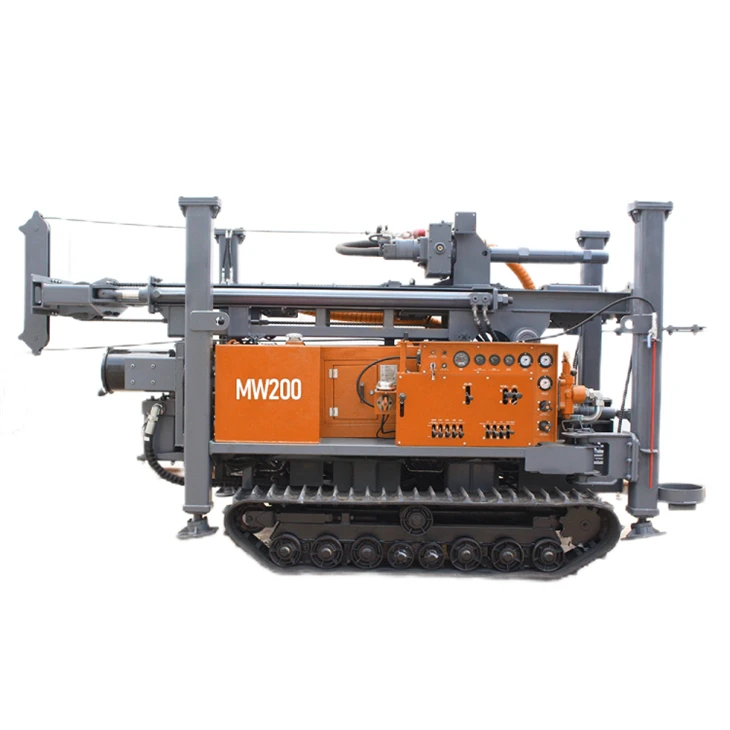

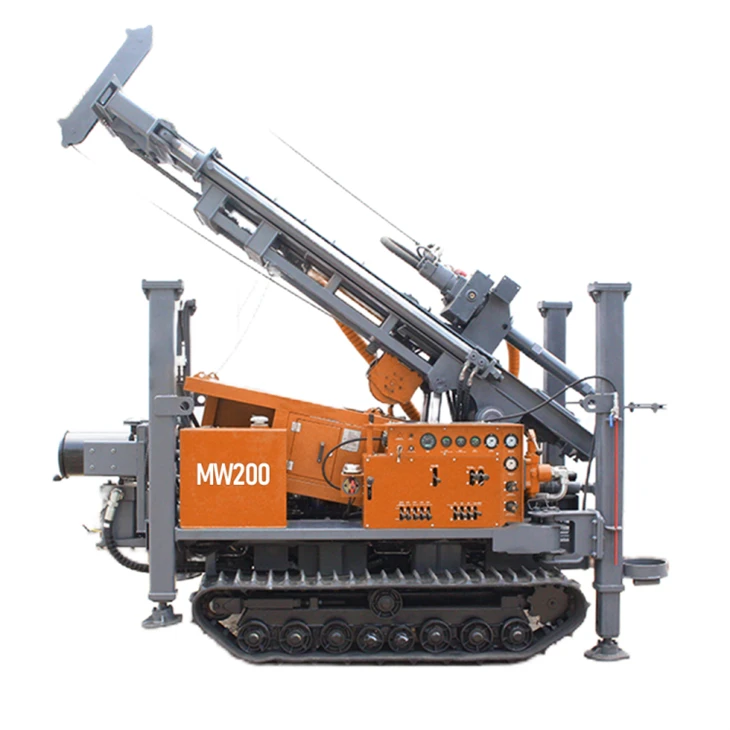

200m Water Well Drilling Rig

The hydraulic water drilling rig is designed with a compact frame to ensure maneuverability in narrow or restricted spaces. Weighing approximately 5.4 tons, it can be easily transported using a 4.2-meter blue plate truck, which simplifies logistics even in remote or rugged regions. Despite its compact size, the portable drilling rig for water well features a 6.6-meter carriage stroke, enabling it to handle 6-meter follow-up drilling operations. This innovative design ensures a balance between performance and portability, making it highly versatile for diverse applications.

Equipped with a robust Yunnei Power 80 kW electronic injection engine, the rotary drilling rig offers exceptional power reserves, ensuring minimal speed loss during heavy workloads or when climbing steep gradients. The enhanced hydraulic system delivers improved pressure, significantly boosting the rotation torque of the power head and the lifting capacity of the carriage. This increased power capacity supports deeper drilling operations and larger borehole diameters, ensuring reliable performance in demanding projects.

Constructed with high-strength manganese steel, the rotary drilling rig machine achieves a balance between structural durability and reduced weight. This design minimizes transportation and operational costs while maximizing strength. The structural components are engineered to withstand the stresses of intensive drilling operations, making it a long-lasting investment for contractors.

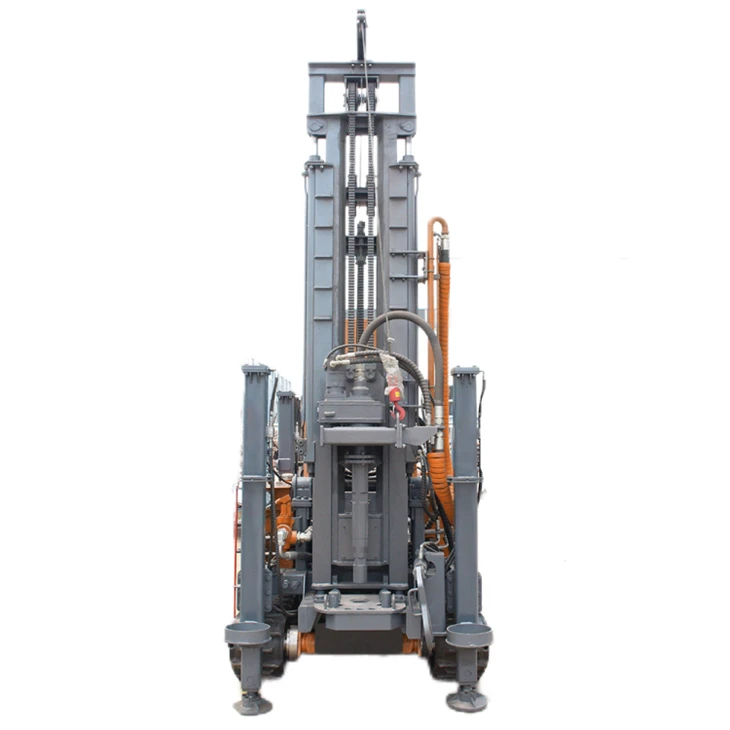

The rig's 6.6-meter-long stroke design is optimized for 6-meter pipe drilling, improving operational efficiency by reducing the need for frequent repositioning. The power head guide rails are paired with special wear-resistant plates to minimize wear and extend service life. Additionally, adjustable wear-resistant blocks allow for precise adjustment of the clearance between the inner and outer slides, enhancing the stability of the slide during drilling and simplifying maintenance.
