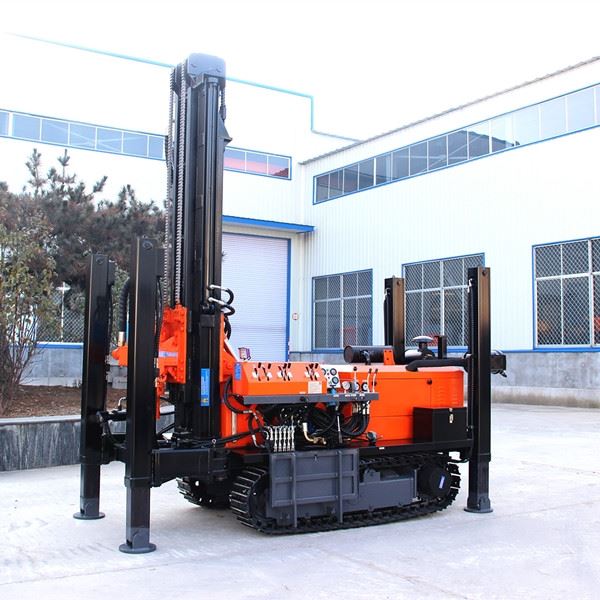

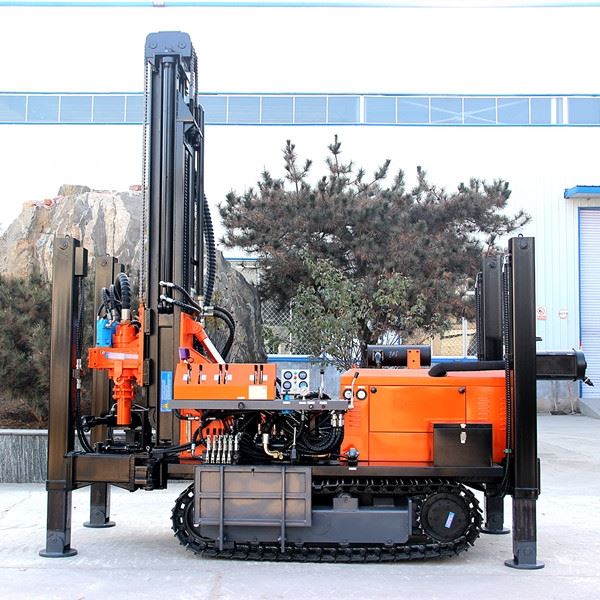

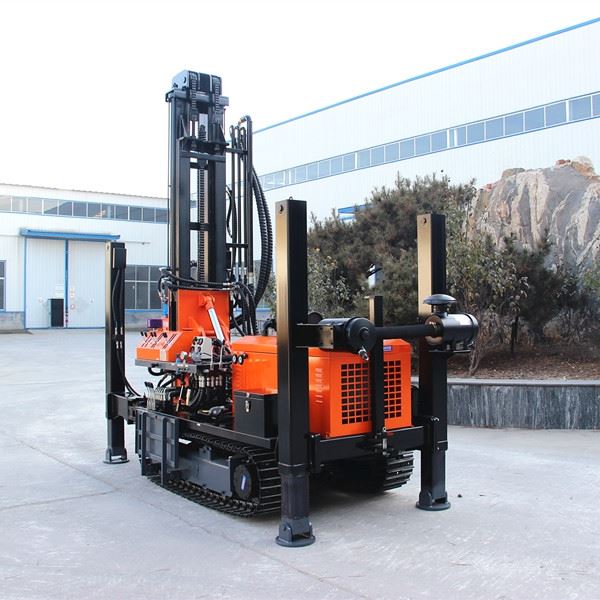

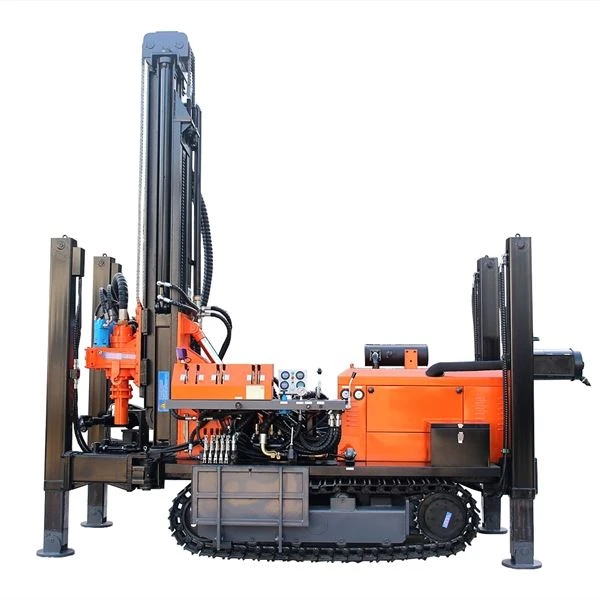

FY 180 steel crawler water well drilling rig
FY180 water well drilling rig features: 1. Engine: well-known brand Guangxi Yuchai turbocharged engine;
2. Traveling device: equipped with new traveling motor and reducer, with long service life;
3. Hydraulic oil pump: imported from the United States, parallel gearbox design, independent oil pump, providing sufficient and reasonable power distribution. The advanced hydraulic system has unique design, simple maintenance and low cost;
4. Power head device; the box is integrally formed, and the dual motors provide greater power, greater torque, more durability, and lower maintenance costs;
5. Drilling rig chassis; professional excavator chassis, classic and durable, load-bearing, wide chain plate width,
Less damage to hard pavement;
6. Lifting force: The designed composite boom is used, which is small in size, long in stroke, double-cylinder lifting force, and large in lifting tonnage of the drilling rig;
The boom configured with the rig body is provided with a limit device to protect the safety of the oil cylinder and ensure work safety;
7. Each hydraulic oil pipe is covered with a thick protective sleeve, so that the oil pipe has a longer service life;
8. Dual systems can be installed: 1. Air power system with air compressor 2. Mud pump system with mud pump
Strong power
Equipped with a 55 kW Yuchai brand turbocharged engine, it has strong power and can meet various needs during the drilling process.
Energy saving design
Single engine driven screw air compressor and hydraulic system, compared to split type diesel drilling rig, reduces total power by about 35% and maintenance costs by 50%
Flexible operation
Adopting a tracked chassis, it has good off-road performance and climbing ability, and can move flexibly in complex terrains. At the same time, the loading and unloading of the equipment is also very convenient
Easy to maintain
Reasonable structural layout and clear pipeline and cable arrangement make maintenance and repair more convenient, reducing downtime and maintenance costs
FY180 drilling rig
The FY180 drilling rig
adopts full hydraulic control and top drive technology, with high drilling efficiency and the ability to quickly complete drilling tasks. The drilling depth can reach 180 meters, and the drilling diameter range is 140-254 millimeters
The FY180 drilling rig
provides users with a cost-effective drilling solution due to its high efficiency, energy saving, and durability
FY180 Water Well Drilling Rig
Mainly used for drilling drinking water wells, irrigation wells, etc., providing water sources for industry and civilian use.
FY180 Water Well Drilling Rig
Can be used for drilling geothermal wells to provide support for the development and utilization of geothermal energy.
Application
Water Well Drilling
geothermal drilling
geological prospecting
Mining
Product parameters
|
FY 180 steel crawler water well drilling rig |
|||
|
The weight(T) |
5.2 |
Drill pipe diameter(mm) |
Φ76 Φ89 |
|
The hole diameter(mm) |
140-254 |
Drill pipe length(m) |
1.5m 2.0m 3.0m |
|
Drilling depth(m) |
180 |
Rig lifting force(T) |
12 |
|
One-time advance length(m) |
3.3 |
Rapid rise speed(m/min) |
20 |
|
Walking speed(km/h) |
2.5 |
Fast feeding speed(m/min) |
40 |
|
Climbing angles(Max.) |
30 |
Width of loading(m) |
2.4 |
|
Equipped capacitor(kw) |
60 |
Hoisting force of winch(T) |
---- |
|
Using air pressure(MPA) |
1.7-2.5 |
Swing torque(N.m) |
3200-4600 |
|
Air consumption(m³/min) |
17-31 |
Dimension(mm) |
4000×1630×2250 |
|
Swing speed(rpm) |
45-70 |
Equipped with hammer |
Medium and high wind pressure series |
|
The penetration efficiency(m/h) |
10-35 |
High leg stroke(m) |
1.4 |
|
The engine brand |
Yuchai engine |
||
