Hey there! As a supplier of water well drilling equipment, I'm super stoked to share with you how this cool machinery actually works. Water well drilling equipment is a game - changer when it comes to accessing groundwater, which is a crucial resource for so many things like drinking water, irrigation, and industrial use.
Let's start with the basics. There are different types of water well drilling equipment out there, and each has its own unique way of getting the job done. One of the most common types is the rotary drilling rig.
Rotary Drilling Rigs
Rotary drilling rigs are like the workhorses of the water well drilling world. They work by rotating a drill bit at the end of a drill string. The drill string is basically a series of connected pipes that extend down into the ground.
The power to rotate the drill bit comes from a motor. This motor can be powered by diesel, gasoline, or electricity, depending on the rig. When the motor starts turning, it transfers that energy to the drill string, which in turn rotates the drill bit.
As the drill bit spins, it cuts through the soil, rock, and other materials in the ground. The cutting action of the drill bit creates a hole in the earth. But it's not just about spinning the bit; we also need to remove the cuttings from the hole. That's where the drilling fluid, often called mud, comes in.
The drilling fluid is pumped down through the drill string and out through the drill bit. It has several important functions. First, it helps to cool and lubricate the drill bit, which reduces wear and tear and makes the drilling process more efficient. Second, it carries the cuttings back up to the surface. As the fluid rises back up the outside of the drill string, it brings the cuttings with it, depositing them at the surface.
There are different kinds of drill bits used in rotary drilling. For softer soils, a drag bit might be used. It has a flat or slightly curved cutting surface that scrapes through the soil. For harder rocks, a roller cone bit or a diamond bit might be employed. Roller cone bits have rotating cones with teeth that crush the rock, while diamond bits use industrial - grade diamonds to cut through the toughest of rocks.
Mobile Water Well Drill Rig
If you're looking for flexibility and ease of transportation, a mobile Water Well Drill Rig is a great option. These rigs are mounted on crawlers or trucks, which allows them to be easily moved from one location to another.
The mobility of these rigs is a huge advantage, especially in areas where wells need to be drilled in multiple locations. They can quickly be set up at a new site, saving a lot of time and effort. The operation of a mobile water well drill rig is similar to that of a stationary rotary rig. The main difference is in the setup and transportation. Once it's at the site, the rig is leveled and stabilized, and then the drilling process begins just like with any other rotary rig.

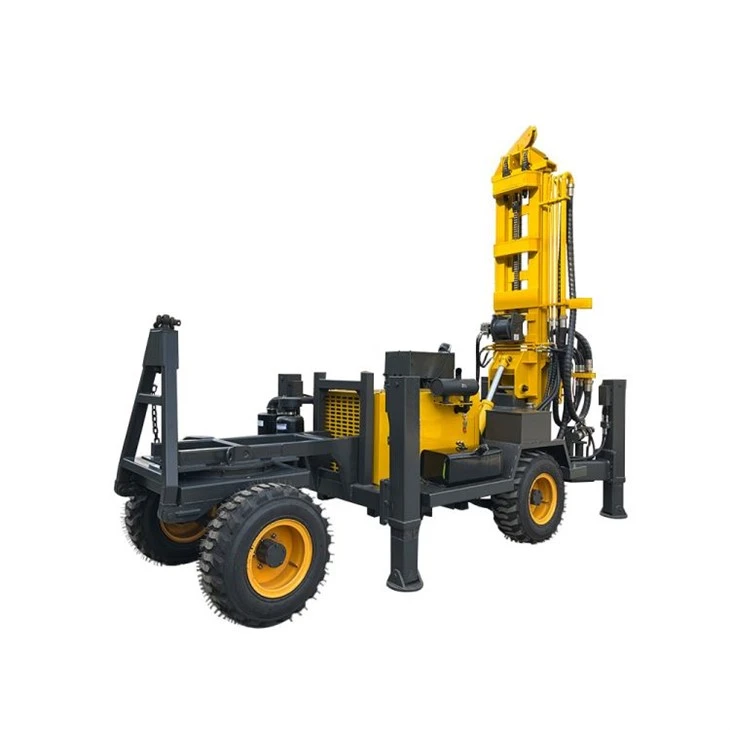

Tractor Mounted Water Well Drilling Rig
Another interesting type is the Tractor Mounted Water Well Drilling Rig. These rigs are attached to tractors, which provides a source of power and mobility.
The advantage of a tractor - mounted rig is that it uses the existing power of the tractor. This can be a cost - effective solution, especially for small - scale drilling operations. The rig is connected to the tractor's power take - off (PTO), which transfers power from the tractor's engine to the drilling mechanism.
When it comes to drilling, the process is still based on the rotary drilling principle. The tractor provides the power to rotate the drill string and operate the mud pump. This setup is popular in rural areas where tractors are already commonly used for other agricultural tasks.

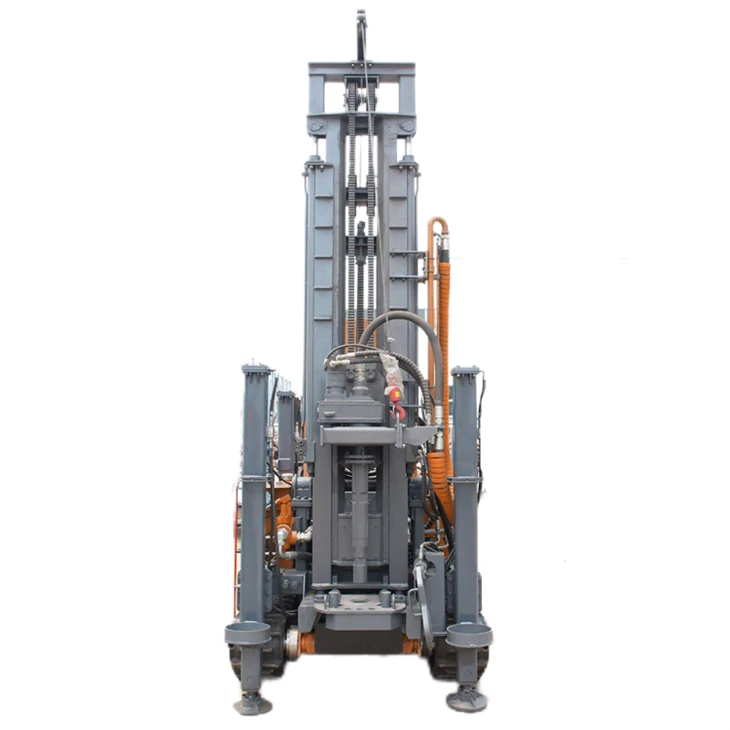

200m Water Well Drilling Rig
The 200m Water Well Drilling Rig is designed to drill wells up to 200 meters deep. These rigs are more heavy - duty and are built to handle the challenges of drilling at greater depths.
As the depth increases, the pressure and the resistance from the surrounding soil and rock also increase. So, these rigs need to be more powerful. They usually have larger motors and stronger drill strings. The drilling fluid system is also more sophisticated to ensure that the cuttings are effectively removed from the deeper holes.
The drill bits used in 200m water well drilling rigs are often specially designed for deep - hole drilling. They need to be able to withstand the high pressures and the wear and tear associated with drilling through thick layers of rock and soil.
The Drilling Process Step - by - Step
Let's break down the water well drilling process into steps.
- Site Preparation: Before any drilling can start, the site needs to be prepared. This includes clearing the area of any obstacles, leveling the ground, and setting up the necessary equipment. The rig is then positioned over the spot where the well will be drilled.
- Setting the Conductor Pipe: A large - diameter conductor pipe is usually the first thing to be installed. This pipe helps to keep the top part of the hole stable and prevents it from caving in. It also serves as a guide for the drill string.
- Drilling: Once the conductor pipe is in place, the actual drilling begins. The drill bit is lowered into the hole, and the motor starts rotating the drill string. The drilling fluid is pumped down to cool the bit and remove the cuttings.
- Casing Installation: As the hole gets deeper, casing pipes are installed. These pipes line the well and prevent the sides of the hole from collapsing. They also help to keep the water in the well clean by preventing dirt and debris from entering.
- Well Development: After the well is drilled and cased, it needs to be developed. This involves removing any remaining drilling fluid and debris from the well. A well - developed well will have better water flow and quality.
- Pump Installation: Finally, a pump is installed in the well to bring the water to the surface. The type of pump used depends on the depth of the well and the amount of water needed.
Why Choose Our Water Well Drilling Equipment
As a supplier, we take pride in offering high - quality water well drilling equipment. Our rigs are built to last, with durable materials and advanced technology. We understand that every drilling project is unique, and we offer a range of options to meet different needs.
Whether you need a mobile rig for quick and easy transportation, a tractor - mounted rig for cost - effective small - scale operations, or a heavy - duty 200m rig for deep - hole drilling, we've got you covered. Our equipment is also backed by excellent customer service. We're here to help you with installation, maintenance, and any technical issues you might encounter.
If you're in the market for water well drilling equipment, don't hesitate to reach out. We'd love to have a chat with you about your project and find the perfect solution for you. Whether you're a small - scale farmer looking for a water source for your crops or a large - scale industrial company in need of a reliable water supply, we can provide the right equipment and support.
