Hey there! As a supplier of DTH (Down-the-Hole) hammers, I often get asked the question: “How deep can a DTH hammer drill?” Well, let’s dive right into it and break down the factors that determine the drilling depth of these powerful tools.
Understanding DTH Hammers
First off, for those who aren’t familiar, DTH hammers are a type of drilling equipment used primarily in the mining, quarrying, and construction industries. They work by delivering high - energy blows directly to the drill bit at the bottom of the hole. This method is incredibly efficient for drilling through hard rock formations, making them a popular choice in many tough drilling jobs.
We offer a range of DTH hammers, including Low Pressure Down-the-hole Hammer, high air pressure dth hammer, and medium air pressure dth hammer. Each type has its own characteristics and is suitable for different drilling conditions and depths.
Factors Affecting Drilling Depth
Rock Type
The type of rock you're drilling through is one of the most significant factors. Harder rocks, like granite or basalt, are more resistant to drilling. The DTH hammer has to work harder to break through these rocks, which can limit the drilling depth. Softer rocks, such as limestone or sandstone, are easier to drill, allowing for greater depths. For example, in a soft sandstone formation, you might be able to drill several hundred meters, while in a hard granite area, the depth could be significantly less.
Air Pressure

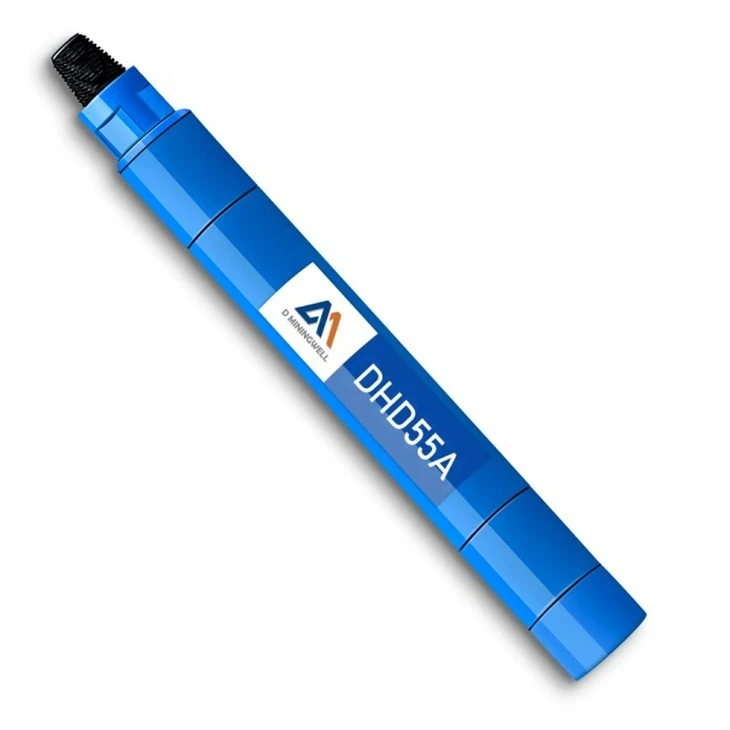

Air pressure plays a crucial role in the performance of a DTH hammer. Higher air pressure generally means more power and faster drilling. Our high air pressure dth hammer is designed to work under high - pressure conditions, which can drive the drill bit deeper and more efficiently. On the other hand, low pressure down - the - hole hammers are more suitable for shallower and less demanding drilling tasks. The right balance of air pressure is essential to achieve optimal drilling depth.
Drill Bit Design
The design of the drill bit also impacts the drilling depth. A well - designed drill bit can penetrate the rock more effectively, reducing wear and tear on the DTH hammer. Different drill bit designs are suitable for different rock types. For instance, a bit with carbide inserts is great for hard rocks, as it can withstand the high forces involved in breaking through them. A worn - out or poorly designed drill bit can slow down the drilling process and limit the depth that can be achieved.
Equipment Maintenance
Regular maintenance of the DTH hammer and associated equipment is vital. If the hammer isn't properly maintained, it can develop issues like reduced air flow, which will affect its performance. For example, a clogged air passage can prevent the hammer from delivering the necessary power to the drill bit, resulting in shallower drilling depths. By keeping the equipment in top - notch condition, you can ensure that it operates at its best and reaches greater depths.
Typical Drilling Depths
In general, DTH hammers can drill anywhere from a few meters to several hundred meters. In simple construction projects, like foundation drilling, depths of 10 - 50 meters are common. For quarrying operations, where the goal is to extract large amounts of rock, depths of 50 - 200 meters are achievable, especially when using high - quality DTH hammers and the right drilling techniques.
In mining applications, especially in deep - hole exploration, DTH hammers can reach depths of over 200 meters. However, this requires a combination of the right equipment, proper air pressure, and skilled operators. For example, when using our high air pressure dth hammer in a well - prepared mining site, it's possible to drill to depths of 300 meters or more.
Case Studies
Let's take a look at a couple of real - world examples to illustrate the drilling depth capabilities of DTH hammers.
In a limestone quarry in the Midwest, a contractor used our medium air pressure dth hammer for bench drilling. The goal was to create holes for blasting to extract the limestone. With proper equipment setup and regular maintenance, they were able to drill holes up to 150 meters deep. The medium air pressure was sufficient to break through the relatively soft limestone, and the drill bits held up well throughout the process.
In a granite mining operation in the mountains, a company opted for our high air pressure dth hammer. Despite the hardness of the granite, they managed to drill holes up to 250 meters deep. The high air pressure provided the necessary force to break through the tough rock, and the specialized drill bits were able to withstand the wear and tear.
Tips for Maximizing Drilling Depth
If you're looking to get the most out of your DTH hammer and achieve greater drilling depths, here are some tips:
- Choose the Right Hammer: Select the DTH hammer based on the rock type and the required drilling depth. For hard rocks and deep drilling, a high - pressure hammer might be the best choice.
- Maintain Your Equipment: Regularly check and service your DTH hammer, drill bits, and air compressors. This includes cleaning the air passages, lubricating moving parts, and replacing worn - out components.
- Use the Correct Drill Bits: Match the drill bit to the rock type. Using the wrong bit can significantly reduce drilling efficiency and depth.
- Optimize Air Pressure: Adjust the air pressure according to the drilling conditions. Too little pressure will result in slow drilling, while too much pressure can cause damage to the equipment.
Conclusion
So, how deep can a DTH hammer drill? The answer depends on a variety of factors, including rock type, air pressure, drill bit design, and equipment maintenance. With the right combination of these factors, DTH hammers can drill to impressive depths, whether it's for construction, quarrying, or mining projects.
As a DTH hammer supplier, we're committed to providing high - quality products and support to help you achieve your drilling goals. If you're interested in learning more about our Low Pressure Down-the-hole Hammer, high air pressure dth hammer, or medium air pressure dth hammer, or if you have any questions about drilling depths and techniques, don't hesitate to get in touch. We're here to assist you with your procurement needs and ensure that you have the best equipment for your job.
References
- "Drilling Engineering Handbook" - A comprehensive guide on drilling techniques and equipment.
- Industry reports on DTH hammer performance and applications.
