Product detail

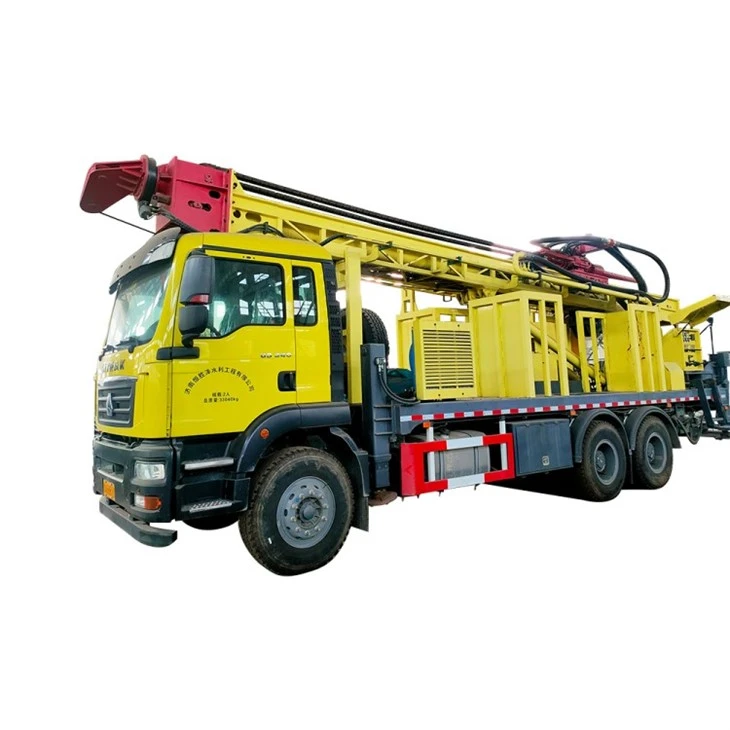

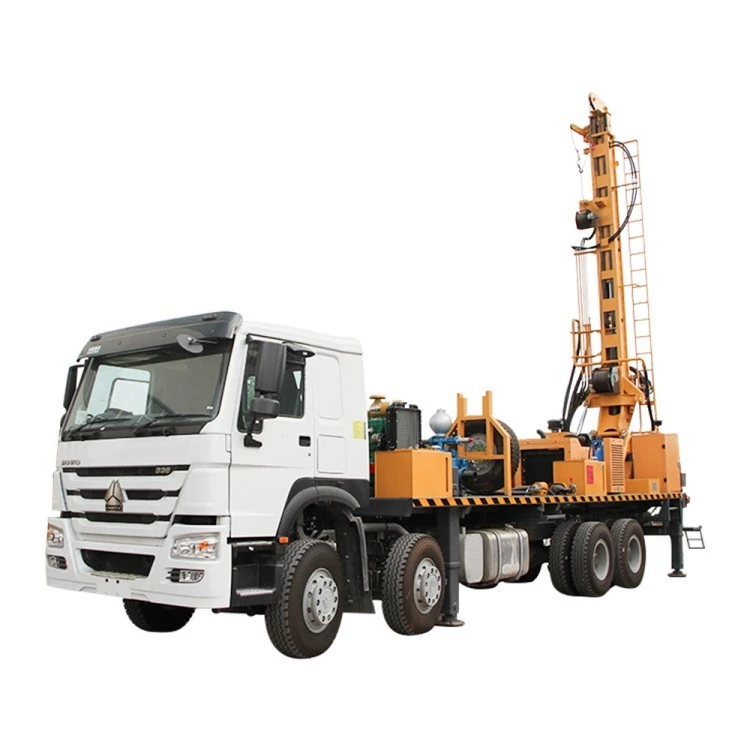

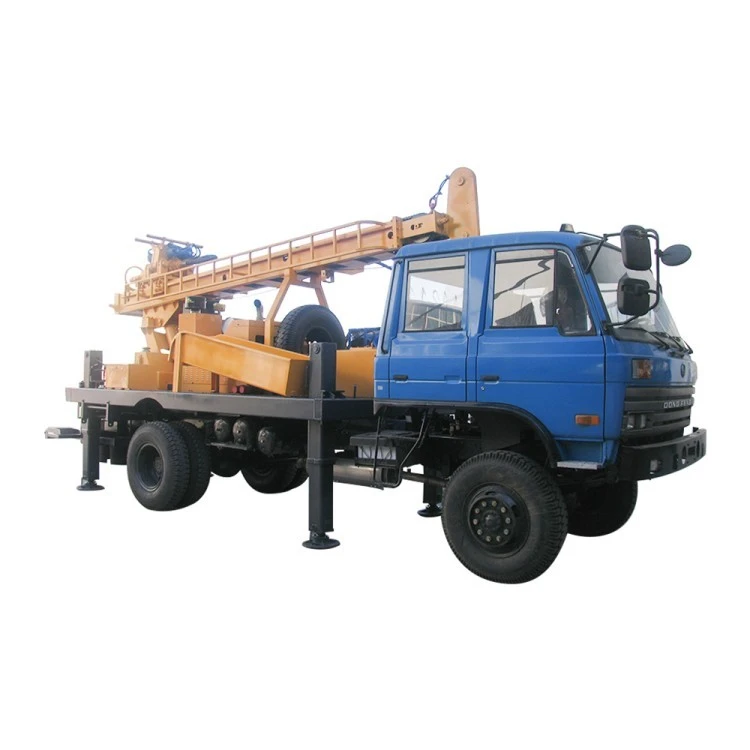

This truck mounted full hydraulic water well drilling is a fully hydraulic top drive, efficient and multifunctional mechanical equipment, which can be widely used for drilling water wells, geothermal wells, detection wells, precipitation wells, rescue wells, gas layers, natural gas, oil extraction and other projects.

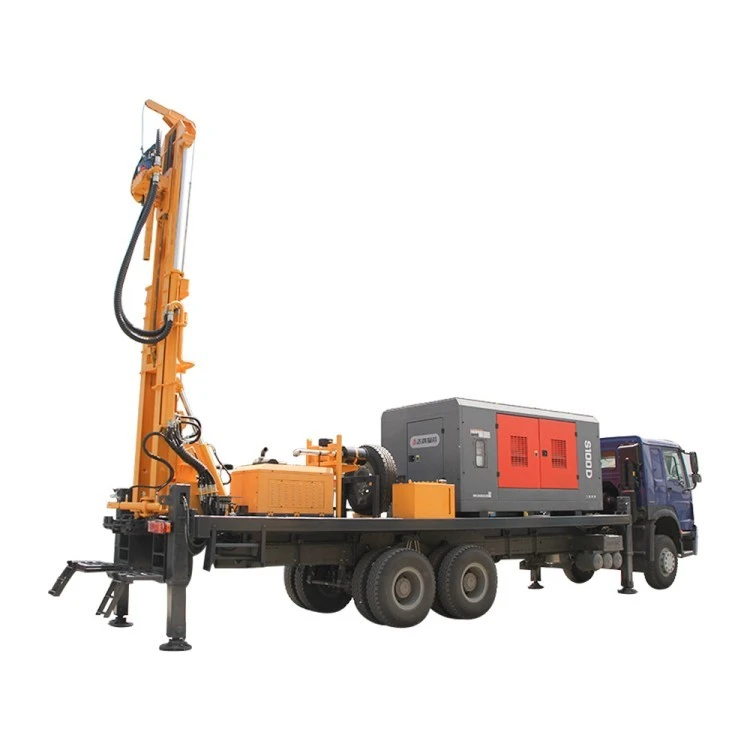

This truck mounted hydraulic water well drilling machine can use compressed air down the hole drilling in various formations, and can also be combined with a mud pump to achieve dual use of water and gas. The hydraulic system and key components of the drilling rig are all from top domestic and foreign brands, significantly reducing its failure rate and extending the working life of the drilling rig. The lifting of the drilling rig tower, the unloading of drill rods, the rotation and feeding, the support legs, and the hoisting are all implemented by hydraulic systems, greatly reducing labor intensity.
Mounted on a single car chassis, the mud pump and air compressor offer convenience and efficiency, surpassing the performance of other drilling rig varieties. Utilizing a foam pump.

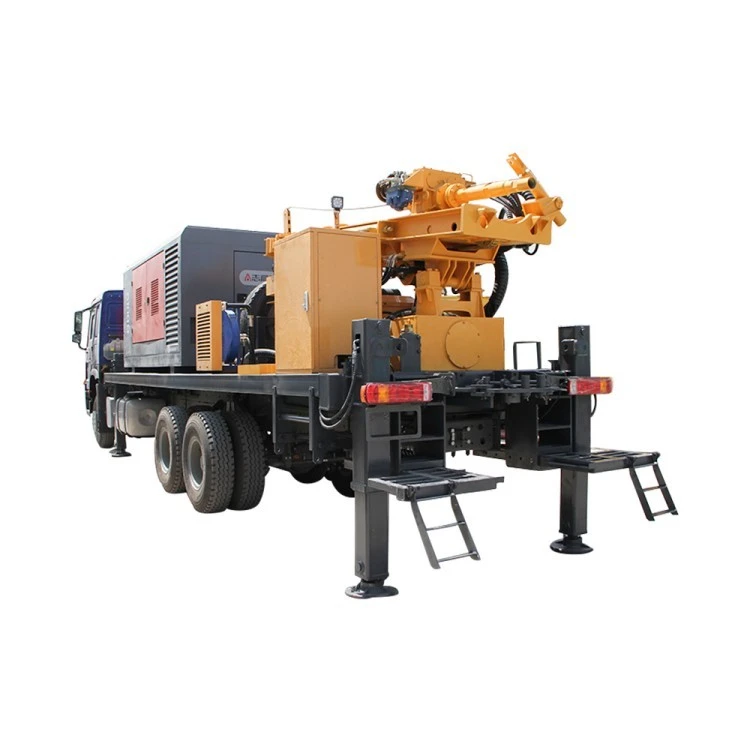

Utilizing top-notch materials and a trendy, sleek design enhances the truck mounted drilling rig for water well's efficiency, reduces failure rates, increases cost-effectiveness and durability, and ensures a superior price-to-performance ratio. The market has genuinely authenticated our water drilling rigs, receiving favorable responses from our clientele.
Specifications
|
|
|
|
|
|
|
|
Max drilling depth |
|
300 |
500 |
1000 |
1200 |
|
Drilling diameter |
|
105-300 |
105-400 |
105-800 |
105-900 |
|
Air pressure |
|
1.2-3.5 |
1.2-3.5 |
1.65-8 |
1.65-8 |
|
Air consumption |
|
16-55 |
16-55 |
16-96 |
16-120 |
|
Drill pipe length |
|
3/6 |
3/6 |
3/6 |
3/6 |
|
Drill pipe diameter |
|
89/114 |
89/114 |
114 |
127 |
|
Axial pressure |
|
4 |
6 |
11 |
13 |
|
Lifting force |
|
16 |
30 |
51/52 |
61 |
|
Fast lifting speed |
|
31 |
30 |
28 |
28 |
|
Fast feeding speed |
|
42 |
41 |
42 |
44 |
|
Max rotary torque |
|
9600/4800 |
11000/5500 |
20000/10000 |
|
|
Max rotary speed |
|
80/160 |
70/140 |
70/140 |
75/150 |
|
Big auxiliary winch lifting force |
|
1.5 |
3 |
4 |
4 |
|
Small auxiliary winch lifting force |
|
1.5 |
1.5 |
3 |
3 |
|
Advance the itinerary |
|
3/6 |
7 |
7 |
7/13 |
|
Drilling efficiency |
|
10-35 |
10-35 |
10-35 |
10-35 |
|
Moving speed |
|
accompanying vehicle |
|||
|
Uphill angle |
21° |
21° |
21° |
21° |
|
|
Weight of the rig |
|
20 |
24 |
26 |
32 |
|
Transport dimensions |
m |
9.1×2.55×3.4 |
10×2.48×3.15 |
10.8×2.5×4.23 |
11.5×2.25×3.2 |
|
Working condition |
Unconsolidated formation and stone head |
||||
|
Drilling method |
Top drive hydraulic rotary and pushing hammer or mud drilling |
||||
|
Matched DTH hammer |
Medium and high air pressure series |
||||
|
Optional accessories |
Mud pump,Centrifugal pump,Generator,foam pump |
||||
Shipping&Payment
Every piece of Miningwell equipment and drilling rig undergoes a rigorous load security check to ensure the safety of the cargo in the container.
Our payment methods: credit card, L/C, T/T, Western Union, and we support shipping by air and by sea.
