Specifications
The MF rod, or speed drill rod, is designed for efficient and secure drilling operations. It features a male thread at one end and a female thread at the other, allowing for direct connection to the shank adapter without requiring a coupling sleeve. This unique design eliminates the common issue of vibration found in equal-diameter thread connections. The MF rod ensures a smooth and stable drilling process, improving overall performance and reducing wear and tear on equipment. Its robust construction makes it ideal for high-speed, high-performance drilling applications in demanding environments.
|
Technical Parameters |
|||||
|
Product Name |
Rod size |
Specification |
Length |
Rod type |
|
|
R25 Rod |
Round25 |
R25-R25-R25 |
2430 |
M/M |
Extension rod |
|
Round28 |
R25-R28-R25 |
1350 |
M/M |
Extension rod |
|
|
R32 Rod |
Hex25 |
R32-H25-R25 |
2900 |
M/M |
Extension rod |
|
Hex28 |
R32-H28-R28 |
2435 |
M/M |
Extension rod |
|
|
R32-H28-R28 |
2435 |
M/F |
Speed rod |
||
|
Hex32 |
R32-H32-R25 |
2742 |
M/M |
Extension rod |
|
|
R32-H32-R25 |
2742 |
M/F |
Speed rod |
||
|
R32 |
R32-R32-R32 |
1525 |
M/M |
Extension rod |
|
|
R38 Rod |
Hex32 |
R38-H32-R32 |
3100 |
M/M |
Extension rod |
|
Hex35 |
R38-H35-R32 |
1350 |
F/F |
Extension rod |
|
|
R38-H35-R32 |
2435 |
M/M |
Extension rod |
||
|
R38-H35-R32 |
2435 |
M/F |
Speed rod |
||
|
R38-H35-R32 |
4270 |
M/M |
Extension rod |
||
|
R38-H35-R32 |
4270 |
M/F |
Speed rod |
||
|
R38-H35-R32 |
4880 |
M/M |
Extension rod |
||
|
R38-H35-R32 |
4880 |
M/F |
Speed rod |
||
Product detail

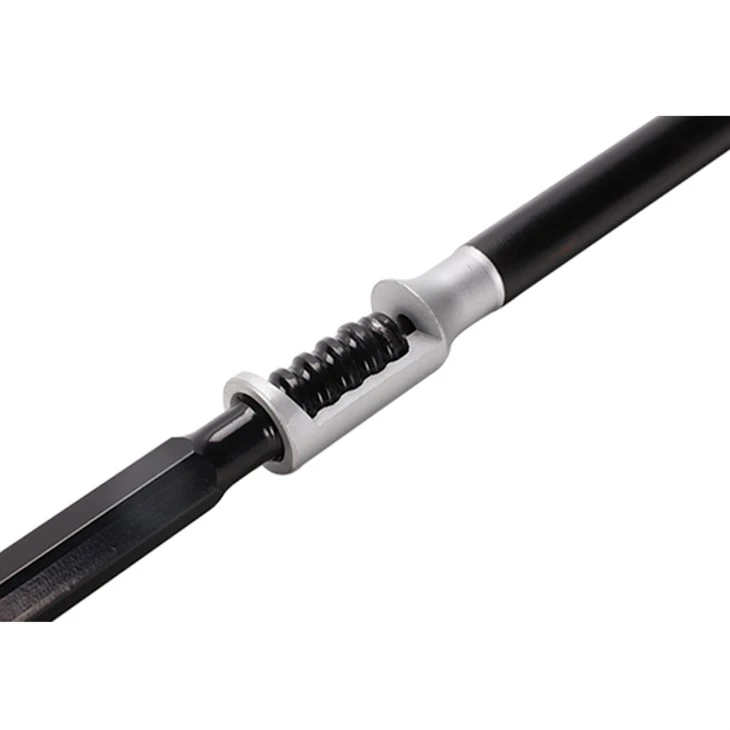

- Male/Female (M/F) rod, Speed rod
- Thread Sizes: R32, T38, T45, T51
- Rod Diameters: Round 32mm, Round 39mm, Round 46mm, Round 52mm
- Effective Lengths: 915mm to 6,100mm
MF rods features a male thread at one end and a female thread at the other end. MF drill rod can directly connect to the shank adapter without the aid of a coupling sleeve, which eliminates the defect that the equal diameter thread connection is prone to vibration. The quick-change properties of male/female rods improve the overall drilling efficiency.
MF rods for Top Hammer is an alternative to coupling sleeves that includes a threaded female portion as an integral part of the drill steel. M/F Drill Steel provides a more rigid connection and is easier to uncouple and handle. Life also tends to be better than a separate coupling.
Features:
High reliability: Through precision manufacturing and strict quality control, stable performance can be guaranteed even in harsh working environments.
Long service life: Optimized design and high-quality materials extend the service life of the mf drill rod, reduce replacement frequency and downtime.
High efficiency: Efficient energy transmission improves drilling efficiency and improves overall working performance.
Advantage
1) Easier to handle
2) Faster uncoupling
3) Tighter connection
4) Potential to drill straighter holes
5) Longer life.
