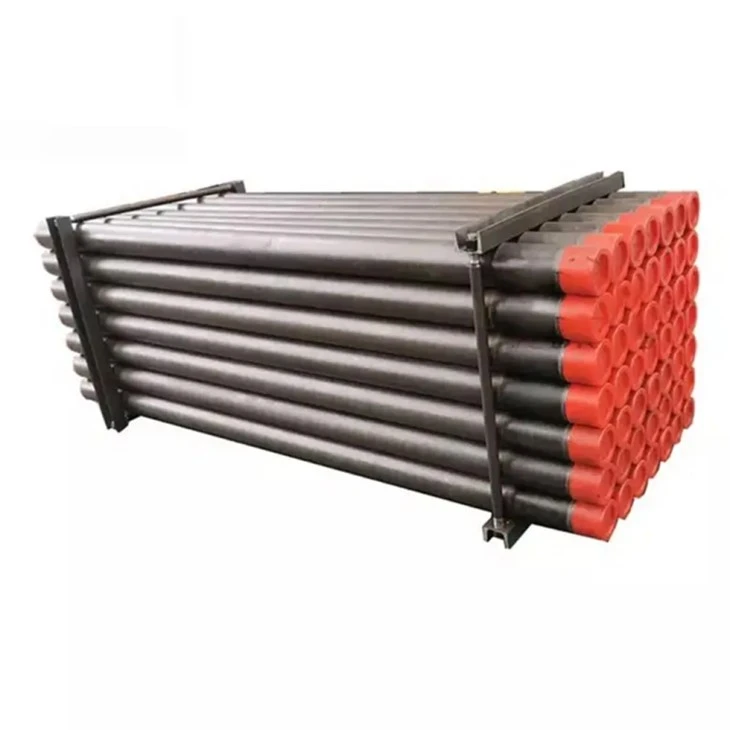

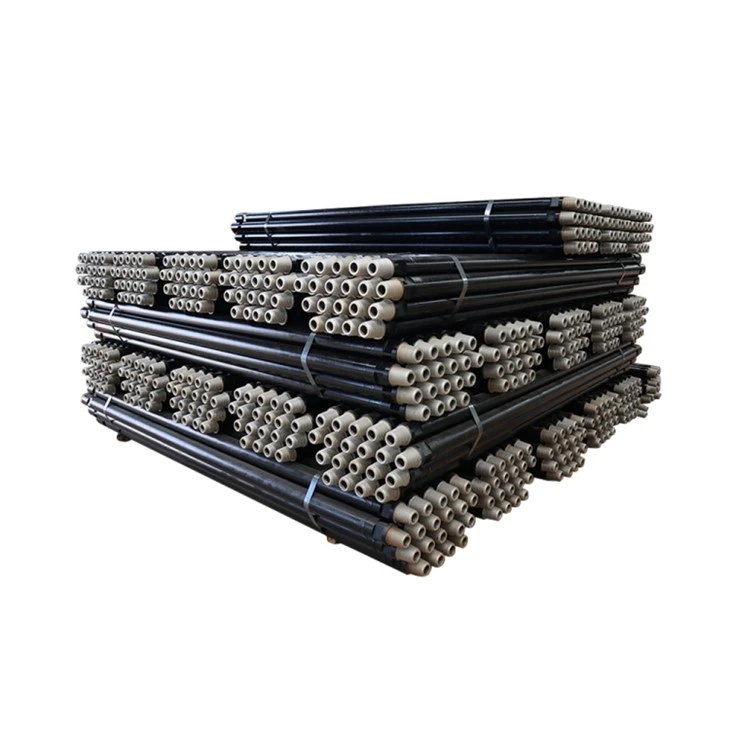

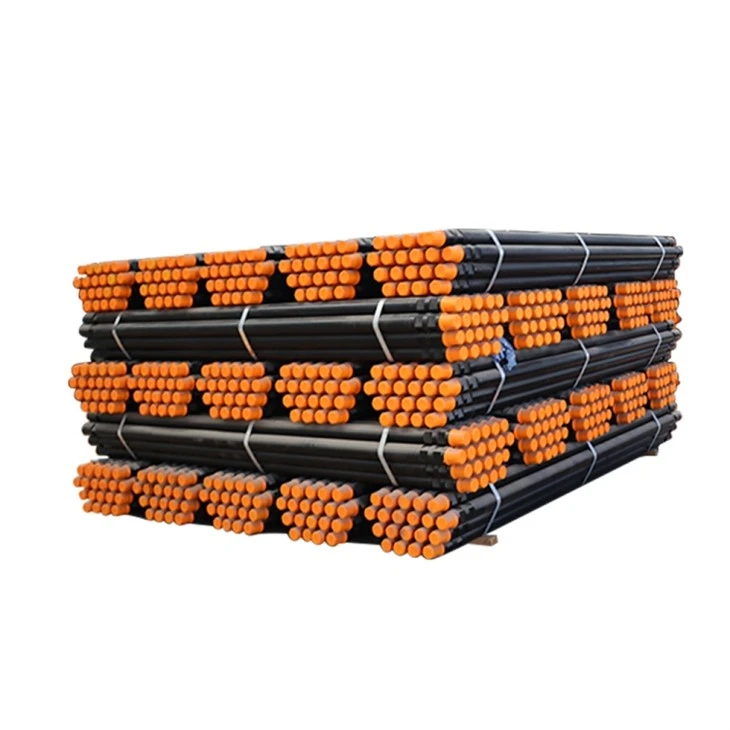

rock Drill Rods

• Brand name: miningwell
• Minimum order quantity: 1 set
• Packaging details: standard export packaging
• Delivery Time:7-10 days
• Payment Terms:L/C, T/T, Western Union

D Miningwell equips all rock drilling equipment with high quality friction welded drill pipes. The threads, bodies and welded joints of the rods are carefully machined.

Threads: The thread material is 35CrMo and undergoes high quality heat treatment and nitriding to ensure the hardness and service life of the threads. We can produce all the threads in accordance with API international standard and guarantee precision machining.

Rods: We can supply friction welded drill rods with diameters from 42mm-203mm, and the maximum length can be made into 12 meters. We use DZ40, R780, G105, S135 and other rod materials according to the needs of different customers and the use of drill pipes, and the wall thickness can be 4.5mm-12mm.

Welded joints: each friction welded drill pipe is thickened by pier processing, the maximum thickness of inner/outer piers can be up to 24mm, which increases the friction welding area and ensures the stability of welded joints.

Friction welding drill pipes are characterized by:

1) High quality, the friction welding joint area is forging organization, which can get the welded joints of equal strength or even super strength with the base material.

2) High efficiency, 1-100 times faster than traditional welding methods.

3) Energy saving, the welding power is only about 20% of the traditional welding process.

4) Low consumption, no need to use auxiliary materials such as welding rods and wires.

5) Clean, no spatter fumes and other harmful gases to pollute the environment.

The process of friction welding and drill pipe, known for their superior quality, efficiency, energy efficiency, low-use nature, and eco-friendly technology, is currently a crucial process in sectors like aerospace, automotive, construction machinery, and the oil, gas, chemical industries, including heater equipment, power transmission, and various other industrial fields.

Every piece of Miningwell equipment and drilling rig undergoes a rigorous load security check to ensure the safety of the cargo in the container.



Our payment methods: credit card, L/C, T/T, Western Union, and we support shipping by air and by sea.
