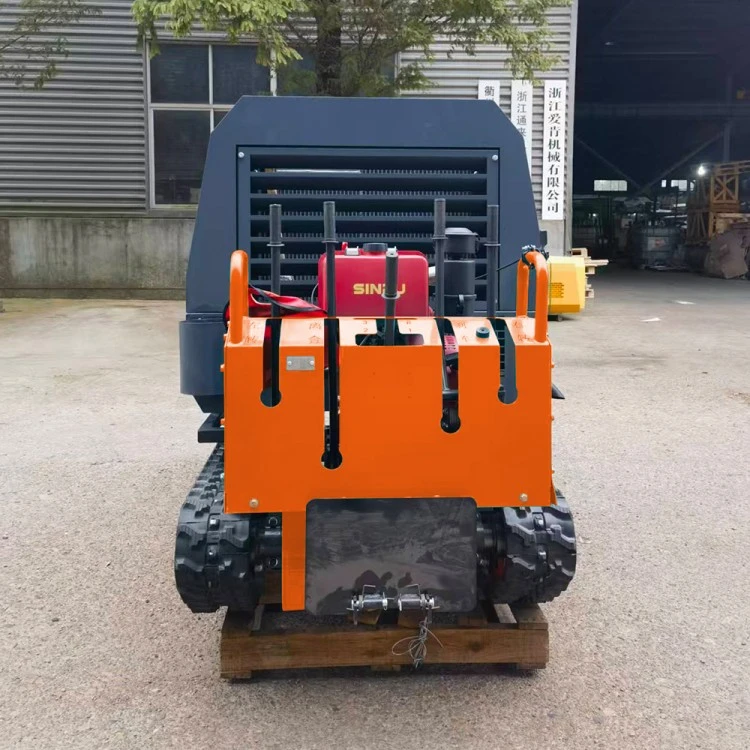

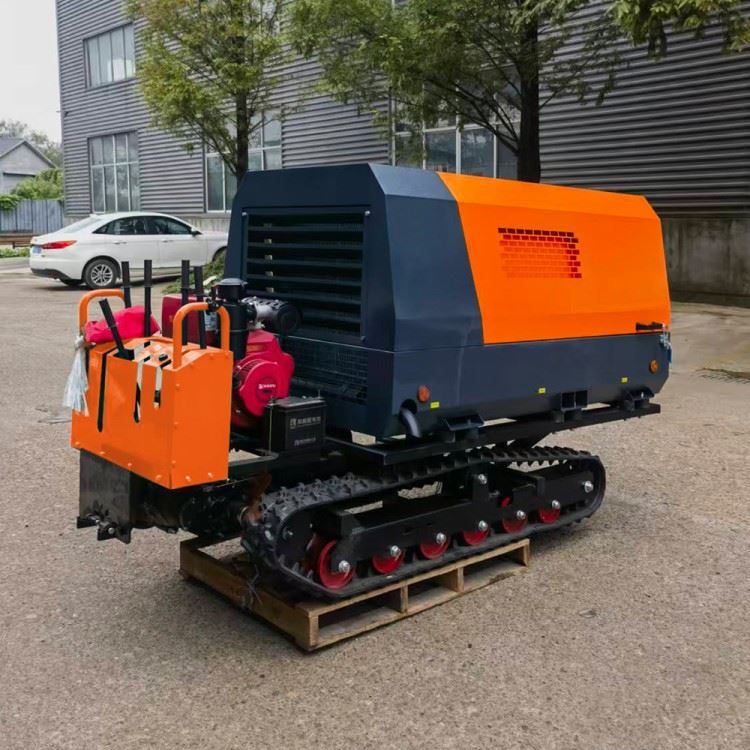

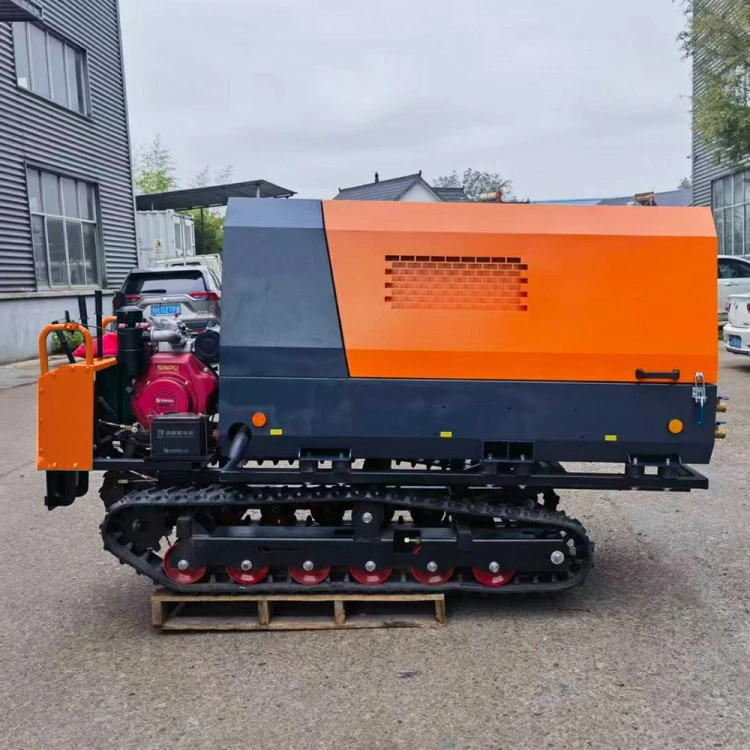

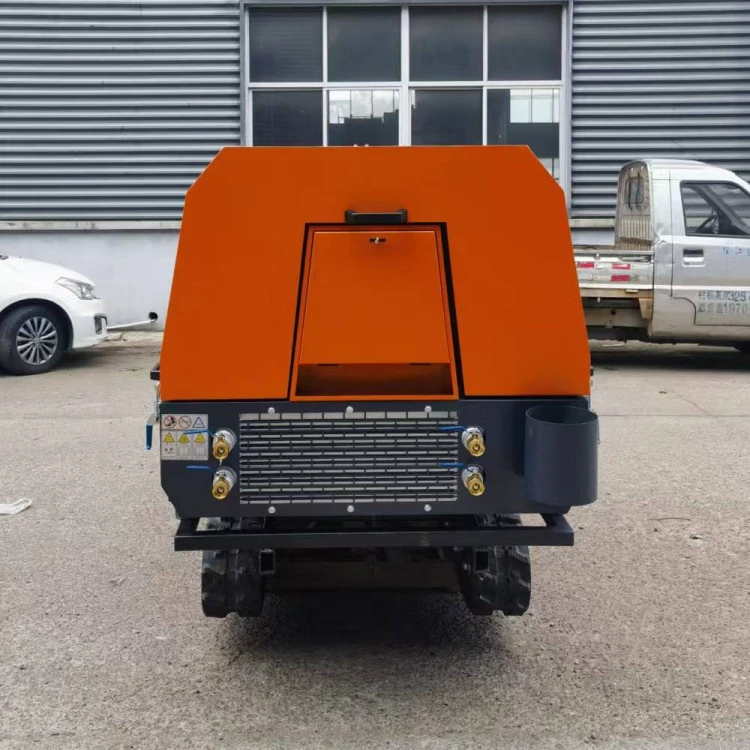

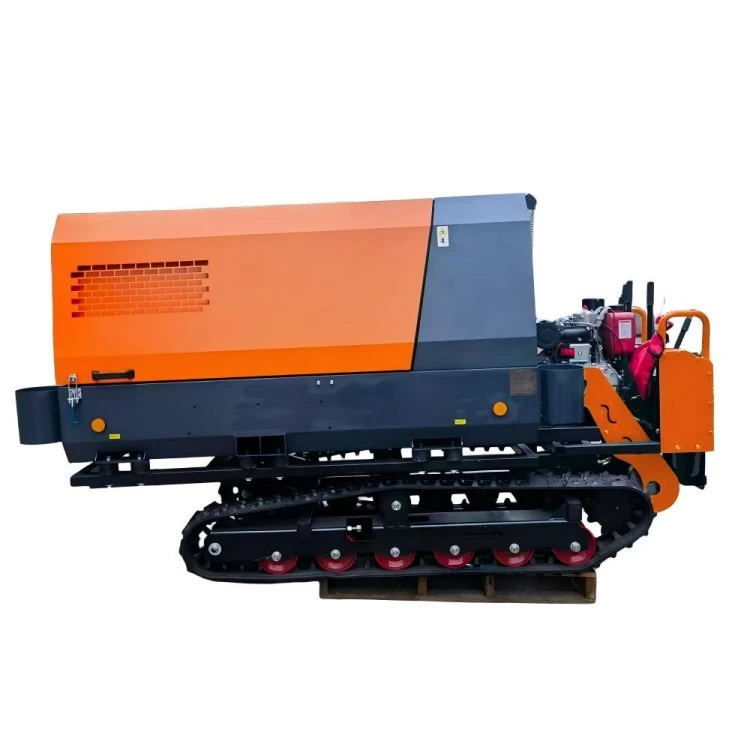

Dminingwell XGH190-8L Crawler Mobile Screw Air Compressor
5 m³/min | 8 Bar | Diesel Engine | Field-Ready Track-Mounted Design
The Dminingwell XGH190-8L is a compact, powerful, and highly mobile crawler moblie screw air compressor, engineered for field drilling, geotechnical construction, mining support, and all outdoor scenarios where stable compressed air is essential.
Equipped with a single-stage screw compression system, a reliable Xichai YN490D diesel engine, and a heavy-duty crawler chassis, this model delivers unbeatable mobility and excellent durability in rough terrain.
Whether you work in mountain regions, muddy surfaces, soft soils, or remote exploration sites, the XGH190-8L provides consistent air output with low fuel consumption - making it a preferred choice for drilling operators.
⭐ Key Advantages
1. High-Efficiency Screw Compression System
◆5 m³/min FAD at 8 bar
◆Single-stage screw system with consistent output
◆Low oil carryover ≤ 5 ppm ensures clean air delivery
◆Excellent cooling performance with wind-cooled design
01
2. Field-Proven Diesel Engine (Xichai YN490D)
◆48 kW output for stable and powerful drive
◆Water-cooled system for long-term durability
◆Large 65 L fuel tank for extended working hours
◆Easy maintenance and reliable performance
02
3. Crawler Track Design for Any Terrain
◆Easily moves across mud, sand, slopes, and rugged sites
◆More stable than wheeled or tow-behind compressors
◆Ideal for drilling work requiring frequent repositioning
03
4. Compact & Lightweight Structure
◆Total weight only 900 kg
◆Compact body 2500 × 1150 × 1850 mm
◆Suitable for small trucks, pickup transportation
◆Easy loading/unloading for field mobility
04
5. Wide Working Conditions
◆Operating pressure range: 4–8 bar
◆Ambient temperature: -10°C to 40°C
◆Outlet temperature: 80°C at rated conditions
◆Dual air outlet design for multi-tool operation
05
Crawler Mobile Screw Air Compressor Technical Specifications
Compressor Unit
| Item | Unit | Value |
|---|---|---|
| FAD | m³/min | 5 |
| Working Pressure | bar | 8 |
| Pressure Range | bar | 4–8 |
| Lubrication Oil | L | 18 |
| Oil Content | ppm | ≤5 |
| Cooling | - | Air-cooled |
| Noise Level | dB(A) | 80 ± 5 |
| Compression Stage | - | 1 |
| Drive | - | Coupling |
Diesel Engine
| Item | Unit | Value |
|---|---|---|
| Manufacturer | - | Xichai |
| Model | - | YN490D |
| Power | kW | 48 |
| Fuel Tank | L | 65 |
| Cylinders | - | 4 |
| Coolant | kg | 18 |
| Engine Oil | L | 9.5 |
Dimensions (Crawler Type)
| Item | Unit | Value |
|---|---|---|
| Length | mm | 2500 |
| Width | mm | 1150 |
| Height | mm | 1850 |
| Weight | kg | 900 |
| Air Outlets | - | 2"-G3/4", 1"-G1 |
Application Areas
Applications of a Crawler Mobile Screw Air Compressor
The XGH190-8L is widely used in:
Water well drilling
Geological investigation
Geotechnical anchoring
Mining and quarry support
Pipeline blowing and purging
Road and bridge construction
Demolition and blasting preparation
Emergency air supply in remote areas
The crawler track system allows operation even where vehicles cannot access.
FAQ
1. What is the advantage of using a Crawler Mobile Screw Air Compressor?
It provides superior mobility and stability on uneven or soft terrain, making it ideal for drilling and construction in remote areas.
2. Is this compressor suitable for water well drilling rigs?
Yes. The 5 m³/min at 8 bar output matches perfectly with small and medium-size DTH hammers and drilling rigs.
3. Does the engine consume a lot of fuel?
No. The YN490D diesel engine is known for its low fuel consumption and stable performance.
4. Can the machine be customized?
Yes. We offer custom colors, pressure settings, air outlets, and branding.
5. Is this crawler mobile screw air compressor easy to maintain?
Absolutely. The engine and compressor components use widely available spare parts.
