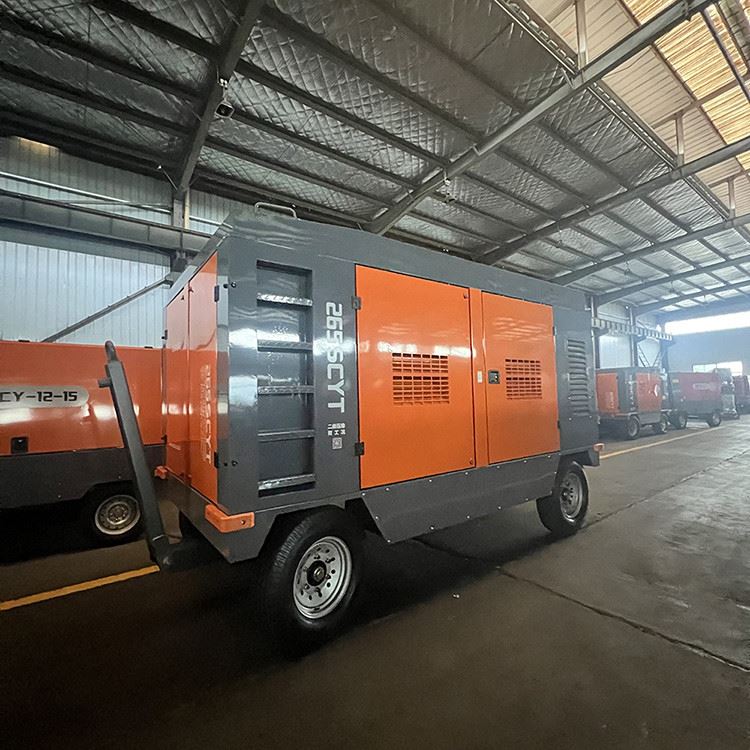

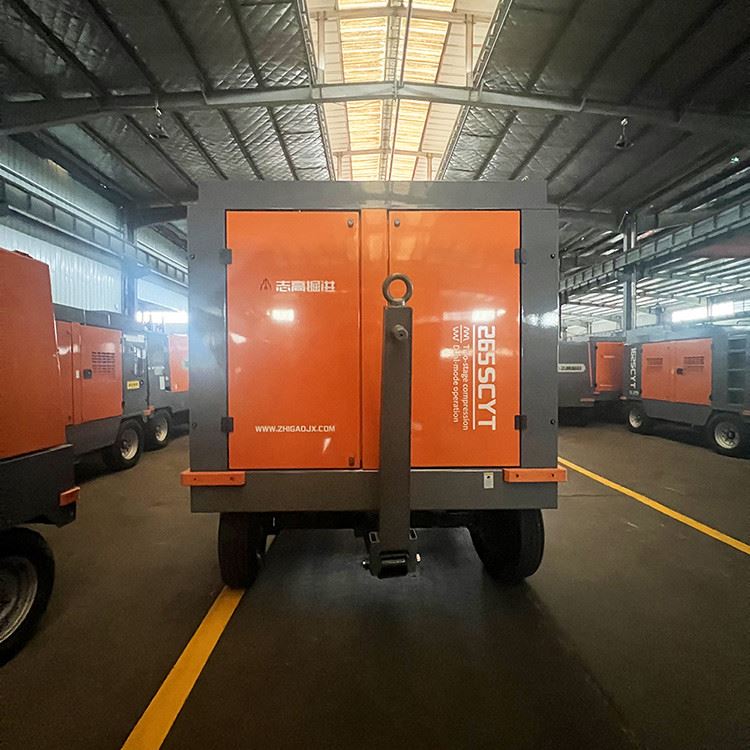

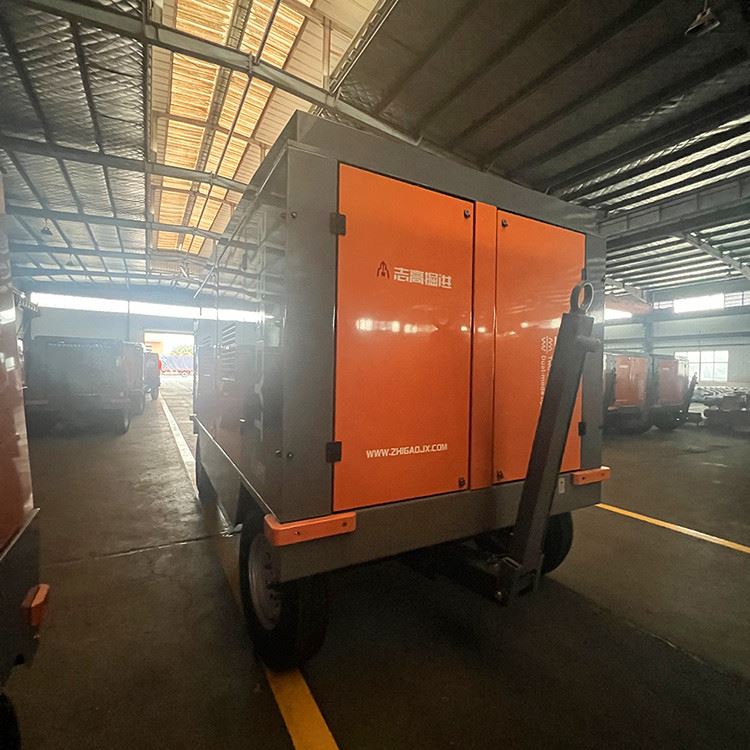

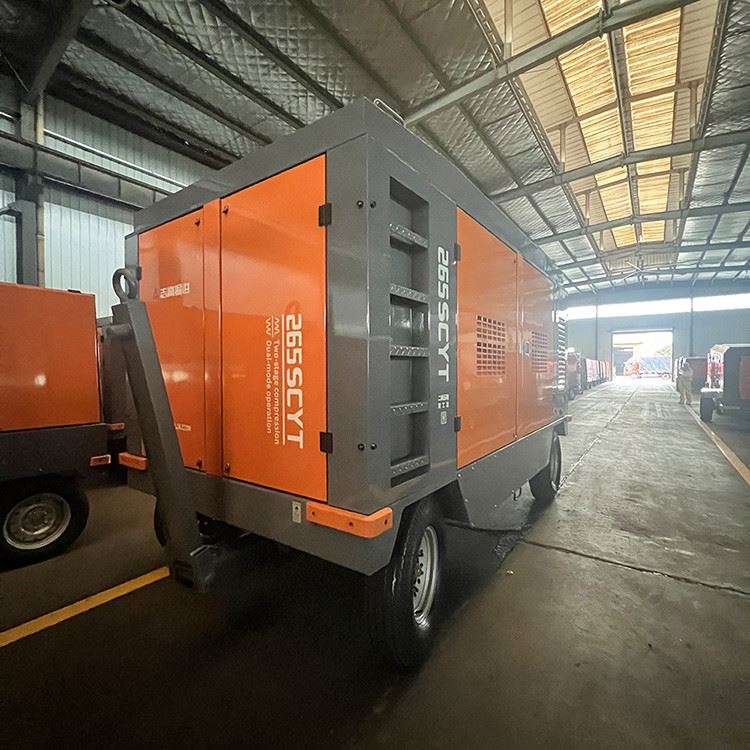

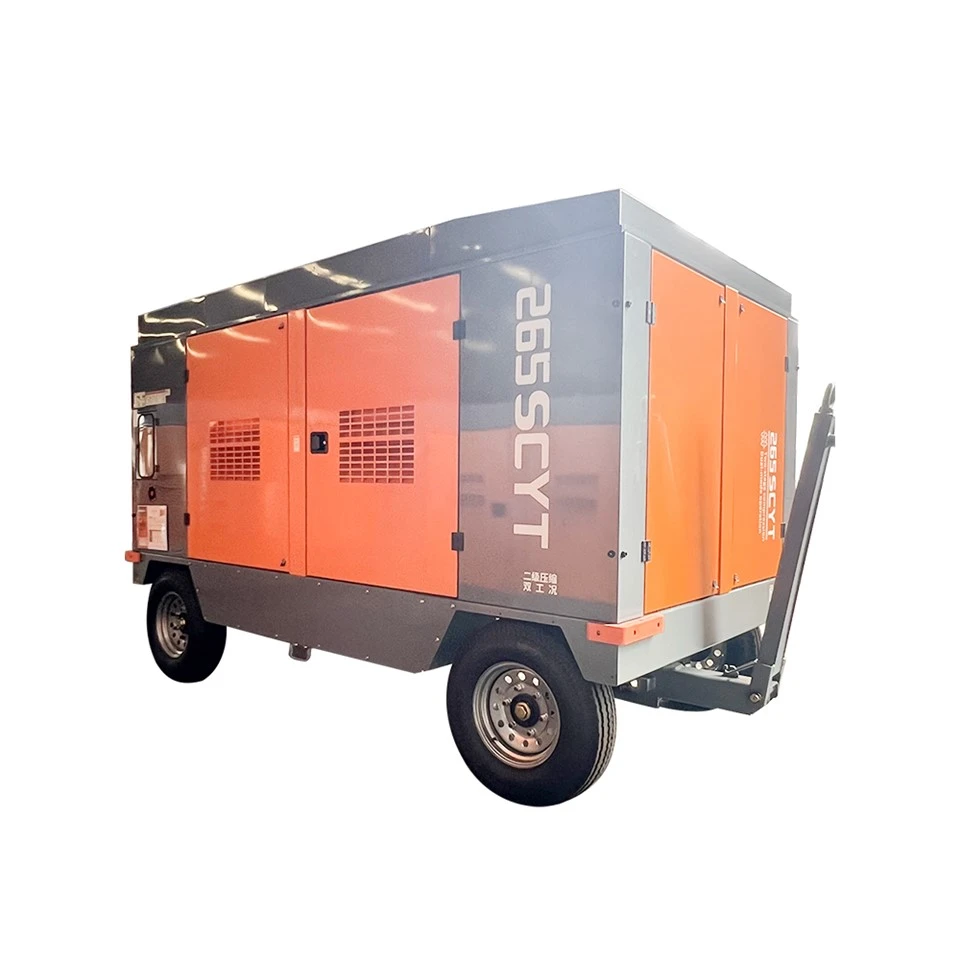

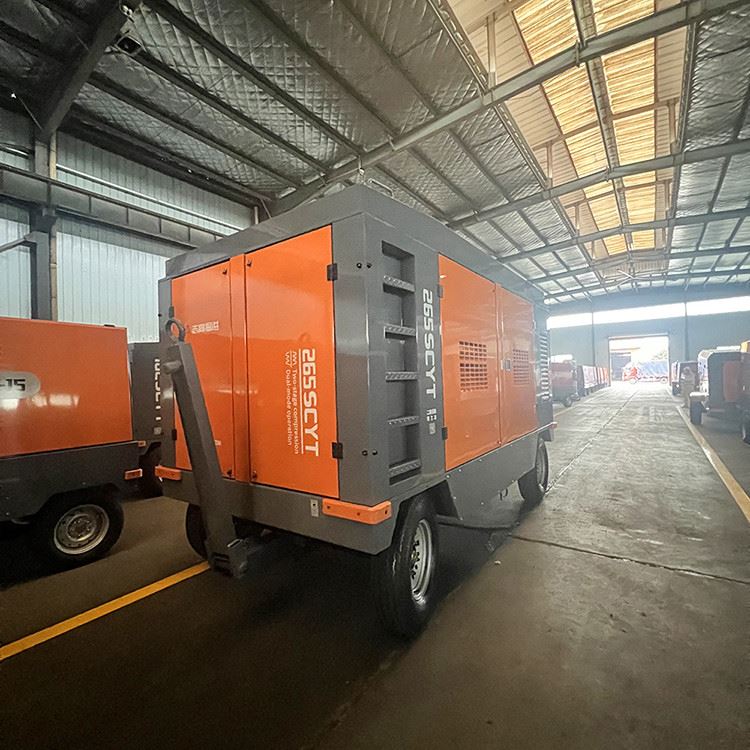

Potrable Screw Air Compressor

Features of Chai Dong series products:
1. Screw host: Adopting independently developed high-efficiency and large displacement screw host, the independently developed rotor profile has a more reasonable leakage triangle, shorter contact line, and smaller exhaust sealing volume compared to traditional profiles. By adopting a reasonable bearing configuration, improving rotor rigidity, optimizing fuel injection quantity, the compressor has lower noise and vibration.
2. The product features a dual pressure design, with an increased displacement of 15-20% at low pressure, allowing for one click free switching; Provide more gas sources for supporting engineering, mining projects, and other equipment under low pressure conditions; More supporting high-pressure down the hole impact drills and deep hole slag discharge and sludge discharge are available during high-pressure conditions;
3. Customized and developed dedicated controller: main parameters, equipment operating status, and various operating parameters are clearly displayed, and functions such as loading and unloading, shutdown, etc. can be operated with one click. The automation level is high, and relevant parameters are monitored through pressure and temperature sensors. The reasonable fuel injection amount is calculated and executed through the engine ECU and controller. When the program pressure setting point is reached, the energy-saving mode is automatically turned on, and program functions can be added according to customer special needs, making it easy to use;
4. The product features a mobile and fixed integrated design, with the same model available for free selection; The volume of the product fully considers the requirements for vehicle and packaging; The cabin is equipped with sound insulation panels to reduce noise while ensuring maintenance space; The large air compressor fan is equipped with a clutch fan configuration, and the fan speed is electronically controlled based on the exhaust temperature. The product is suitable for a wider range of environmental temperatures, with good energy saving and heat dissipation effects; Adopting an independent air intake design, the air filter intake is not affected by the high temperature inside the machine.
