I. Complete Unit Configuration and Origin
Core Technology Components
Compressor Screw Element (Single-stage Compression)
Imported Components
Control system
Coupling
Intake loading/unloading valve, regulating valve, solenoid valve
Air intake filter, oil filter, oil-air separator
High-temperature flexible hoses
All the above components, including the control system and other parts, are produced by Atlas Copco Airpower in Belgium or OEM manufactured in Europe.
Domestic Components
Trailer chassis and axle system, specially designed for Chinese road conditions
Diesel engine: Dongfeng Cummins China Stage IV engine
Enclosure, soundproof cotton, and baffles
Air storage tank and safety valve
Cooling fan and radiator unit
Ambient-temperature flexible hoses and fuel pipes
Various pipe joints and castings
Diesel filter
Gearbox
Minimum pressure valve
Sensors and related wiring
Among these, the diesel engine is manufactured by Dongfeng Cummins Engine Co., Ltd., while other components are OEM produced by Atlas Copco's suppliers in Wuxi.
II. Main Control Display
Compressor working pressure gauge
Compressor loading button
Cumulative operating hour meter
Alarm and fault indicator lights
Start/Stop button and control module
Fuel tank and DEF (urea) tank level display
Screw element oil level indicator
Air intake filter clogging indicator
III. Main Protection Devices and Functions
Automatic Shutdown Protection:
Compressor outlet temperature high alarm light
Engine oil pressure low alarm light
Engine coolant temperature high alarm light
Low fuel and DEF tank level alarm lights
Shutdown self-check and aftertreatment regeneration prompt
Standard PACE system for energy-saving optimization
IV. Accompanying Documents and Items
Product operation and maintenance manual
Spare parts catalog
Pressure vessel and safety valve certificates
50-hour maintenance kit

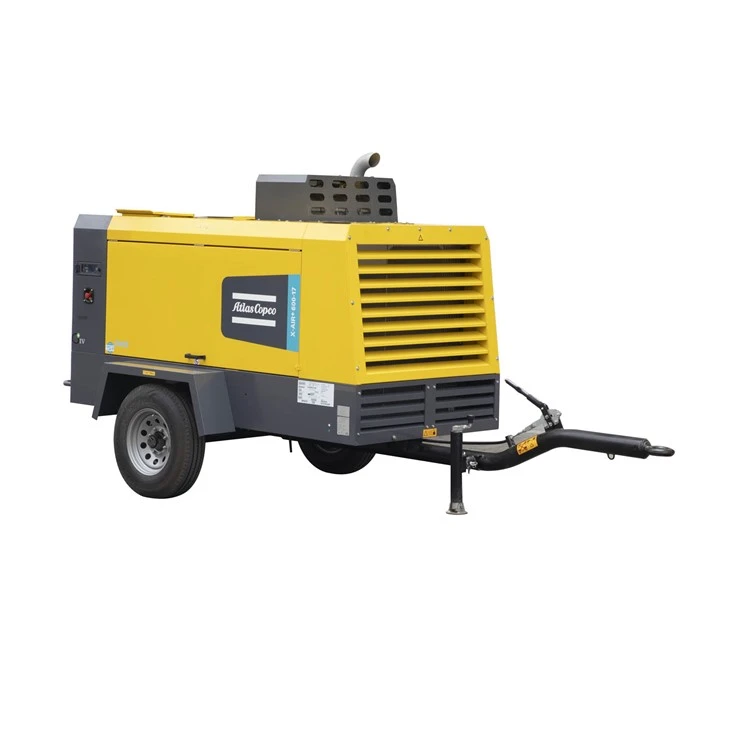

X-air 600-17 detail
1. Main technical parameters
Air compressor form: primary screw compression, air cooling, diesel engine drive, field mobile operation
|
Technical Parameter
|
|
X-AIR+ 600-17
|
|
Rated gas volume FAD
|
Cubic meter/minute m ³/min
|
17.2-14.3
|
|
Working pressure
|
Kilogram bar
|
5-17
|
|
Maximum engine speed (full load)
|
RPM (revolutions per minute)
|
2200-1900
|
|
Screw lubricating oil volume
|
Raise L
|
42 (replacement quantity per maintenance cycle)
|
|
Volume of gas storage tank (oil and gas separation tank)
|
Raise L
|
76
|
|
Fuel tank/urea tank capacity
|
Raise L
|
175/-
|
|
Oil content at compressed air outlet
|
ppm
|
<5
|
|
Compressed air outlet temperature (based on rated reference conditions)
|
Celsius 0C
|
100
|
|
Rated reference operating conditions
|
|
|
|
Absolute intake pressure
|
Kilogram bar
|
1
|
|
relative air humidity
|
%
|
0
|
|
Inlet air temperature
|
Celsius 0C
|
20
|
|
Extreme working conditions
|
|
|
|
Minimum effective working pressure of gas storage tank
|
Kilogram bar
|
4
|
|
Maximum effective working pressure of gas storage tank (unloading)
|
Kilogram bar
|
18
|
|
maximum ambient temperature
|
Celsius 0C
|
50
|
|
Minimum starting temperature
|
Celsius 0C
|
-10/-25 (optional cold start)
|
|
Highest altitude
|
Mi m
|
3000
|
2. Diesel engine
| manufacturer | CUMMINS | |
| model | B5.9CS4 GIV standard | |
| Output power at rated speed | Kilowatt kW | 154 |
| Load factor | % | - |
| coolant | Coolant | |
| Cylinders | Inline 6-cylinder engine | |
| Lubricating oil system volume | Raise L | 16.5 (replacement quantity per maintenance cycle) |
| Cooling system capacity | Raise L | 28 |
3. Overall dimensions and weight
| Whole machine length * width * height - trailer type (including mop) | Millimeter mm | 4700*1940*2400 |
| Whole machine length * width * height - box type | Millimeter mm | 2960*1400*2110 |
| Whole machine weight trailer/box (wet weight) | Kilogram (kg) | 2300/2200 |
| Exhaust valve size | Inch in | 1*G2,1*G3/4 |
