MWDL 600 Core Drilling Rig Underground Surface Exploration Warrior

MWDL 600 Core Drilling Rig Underground Surface

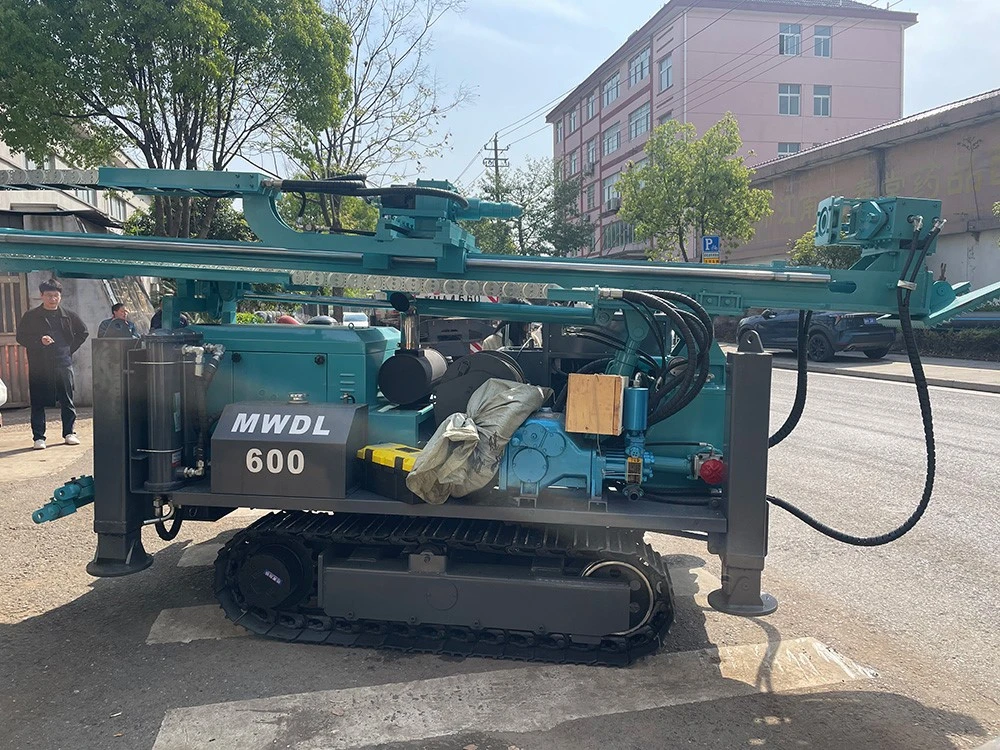

This machine is the MWDL600 core drilling rig that we will send to our customers soon, which is a fully hydraulic core drilling rig designed for mineral exploration, geological sampling and water well drilling. Its core advantages are high stability, intelligent control and adaptability to complex formations. It is suitable for rock, concrete and other hard ground work, with a maximum drilling depth of 600 meters and a diameter of 60-110 mm.

  MWDL600 Core Drilling rig adopts full hydraulic drive technology, equipped with high-performance hydraulic oil pump, with stable power output and rapid response, suitable for high-torque and high-speed drilling operations, especially for rock, concrete and other hard ground.

The hydraulic clamping system of · supports 45°-90° drilling angle adjustment, which can flexibly cope with inclined and vertical drilling needs.

I. Intelligent and automated control

1.Electro-hydraulic centralized control system

• MWDL600 core drilling rig integrated console realizes the centralized control of the whole process of drilling rig power, drilling pressure, mud circulation, etc., and monitors the status of the equipment in real time (e.g., oil temperature, pressure), supports fault diagnosis and early warning, and reduces the complexity of manual operation.

• The drill pipe holder is equipped with an automatic pressure-holding clamping function, which works in conjunction with the chuck-type power head to enhance operational safety and efficiency.

2.Balanced pressure drilling system

• The MWDL core drilling rig accurately balances the weight of the drill column through the hydraulic system, reduces fluctuations in drilling pressure, adapts to complex formations (e.g., high-stress rock formations), and improves the quality of coring and the stability of drilling.

II. Modular design and portability

1. Lightweight structure

• MWDLcore drilling rig adopts steel structure with thickened steel plate fuselage, taking into account the strength and light weight (total weight of 5,400-7,500 kg), supporting disassembling and transportation, and can be manually transported through trails without building transportation roads, which is suitable for mountainous areas, plateaus and other complex terrain.

2.Rapid deployment

• The modular design of · facilitates on-site assembly, easy installation and short relocation cycle, reducing labor and time costs.

III. Security and stability

1.Multiple safety protection

• MWDLcore drilling rig is designed with mast type drilling frame to avoid the risk of working on the tower, and the hydraulic overload protection device can automatically cut off the power output to prevent accidents.

The drilling rig is equipped with a high performance mud pump, which optimizes the mud circulation system and reduces the risk of bit wear and hole wall collapse.

2.Adaptability to harsh environment

• The MWDL core drilling rig's steel body and reinforced hydraulic components are designed to withstand high temperatures, high humidity, and low temperatures for extended equipment life.

Ⅳ.Economy and customized services

1.Cost saving

• The modular design of MWDL core drilling rigs reduces maintenance complexity and maintenance costs; fast site relocation reduces pre-construction investment.
•  High energy efficiency of the hydraulic system reduces energy costs in the long run.

2.Customized Solutions

• supports customization to meet different customer needs.
•  provides OEM service, which can adjust the parameters (such as drilling depth, power configuration, etc.) according to the user's design.

Ⅴ.Environmental protection and sustainability

1. Minimally invasive drilling process: MWDL core drilling rigs reduce the destruction of vegetation and geomorphological interference, in line with the requirements of green exploration.

2.Low-emission design: MWDL core drilling rigs are environmentally friendly with diesel powertrains, and can be upgraded with electrified options in the future.

MWDL 600 core drilling rig realizes the balance of efficient drilling, safe operation and environmental adaptability through the three core advantages of all-hydraulic drive, intelligent control and modular design, which is especially suitable for mineral exploration, water well drilling rigs and complex terrain projects. Its customized service and high cost performance further consolidate the market competitiveness. If you need specific model parameters, you can provide further technical details.
