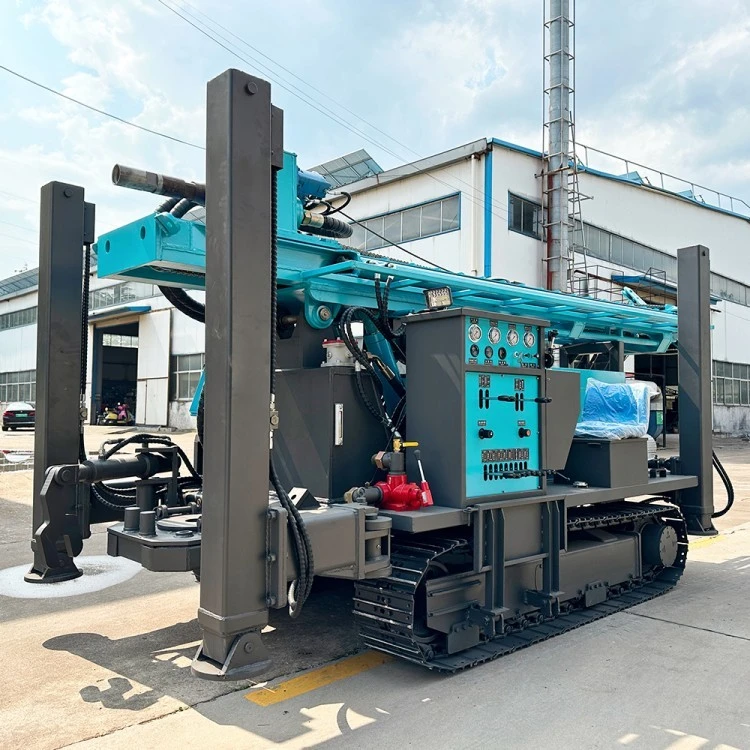

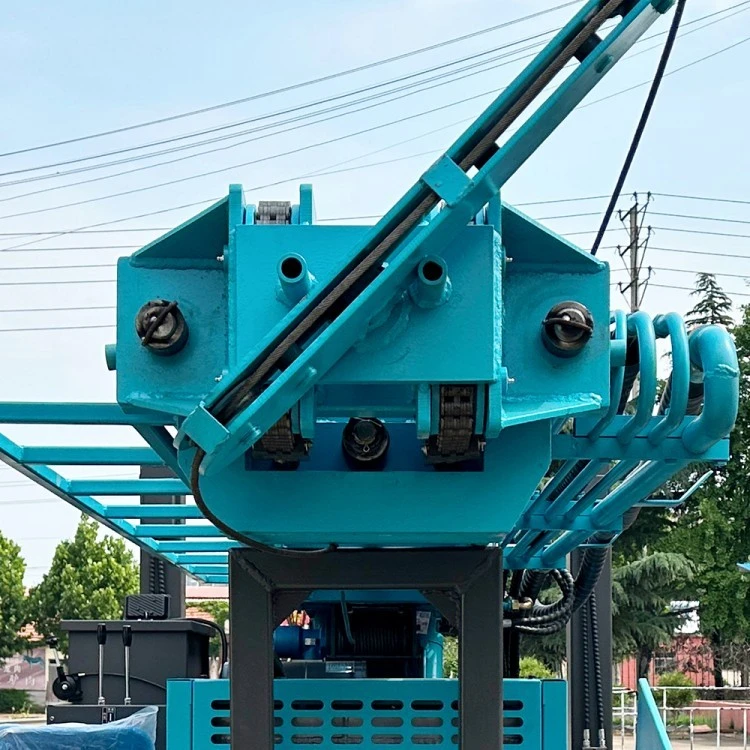

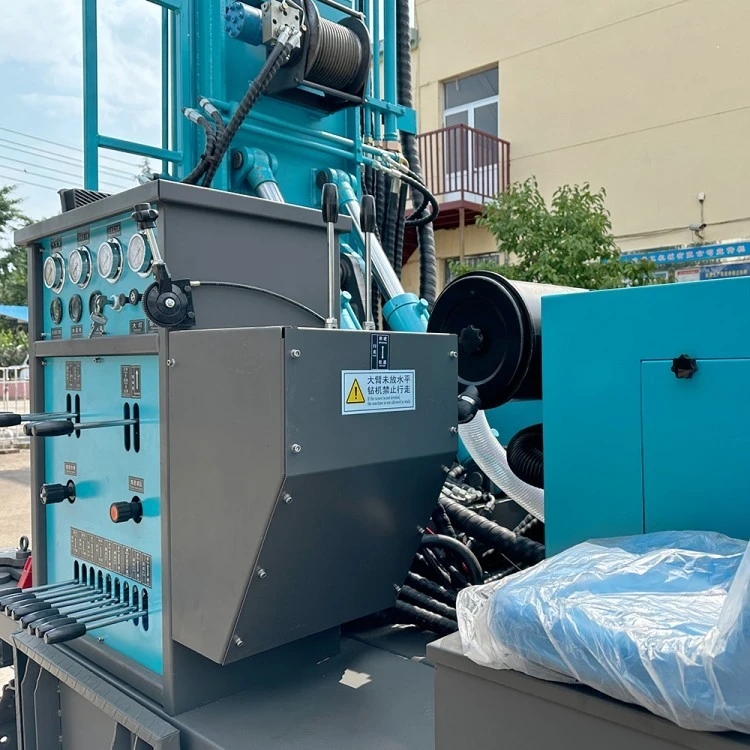

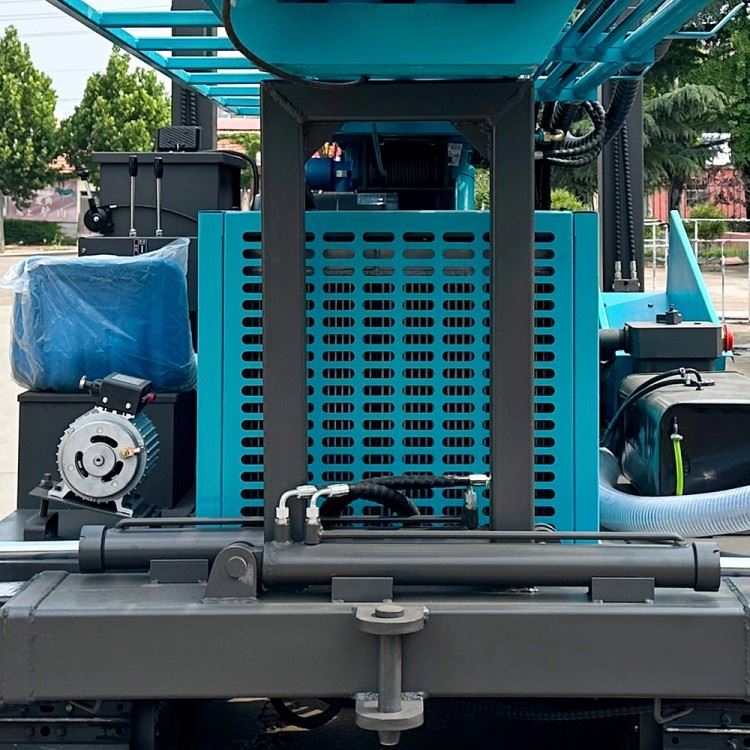

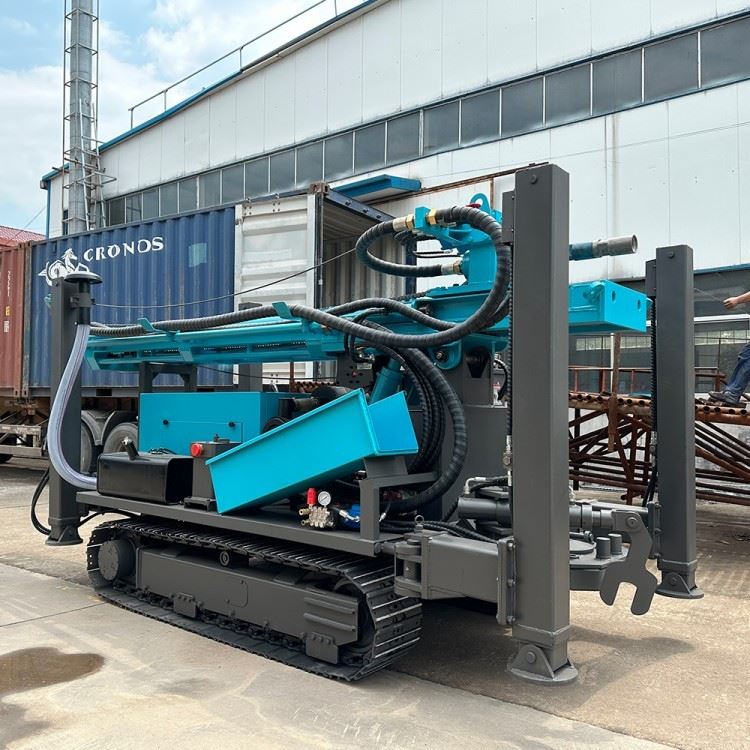

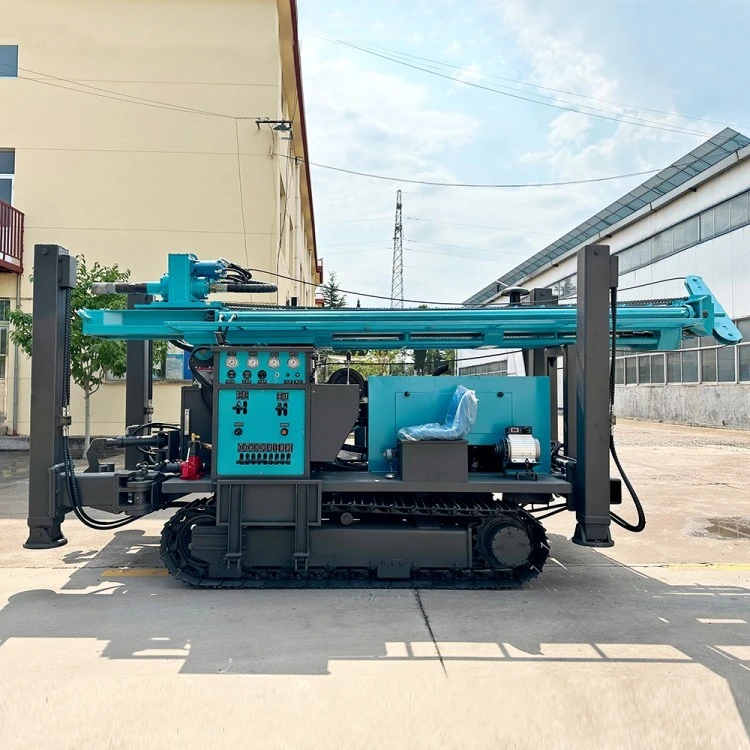

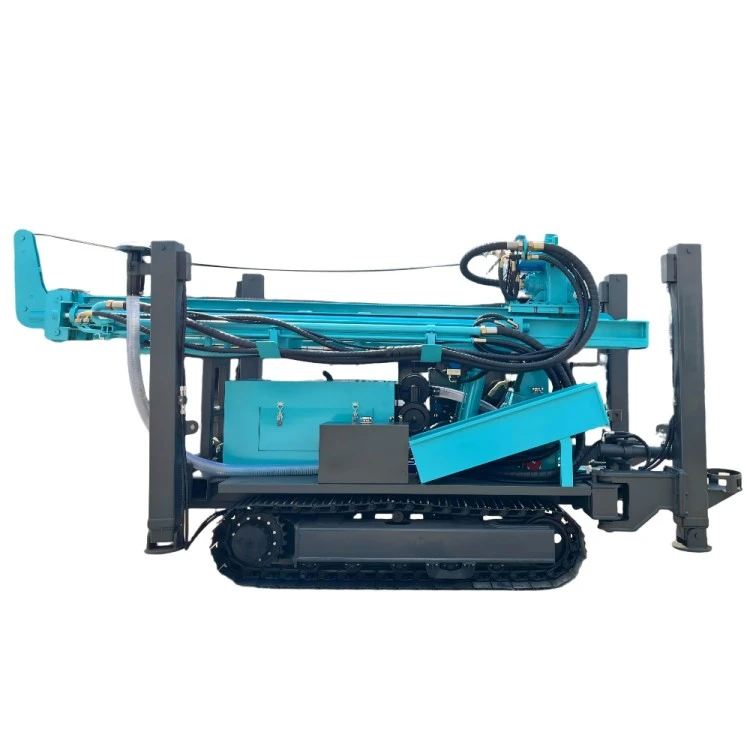

Product Overview
The SM280 Hydraulic Crawler Water Well Drilling Rig is a seamless upgrade from the SM260 model, designed for contractors who need greater drilling depth, stronger lifting capacity, and higher torque without sacrificing mobility or operating cost control.
Positioned in the 250–300m water well drilling segment, SM280 is ideal for users who have already worked with 200–260m rigs and are now facing more complex geological conditions, thicker overburden layers, or projects requiring deeper and more stable boreholes.
Built on the proven SM260 platform, SM280 delivers enhanced structural strength, optimized hydraulic performance, and wider configuration compatibility, making it a reliable solution for agricultural irrigation, rural water supply, municipal projects, and contractor-based drilling services.
Why Upgrade from SM260 to SM280
Compared with SM260, the SM280 drilling rig offers:
Extended drilling depth: from 260m to 280m, covering a wider range of groundwater projects
Higher lifting force: improved main rig lifting capacity for deeper casing operations
Stronger rotary torque: better performance in gravel, weathered rock, and mixed formations
Longer one-time feed stroke: improved drilling efficiency and reduced pipe handling time
Better adaptability to medium and high air pressure DTH drilling systems
This makes SM280 the preferred choice for contractors seeking higher productivity and future-proof capability while maintaining a familiar operating experience.
Key Technical Specifications
| Item | Specification |
|---|
| Drilling Depth | 280 m |
| Hole Diameter | 140–305 mm |
| Drill Pipe Diameter | Φ76 / Φ89 mm |
| Drill Pipe Length | 1.5 m / 2.0 m / 3.0 m |
| One-Time Advance Length | 6.6 m |
| Penetration Efficiency | 15–35 m/h |
| Swing Speed | 45–70 rpm |
| Swing Torque | 5,300–7,600 N·m |
| Rig Lifting Force | 17 T |
| Winch Lifting Force | 2 T |
| Rapid Rise Speed | 25 m/min |
| Fast Feeding Speed | 30 m/min |
| Working Air Pressure | 1.7–3.0 MPa |
| Air Consumption | 17–31 m³/min |
| Equipped Hammer | Medium & High Air Pressure DTH Series |
| Engine Power | Yuchai 85 kW |
| Walking Speed | 2.5 km/h |
| Climbing Ability | 30° |
| High Leg Stroke | 1.4 m |
| Loading Width | 2.7 m |
| Overall Dimension | 5900 × 1850 × 2360 mm |
| Machine Weight | 7.6 T |
Application
The SM280 crawler water well drilling rig is widely used in:
Agricultural irrigation wells (farms, plantations, irrigation zones)
Rural and community water supply projects
Municipal groundwater development
Contract drilling services requiring frequent relocation
Mixed soil and rock formations, including clay, sand, gravel, and weathered rock
Its balanced design allows efficient drilling in both mud drilling and air DTH drilling operations.
Quality Control & Manufacturing Assurance
Quality Control & Manufacturing Assurance
Quality Control & Manufacturing Assurance
Factory Quality System
ISO-based quality management system
Incoming material inspection for key components
Machining & Manufacturing
CNC machining for core structural parts
Strict tolerance control on rotary head and mast components
Assembly Quality Control
Standardized assembly procedures
Hydraulic and mechanical system inspection at each stage
Factory Testing
No-load and load testing before delivery
Full-function testing of rotation, feeding, lifting, and walking systems
Third-Party Inspection
Third-party inspection available upon request (SGS / BV )
Customization
Our latest projects
Customizable Options
Hydraulic pipe clamp system
Opening & closing rotary power head
Mud pump configuration
Dust collector system
Drill pipe length and tool combinations
Electrical system and control layout
Engineering Team Support
Experienced drilling equipment engineers
Application-based configuration recommendations
Customization Process
Project requirement analysis
Configuration proposal & confirmation
Engineering design and validation
Manufacturing and assembly
Testing and delivery
Proof of Custom Capability
After-Sales Service & Technical Support
Service Coverage
Installation guidance
Commissioning support
Remote troubleshooting
Technical Support
Operation manuals and maintenance guides
Video support for operation and servicing
Spare Parts Supply
Long-term supply of wear parts and core components
Standardized parts for fast global delivery
Training Support
On-site or online operator training
Maintenance and daily inspection training
Conclusion
The SM280 Hydraulic Crawler Water Well Drilling Rig is a natural and efficient upgrade from SM260, offering greater depth capability, stronger torque, and improved efficiency for medium-depth water well projects.
For contractors aiming to expand project scope while maintaining cost control and operational reliability, SM280 provides a balanced, future-ready drilling solution.
