Specifications
|
Technical Parameters |
Reference Air Volume |
Applicable Rig Types |
|||||||
|
Type |
Model |
No. of Hammers |
Weight(Kg) |
Under the lowest pressure of 1Mpa(m3/min) |
Under the highest pressure of 2.4Mpa(m3/min) |
Rotary Drilling Rig |
Long Auger Rig |
Rotary Piling Drill |
Reverse Circulation Rig |
|
One Time Hole Forming Cluster DTH hammer |
MWQC600 |
4 |
150 |
36 |
104 |
√ |
√ |
√ |
√ |
|
MWQC800 |
4 |
250 |
48 |
112 |
√ |
√ |
√ |
√ |
|
|
MWQC1000 |
6 |
330 |
72 |
168 |
√ |
√ |
√ |
√ |
|
|
MWQC1200 |
7 |
420 |
84 |
196 |
√ |
√ |
√ |
√ |
|
|
MWQC1500 |
10 |
700 |
120 |
280 |
√ |
|
√ |
√ |
|
|
Secondary Reaming Cluster DTH hammer |
MWQC1000-1500K |
6 |
450 |
72 |
168 |
√ |
|
√ |
√ |
|
MWQC1200-1800K |
9 |
580 |
108 |
252 |
√ |
|
√ |
√ |
|
|
MWQC1200-2000K |
12 |
650 |
144 |
336 |
√ |
|
√ |
√ |
|
|
MWQC1200-2200K |
12 |
700 |
144 |
336 |
√ |
|
√ |
√ |
|
|
Combined DTH hammer |
MWQC1000Z |
4+1 |
580 |
90 |
150 |
√ |
|
√ |
√ |
|
MWQC1200Z |
5+1 |
950 |
122 |
196 |
√ |
|
√ |
√ |
|
|
MWQC1500Z |
7+1 |
1250 |
146 |
222 |
√ |
|
√ |
√ |
|
|
MWQC1800Z |
9+1 |
1450 |
170 |
248 |
√ |
|
√ |
√ |
|
|
MWQC2000Z |
12+1 |
1700 |
206 |
320 |
√ |
|
√ |
√ |
|
|

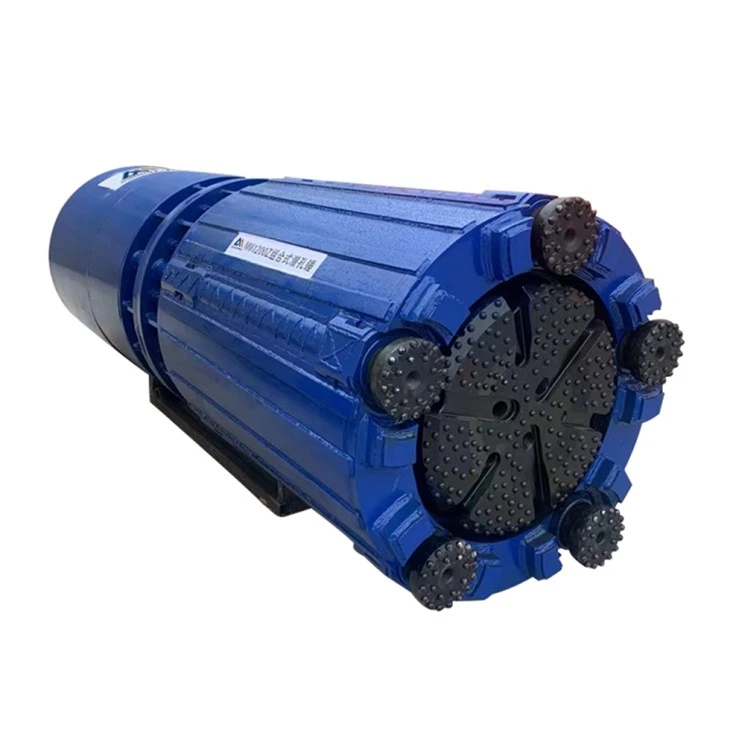

Cluster Ring Cutting DTH Hammer |
MWQC1200H |
4 |
350 |
48 |
104 |
√ |
|
√ |
√ |
|
MWQC1500H |
6 |
670 |
72 |
156 |
√ |
|
√ |
√ |
|
|
MWQC1800H |
8 |
1000 |
96 |
208 |
√ |
|
√ |
√ |
|
|
MWQC2000H |
9 |
1200 |
108 |
234 |
√ |
|
√ |
√ |
|
|
MWQC2200H |
11 |
1500 |
132 |
286 |
√ |
|
√ |
√ |
|
Product detail
- Brand name: miningwell
- Minimum order quantity: 1 set
- Packing Detail: plastic/wooden case
- Delivery Time:7-10 days
- Payment terms:L/C, T/T, Western Union

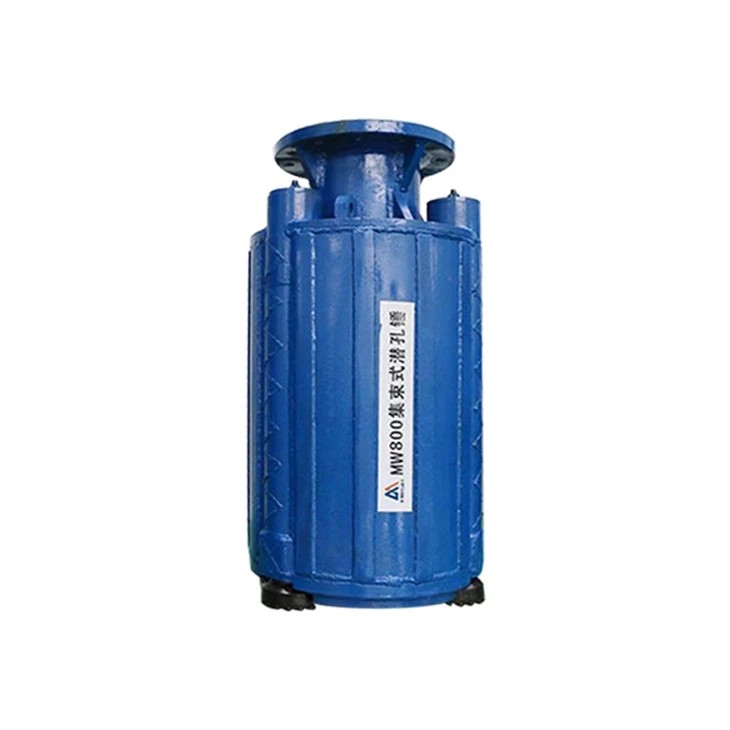

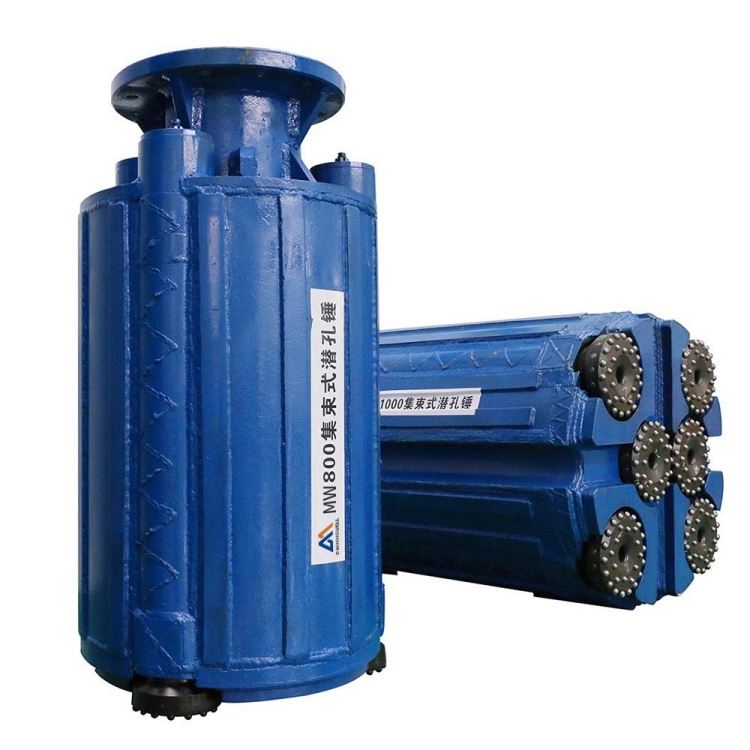

As one of the key components, the function of cluster Drilling Hammer is to convert air pressure into impact energy, and at the same time transfer the impact energy and rotational force to DTH drill bit. The rotary drilling rig, the air compressor and the "DTH Drill Column" are the basic units of DTH drilling, which always consists of the DTH Drill Rod, the DTH Hammer and the DTH Drill Bit.
Quality Assurance
Contracts are strictly reviewed by all departments to ensure the feasibility of each order.
Real-time inspection of production: to ensure that the production order of the product meets the specification and the parts are undamaged.
Strict control of all raw and auxiliary materials, all raw materials are up to the world advanced level.
All processes are inspected on site and inspection records are traceable.
Full factory inspection: Every piece of Miningwell's equipment and drilling tools will undergo strict factory inspection.
Loading Safety Inspection: Ensure the safety of the goods in the container.
Regular training for inspectors.
Regular visit to customers for after-sales service and regular maintenance of export equipment.
Application
Cluster DTH Drilling Hammer piling is suitable for drilling blasting holes, mines, quarries, highway guardrail holes and other engineering holes.
