Deep Underground Water Detector

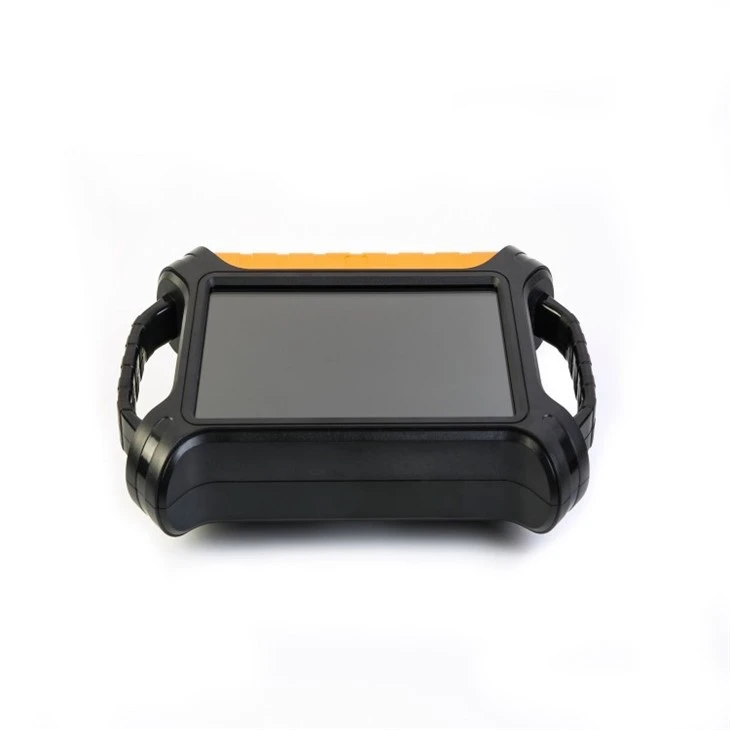

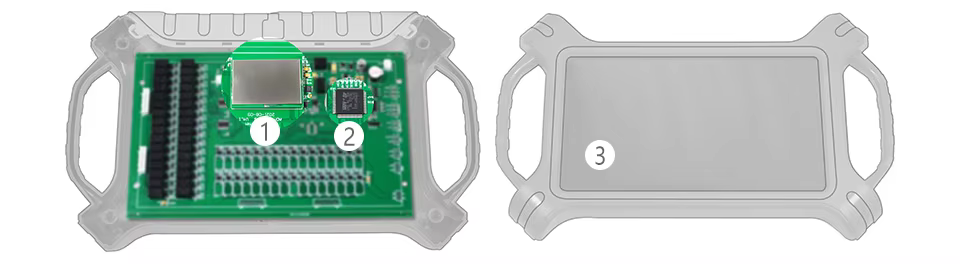

① Hi-Fi Signal Conditioning Amplifier Guaranteed signal accuracy
The analog circuit part of the front-end signal conditioning amplifier of the instrument adopts integrated packaging and shielding, which greatly enhances anti-interference, improves the signal input accuracy, and greatly improves the measurement accuracy of the instrument.

② High performance processor Run multiple algorithms
Adopt high-performance processor, run various algorithms, make the output stable and accurate, and ensure the measurement accuracy of the instrument

③ 10.1 inch touch screen operation
Real-time 2D/3D and curved images

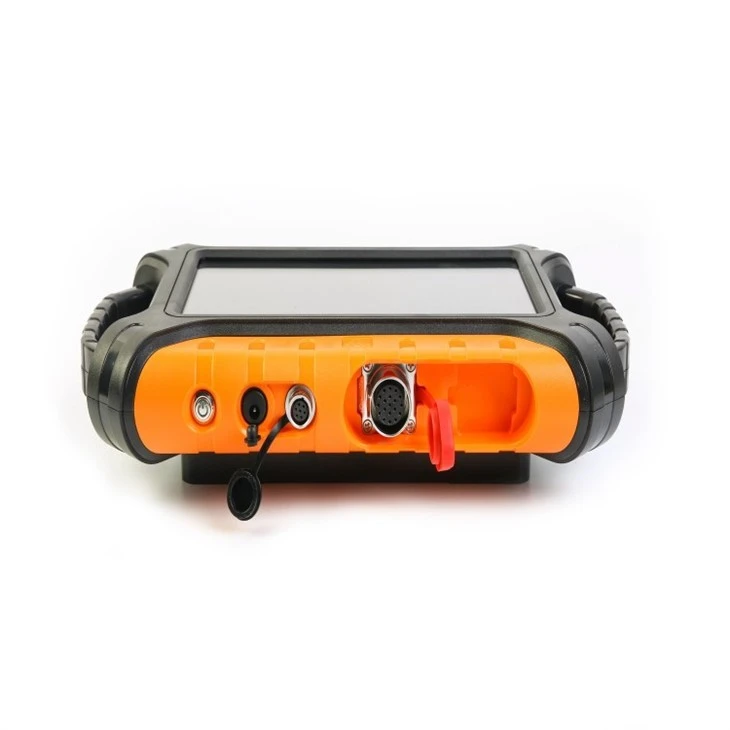

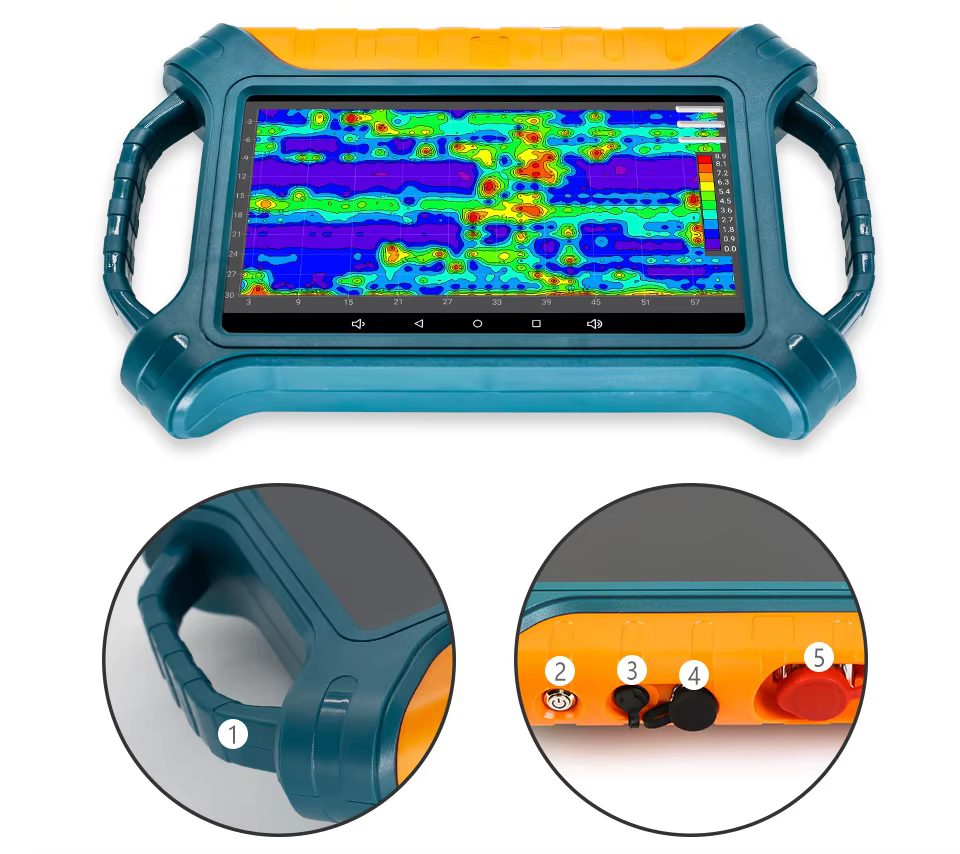

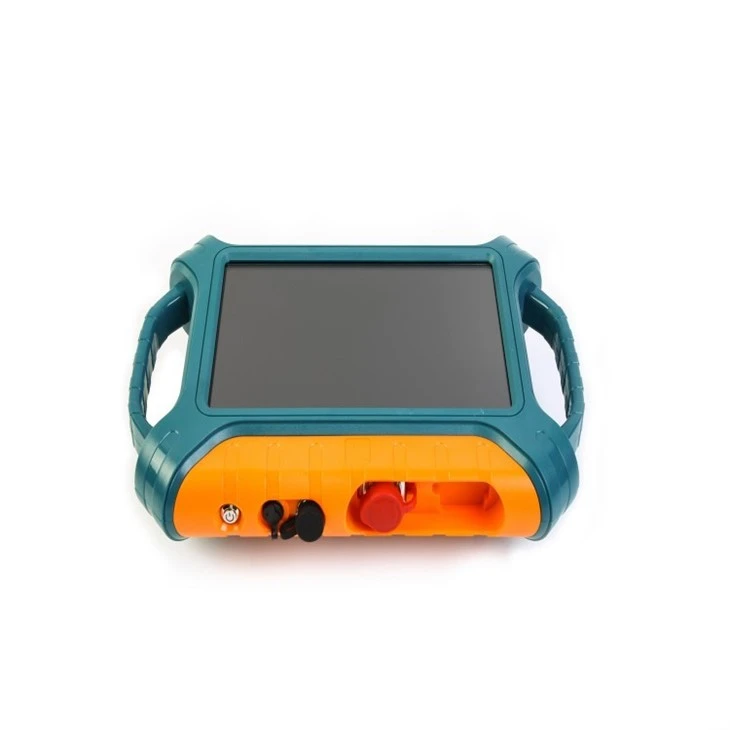

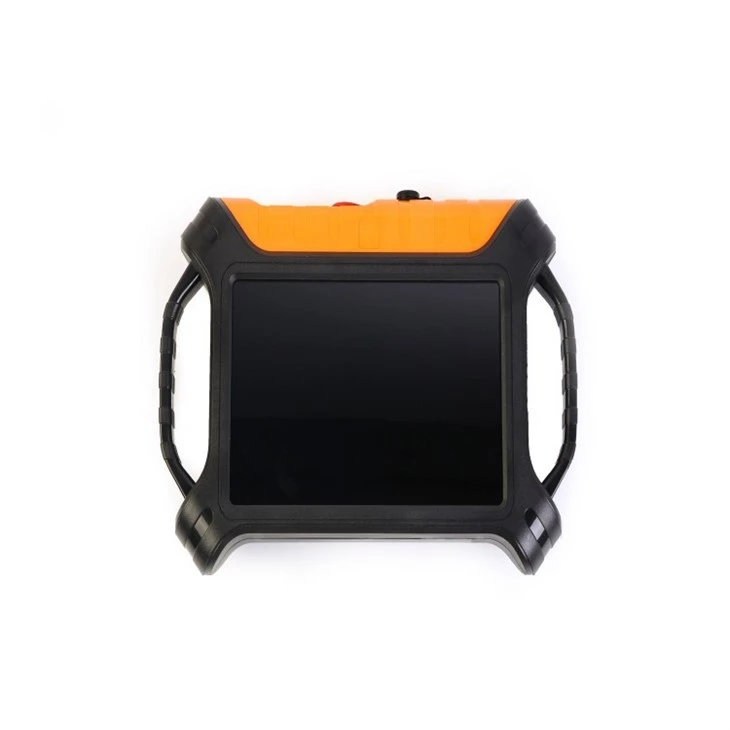

① Handles ② Power Button ③ Charging Port ④ Multi-function Data Port ⑤ Cable Connector

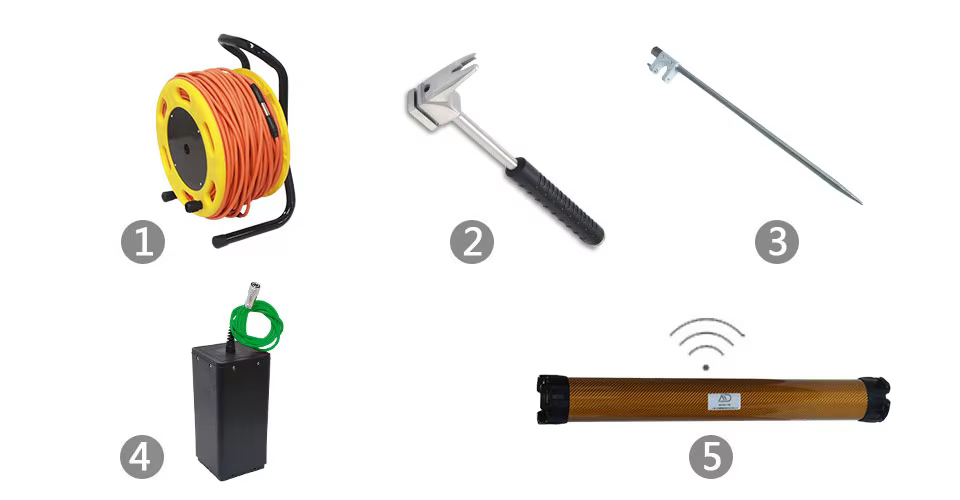

① Cable ② Hammer ③ Electrodes x 16

④ Wired connection probe (optional)
Capable of operating on various terrains, including concrete, rock, and frozen soil. It can be operated by a single person.

⑤ Wireless connection golden rod (optional)
Fully wireless. Capable of operating on various terrains, including concrete, rock, and frozen soil. It can be operated by a
single person.

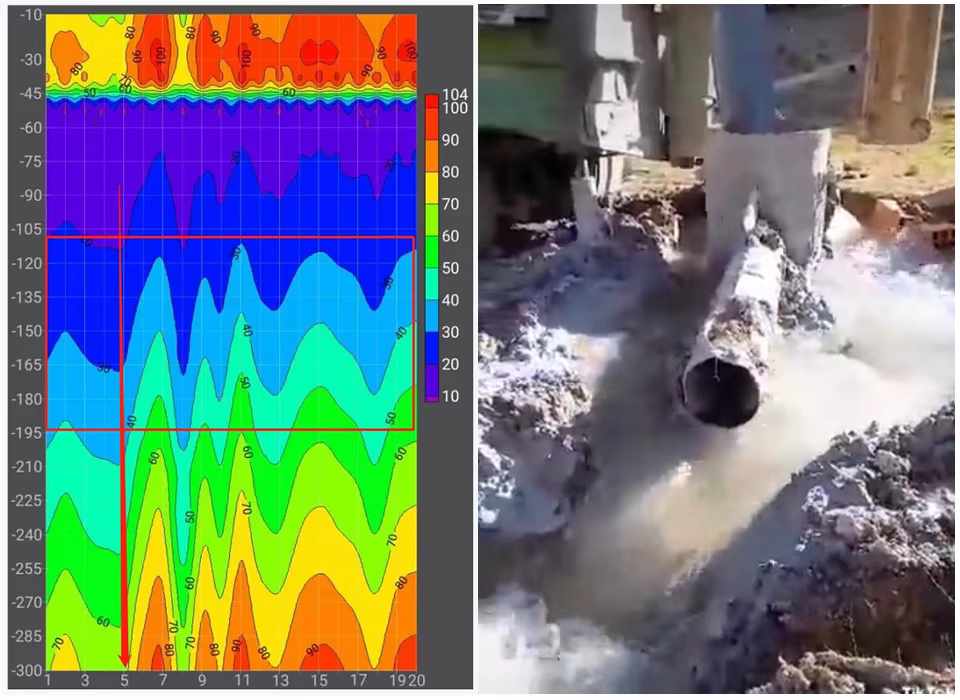

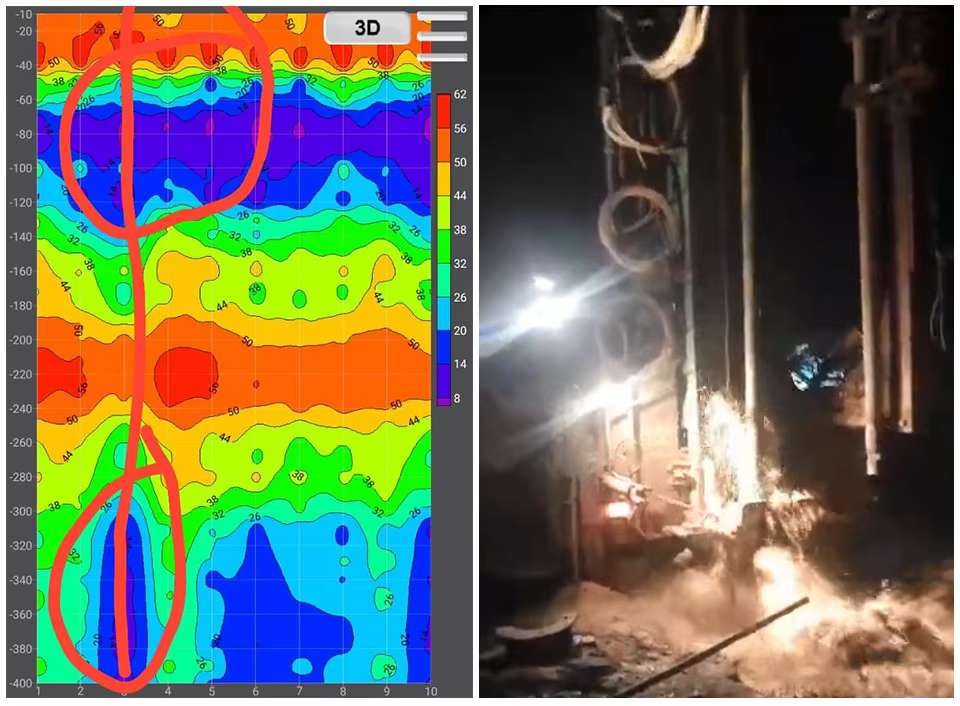

Image Interpretation: The high-resistivity red zone in the shallow subsurface (0-40m) indicates a dry, loose sedimentary cover. A
distinct low-resistivity purple anomaly is observed at 50-90m. The blue low-resistivity anomalous zone at 105-180m may represent a
well-developed aquifer. The high-resistivity zone below 255m is likely the aquifer's basement, a bedrock layer that prevents
further downward percolation of groundwater, consistent with the actual water-bearing geological structure. It is recommended to
drill at point 5, with an expected water depth between 110-200m.
Actual Drilling Results: The first water flow appeared at around 110m depth, primarily composed of quartz sandstone. As drilling
continued, the water volume increased significantly. The final drilling depth was 120m. The actual conditions align with the image
analysis.
