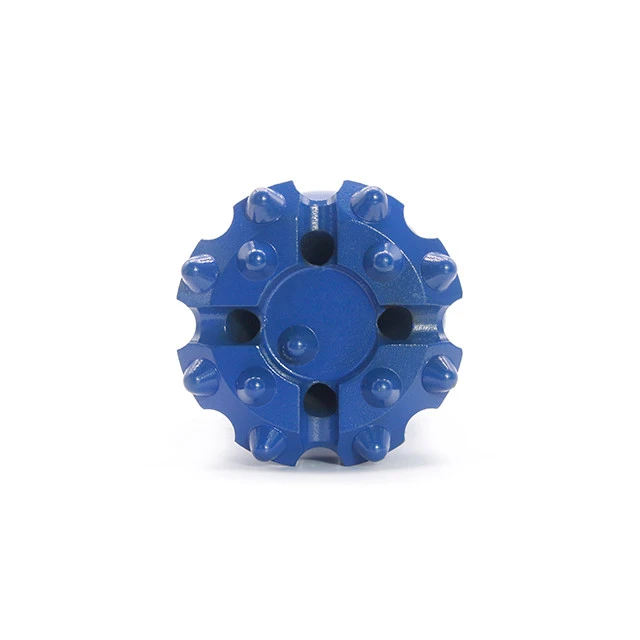

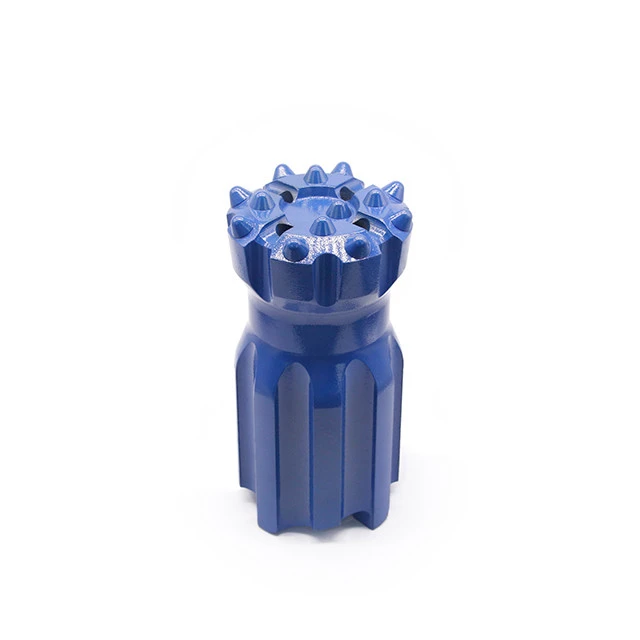

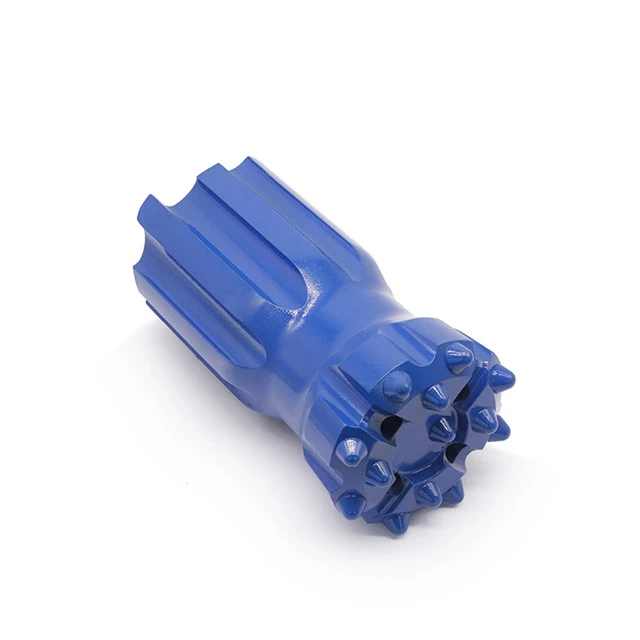

Top hammer drill bits are commonly used for rock drilling in mines and buildings, involving a combination of impact and rotation actions. And the threaded button bit lies in the thread design at the connection with the drill rod.
Top hammer drill bit Generally composed of drill bit body, hard alloy teeth, chip groove and other parts.It is an efficient rock drilling tool, widely used in mining, tunnel excavation, geological exploration and other engineering projects. Its working principle is to use two actions, impact and rotation, to break rocks. Unlike drill bits that rely solely on rotation or impact, top hammer drill bits significantly improve the efficiency of hard rock drilling by combining high-frequency impact force with rotational motion.
The top hammer drill bit needs to be paired with a top hammer rock drill to quickly penetrate the rock. The internal piston of the rock drill impacts the tail of the drill rod at a very high frequency (usually thousands of times per second), and the shock wave is transmitted to the head of the drill bit through the drill rod. At the same time, the drill rod continues to rotate to complete the impact crushing and rotating chip removal.Suitable for long hole drilling, beach drilling,drifting and tunneling.
Threaded button bits does not require complex tools and can quickly replace worn drill bits on site. Precise thread matching can greatly reduce energy loss, and the shock wave transmission efficiency can reach over 90%.
Regarding the selection of tooth profile for threaded drill bits
flat surface
Center subsidence
Automobile manufacturing
Parabolic button
ballistric button
spherical button
button shape

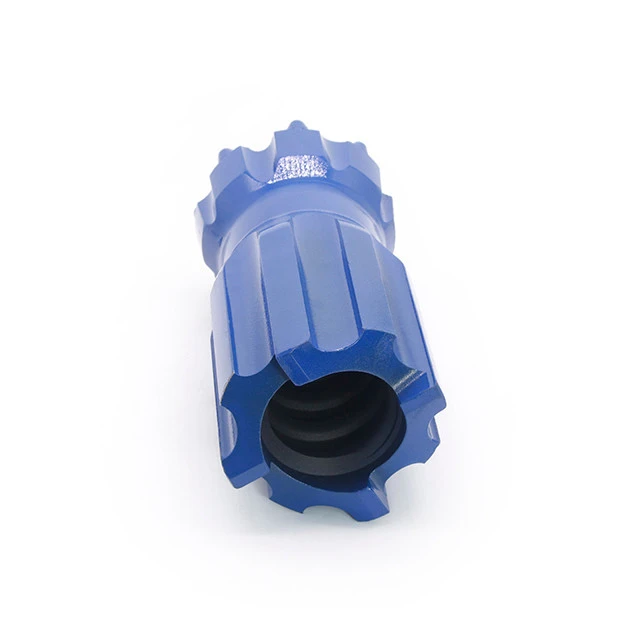

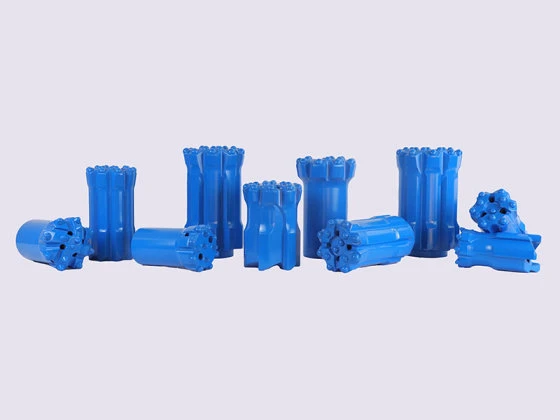

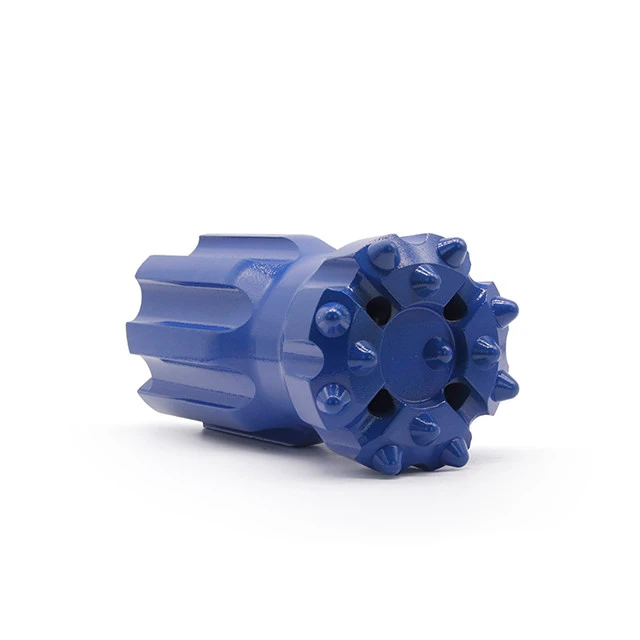

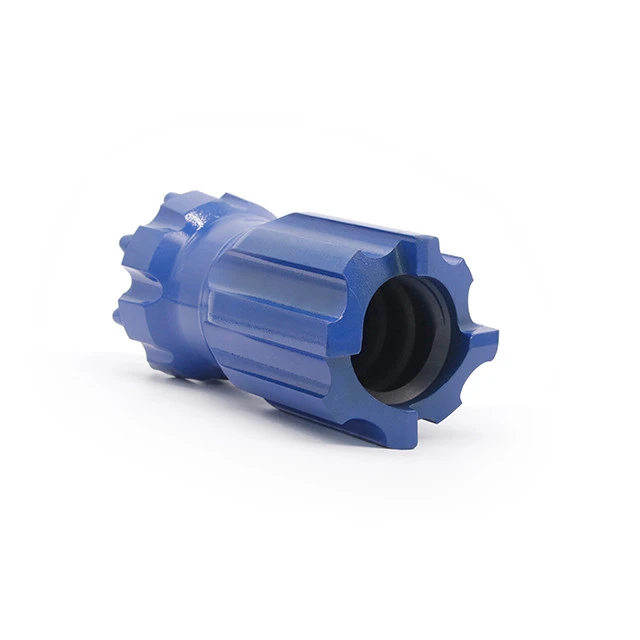

threaded button bits
|
|
rock hardness
|
rock abrasiveness
|
penetration rate
|
|
| button shape antibacterial wool washing |
ballistic | |||
| Parabolic | i | |||
| spherical | i | i | ||
| button fix | four button | i | i | |
| five button | i | i | ||
| six button | i | |||
| seven button | i | i | i | |
| eight button | i | i |
factory price
thread button drill bit does not require complex tools and can quickly replace worn drill bits on site. Precise thread matching can greatly reduce energy loss, and the shock wave transmission efficiency can reach over 90%.
The company was established in 2001, It is a manufacturer mainly engaged in Low pressure hammer,Medium pressure hammer ,High pressure DTH hammer, as well as down the hole drilling rig accessories and drill rods.
Adhering to the concept of "win-win cooperation", we have formed strategic partnerships with numerous domestic peers, committed to becoming a one-stop service center, promoting global drilling and production needs, and becoming a technology-based, sharing and mutual assistance company. Thus, D-MININGWELL Supply Chain Co., Ltd. was born. MININGWELL's supply chain covers all excellent rock drilling products in China, from underground drilling to open-pit and deep well drilling, providing one-stop services for global rock drilling companies.
Our products are exported to all parts of the country and highly praised by domestic and foreign users.
Facebook：drilling rig plan+(https://www.facebook.com/profile.php?id=61551253829157)
Ins ：d_miningwelldrillingrigsturkey
WhatsApp ：+8615857099988
Tiktok：d_miningwell_comp
Youtube:dminingwell@gmail.com
Our address
No. 18 Gaotang Road, Qujiang District, Quzhou City, Zhejiang Province
Phone Number
+8615857099988
seo@dminingwell.com
Products Description
Common thread types include R25, R28, SR32, R32, SR35, R38, T38, T45, T51, ST68, GT60, EL60, etc. The diameter is usually between 34 millimeters and 127 millimeters, and the appropriate size can be selected according to different drilling requirements.
| Normal Button Bit | ||||||||
| Head Shape | Head Diameter(mm) | Length | Port Holes | Side Holes | Gauge Buttons | Front Buttons | Weight | |
| T51 | Center Drop Face | 89 | 155 | 4 | / | 8*φ12 | 8*12 | 4.15 |
| T51 | Center Drop Face | 102 | 155 | 4 | / | 8*φ14 | 8*14 | 5.8 |
| T51 | Flat Face | 115 | 160 | 2 | 2 | 8*φ14 | 8*14 | 6.55 |
| T51 | Center Drop Face | 127 | 165 | 4 | / | 8*φ14 | 8*14 | 7.7 |
| T51 | Flat Triangle Face | 102 | 155 | 3 | / | 9*φ13 | 9*13 | 5.5 |
| T51 | Flat Triangle Face | 115 | 165 | 3 | / | 9*φ14 | 9*14 | 6.5 |
| T51 | Flat Triangle Face | 127 | 165 | 3 | / | 9*φ14 | 9*14 | 7.5 |
| T45 | Center Drop Face | 72 | 140 | 4 | / | 8*φ11 | 8*11 | 2.25 |
| T45 | Center Drop Face | 76 | 140 | 4 | / | 8*φ11 | 8*11 | 2.9 |
| T45 | Center Drop Face | 89 | 145 | 4 | / | 8*φ12 | 8*12 | 3.8 |
| T45 | Center Drop Face | 102 | 150 | 4 | / | 8*φ13 | 8*13 | 4.8 |
| T45 | Triange Face | 89 | 145 | 4 | / | 8*φ13 | 8*13 | 3.5 |
| T45 | Flat Triangle Face | 102 | 150 | 3 | / | 9*φ13 | 9*13 | 4.5 |
| T45 | Flat Triangle Face | 115 | 160 | 3 | / | 9*φ14 | 9*14 | 5 |
| T38 | Center Drop Face | 64 | 130 | 2 | / | 8*φ9 | 8*9 | 1.85 |
| T38 | Flat Face | 70 | 130 | 3 | 2 | 6*φ12 | 6*12 | 2.05 |
| T38 | Center Drop Face | 76 | 130 | 4 | / | 8*φ11 | 8*11 | 2.55 |
| T38 | Center Drop Face | 89 | 130 | 4 | / | 8*φ12 | 8*12 | 3.55 |
| ST68 | Flat Face | 102 | 180 | 2 | 2 | 8*φ14 | 8*14 | 5.4 |
| ST68 | Center Drop Face | 115 | 180 | 4 | / | 8*φ14 | 8*14 | 6.65 |
| ST68 | Center Drop Face | 127 | 190 | 4 | / | 8*φ14 | 8*14 | 8.9 |
| ST68 | Center Drop Face | 140 | 190 | 4 | / | 8*φ16 | 8*16 | 10.8 |
| ST58 | Center Drop Face | 89 | 175 | 4 | / | 8*φ12 | 8*12 | 4.4 |
| ST58 | Flat Face | 102 | 180 | 3 | / | 9*φ13 | 9*13 | 5.8 |
| ST58 | Flat Face | 115 | 185 | 2 | 2 | 8*φ14 | 8*14 | 7.7 |
| ST58 | Center Drop Face | 127 | 185 | 4 | / | 8*φ14 | 8*14 | 8.9 |
| R38 | Center Drop Face | 64 | 130 | 3 | / | 6*φ11 | 3*9 | 1.85 |
| R38 | Center Drop Face | 76 | 130 | 2 | 2 | 8*φ12 | 4*12 | 2.45 |
| R38 | Center Drop Face | 89 | 130 | 2 | 2 | 8*φ12 | 6*12 | 3.5 |
| R32 | Flat Face | 45 | 113 | 3 | 2 | 6*φ9 | 3*8 | 0.75 |
| R32 | Flat Face | 64 | 130 | 2 | / | 6*φ10 | 4*9 | 2.1 |
| R32 | Convex Face | 76 | 130 | 2 | / | 6*φ12 | 2*φ122*φ10 | 2.7 |
| R25 | Flat Face | 38 | 105 | 1 | 2 | 5*φ8 | 2*8 | 0.5 |
| R25 | Flat Face | 45 | 110 | 3 | 2 | 6*φ9 | 3*8 | 0.65 |
| GT60 | Flat Triangle Face | 102 | 220 | 3 | / | 9*φ13 | 9*13 | 8.1 |
| GT60 | Flat Triangle Face | 115 | 220 | 3 | / | 9*φ14 | 9*14 | 8.8 |
| GT60 | Flat Triangle Face | 127 | 225 | 3 | / | 9*φ16 | 9*16 | 10.6 |
| GT60 | Flat Triangle Face | 140 | 230 | 3 | / | 9*φ16 | 9*16 | 11.7 |
| Retrac Button Bit | ||||||||
| Head Shape | Head Diameter | Length | Port Hole | Side Holes | Gauge Buttons | Front Buttons | Weight | |
| T51 | Center Drop Face | 89 | 170 | 4 | / | 8*φ12 | 4*φ12 2*φ11 | 5 |
| T51 | Center Drop Face | 102 | 180 | 4 | / | 8*φ13 | 4*φ13 2*φ12 | 7.12 |
| T51 | Flat Face | 115 | 185 | 2 | 2 | 8*φ14 | 6*φ13 | 10.1 |
| T51 | Center Drop Face | 127 | 185 | 4 | / | 8*φ14 | 4*φ14 2*φ13 | 12.4 |
| T51 | Flat Triangle Face | 102 | 185 | 3 | / | 9*φ13 | 9*φ13 | 7.5 |
| T51 | Flat Triangle Face | 115 | 185 | 3 | / | 9*φ14 | 9*φ14 | 10 |
| T51 | Flat Triangle Face | 127 | 185 | 3 | / | 9*φ14 | 9*φ14 | 12.8 |
| T45 | Center Drop Face | 72 | 160 | 4 | / | 8*φ11 | 5*φ10 | 3.15 |
| T45 | Center Drop Face | 76 | 160 | 4 | / | 8*φ12 | 4*φ11 1*φ10 | 3.55 |
| T45 | Center Drop Face | 89 | 170 | 4 | / | 8*φ12 | 4*φ12 2*φ10 | 5 |
| T45 | Center Drop Face | 102 | 180 | 4 | / | 8*φ13 | 6*φ12 | 7.3 |
| T45 | Triangle Face | 89 | 170 | 4 | / | 8*φ13 | 8*φ13 | 5 |
| T45 | Flat Triangle Face | 102 | 175 | 3 | / | 9*φ13 | 9*φ13 | 7.25 |
| T45 | Flat Triangle Face | 115 | 175 | 3 | / | 9*φ14 | 9*φ14 | 9.5 |
| T38 | Center Drop Face | 64 | 160 | 2 | / | 8*φ9 | 5*φ9 | 2.45 |
| T38 | Flat Face | 70 | 160 | 3 | / | 6*φ11 | 4*φ9 | 2.85 |
| T38 | Center Drop Face | 76 | 160 | 4 | / | 8*φ11 | 5*φ11 | 3.7 |
| T38 | Center Drop Face | 89 | 170 | 4 | / | 8*φ12 | 4*φ12 2*φ10 | 5.3 |
| ST68 | Center Drop Face | 102 | 185 | 4 | / | 8*φ14 | 4*φ13 2*φ12 | 6.1 |
| ST68 | Center Drop Face | 115 | 185 | 4 | / | 8*φ14 | 4*φ14 2*φ13 | 8.4 |
| ST68 | Center Drop Face | 127 | 190 | 4 | / | 8*φ14 | 4*φ14 2*φ13 | 11.4 |
| ST68 | Center Drop Face | 140 | 190 | 4 | / | 8*φ16 | 4*φ14 2*φ13 | 14.3 |
| ST58 | Flat Face | 102 | 180 | 3 | / | 9*φ13 | 6*φ12 | 6.5 |
| ST58 | Flat Face | 115 | 185 | 2 | 2 | 8*φ14 | 6*φ13 | 9.5 |
| ST58 | Center Drop Face | 127 | 185 | 4 | / | 8*φ14 | 4*φ14 2*φ13 | 11.7 |
| R38 | Flat Face | 64 | 140 | 3 | / | 6*φ11 | 3*φ9 | 2.05 |
| R38 | Center Drop Face | 76 | 160 | 4 | / | 8*φ11 | 5*φ11 | 3.65 |
| R38 | Center Drop Face | 89 | 170 | 4 | / | 8*φ12 | 4*φ12 2*φ10 | 5.3 |
| R32 | Flat Face | 51 | 130 | 3 | / | 6*φ10 | 3*φ9 | 1.25 |
| R32 | Flat Face | 57 | 130 | 3 | / | 6*φ10 | 3*φ9 | 1.65 |
| GT60 | Flat Triangle Face | 102 | 212 | 3 | / | 9*φ13 | 9*φ11 | 10 |
| GT60 | Flat Triangle Face | 115 | 212 | 3 | / | 9*φ14 | 10*φ12 | 8 |
| GT60 | Flat Triangle Face | 127 | 212 | 3 | / | 9*φ16 | 10*φ14 | 13.9 |
| GT60 | Flat Triangle Face | 140 | 225 | 3 | / | 9*φ16 | 10*φ14 | 17.4 |
