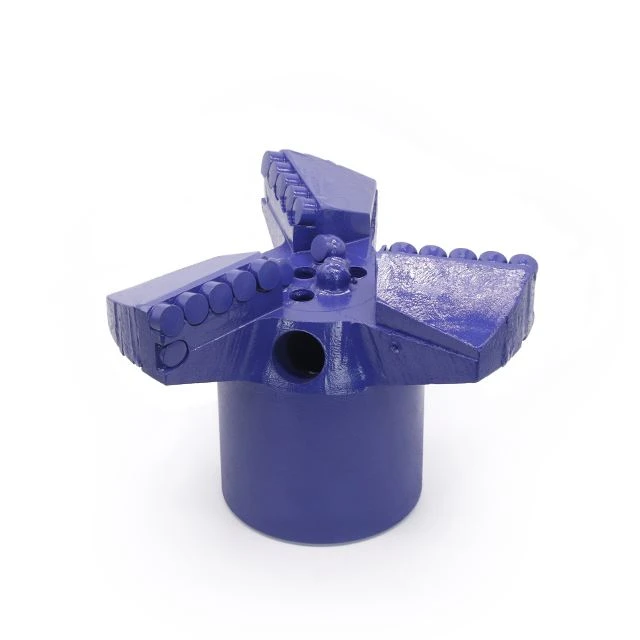

The three-wing PDC drill bit is a marvel of engineering.The cutting material of this drill bit is polycrystalline diamond composite (PDC), which is incredibly durable. It can withstand all kinds of abuse, shrug off high temperatures, and just keeps on working. The design is pretty clever too. It's got three wings, and each one is fitted with PDC cutting teeth. These teeth are like tiny, super-strong warriors, working together to make drilling faster and smoother. It's all about efficiency and stability, and this drill bit delivers.
Application Areas
The three-wing PDC drill bit is suitable for a variety of formations, including but not limited to:
Soft rock: such as mudstone, shale, etc., with fast drilling speed.
Medium hard rock: such as sandstone, limestone, etc., showing good wear resistance and stability.
Hard rock: such as granite, quartzite, etc. The high hardness and impact resistance of the drill bit enable it to work efficiently in these formations.
Mining: used for directional drilling in coal mines, metal mines, etc.
Geological exploration: suitable for drilling under various geological conditions.
Features
High efficiency: The three-wing design increases the cutting area and improves the drilling speed.
Wear resistance: The high wear resistance of PDC material extends the service life of the drill bit.
Strong adaptability: Suitable for a variety of formations, from soft soil to extremely hard rock.
Optimized chip removal: Designed to facilitate chip removal and reduce drill bit clogging.
Customer feedback
Our Customers Feedback
In the limestone formation in Guigang, Guangxi, the 113# three-wing PDC drill bit has a drilling speed of 3 meters/45 minutes and a long service life.
In the strongly weathered granite formation in Ganzhou, Jiangxi, the 150220273 three-wing PDC drill bit has a drilling speed three times that of a geological exploration drill bit, and there is almost no wear when drilling more than 100 meters.
-
EfficiencyDrilling speed3 meters/45 minutes
-
AdaptabilityExtended lifespanApplicable to various strata
Buying advice
If you need to buy three-wing PDC drill bits, you can contact me for more information.
The company was established in 2001, It is a manufacturer mainly engaged in Low pressure hammer,Medium pressure hammer ,High pressure DTH hammer, as well as down the hole drilling rig accessories and drill rods.
Adhering to the concept of "win-win cooperation", we have formed strategic partnerships with numerous domestic peers, committed to becoming a one-stop service center, promoting global drilling and production needs, and becoming a technology-based, sharing and mutual assistance company. Thus, D-MININGWELL Supply Chain Co., Ltd. was born. MININGWELL's supply chain covers all excellent rock drilling products in China, from underground drilling to open-pit and deep well drilling, providing one-stop services for global rock drilling companies.
Our products are exported to all parts of the country and highly praised by domestic and foreign users.
Facebook：drilling rig plan+(https://www.facebook.com/profile.php?id=61551253829157)
Ins ：d_miningwelldrillingrigsturkey
WhatsApp ：+8615857099988
Tiktok：d_miningwell_comp
Youtube:dminingwell@gmail.com
Our address
No. 18 Gaotang Road, Qujiang District, Quzhou City, Zhejiang Province
Phone Number
+8615857099988
seo@dminingwell.com
FAQ
01.Are you factory or trading company?
Yes, we are factory with more than 23 years of manufacturing experience.02.Can you introduce your company?
03.Are your products suitable for wholesale and retail?
04.Can we be your sales agent in our country?
05.I am a middleman, how can you make my customers trust and choose me?
06.How do you explain the high charges for port of destination?
comparison of product parameters
| Bit Type | 6" | 8-1/2" | 8-1/2" | 12-1/4" | Bit Type | 17-1/2" GM1606T |
| IADC Code | M423 | M432 M332 |
M323 | M432 M332 |
IADC Code | M323 |
| Blade | 5 | 6 | 8 | 6 | Blade | 6 |
| Cutter Size (mm) |
φ13 MM | φ16 MM | φ13 MM | φ16 MM | Cutter Size (mm) | φ16MM; φ13MM |
| Nozzle Qty/Type |
5 | 13.2 | 9.6 | 30.78 | Cutter Qty | 16x58;13x81 |
| Nozzle Qty/Type |
3NZ | 6NZ | 4NZ | 6NZ | Nozzle Qty/Type | 8NZ |
| Gauge Length | 1.5" | 2.2" | 2" | 2.5" | Gauge Length (mm) | 10 |
| Connection | 3-1/2" API REG |
4-1/2" API REG |
4-1/2" API REG |
6-5/8"API REG |
Connection | 7-5/8°API REG |
| Make up Torque(KN.m) |
10.4~11.4 | 24.1-26.5 | 24.1-26.5 | 51.7~56.9 | N.W.Z G.W. (KG) | 338/388 |
| Rotary Speed(rpm) |
60-260 | 60-260 | 60-260 | 60-260 | Nozzle Size (inch) | 10/32 |
| Weight on Bit(KN) |
8-50 | 20-100 | 20-100 | 30-140 | Rotary Speed(Rpm) | 60-260 |
| Max.WOB(KN) | 90 | 130 | 130 | 180 | Weight On Bit(KN) | 30-200 |
| Flow Rate(Ips) | 10-30 | 22-35 | 22-35 | 38-70 | Max.WOB(KN) | 240 |
| Flow Rate (Ips) | 45-80 |
